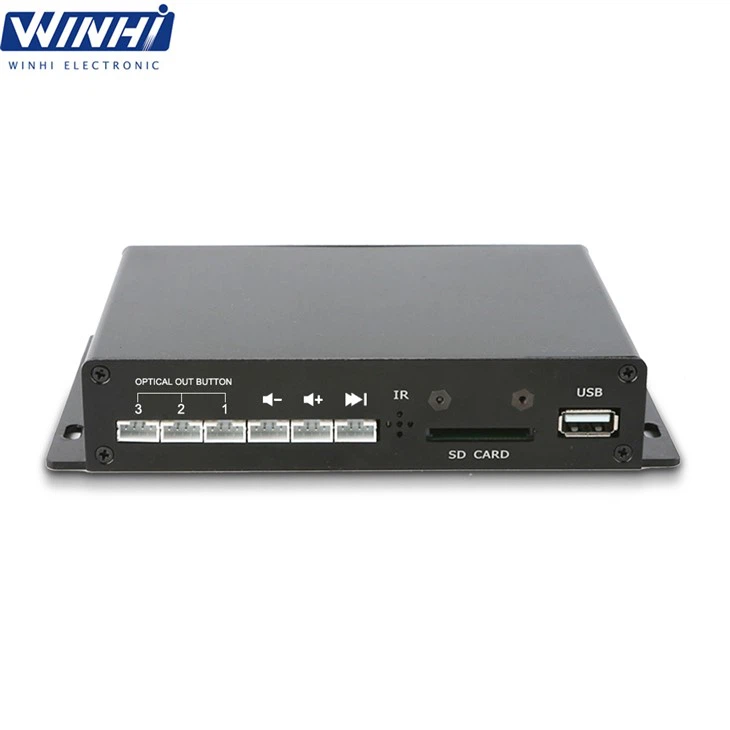

TOSLINK Audio Demo Player
Item: Versatile Audio Media Player with Optical Out - Digital Player with SPDIF Output for Music Playback and Audio Testing
Features:
1. Professional Audio Demo Player – Supports three independent TOSLINK optical outputs, HDMI, lossless playback, and Dolby audio for Hi-Fi retail demonstrations.
2. Flexible Control & Easy Operation – Dedicated buttons for optical output selection, volume adjustment, and next up control.
3. Plug-and-Play Playback – USB plug-and-play, 5.5GB internal memory, and auto-loop playback for continuous demo content.

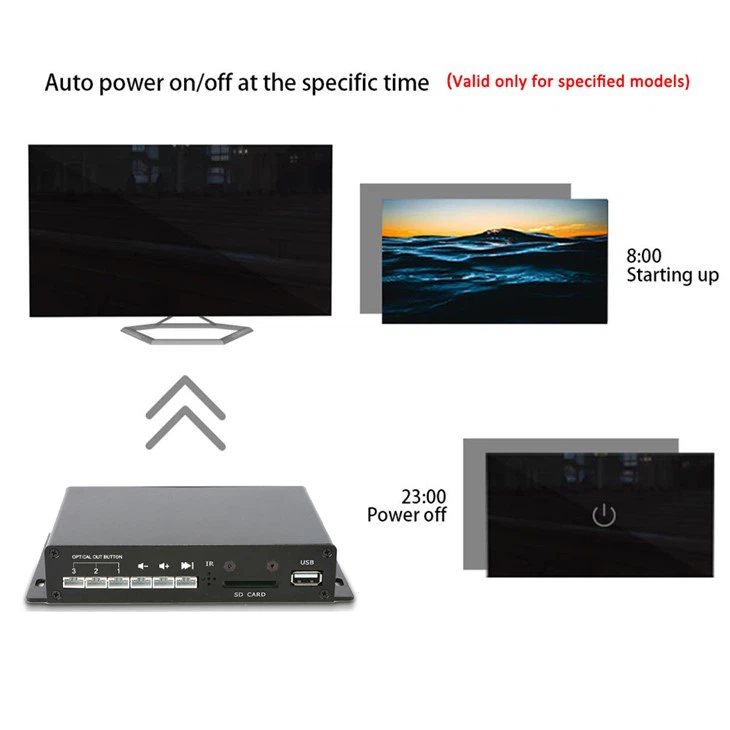

4. Commercial-Ready Design – Scheduled power on/off and multi-format audio playback for reliable retail operation.
Applications: Hi-Fi speaker retail stores, audio equipment showrooms, home theater demo rooms, museums, exhibitions, and commercial audio display systems.
Certification: FCC, CE, ROHS
Warranty: 1-3 Years
Send Inquiry
Product Details of TOSLINK Audio Demo Player
Products Overviews

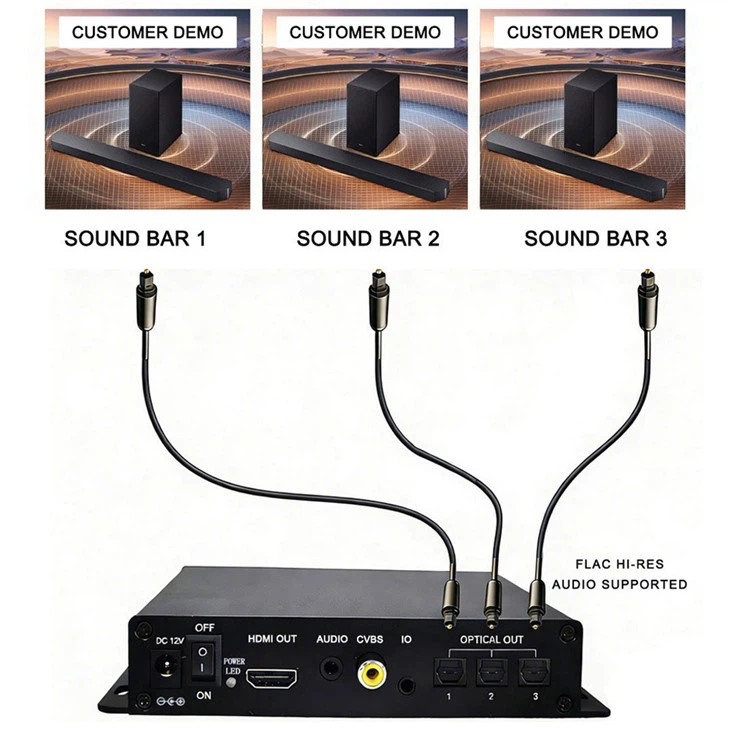

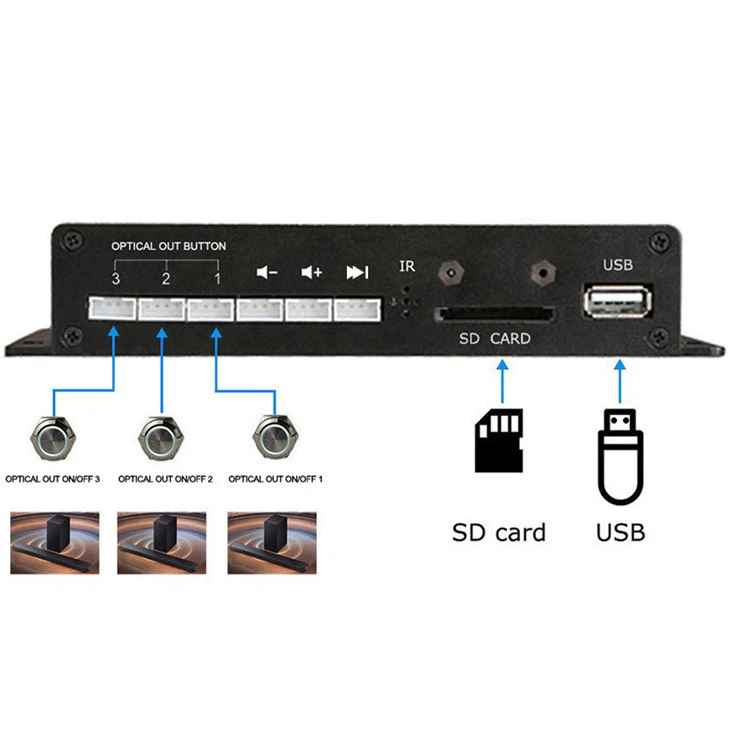

Independent Optical Output Control
Three independent TOSLINK outputs, each controlled by its own button. Pressing a button activates playback on the corresponding speaker or SoundBar, making it ideal for in-store demonstrations and quick comparison between individual units.
Product Parameters
| Supports 4K UHD resolution with backward compatibility (4K/1080P/720P) |
| File copy: The player has 5G internal storage, supports copying files to internal storage from a USB disk |
| Supports automatic playback at startup (after file copy to internal memory) and plug-and-play for USB/SD storage |
| Video output: HDMI, CVBS |
| Support seamless switching between videos, no black screen |
| Screen rotation: Support horizontal screen and vertical screen display, video and menu can be rotated 90°/180°/270° |
| Supports auto video output and multiple resolutions up to 4K @ 30Hz and Full HD (1080P) at multiple refresh rates |
| Audio outputs: 3*Optical, HDMI audio, 3.5mm audio out |
| Supports 3*optical outputs with simultaneous or independent channel control via buttons or remote control |
| Auto-Mute Timer: 0s (Always On) / 30s / 60s / Custom. |
| Buttons: 6 keys (Optical Output 1/2/3, Volume +/-, Next up) |
| Support 13 kinds of picture transition effects |
| Boot Screen: Custom picture (with customer-specific logo) |
| OSD language: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic |
| Applications: Hi-Fi speaker retail stores, audio equipment showrooms, home theater demo rooms, museums, exhibitions, and commercial audio display systems |

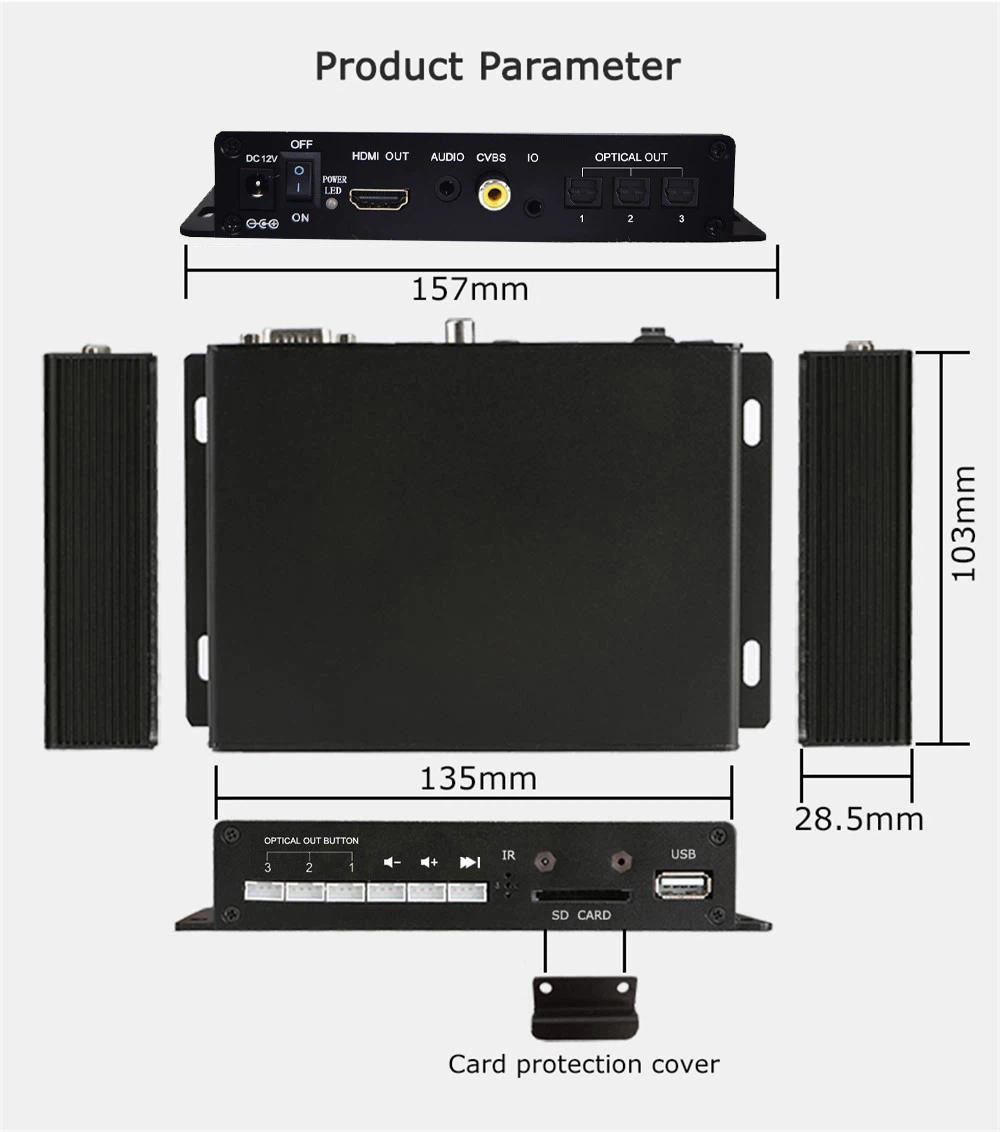

Specifications

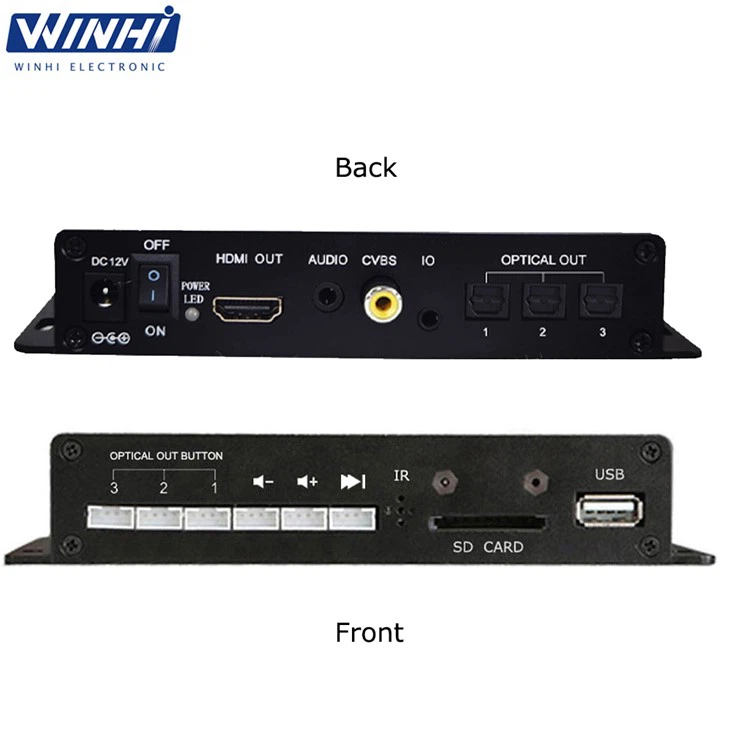

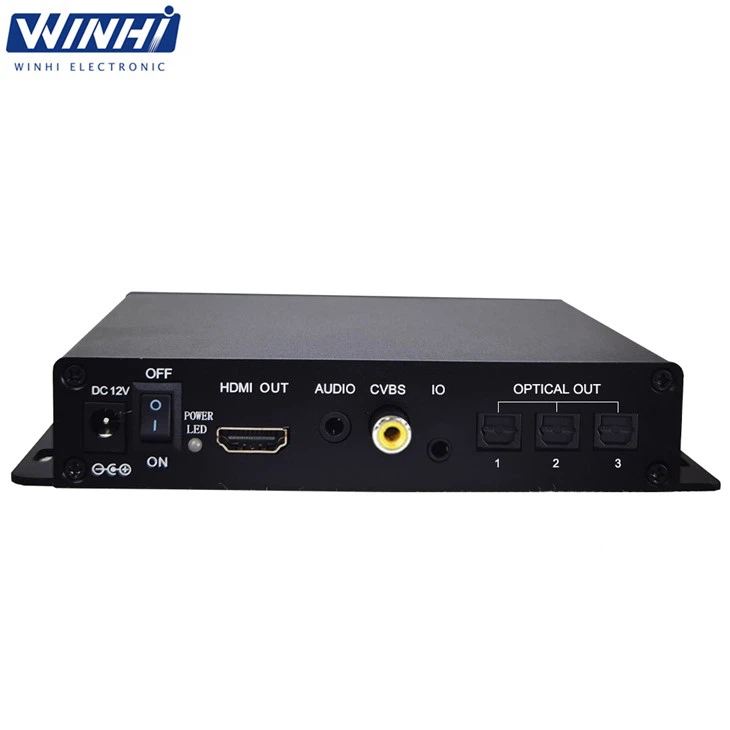

| Interface | HDMI Output | 3840*2160 (4K UHD) |
| CVBS Output | NTSC | |
| OPTICAL Output | 3*separate optical (Toslink) audio output channels | |
| AUDIO Output | 1*3.5mm headphone jack | |
| USB | USB 2.0 port*1 | |
| SD Card | SD card slot*1 | |
| I/O Port | 1*external I/O port (for motion sensor connection) | |
| Button interface | 6 control buttons: Optical output 1–3 selection, Volume +/-, Next up | |
| IR | Infrared remote control receiver | |
| ON/OFF | Power ON/OFF switch | |
| Power Supply | DC 12V/1.5A | |
| Media Format Support | Video Formats | AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265 MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV |
| Audio Formats | MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B | |
| Image Formats | JPG, JPEG, BMP, GIF | |
| Storage Support | SD card / USB storage (USB 2.0 high-speed) | |
| Supports up to 2TB external hard drive | ||
| Others | Working Temperature | 0°C~ 40°C (32℉~104℉) |
| Shell | Black metal shell | |
| Accessory | Power adapter*1 | |
| Remote control*1 | ||
| Fiber optic cables*3 | ||
| HDMI cable*1 |
Best selling
FAQ
Q: Do you have your enclosure factory?
A: Yes, we do have our enclosure factory, and we have the best structural Engineer. Hope to provide you with the best advertising media solutions and personalised shapes, OEM is also welcome.
Q: Can it be customised?
A: Yes, we have OEM/ODM customer service.
Q: What is the extra cost for your OEM order?
A: Please get in touch with our salesperson about your detailed requests.
Q: Why should you buy us a TOSLINK Audio Demo Player?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, TOSLINK Audio Demo Player, monitors, customised audio-video products, etc. We have our designers and R&D team, which allows us to support customised design.
Q: How long is the lead time?
A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
