HDD Players Box
Item: UHD 4K HDMI Out Push Button/ RS232 Control/ Digital Optical Out Digital Signage TV HDD players Box
Price Range: $80-$110
Warranty: 1-3 Years

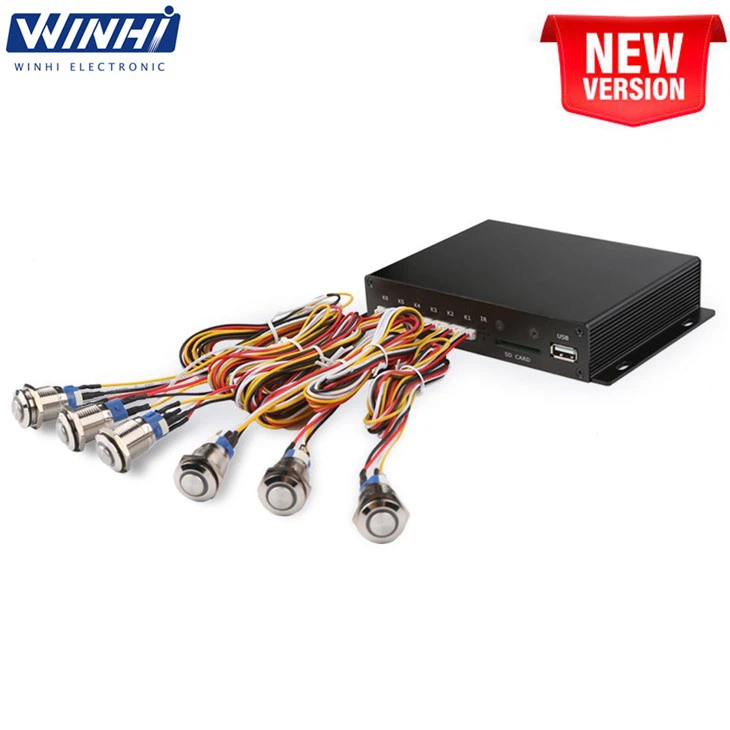

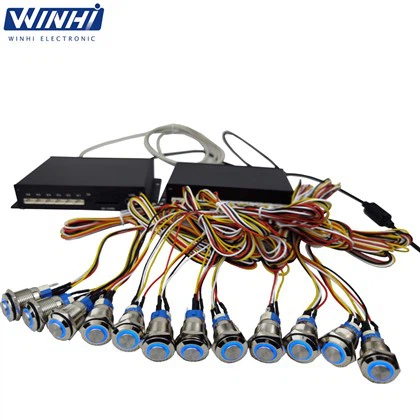

1. Button Configurations: 6 LED or 12 non-LED buttons, customizable for video and relay control.
2. Control Options: RS232 and custom playback controls for precise command execution.
3. Audio Outputs: Customizable Audio, Optical, and HDMI sound outputs.
4. Video Capabilities: HDMI, CVBS outputs; 4K(3840x2160p/30Hz), seamless switching, supports horizontal/vertical display.
5. Multimedia Integration: Ideal for exhibitions synchronizes video and lighting control.
6. Functional Buttons: Each button controls video playback and activates relays.

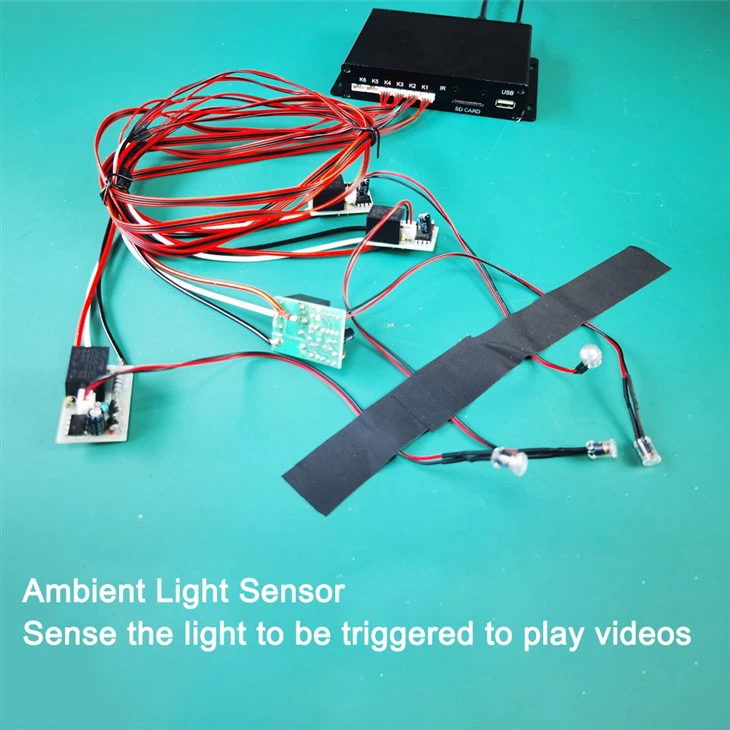

7. Support GPIO Trigger Video Play
Send Inquiry
Product Details of HDD Players Box

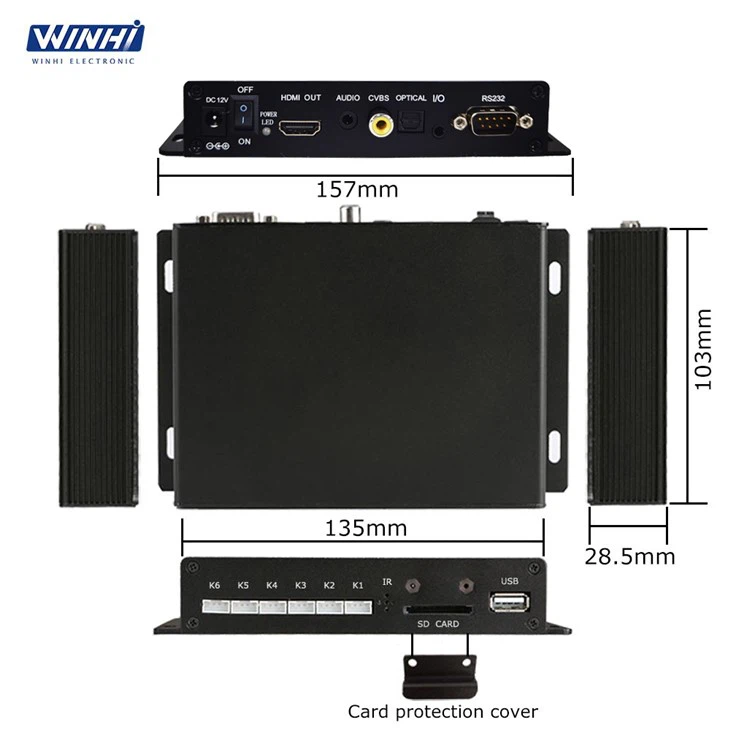

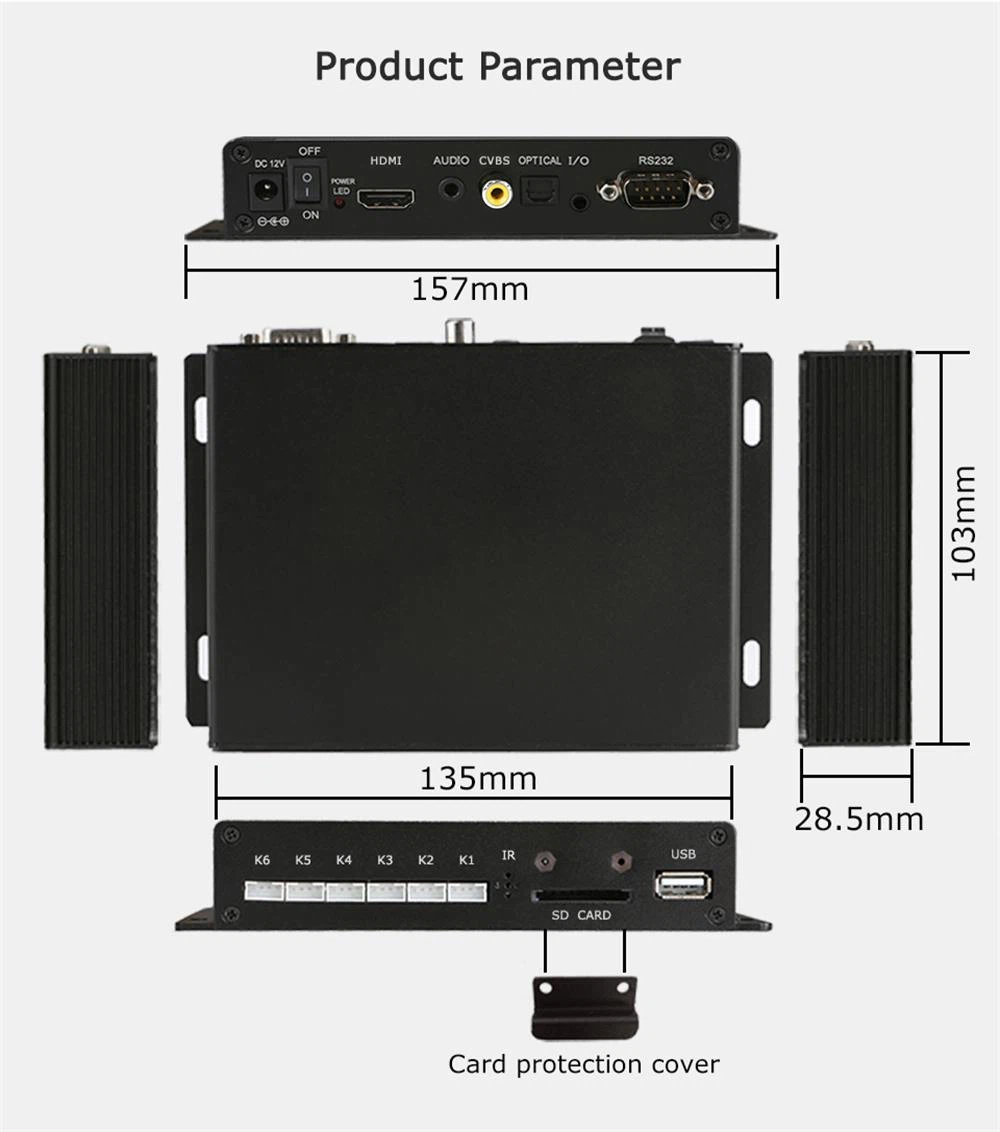

Product Parameters
| Features: |
|
Supports 1080P up to 4K HDMI output for high-quality audio and video playback. |
|
Offers multiple working modes, including auto-play upon power-on, folder-based file playback, RS232 serial control, button control, and customizable controls. |
|

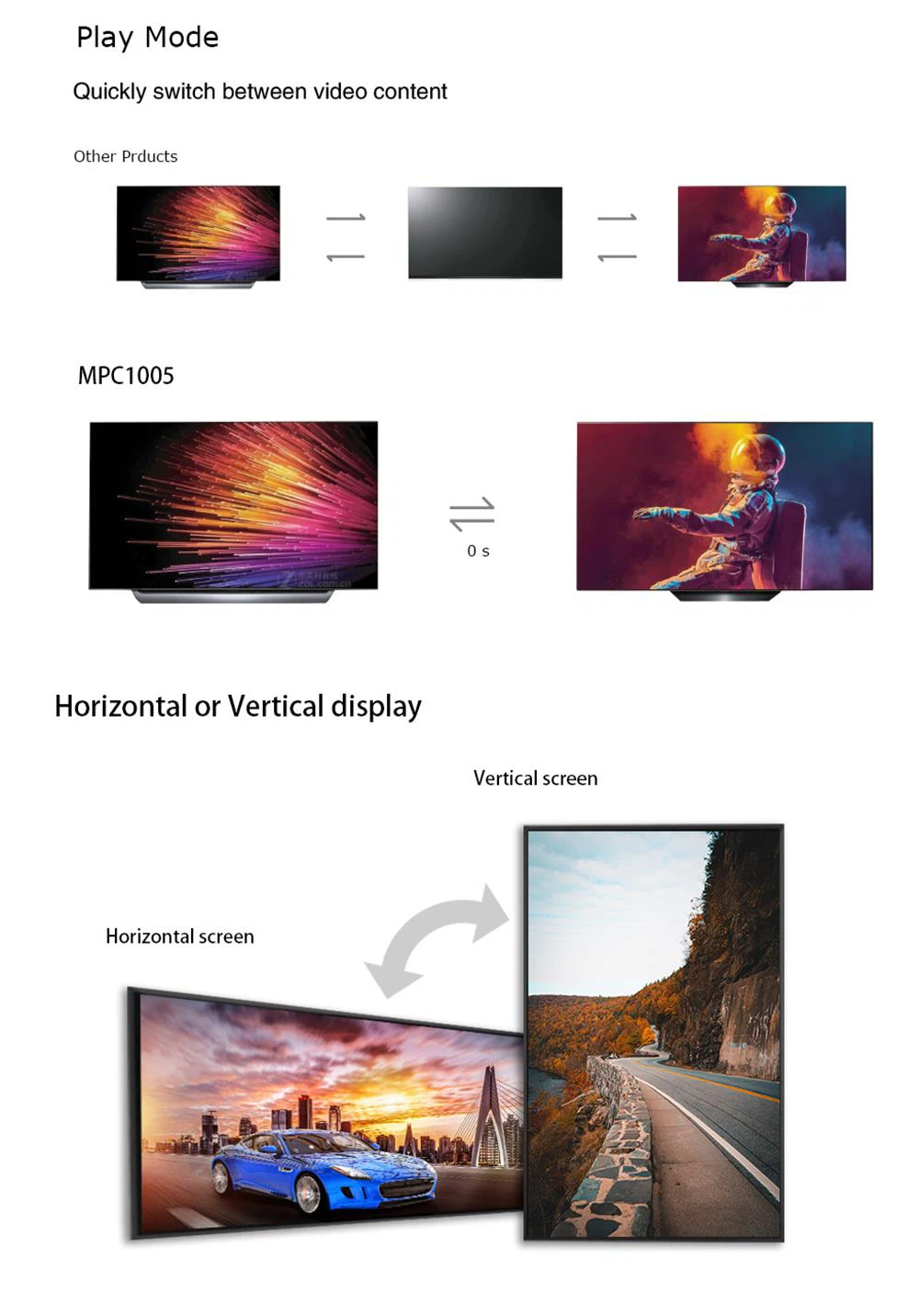

Seamless video transitions without black screens. |
|
Equipped with an RS232 interface for external command control (e.g., play, pause, stop, volume adjustment, power on/off). |
|

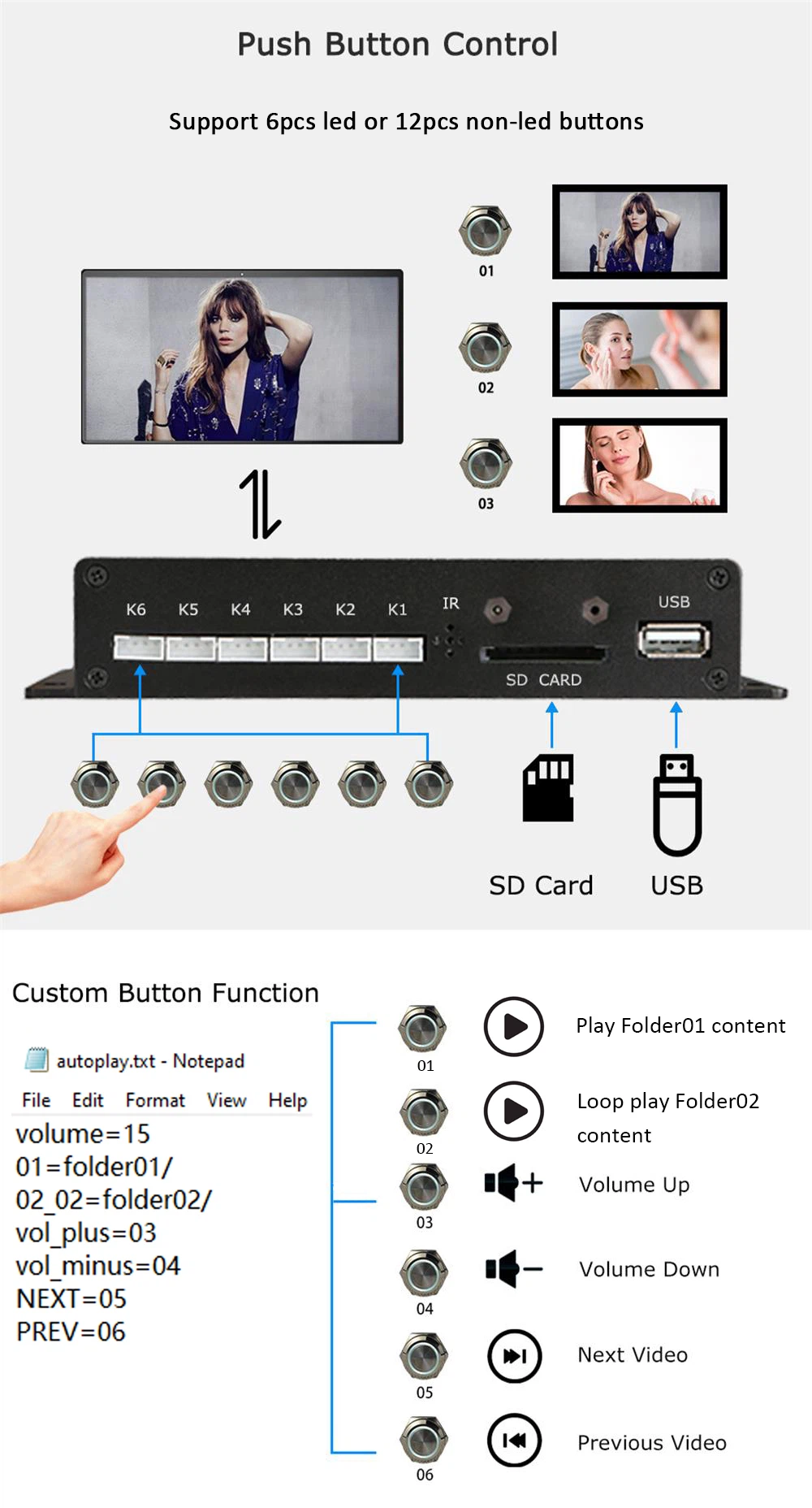

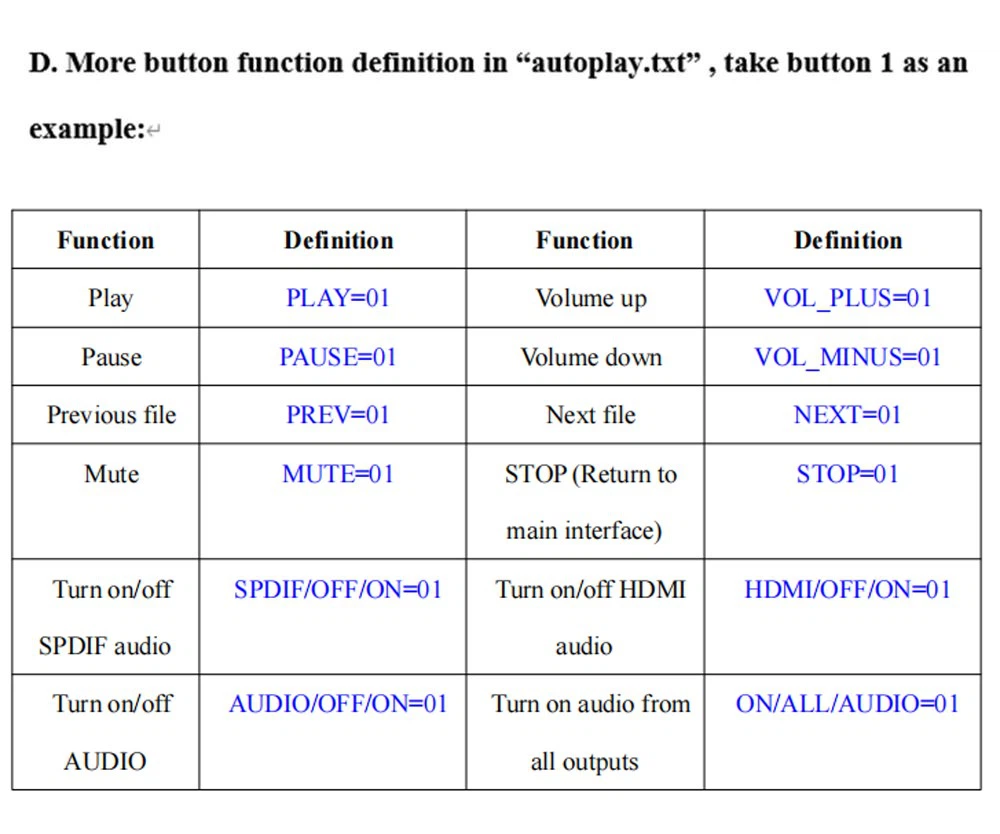

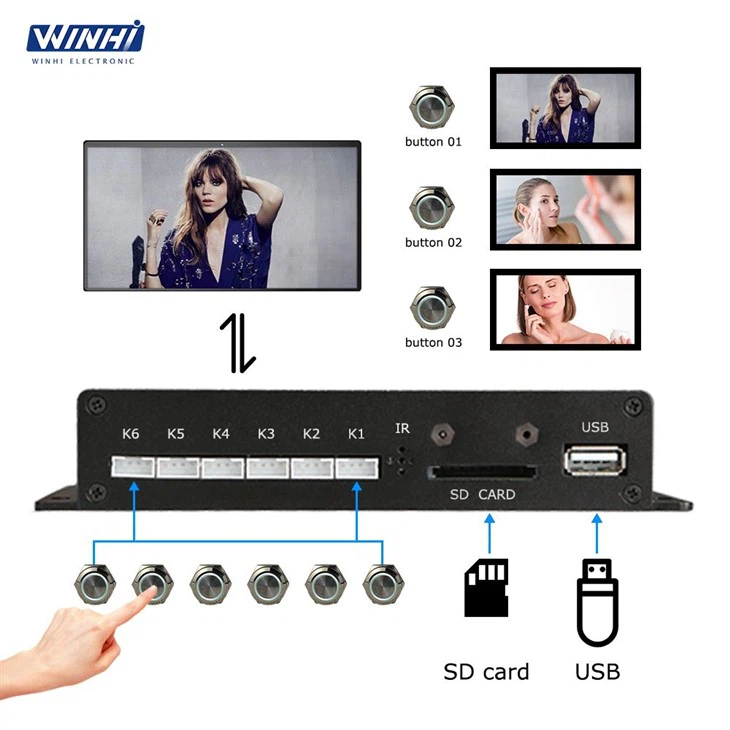

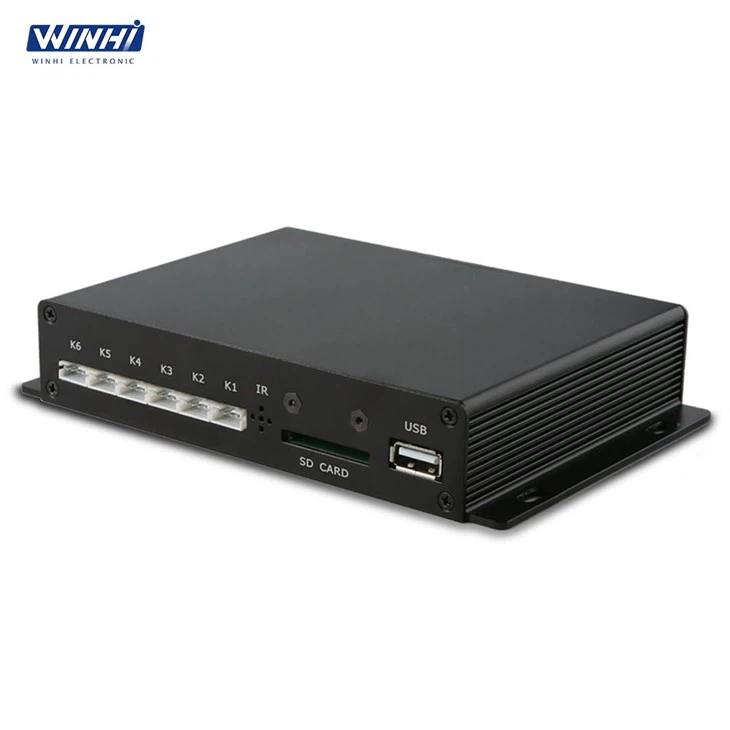

Compatible with both LED (6 buttons) and non-LED (12 buttons) configurations, where each button's function can be customised via an "autoplay.txt" file. |
|

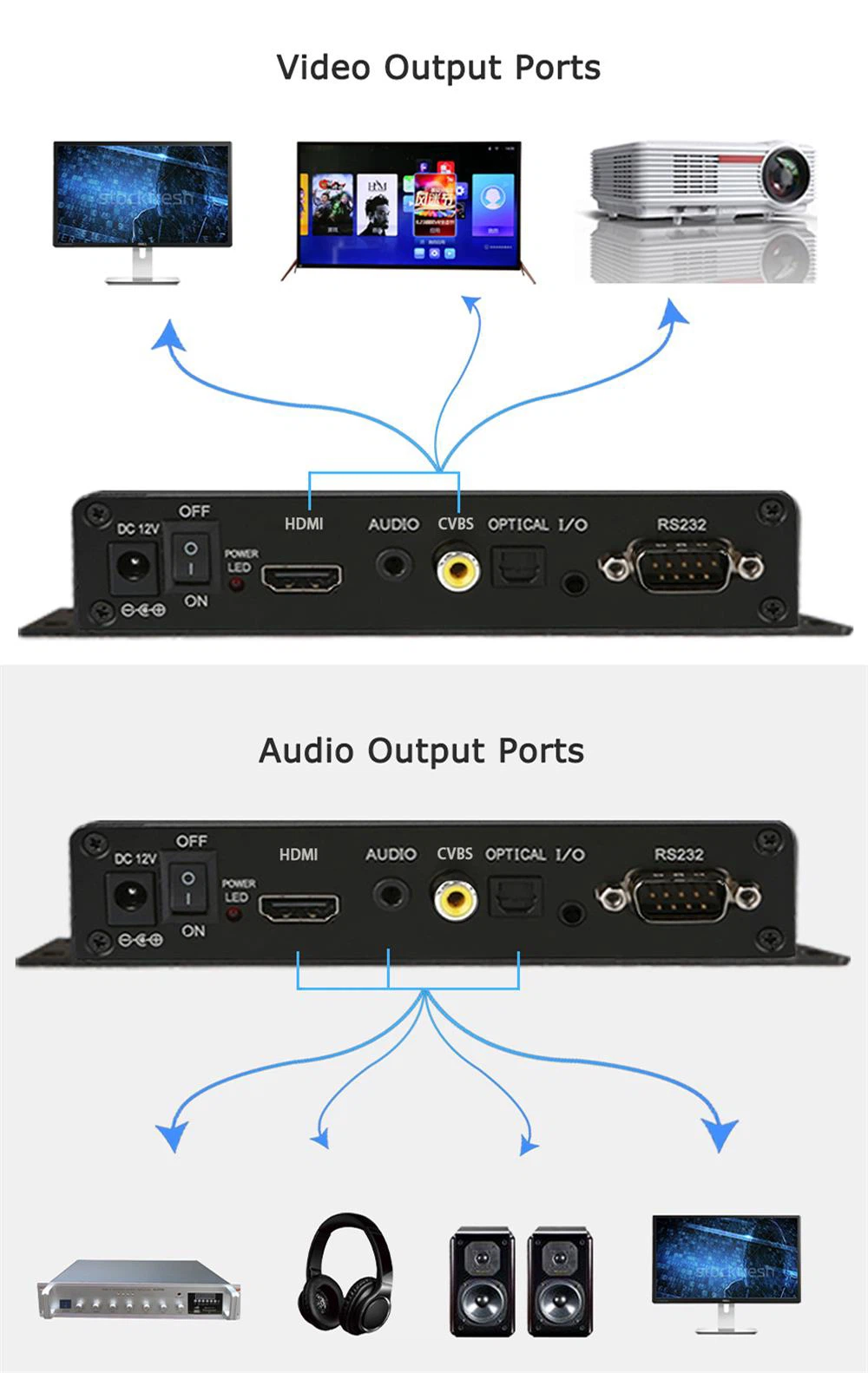

Video outputs include HDMI and CVBS, supporting screen rotation at 90°, 180°, or 270°. |
|

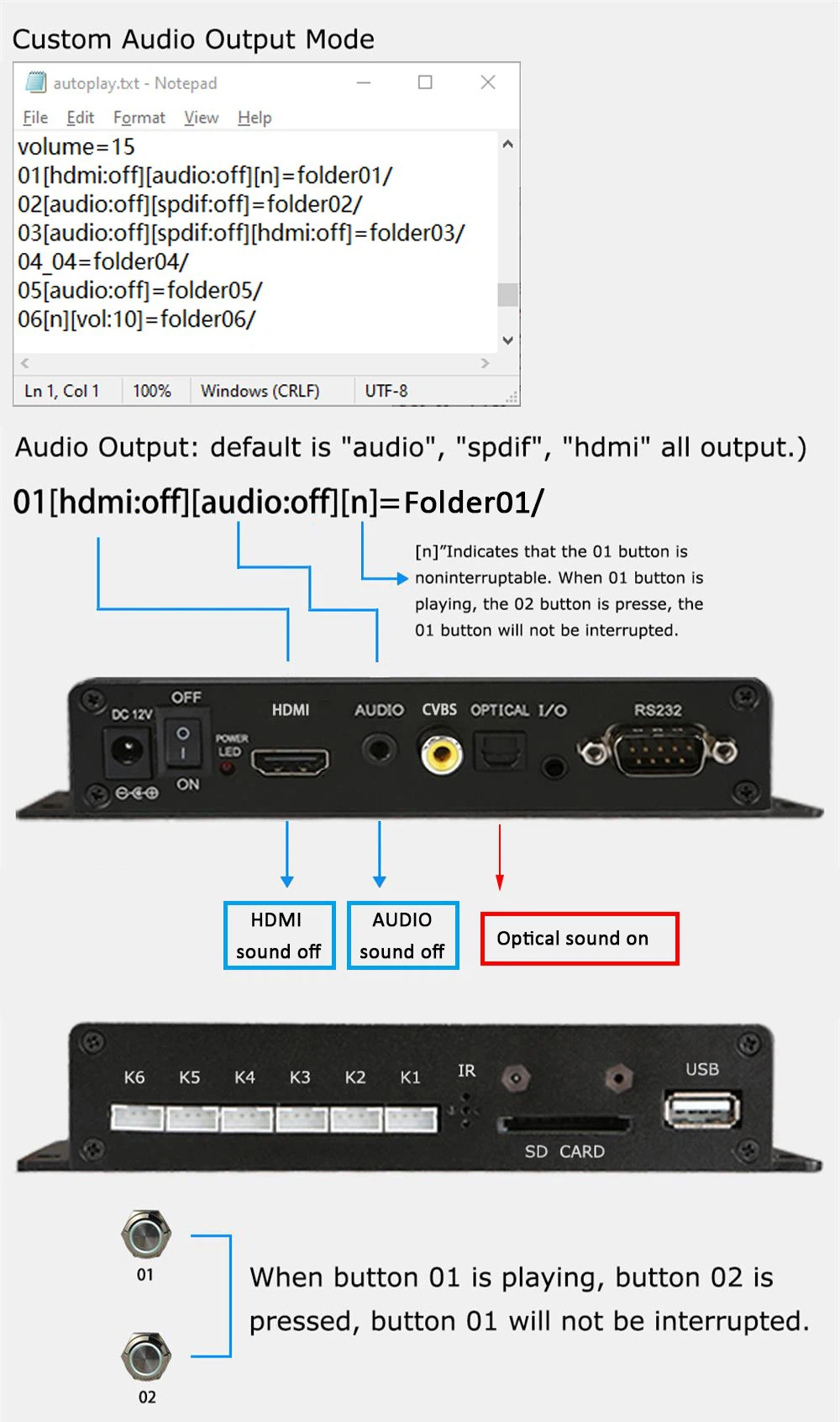

Audio outputs through optical, HDMI, and standard audio ports, with default settings allowing simultaneous output from all options, customizable in "autoplay.txt". |
|
Capable of playing background music during image slideshows. |
|
Supports 13 types of image transition effects. |
|
Internal storage of 5GB with USB file copy functionality. |
| Support GPIO Trigger Video Play |
|
Customizable boot screen with a client-specific logo. |
|
Multi-language OSD support (Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic). |
|
Technical Specifications: |
Supports AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV formats for video; MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B for audio; JPG, BMP, JPEG, and GIF for images. |
|
|
|
|
|
|
| Applications: Ideal for interactive demonstrations and product displays in retail stores, shopping malls, museums, airports, hotels, etc., suitable for promoting products through audio and video content and event introductions. |
Products Overviews
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |

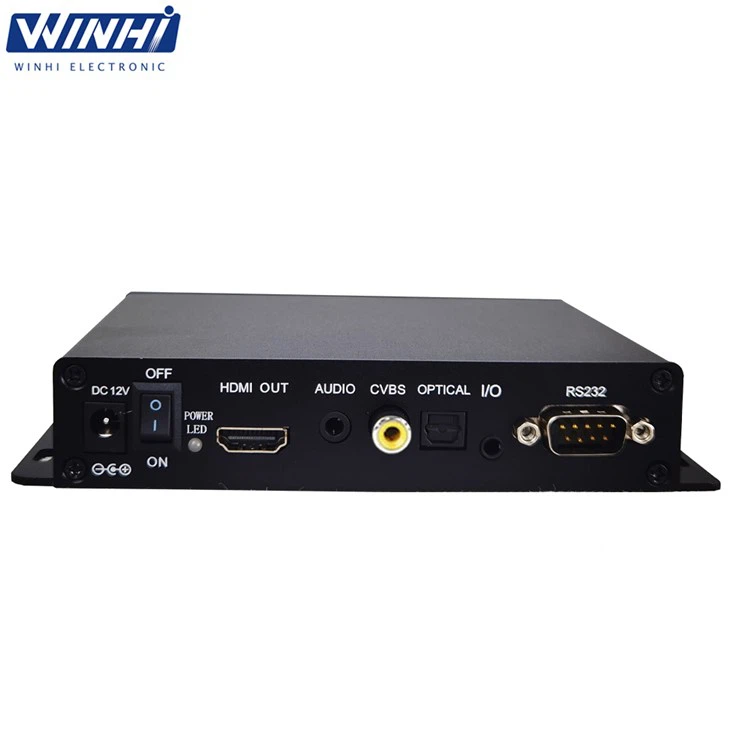

HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
Best selling
FAQ
Q: Do you have your enclosure factory?
A: Yes, we do have our enclosure factory, and we have the best structural Engineer. Hope to provide you with the best advertising media solutions and personalised shapes, OEM is also welcome.
Q: Can it be customised?
A: Yes, we have OEM/ODM customer service.
Q: What much the extra cost for your OEM order?
A: Please get in touch with our salesperson about your detailed requests.
Q: Why should you buy us an HDD player Box?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, HDD player boxes, monitors, customised audio-video products, etc. We have our designers and R&D team, which allows us to support customised design.
Q: How long is the lead time?
A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
