Digital Media Player HDMI
Item: HD 4K HDMI Out motion sensor/ RS232 Control/ Digital Optical Out Media Player
Price Range: $86-$116
Auto-play when power on
Playback designated files when censored
USB/SD card playback
Support GPIO Trigger Video Play
Certification: FCC, CE, ROHS
MOQ 1pc, fast function and quality evaluation
Warranty: 1-3 Years
Send Inquiry
Product Details of Digital Media Player HDMI
Product Parameters
|

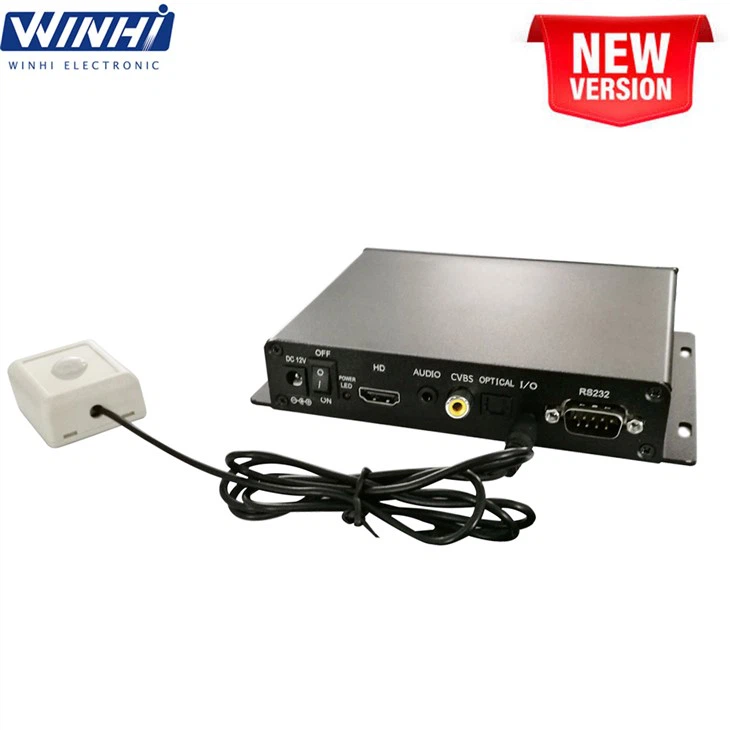

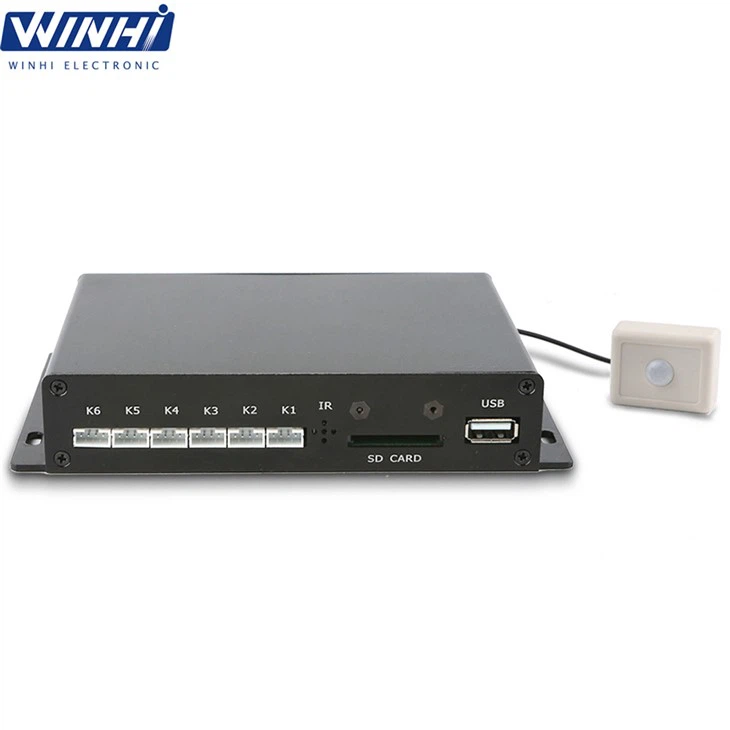

Product Overview: The HD 4K HDMI Media Player is a versatile audio-video playback device designed for seamless multimedia presentations. It features advanced control options, including RS232 serial control, motion sensor activation, and customizable playback modes. |
| Key Features: |
|
4K HDMI Output: Supports 1080P and 4K video resolution for high-quality playback. |
|

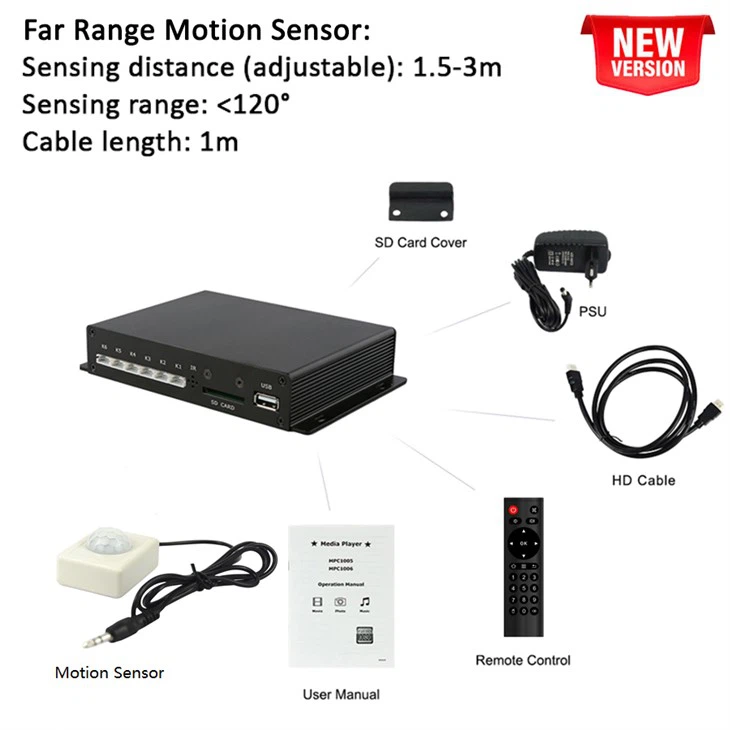

Motion Sensor Playback: Automatically plays files from Folder 01 when motion is detected (detection range: 10cm–300cm, angle: 10°–120°), then returns to root directory playback. |
|
Multiple Control Modes: Auto-play on power-up. Folder-based file playback. RS232 serial control for play, pause, stop, volume adjustment, mute, and file navigation. Customizable playback settings. |
|
Seamless Video Switching: Ensures smooth transitions between videos without black screens. |
|
Screen Rotation: Supports 90°, 180°, and 270° rotation for both video and menu display. |
|
Audio Output Options: HDMI, optical, and 3.5mm audio jack. |
|
Background Music: Supports background music during image playback. |
|
Picture Transition Effects: 13 transition effects available. |
|
Internal Storage: 5GB internal storage with USB file transfer support. |
|
Custom Boot Screen: Allows for custom logos or images. |
| Support GPIO Trigger Video Play. |
|
Multi-language OSD: Supports 12 languages, including English, Chinese, Russian, and more. |
| Technical Specifications: |
| Supported Formats: |
|
|
|

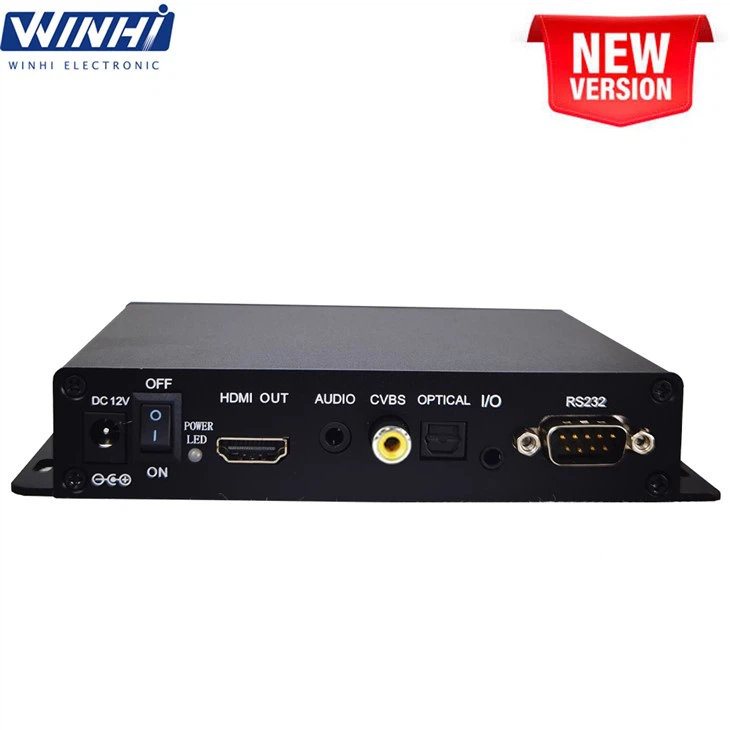

| Interfaces: |
|
|
|
|
|
|
|
|
|
|
|
| Power Supply: DC 12V/1.5A. |
| Operating Conditions: |
|
|

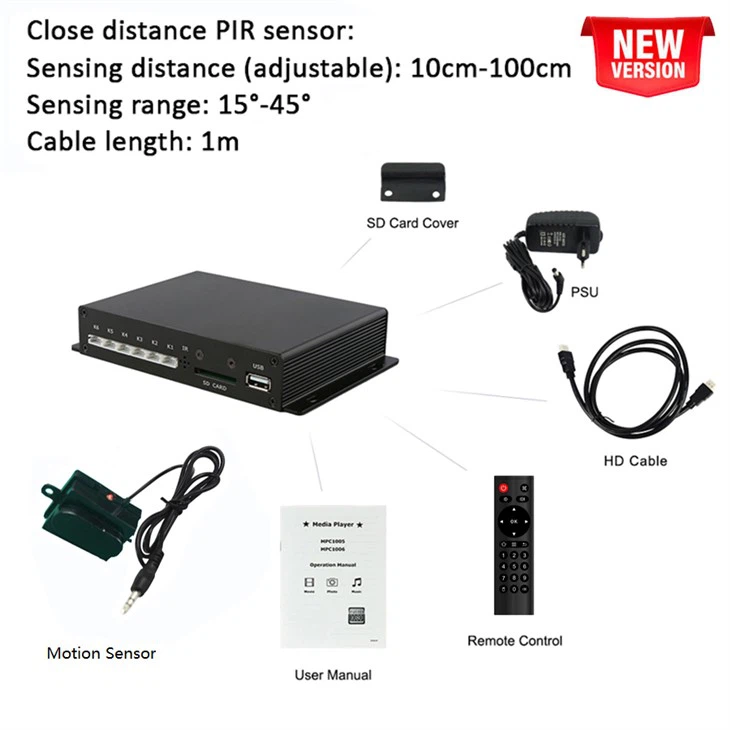

| Accessories Included: |
|
| Applications: Ideal for interactive displays, product promotions, and event introductions in retail stores, shopping malls, museums, airports, and hotels. |
Products Overviews
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
Best selling
FAQ
Q: Are you a manufacturer or a trade company?
A: We are a manufacturer. All of our digital signage and video decoders are our brands "Lanmade" and "WINHI".
Q: Why Should I Choose You?
A: 1) Professional OEM/ODM and personalised private customize.
2) Competitive price, direct sale from the factory
3) Outstanding design and high quality.
4) Short lead time and fast delivery.
5) 1-3 Years full warranty and 24/7 online technical support.
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantities.
Q: Why should you buy us a digital media player HDMI?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, digital media player HDMI, monitors, customised audio-video products, etc. We have our designers and R&D team, which allows us to support customised design.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days, depending on the quantities and product models of your order.
