3 SPDIF Outputs Digital Signage
Item: Professional 3 SPDIF Audio Ports Digital Signage Case - Durable Speaker & Television Product Showcase for Exhibition Halls
Price Range: $80-$110
Warranty: 1-3 Years
1. Button Configurations: 6 LED or 12 non-LED buttons, customizable for video and relay control.
2. Control Options: RS232 and custom playback controls for precise command execution.
3. Audio Outputs: Customizable Audio, Optical, and HDMI sound outputs.
4. Video Capabilities: HDMI, CVBS outputs; 4K(3840x2160p/30Hz), seamless switching, supports horizontal/vertical display.
5. Multimedia Integration: Ideal for exhibitions, synchronizes video and lighting control.
6. Functional Buttons: Each button controls video playback and activates relays.
7. Support GPIO Trigger Video Play
8. The 3 SPDIF channels support two working modes: full-channel activation, or single-channel independent operation.
Send Inquiry
Product Details of 3 SPDIF Outputs Digital Signage
Products Overviews

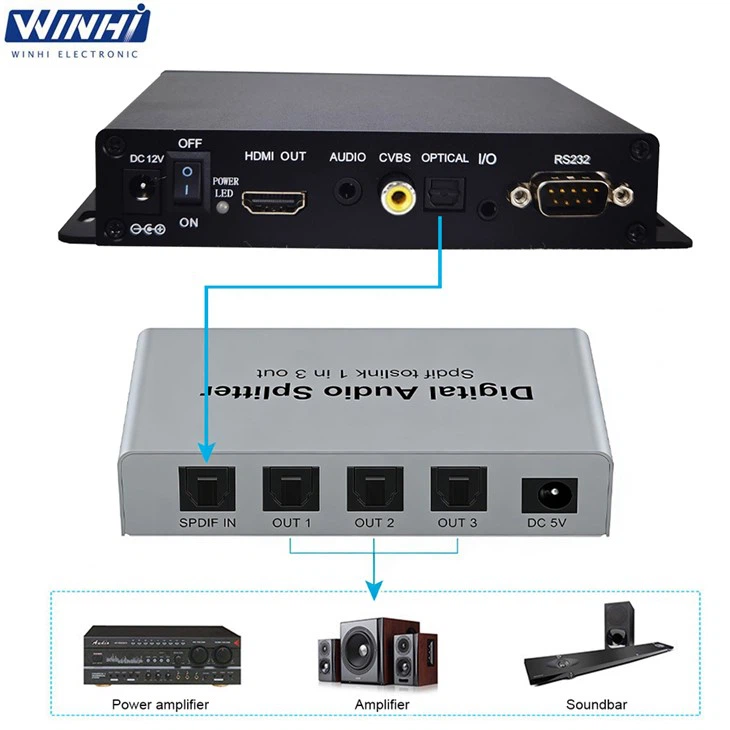

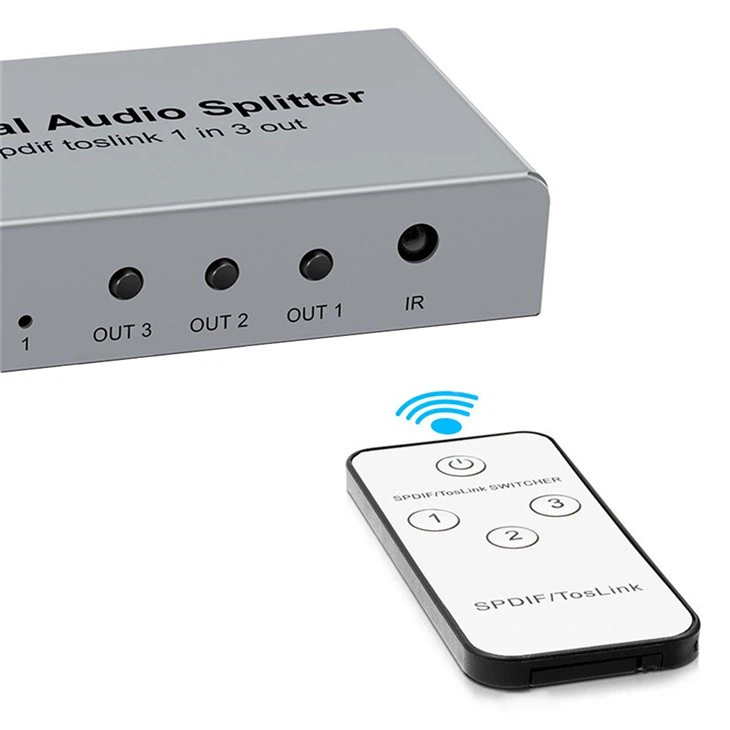

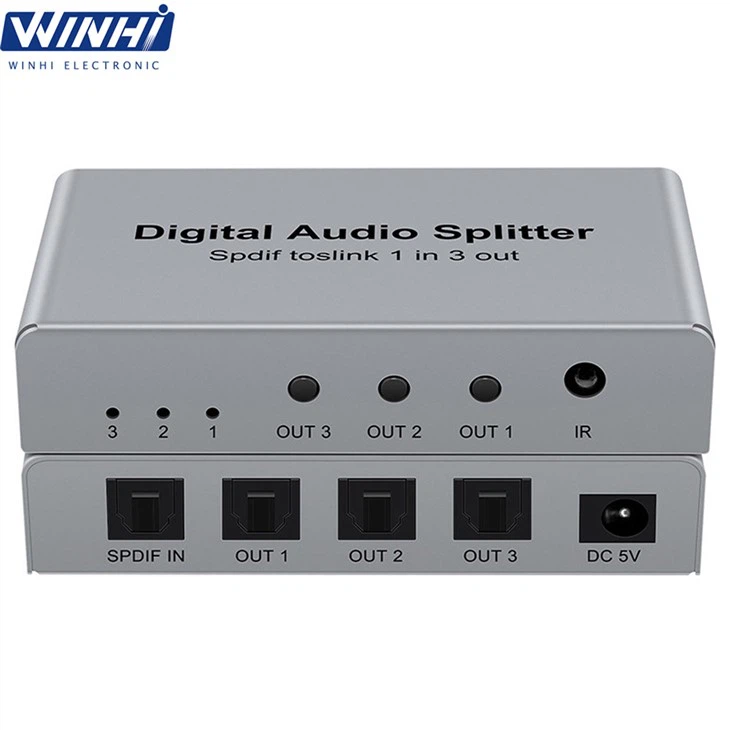

Optical Splitter: 1 Input → 3 SPDIF/TosLink Outputs
The 3 SPDIF channels support two working modes:
full-channel activation, or single-channel independent operation.
Product Parameters
| 1080P 4K HDMI output audio video media player. |
| Working Mode: A. Auto-play after power on; B. Folder files playback; C. RS232 serial control playback; D. Button control playback; E. Custom control playback |
| Support seamless switching between videos, with no black screen. |
| RS232 Control: send RS232 commands to control the media player. (Play, pause, stop, volume up/ down, mute, next/ previous file, power on/off, play files in folders 01~99.) |

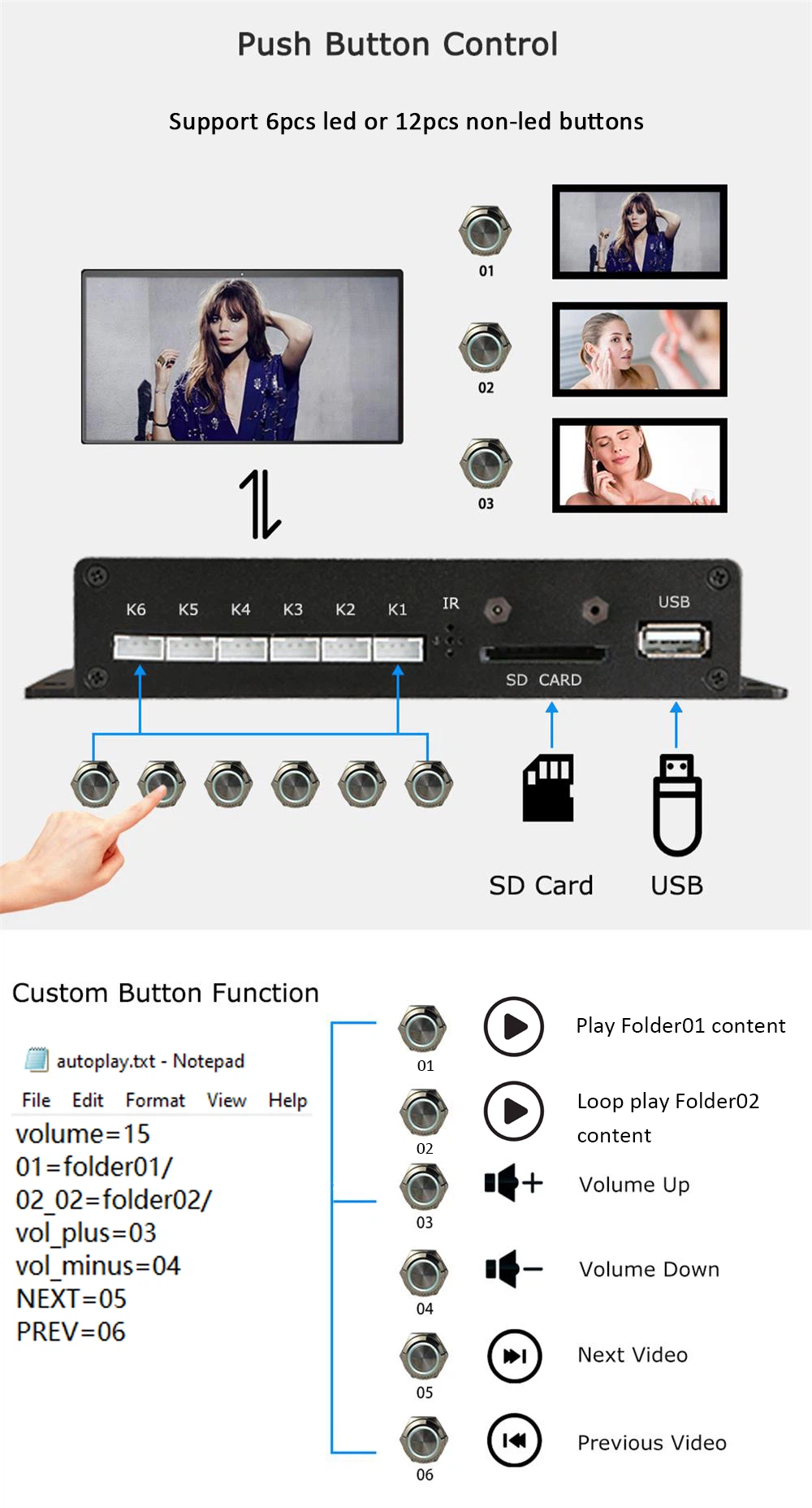

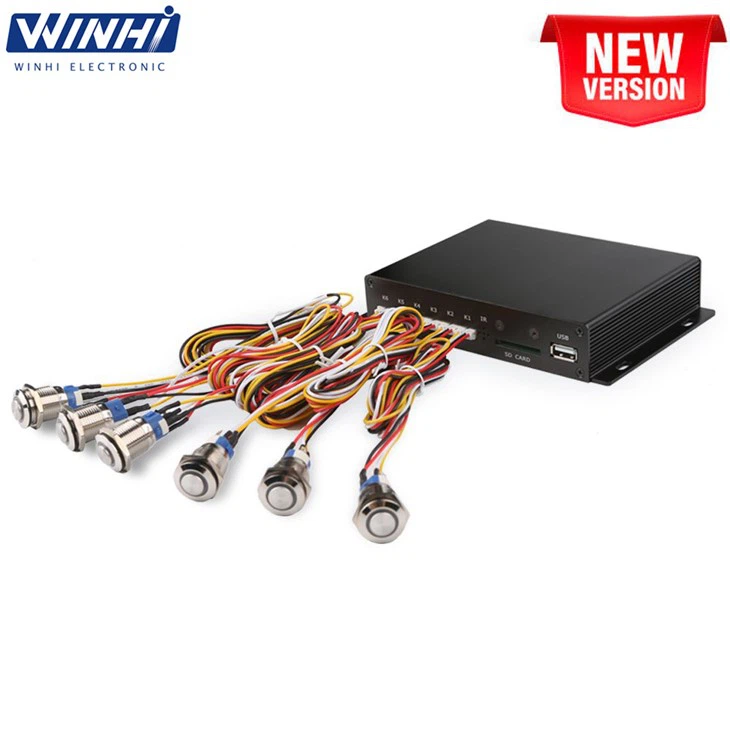

| Button supported: 6 LED buttons or 12 non-LED buttons. |
|

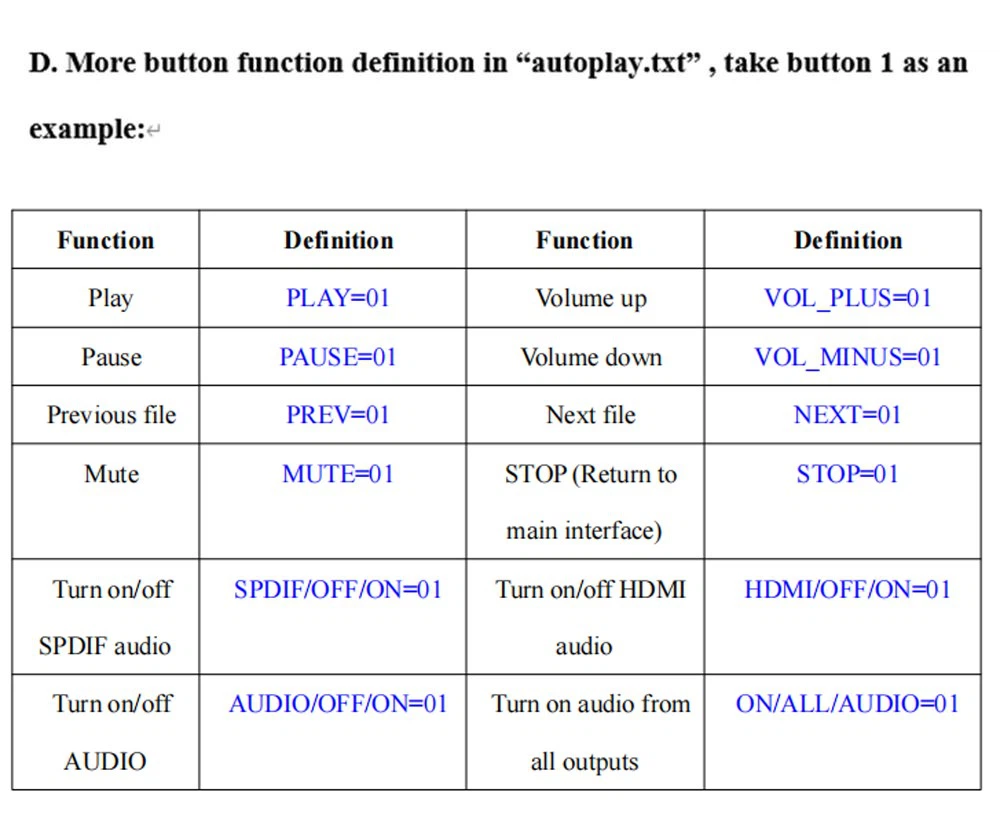

Button Control: The function of each button can be customised in the "autoplay.txt" file. (For example, Play files in the folder, pause, volume up/ down, next/previous file.) |
|
Video output: HDMI, CVBS. |
|
Screen rotation: Support horizontal and vertical screen display, video, and menu that can be rotated 90°/180°/270°. |
|
Video output mode: auto, 3840X2160p-30HZ, 1920X1080p-60HZ, 1920X1080p-50HZ, 1920X1080p-30HZ,1920X1080p-25HZ... |
|
Audio output: Optical, HDMI, Audio. |

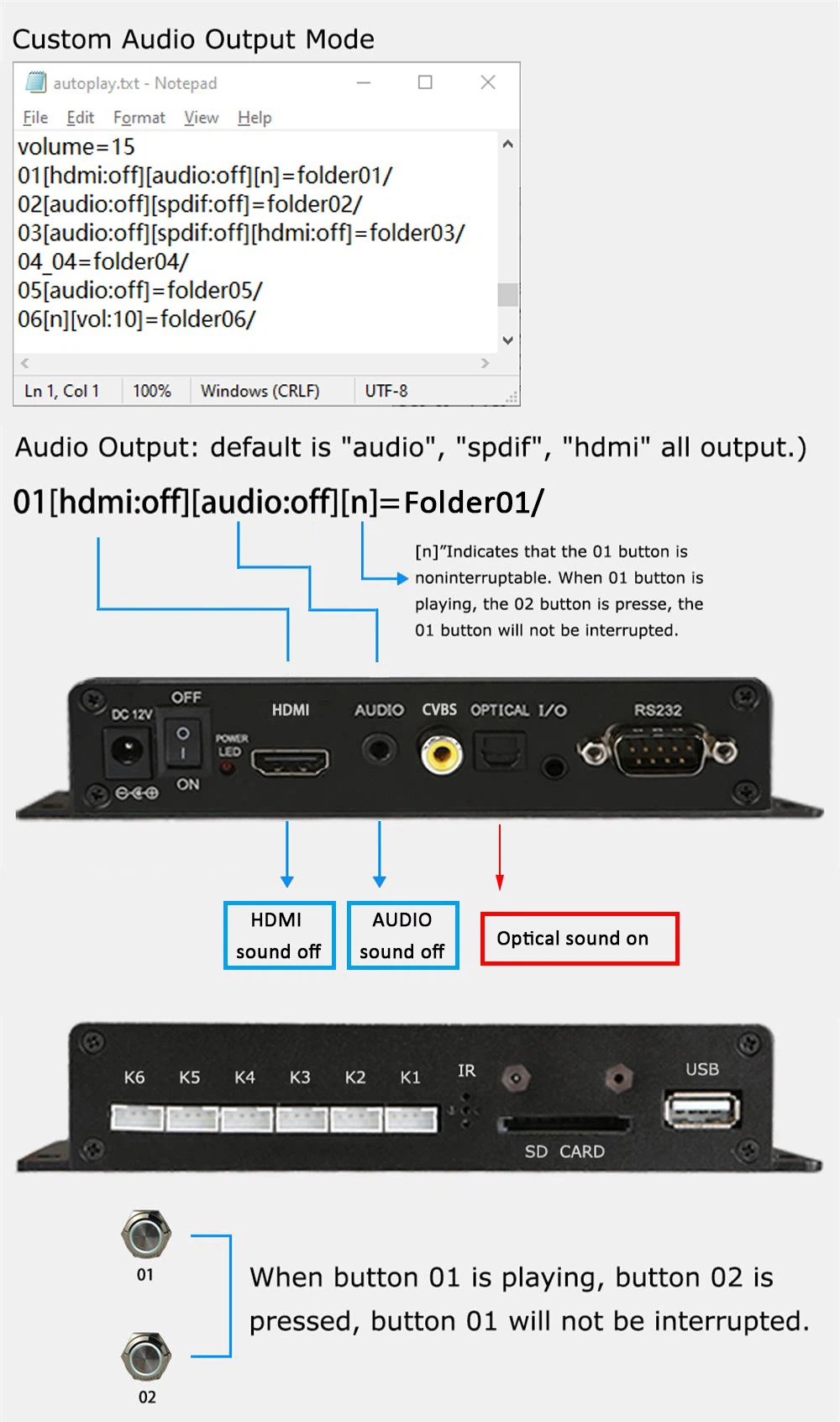

| Sound Output Mode: The Default is "Audio", "SPDIF", and "HDMI", all outputs. You can define them in "autoplay.txt". |
|
Support background music when playing pictures. |
|
Support 13 kinds of picture transition effects. |
|
File copy: The player has 5 GB internal storage and supports copying files to internal storage from a USB disk. |
| Boot Screen: Custom picture (with customer-specific logo) |
| Support GPIO Trigger Video Play. |
| OSD language: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic. |
|
Application: interactive demonstration and commodity display in retail stores, shopping malls, museums, airports, hotels, etc. Used for product audio and video promotion, event introduction, etc. |
Specifications
| Card Reading Parameter | Video Format | AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV |
| Audio Format | MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B | |
| Image Format | JPG, BMP, JPEG, GIF | |
| Storage | SD/USB Device: 2.0 high speed/2TB Disk | |

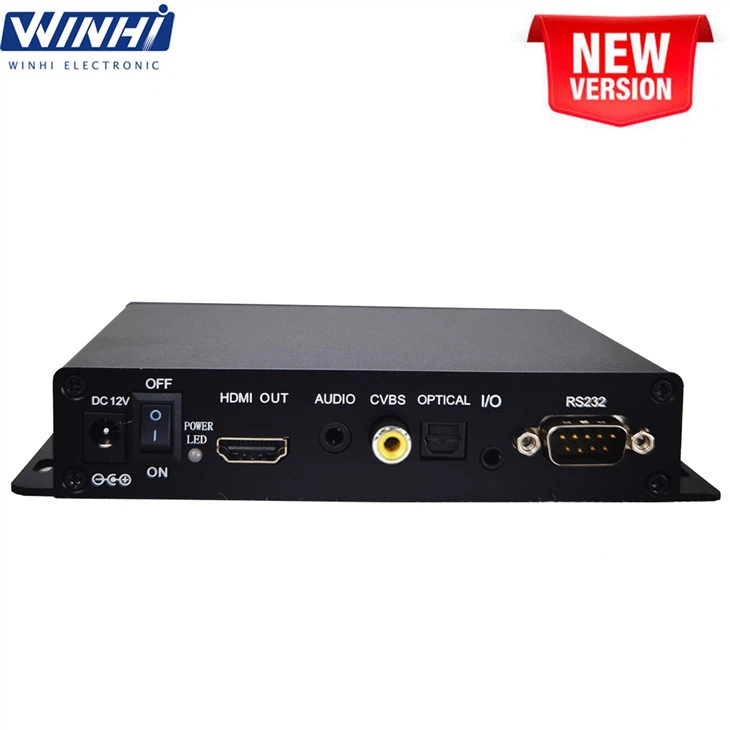

| Interface | HDMI Output | 3840*2160 |
| CVBS Output | NTSC | |
| OPTICAL Output | 1 (audio output port) | |
| AUDIO Output | 1 (3.5mm earphone jack) | |
| RS232 Input | 1 (RS232 serial port) | |
| USB | USB 2.0*1 | |
| SD Card | SD Card slot*1 | |
| I/O | 1 (used to connect motion sensor) | |

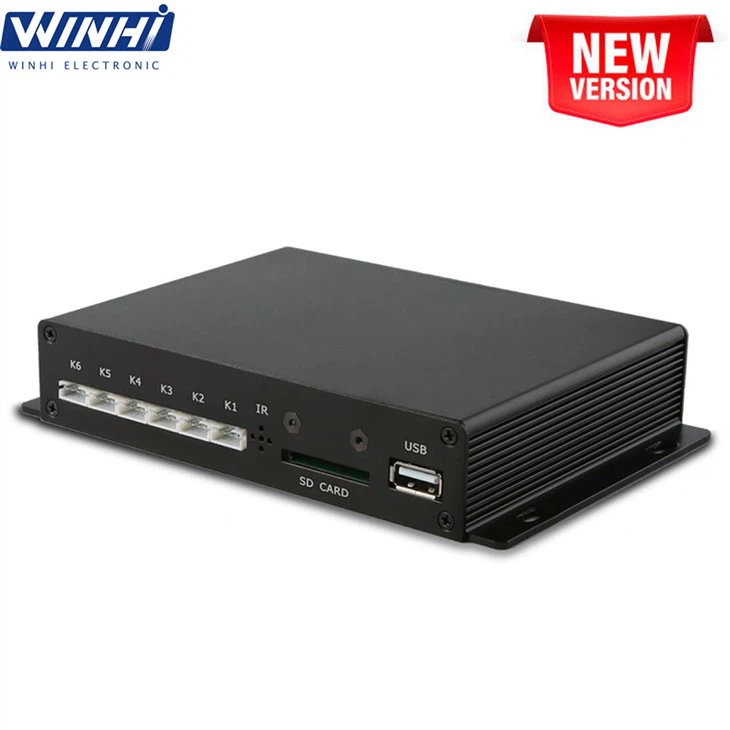

| Button interface | K1-K6 | |
| IR | IR remote control receiving | |
| ON/OFF | Power on/off switch | |
| Power Supply | DC 12V/1.5A | |
| Others | Working Temperature | 0°C~ 40°C (32℉~104℉) |
| Shell | Black metal shell | |
| Accessory | Adapter, remote control, HDMI cable |
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
