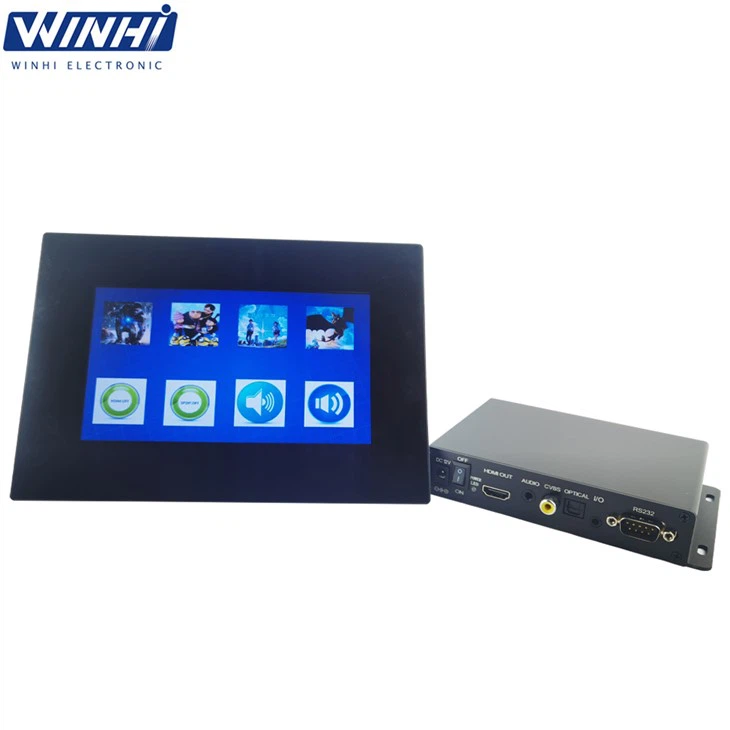

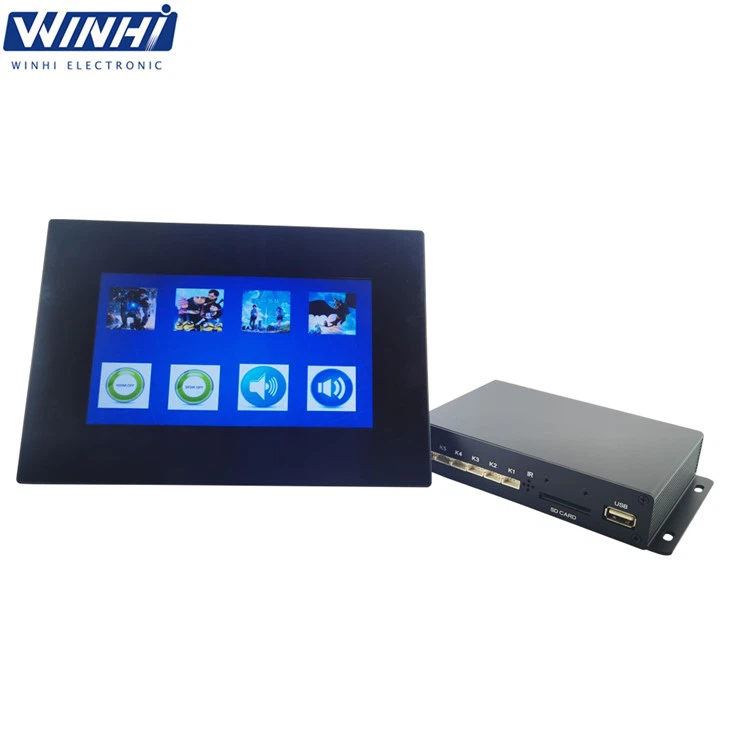

Touch Screen Button Player
video
Touch Screen Button Player

Touch Screen Button Player

Model: MPC1005-NT
Item: Serial port smart touch buttons screen 4K HDMI digital signage media player for audio-visual stores movie stores escape rooms
Price Range: $100-$150
Warranty: 1-3 Years
Applications: Suitable for audio-visual stores, movie stores, escape rooms, and quick scene displays.
Interactive Buttons: Icons like "Play Video" trigger corresponding video playback on the monitor.
Volume Control: "VOL+" and "VOL-" icons adjust monitor volume instantly.
Customizable: Button functions and quantities can be tailored to specific needs.
User-Friendly: Touch-based interface ensures easy and intuitive operation.
Dynamic Display: Enables rapid video playback and scene changes for various environments.
Send Inquiry
Product Details of Touch Screen Button Player

Product Parameters

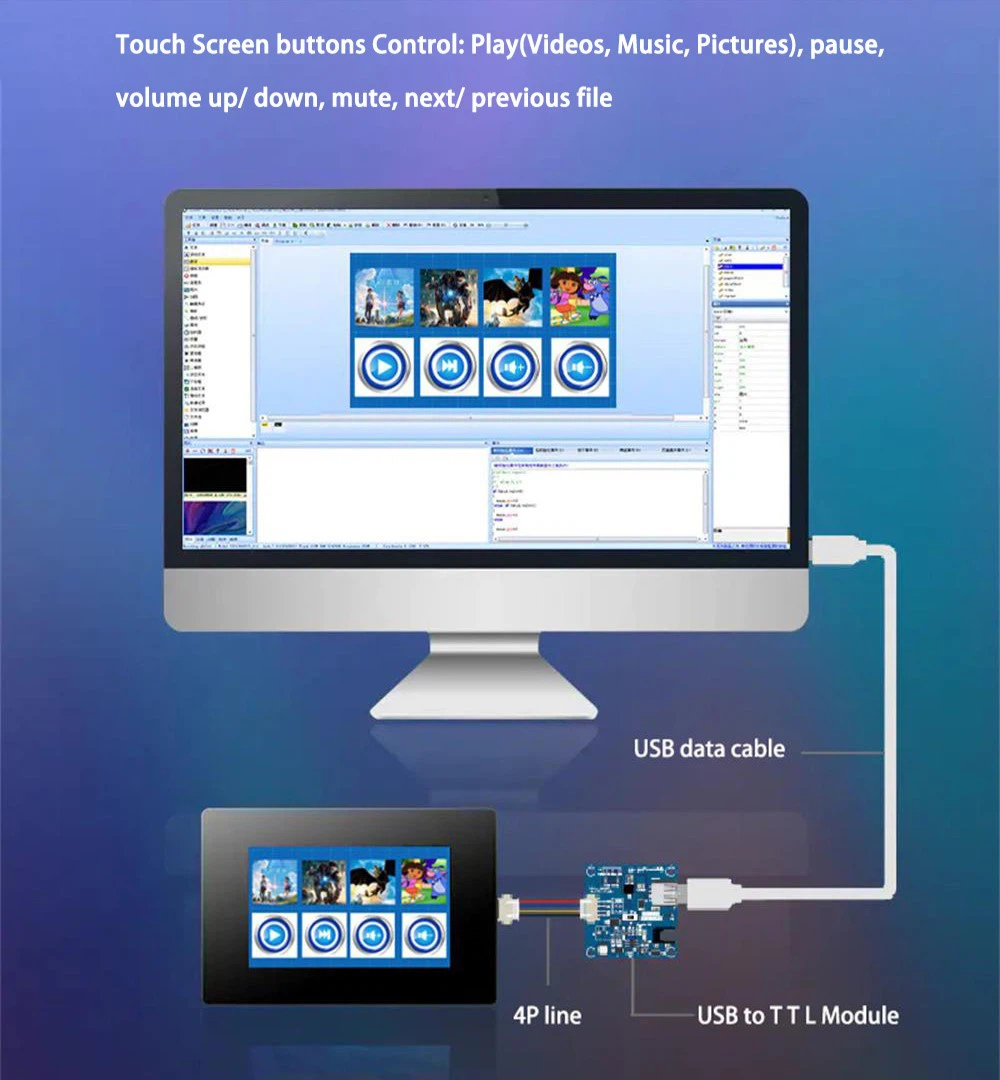

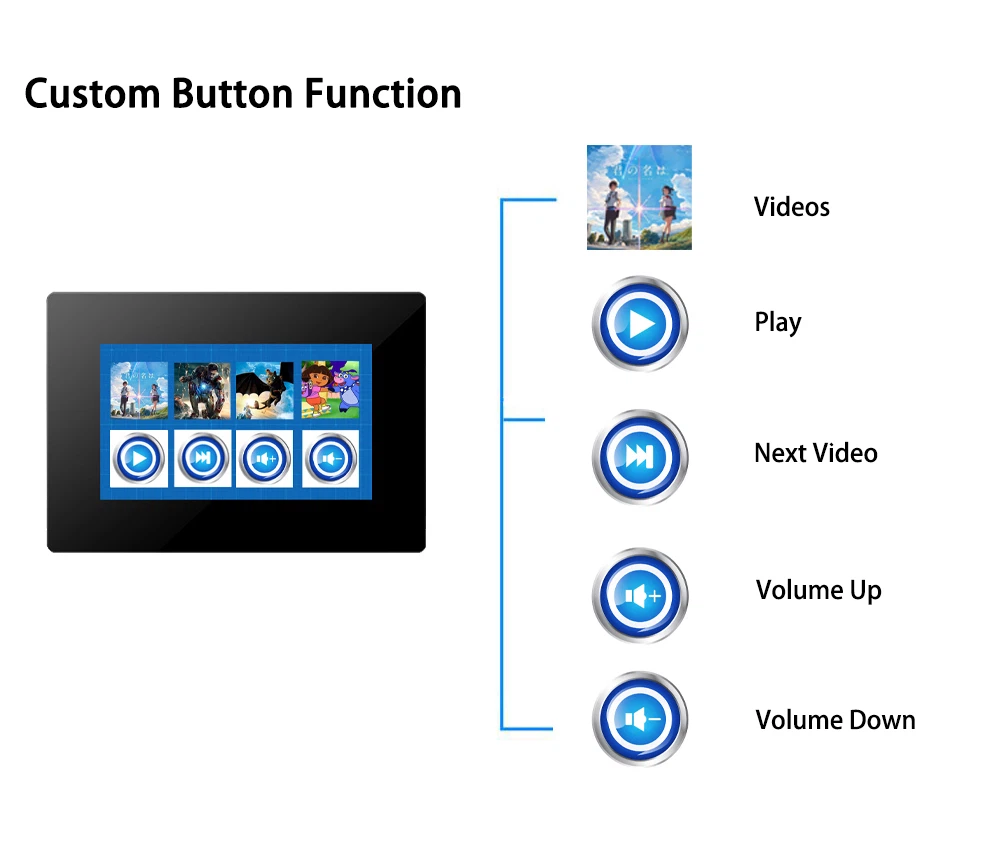

Touch Screen Button Control: Play (Videos, Music, Pictures), Pause, Stop, Volume Up/Down, Mute, Next/Previous File, Power On/Off.

Interactive Advertisement Playback: Pressing a touch screen button triggers corresponding advertisement content on the monitor.

Example 1: A video file button plays a matching video.

Example 2: A volume up button increases the monitor's volume.

Touch Screen Size: 7-inch to 15-inch.
4K HDMI Output Audio-Video Media Player.

Working Modes:

A. Auto-play on power-up.

B. Touch screen button control.

C. Custom control playback.

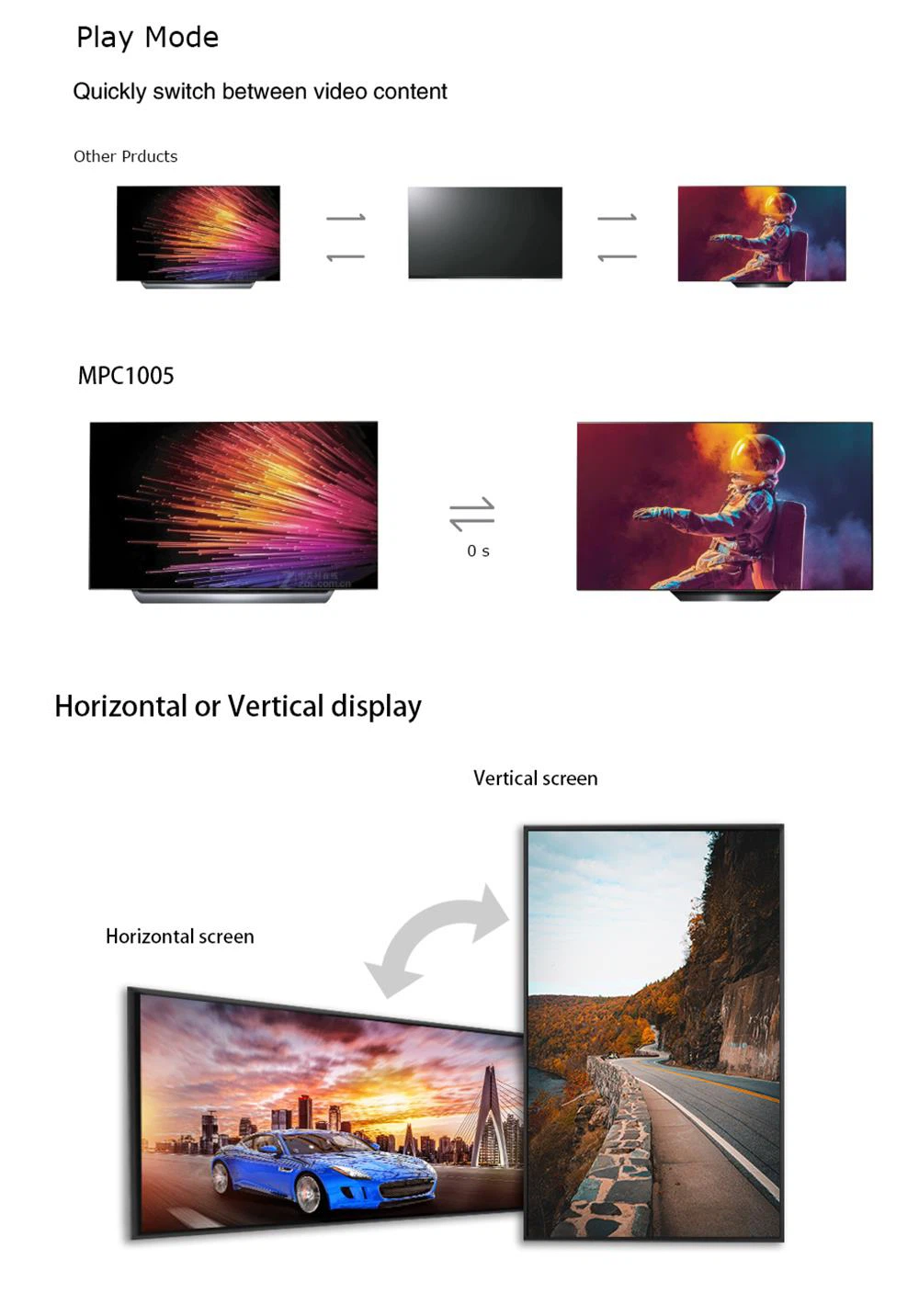

Seamless Video Switching: No black screen during transitions.
Video Output: HDMI, CVBS.
Screen Rotation: Supports horizontal and vertical display; video and menu can be rotated 90°/180°/270°.

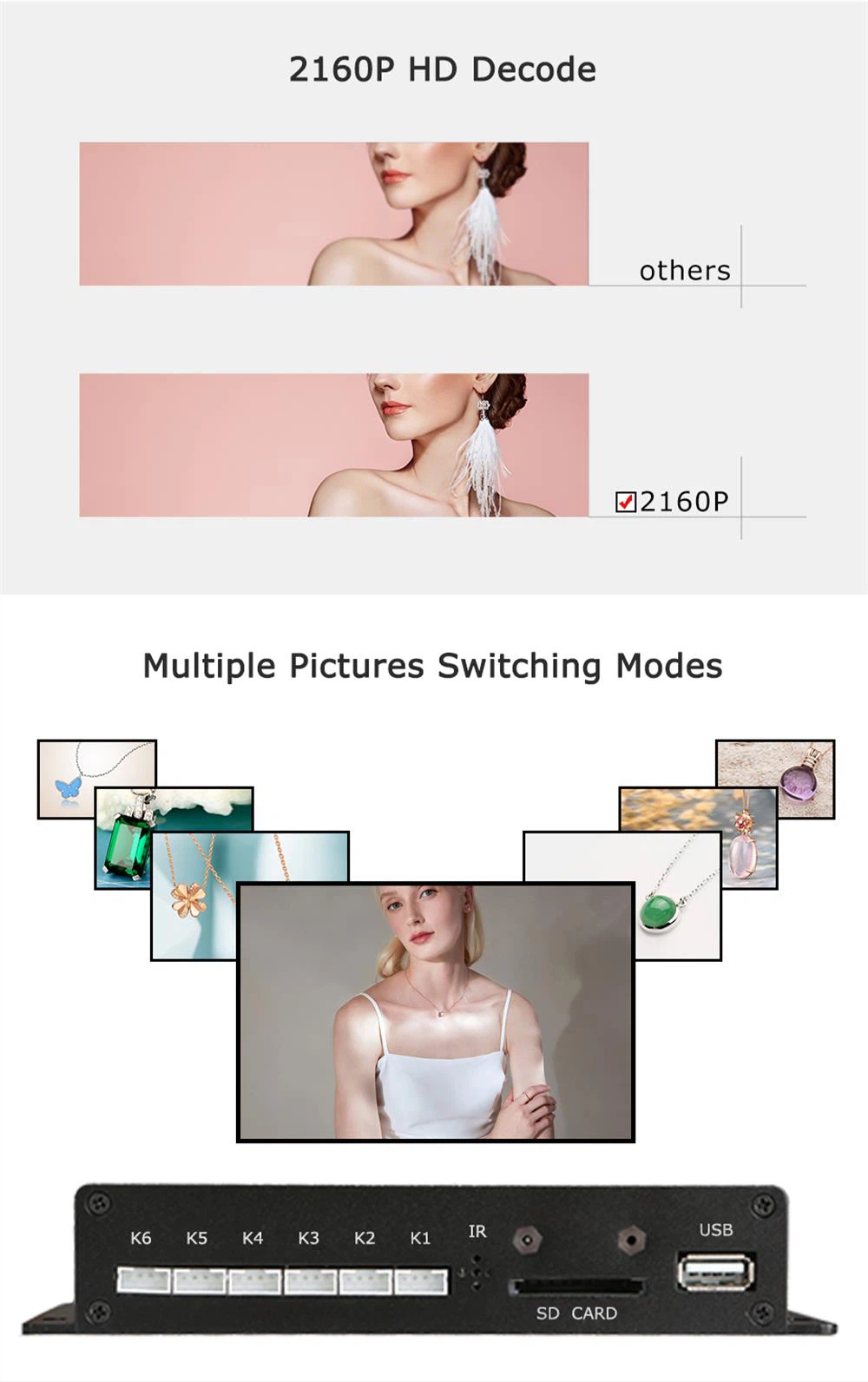

Video Output Modes: Auto, 3840x2160p-30Hz, 1920x1080p-60Hz, 1920x1080p-50Hz, 1920x1080p-30Hz, 1920x1080p-25Hz, etc.
Audio Output: Optical, HDMI, Audio.
File Copy: 5GB internal storage; supports file transfer from USB drives.
Custom Boot Screen: Customizable image with customer-specific logo.
OSD Languages: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic.
Applications: Interactive demonstrations and product displays in retail stores, shopping malls, museums, airports, hotels, etc. Ideal for product promotion, event introductions, and audio-visual presentations.



Parameters


Card Reading Parameters:
  • Video Formats: AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265 MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV.
  • Audio Formats: MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B.
  • Image Formats: JPG, BMP, JPEG, GIF.
  • Storage: Supports SD/USB devices up to 2TB.

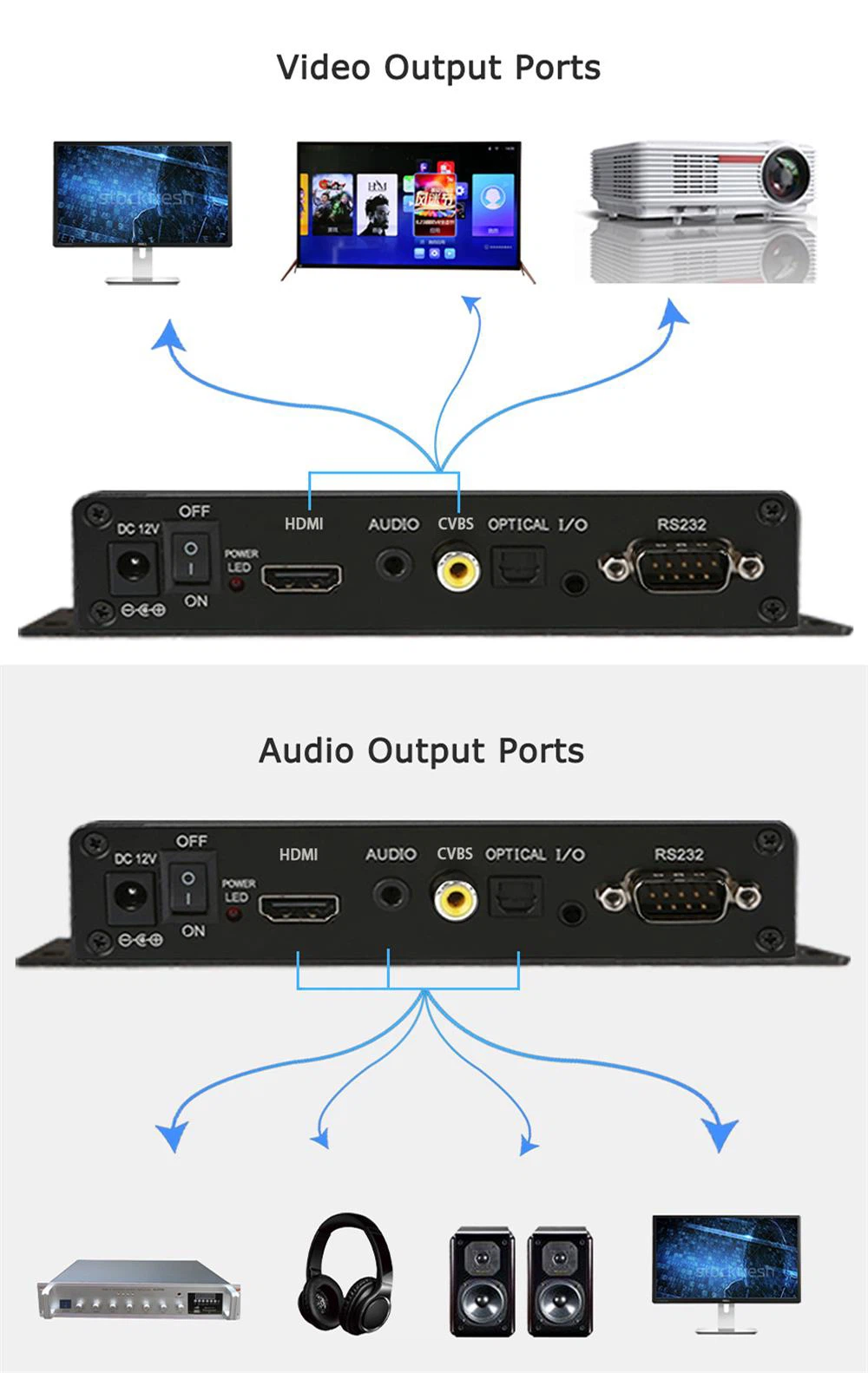

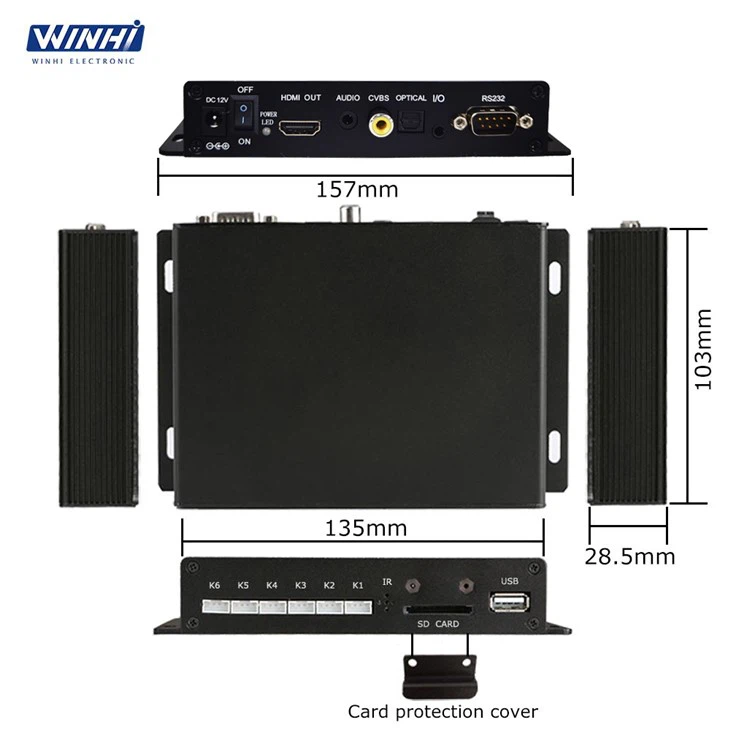

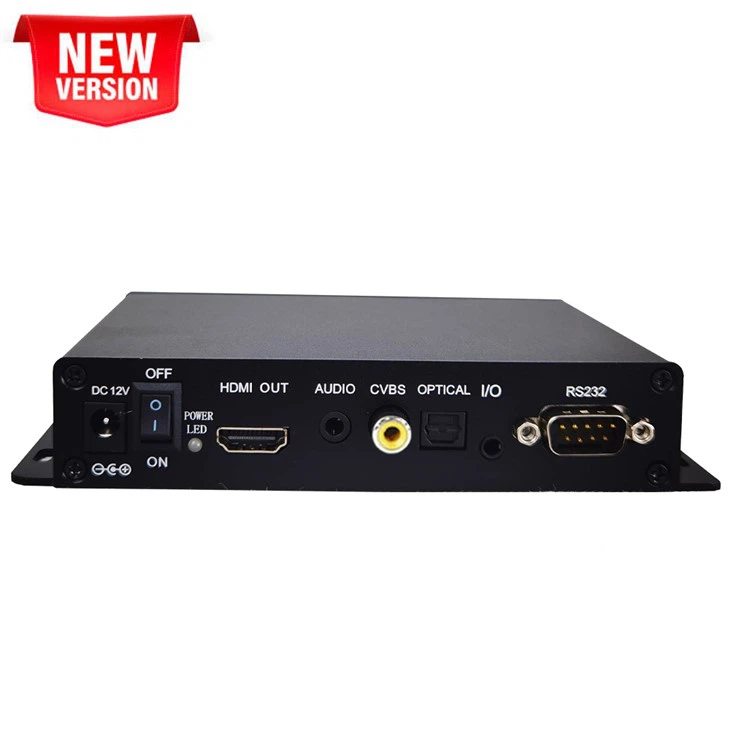

Interfaces:
  • HDMI Output: 3840x2160.
  • CVBS Output: NTSC.
  • Optical Output: 1 (audio output port).
  • Audio Output: 1 (3.5mm headphone jack).
  • RS232 Input: 1 (RS232 serial port).
  • USB: 1 x USB 2.0.
  • SD Card Slot: 1.
  • I/O Port: 1 (for motion sensor connection).

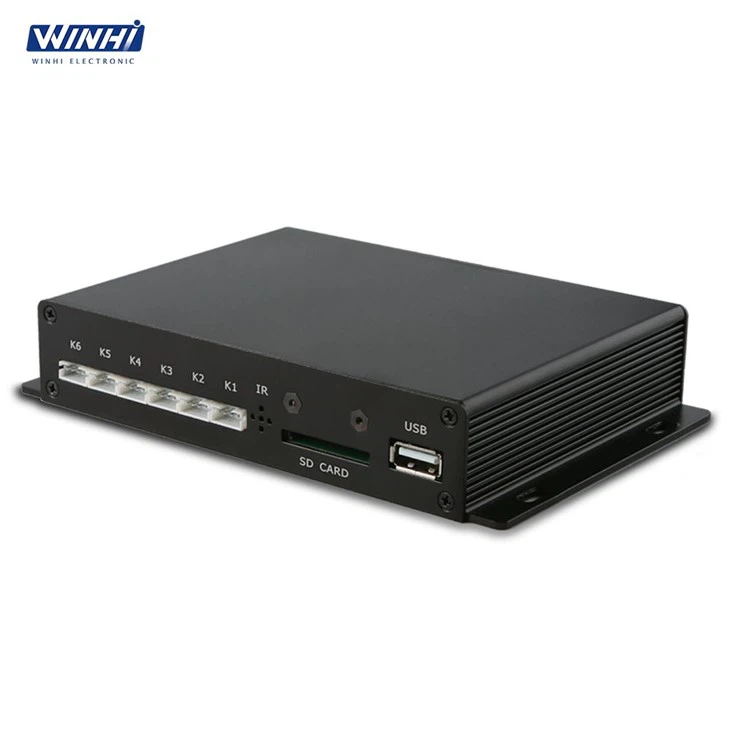

  • Button Interface: K1-K6.
  • IR: Infrared remote control receiver.
  • Power Switch: On/Off.
  • Power Supply: DC 12V/1.5A.
Additional Specifications:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F).
  • Enclosure: Black metal casing.



Products Overviews




1

2

3

4

5

6

7





8

9

Best selling

1.1_.jpg1.2

More product specifications


winhi media player





FAQ

Q: Do you have your enclosure factory?

A: Yes, we do have our enclosure factory, and we have the best structural Engineer, hope to provide you with the best advertising media solutions and personalized shapes, OEM is also welcome.

Q: Can be customized?

 A: Yes, we have OEM/ODM customer service.

Q: How much extra cost for your OEM order?

A: Please contact our salesperson about your detailed requests.

Q: Why should you buy from us a touchscreen button player?

A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, touchscreen button players, monitors, customized audio-video products, etc. We have our designers and R&D team, which makes us able to support customized design.

Q: How long is the leading time?

A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
