Window LCD Display
Model: PT430A-WD
LCD Size: 43/55/65 inch
Price Range: $500-$1500
Warranty: 1-3 Years
Dual-sided IPS display (43"/55"/65") with Full HD 1920x1080 resolution, 178° wide viewing angle, and ≥90% NTSC color gamut for vivid, true-to-life visuals.
Ultra-high brightness (3000 nits for outdoor-facing side, 700 nits for indoor-facing side) with an ambient light sensor for auto/manual brightness adjustment.
Android 11.0 OS integrated with cloud-based CMS, supporting remote content publishing, cross-region device management, and timed on/off.
Quad-core Rockchip RK3566 processor with customizable RAM (2GB/4GB/8GB) and storage (32GB/64GB eMMC), plus microSD expansion (up to 64GB).
Versatile media playback: supports multiple image (JPEG/PNG/GIF), video (MP4/MKV/AVI), and audio (MP3/AAC) formats, plus smart split-screen presets. Slim aluminum alloy design (59mm thickness) with dual mounting options: bracket hanging or wire rod suspension (height adjustable 0.5m-2.0m).
Intelligent thermal management with 6 quiet fans (auto speed adjustment) and Dolby audio support via custom 8Ω 5W speakers for stable performance.
Send Inquiry
Product Details of Window LCD Display
Products Overviews
Double-sided Display for Easy Publishing
Double-sided hanging advertising machine
Product advantages
Photosensitive probe
Automatic ambient lighting technology enhances contrast, making images clearer.
Brightness enhanced, clear and dazzling
With a brightness increase of 3000 cd/m², it is the best choice for shop window displays.
100% RGB color gamut
Pure colour gamut, restoring true colours that are vibrant yet not glaring. Images and videos are clear, bright, and richly saturated.
Smart split-screen playback
Multiple built-in split-screen presets are available for you to choose from.
Supports multiple formats: images and videos
Images, videos, and music can be played freely, allowing for multiple uses on one screen. The web version also supports split-screen functionality.
File format
| Image format | JPEG, JPG, BMP, GIF, PNG |
| Music format | MP3,WMA,OGG,AAC,AC,DTS,FLAC,APE |
| Video format | MP4,AVI,DIVA,XVID,VOB,DAT,MPG,RM,RMVB,MKV,MOV,HDMOV,M4V,PMP,AVCFLV |

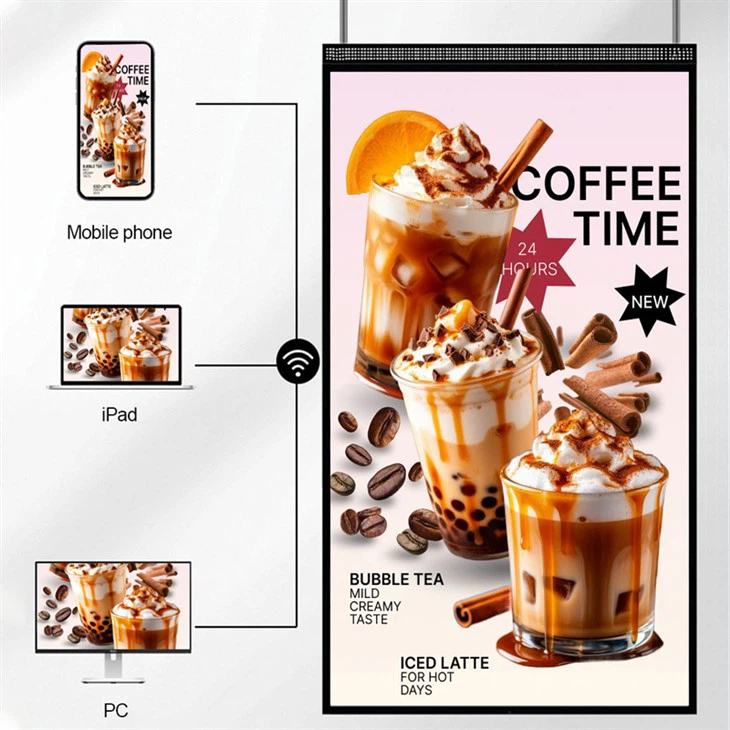

Network-based intelligent remote publishing
Standalone version: Plug and play via USB flash drive
Supports mobile phones, tablets, and computers to connect to the network and log in to the multimedia publishing system backend, remotely publish and change advertising programs, and centrally manage and control multiple advertising machines placed in different locations.
USB flash drive recognition is plug-and-play!
Simply insert your USB flash drive, and it will automatically recognise the files and play them in a loop! Supports various video, image, and music formats.
Time-sharing display of timed on/off operation
Customizable work schedule with content automatically switching based on preset time intervals.

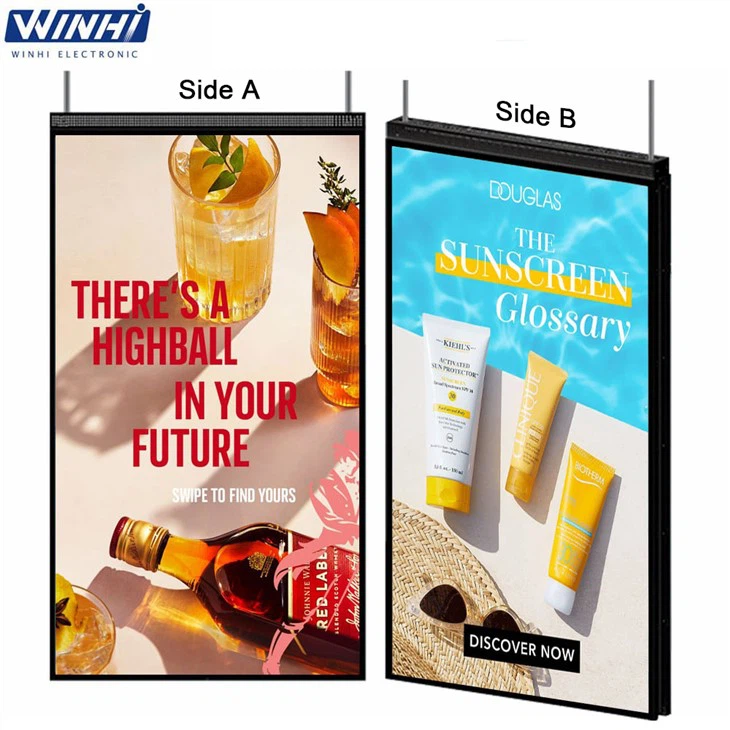

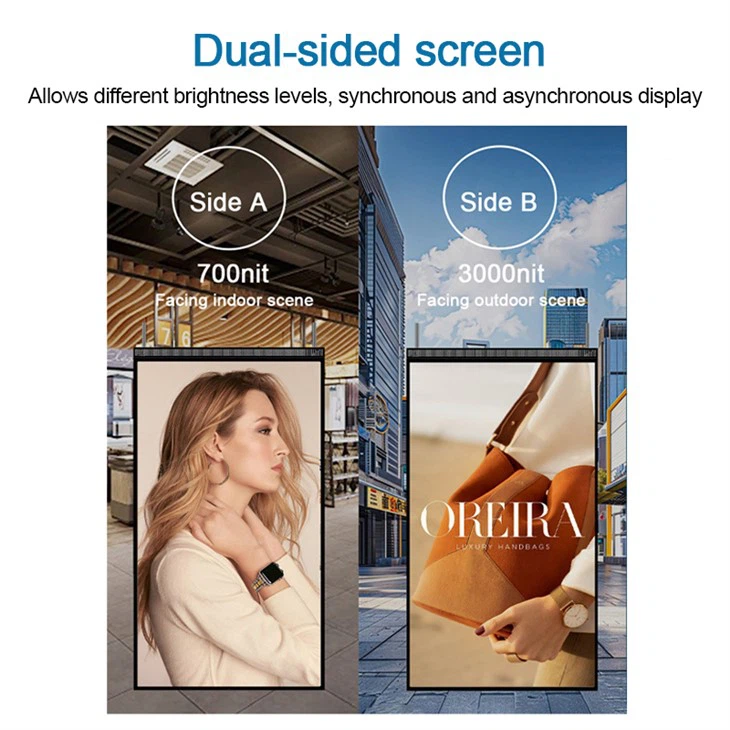

Dual-sided screen
Allows different brightness levels, synchronous and asynchronous display.
The dual-screen unit has screens on both sides, allowing for simultaneous display of images. The two sides have different brightness levels, intelligently adapting to different storefront scenarios.

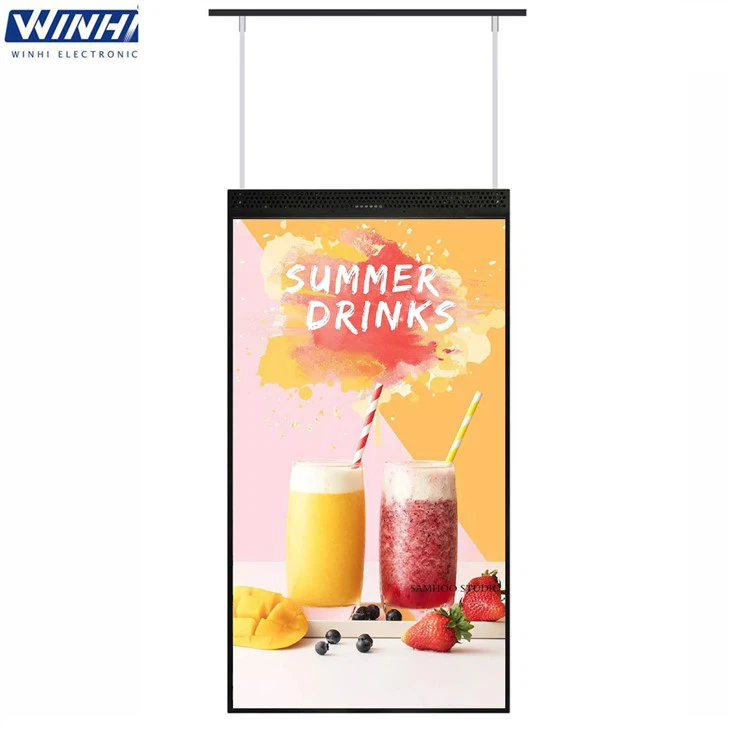

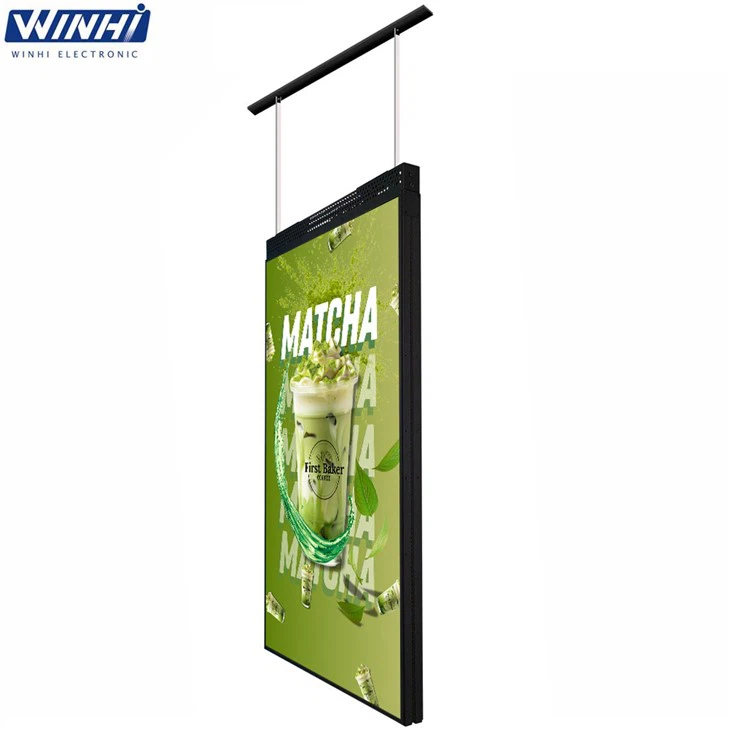

Installation methods
Bracket hanging or wire rod suspension
Application Cases
Suitable for various scenarios, including hospitals and clinics, restaurants and clothing stores, hotels and KV (key commercial spaces), car dealerships, real estate sales offices, banks and financial institutions, tourist attractions, supermarket chains, street-front stores, sports stadiums, airports and high-speed rail stations, government and enterprise offices, etc.

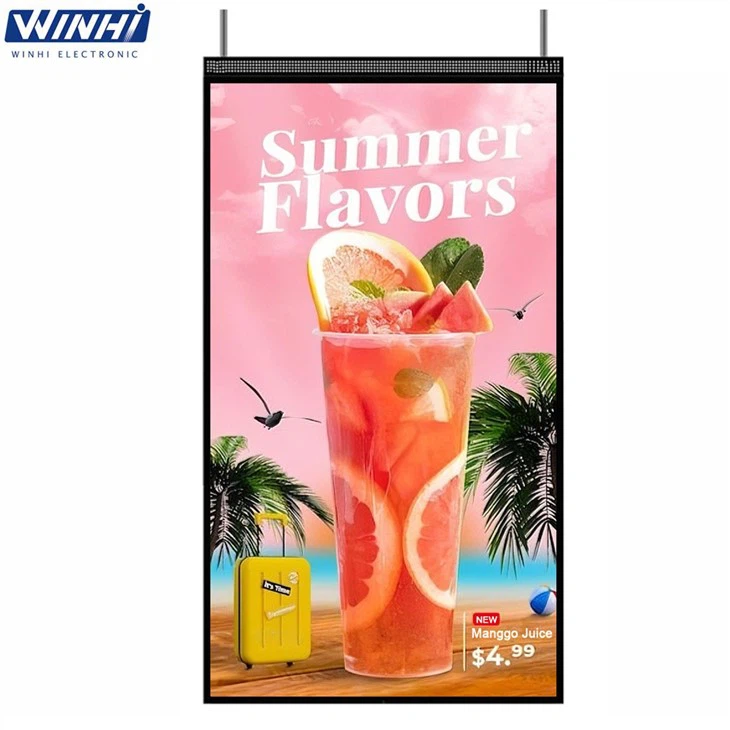

Product Image
Product Parameters
| System | Operating System | Android 11.0 (with built-in digital signage content management system) |
| CPU | Rockchip RK3566, Quad-core Cortex-A55 @ 1.8GHz | |
| RAM | Optional: 2GB / 4GB / 8GB | |
| Storage | Optional: 32GB / 64GB eMMC | |
| HDMI Port | 1*HDMI output | |
| TF Card Slot | 1*microSD slot (supports up to 64GB expansion) | |
| USB Ports | 2*USB (1 *USB Host, 1* USB OTG) | |
| Network Interface | 1*RJ45 Ethernet (10/100M), Wi-Fi 2.4GHz | |
| Audio Output | 1*3.5mm stereo headphone jack | |
| Display | Panel Type | Dual-sided 43" LCD high-brightness panel |
| Resolution | 1920*1080 (Full HD) | |
| Active Display Area | 941.18 * 529.42 mm | |
| Viewing Angle | 178/178/178/178 (L/R/U/D) | |
| Display Mode | Normally Black, IPS | |
| Contrast Ratio | 1200:1 | |
| Brightness | One side: 700 nits; Opposite side: 3000 nits | |
| Color Gamut | ≥90% NTSC | |
| Aspect Ratio | 16:9 | |
| Connectivity | Wi-Fi | Wi-Fi 2.4GHz (Bluetooth 5.0 optional) |
| Ethernet | 10/100M RJ45 | |
| Bluetooth | Bluetooth 5.0 | |
| Media Playback | Video Formats | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4, etc. |
| Audio Formats | MP3, WMA, AAC, etc. | |
| Image Formats | BMP, JPEG, PNG, GIF, etc. | |
| Audio | Speaker | Custom 8Ω 5W speaker |
| User Interface | OSD Language | Multi-language OSD |
| Power | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | ≤350W | |
| Environmental | Operating Temperature | 0°C to +50°C |
| Operating Humidity | ≤80% RH | |
| Storage Temperature | -10°C to +60°C | |
| Physical Design | Chassis Thickness | 59 mm |
| Mounting Method | Dual-sided hanging mount; adjustable height from 0.5m to 2.0m (in 10cm increments); custom lengths available | |
| Cooling System | Intelligent fan-cooling system with 6 quiet fans; fan speed auto-adjusts based on internal temperature | |
| Light Sensor | Supports both manual (via knob) and automatic brightness adjustment based on ambient light | |
| Key Features | Dual-sided hanging design with aluminium alloy frame; ultra-high brightness and ≥90% NTSC colour gamut | |
| Android 11.0 with integrated CMS; supports remote scheduling, synchronised playback, split-screen layout, and cross-region device management | ||
| The ambient light sensor enables both manual and auto brightness control for optimal viewing | ||
| Smart Thermal Management 2.0: 6-fan system intelligently activates based on real-time temperature | ||
| Supports dual-screen synchronous or asynchronous display; available in single- or dual-mainboard configurations | ||
| Proprietary mould design; industry-leading slim profile; available in 43" and 55" sizes | ||
More product specifications
| Product Version | Stand-alone Version (Plug and Play) | Monitor Version | Android Version | PC Version | Raspberry Pi |
| Screen Size | 5/ 7/ 8/ 10.1/ 12.1/ 13.3/ 14/ 15/ 15.6/ 17/ 18.5/ 19/ 21.5/ 24/ 27/ 28/ 32/ 43/ 49/ 55/ 65/ 75/86inch | ||||
| CPU | 一 | 一 | Optional ( RK3566, RK3568, RK3588, RK3399) | Optional ( i5, i7) | 4B |
| RAM | 一 | 一 | 1G (2G/ 4G/ 8G) | 4G (8G/ 16G/ 32G) | 2G (4G,8G) |
| Internal Memory | USB (SD Card, 8 GB) | 一 | 32G (64G/ 128G) | 64G/ 128G/ 256G/ 512G (SSD) | 一 |
| Touch Screen | 一 | Capacitive touch (Optional) |
Capacitive touch (Optional) |
Capacitive touch (Optional) |
|
| Operating System Version | 一 | 一 | Android 7.1 (Android 11.0, Android 13.0) |
Windows7, Windows10, Windows11 | |
| Main functions | 1. Auto-play when powered on. 2. Playlist and splitscreen 3. Both horizontal and vertical screen displays 4. Seamless switching between videos, without a black screen |
HDMI Input (VGA, CVBS, DP optional) | 1. Both horizontal and vertical screen displays 2. Ethernet, WiFi connection, Bluetooth is optional 3. CMS for device management and content update(Free cloud-based CMS) 4. 4G (SIM card)(optional) |
一 | |
| Extensible Function | Motion sensor Push button |
一 | Camera, RFID card reader, Scanner, Printer, POS Bracket | ||
Best selling
FAQ
Q: Do you have your enclosure factory?
A: Yes, we do have our enclosure factory, and we have the best structural engineer. We hope to provide you with the best advertising media solutions and personalised shapes. OEM is also welcome.
Q: Can it be customised?
A: Yes, we have OEM/ODM customer service.
Q: What much the extra cost for your OEM order?
A: Please contact our salesperson about your detailed requests.
Q: Why should you buy us a Window LCD Display?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, Window LCD displays, monitors, customised audio-video products, etc. We have a dedicated design team and R&D team, which enables us to support customised designs.
Q: How long is the lead time?
A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
