Outdoor Digital Advertising



---

Metal Shell: 1.5mm SGCC. The inner layer is sprayed with a zinc-rich primer, and the surface layer is coated with DuPont outdoor plastic powder, ensuring a service life of more than 10 years.

High brightness LCD panel, brightness up to 2500 nits, service life of 50000H. Provides clear and excellent displays in bright and direct sunlight environments.

Explosion-proof glass: 5mm tempered glass. When the glass is damaged by an external force, the debris will become a honeycomb-like, obtuse broken particle, making it less likely to cause serious harm to the human body. The impact strength and bending strength of tempered glass are 3 ~ 5 times that of ordinary glass.

The high-brightness screen allows clear visibility in sunlight, viewing angle of 178°/178°.

Equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light. Save energy and reduce light pollution.

IP Grade: IP65

Operating System: Android 9.0 CPU: RK3328 Quad-core Cortex A53 up to 1.5GHz GPU: Mali450MP2 RAM: 1 GB DDR4 (2 GB optional) ROM: EMMC 8G (16G optional

Network CMS software: Upload, update, manage content, and control multiple devices remotely.

Auto loop play after power on.

The outdoor advertising machine supports seamless switching.

Split Screen: Free to split display area, supports 2 videos, N pictures, N webpages, N rolling captions, weather dates display on one screen.

Supports Google Play application downloads and installation.

Outdoor digital signage displays support both horizontal and vertical display, OSD, and playing contents can be rotated 90°/180°/270°.

Timing switcher: Auto power on/off at a specific time.

Built-in WIFI module, supports WIFI hotspot function.

Outdoor digital signage displays support multi-language OSD: Chinese, English, Japanese, and Korean.



Specifications

---

Panel	Screen Size	65-inch (32" 43"49" 55" optional )outdoor advertising machine
	Display Ratio	9:16
	Display Area	808x1432  mm (H×V)
	Resolution	1080*1920  ( 4K optional )
	Luminance	2000 cd/m²
	Contrast  Ratio	5000: 1
	Viewing Angle (R/L/T/B)	89/89/89/89 (Typ.)
	Response Time	8ms
Supported Format	Video Format	MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF
	Photo Format	JPEG, PNG
	Music Format	MP3, MP2, WMA, WAV
Supported Video Decoding	Max Color Depth	24bit
	Max Frame Rate	30frm/s
	Max Code Stream	USB2.0 device:30Mb/s
Supported Audio Decoding	Sampling Rate	32kHz,44.1kHz,48kHz,96kHz
	Bit Rate	32kbps to 384kbps
I/O	USB Transfer Rate	USB2.0, Max 480Mbps
	Network Interface	100Mbps
	WIFI Interface	100Mbps
	Power	Input: AC  100~240V  50/60Hz
Others	Test System	Spray test
		Low and high-temperature tests
		Solar radiation test
		Complete machine aging test
	Installation	floor standing
	Operating temperature	-30°C to +50°C



---



Extended function

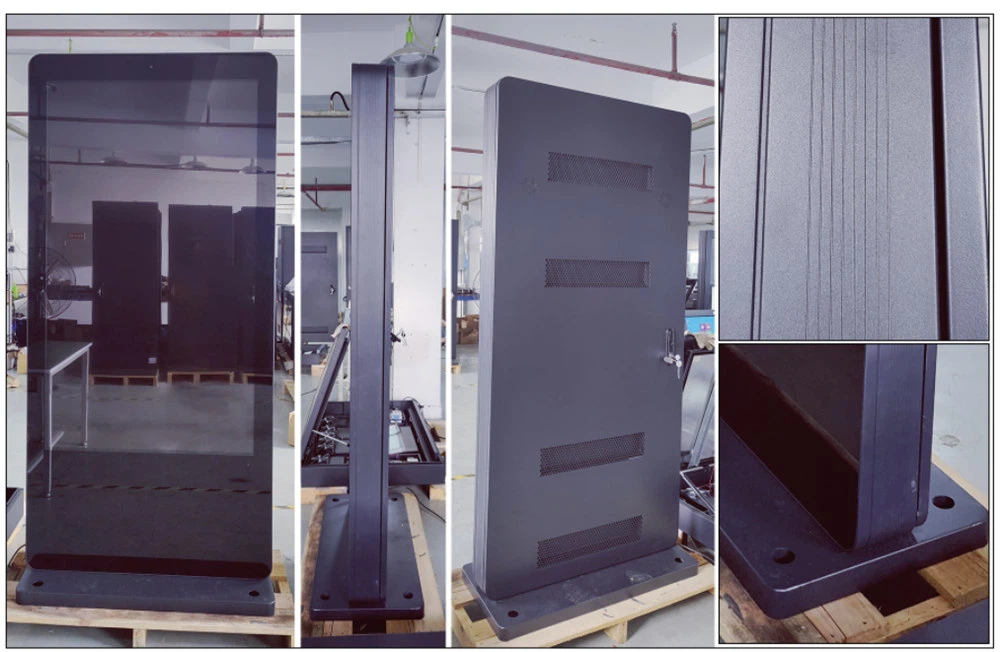

Product Physical Map (regular black/white, other colors can be customized)

Product workshop manufacturing drawing



Product Size



Structural Diagram







Size comparison chart of the vertical outdoor unit



Various styles, support customization



Application place

Customized outdoor Digital Signage

---

More product specifications

---



---

Q: Are you a factory?

A: Yes, we are a factory. We have produced outdoor digital advertising, digital signage screens, and media players since 2009.

Q: How does your company do regarding quality control?

A: Our QC team will do strict quality control inspections before shipment to ensure the best quality.

Q: What brand of screen are you using?

A: We are using Samsung, LG, AUO, and CHIMEI screens.

Q: The screen is not bright, with any display. why?

A: Check whether the power switch is on or the power cable/adapter is loose.

Q: How to Ship Products to My Country?
A: Well, that depends on your order quantity and your country's location. Normally, Large orders would go with sea freight or air freight, which is affordable to most of the clients, but it could take 3-5 weeks. Sample orders can go with international express like DHL, UPS, FedEx, which is very fast.



---
