outdoor advertising machine
Price Range:$800-$2000
Panel Size: 65 inch (32/43/49/55/75/86/98 optional )
Resolution: 1920x1080

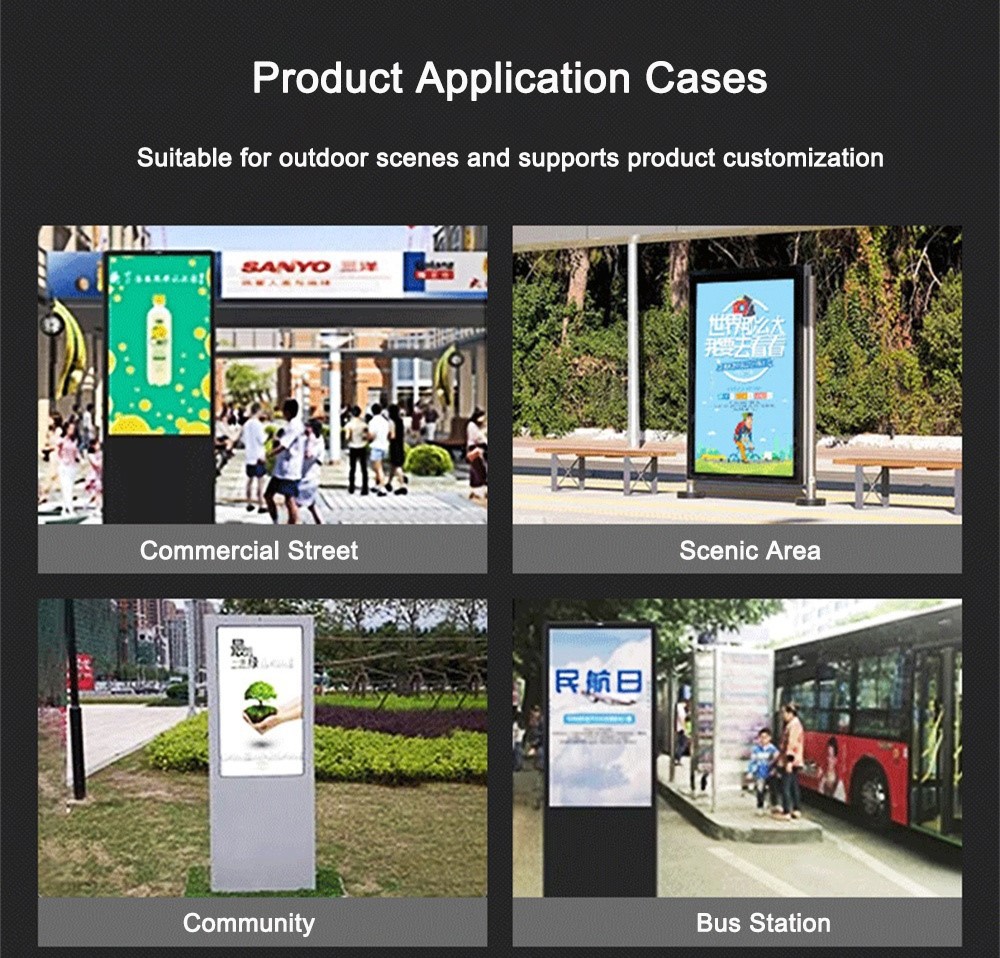

Application: Outdoor public places
Luminance: 2000 cd/m²
Power off memory.
Certificate: CE, FCC, RoHS
13 years of factory direct selling experience.
Warranty: 1~3 Years
Send Inquiry
Product Details of outdoor advertising machine

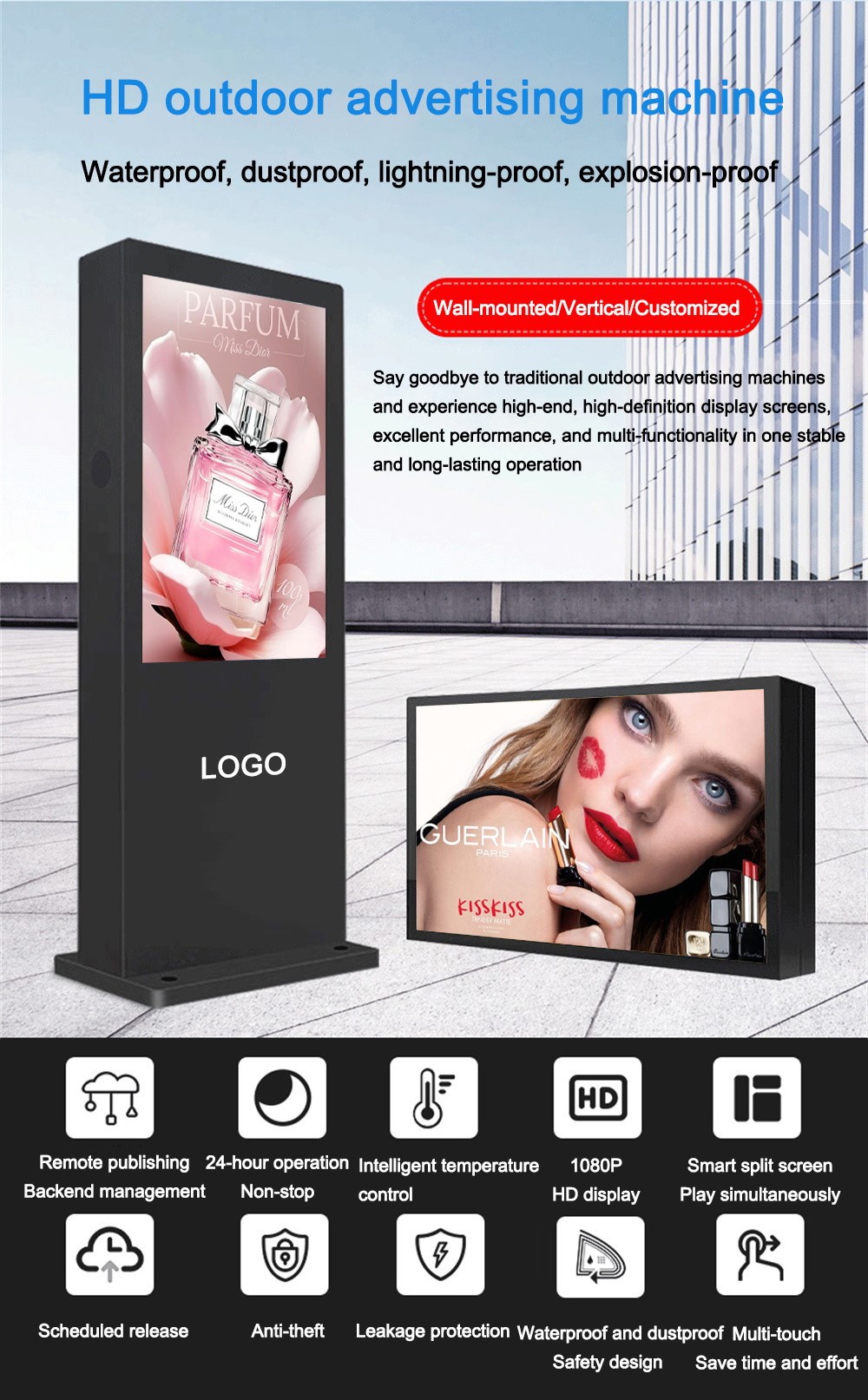

Products Overviews
Extended function
Product Size

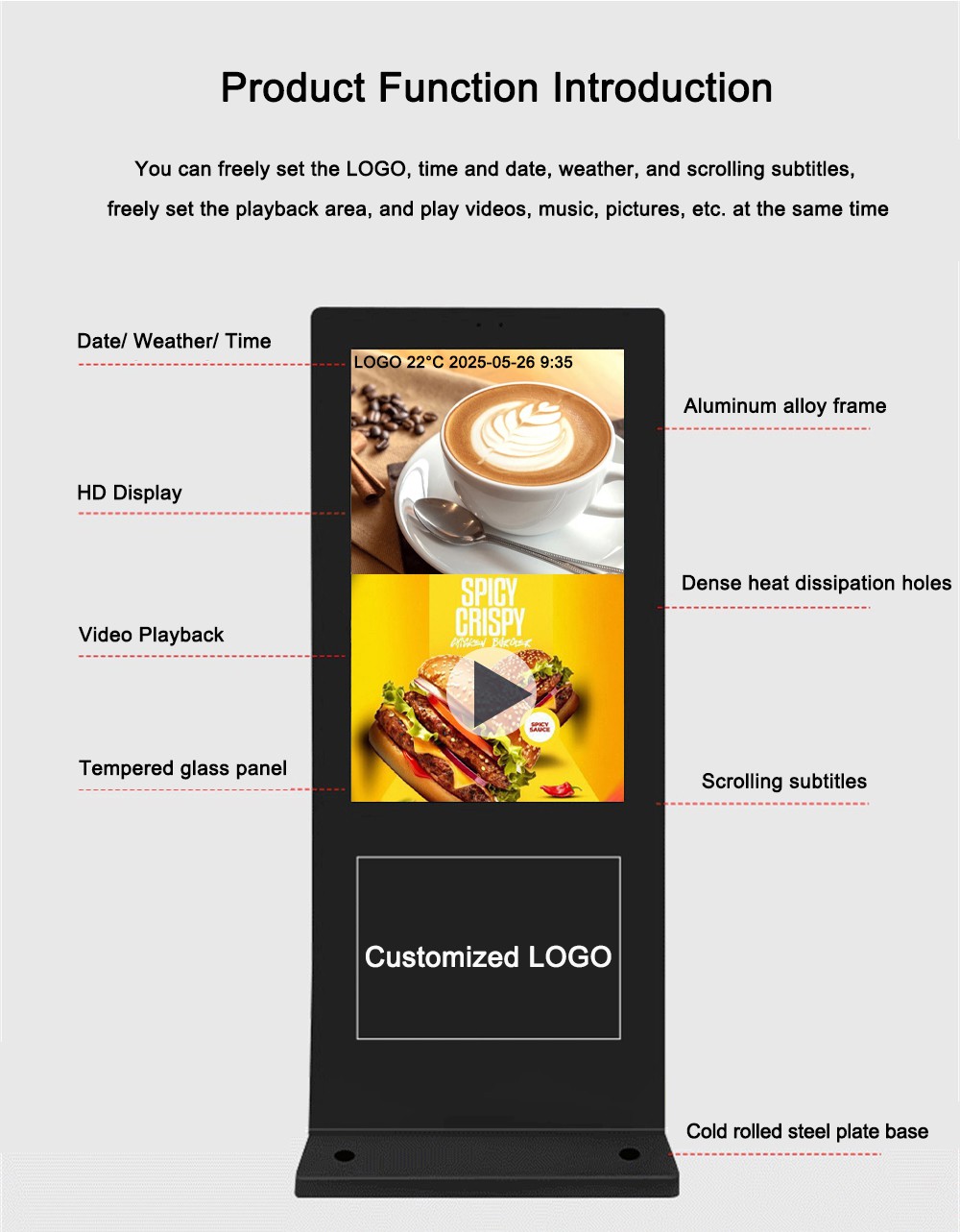

Structural Diagram

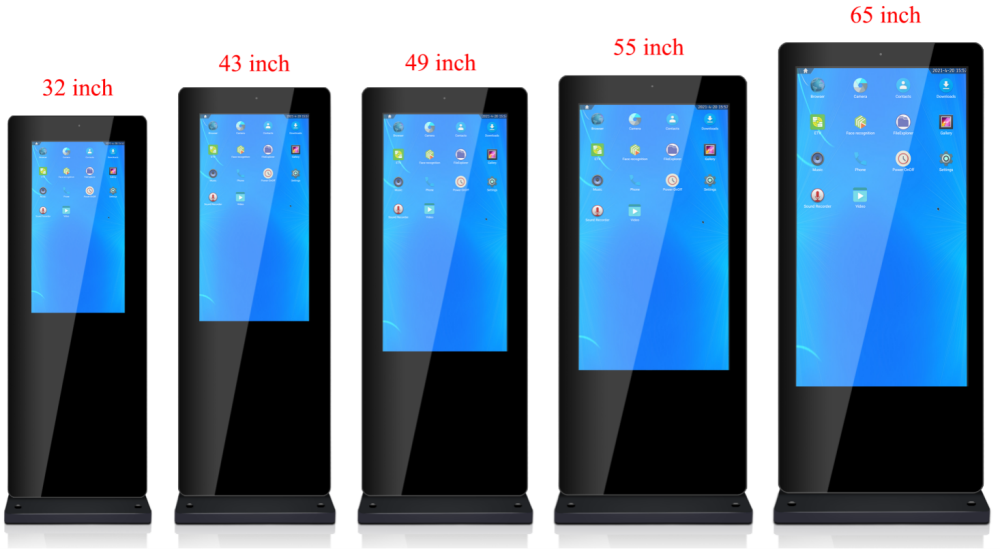

Size comparison chart of the vertical outdoor unit
Product Parameters
| Metal Shell: 1.5mm SGCC, the inner layer is sprayed with zinc-rich primer, the surface layer is sprayed with DuPont outdoor plastic powder, service life is more than 10 years. |

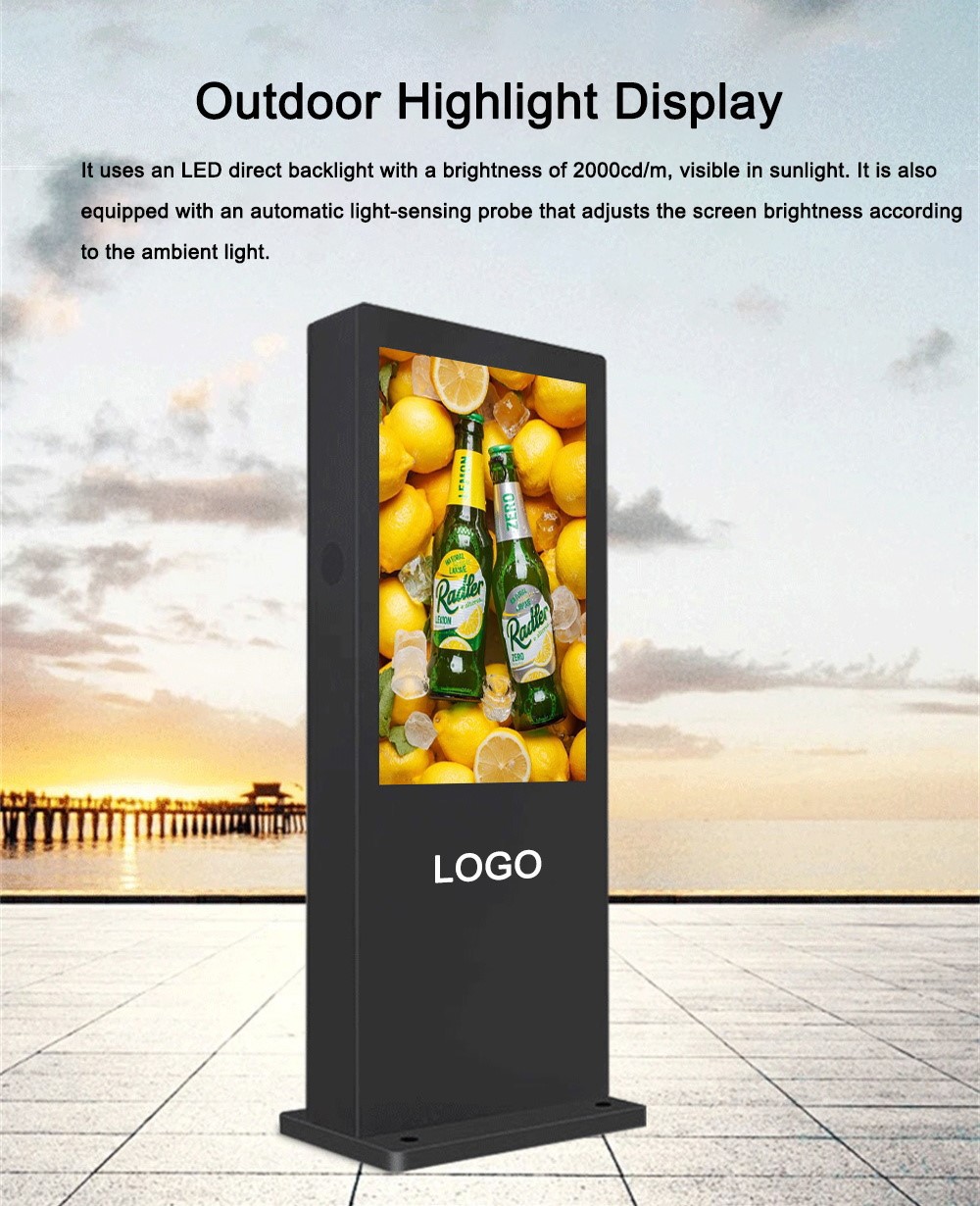

| High brightness LCD panel, brightness up to 2500 nits, service life of 50000H. Provides clear and excellent displays in bright and direct sunlight environments. |

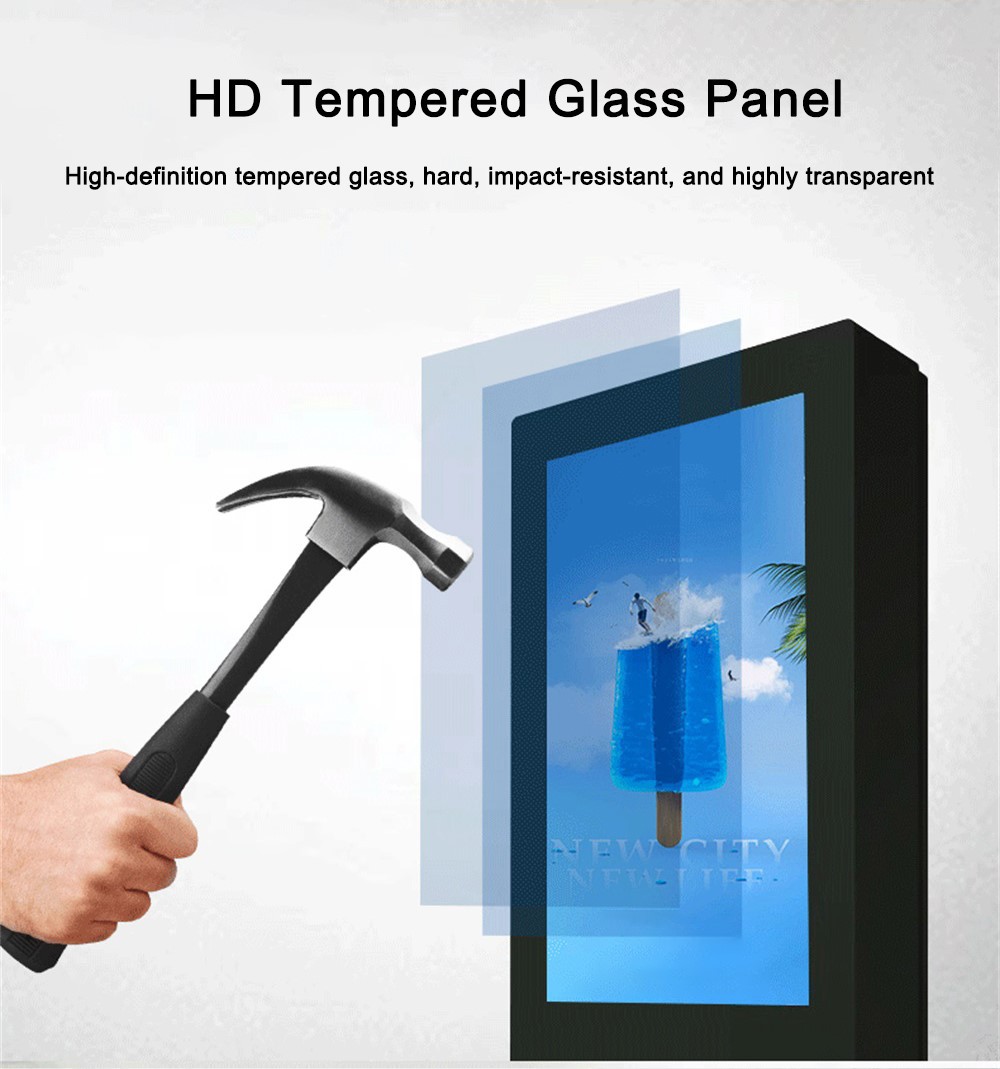

| Explosion-proof glass: 5mm tempered glass. When the glass is damaged by external force, the fragments will become honeycomb-shaped, blunt-angle broken particles, which are not likely to cause serious harm to the human body. The impact strength and bending strength of tempered glass are 3 to 5 times that of ordinary glass. |
| The high-brightness screen allows clear visibility in sunlight, viewing angle of 178°/178°. |
|
Equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light. Save energy and reduce light pollution. |

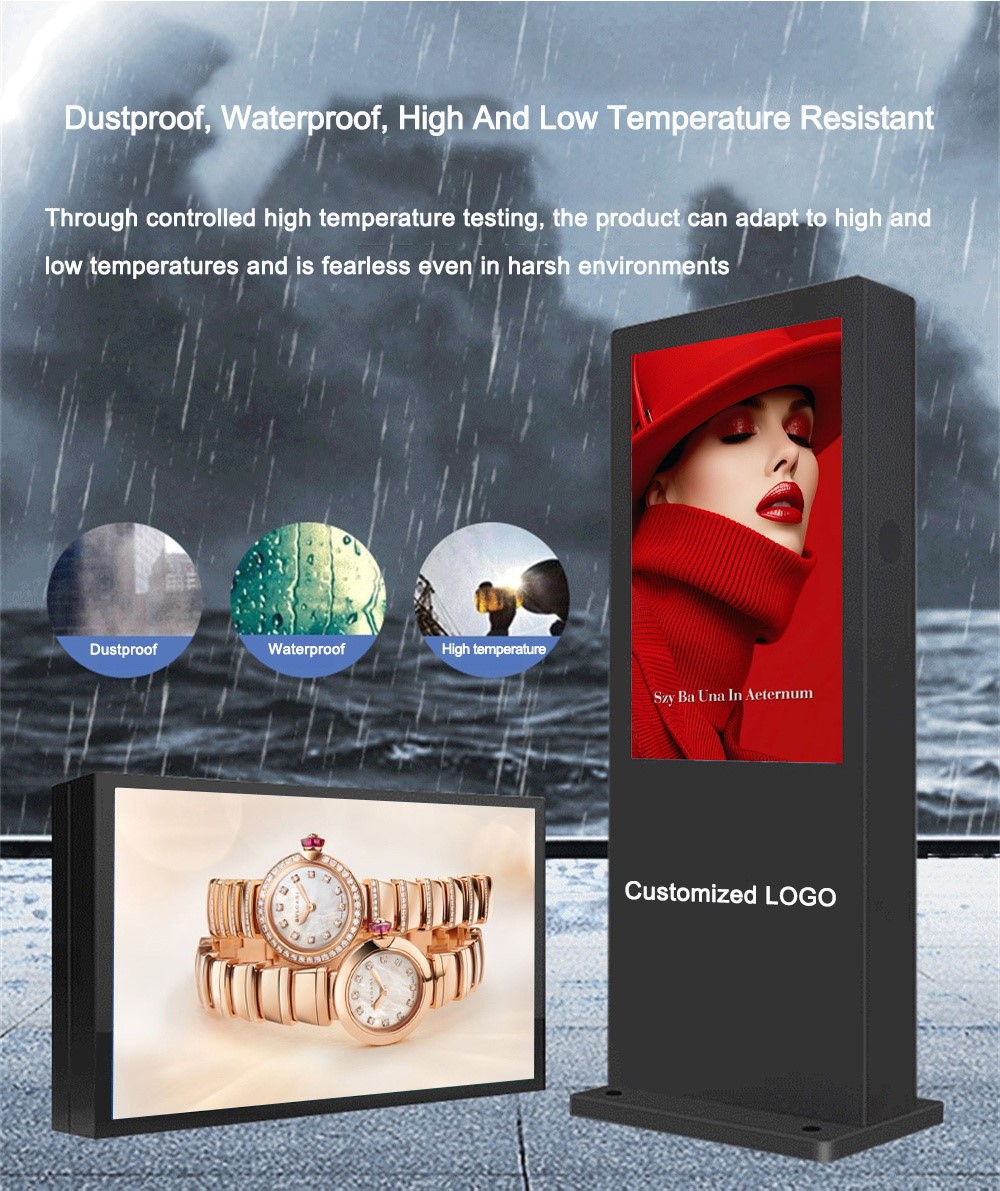

| IP Grade: IP65 |
|
Operating System: Android 9.0 CPU: RK3328 Quad-core Cortex A53 up to 1.5GHz GPU: Mali450MP2 RAM: 1 GB DDR4 (2 GB optional) ROM: EMMC 8G (16G optional |

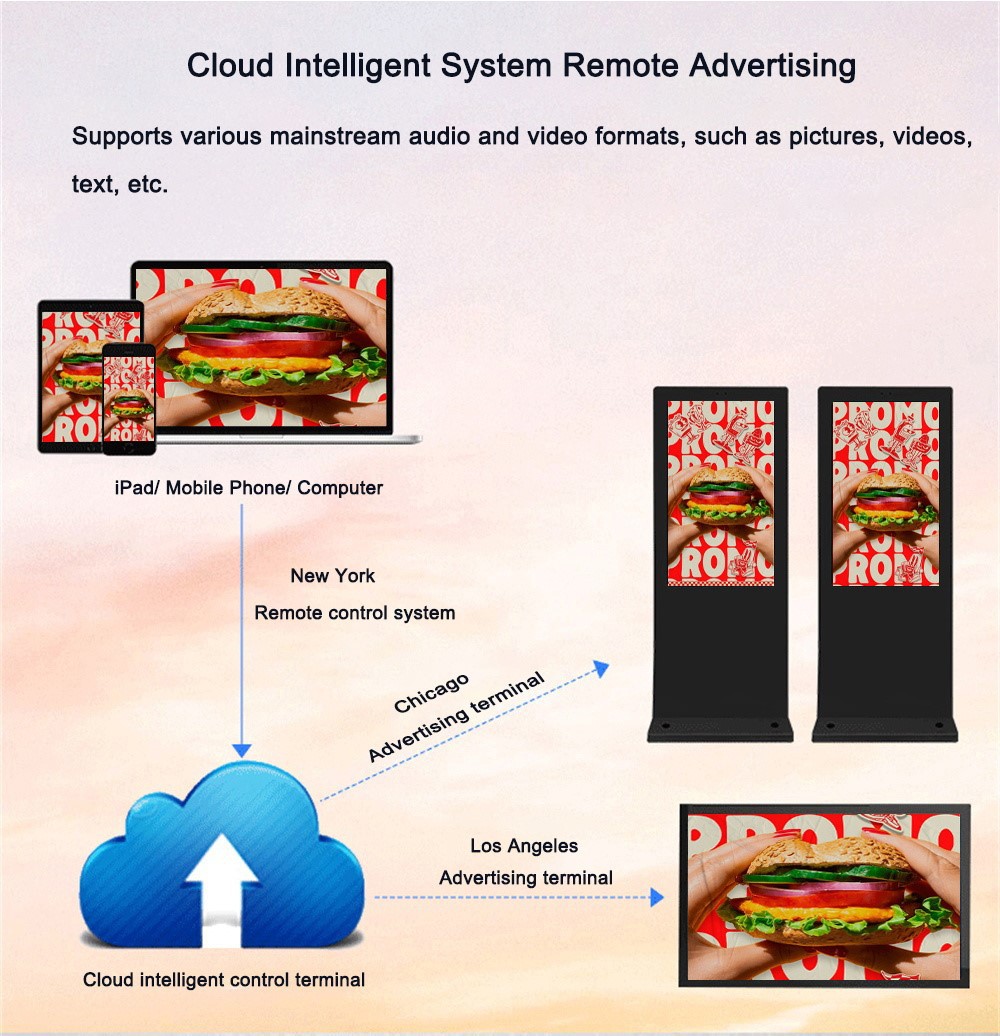

| Network CMS software: Upload, update, manage content, and control multiple devices remotely. |

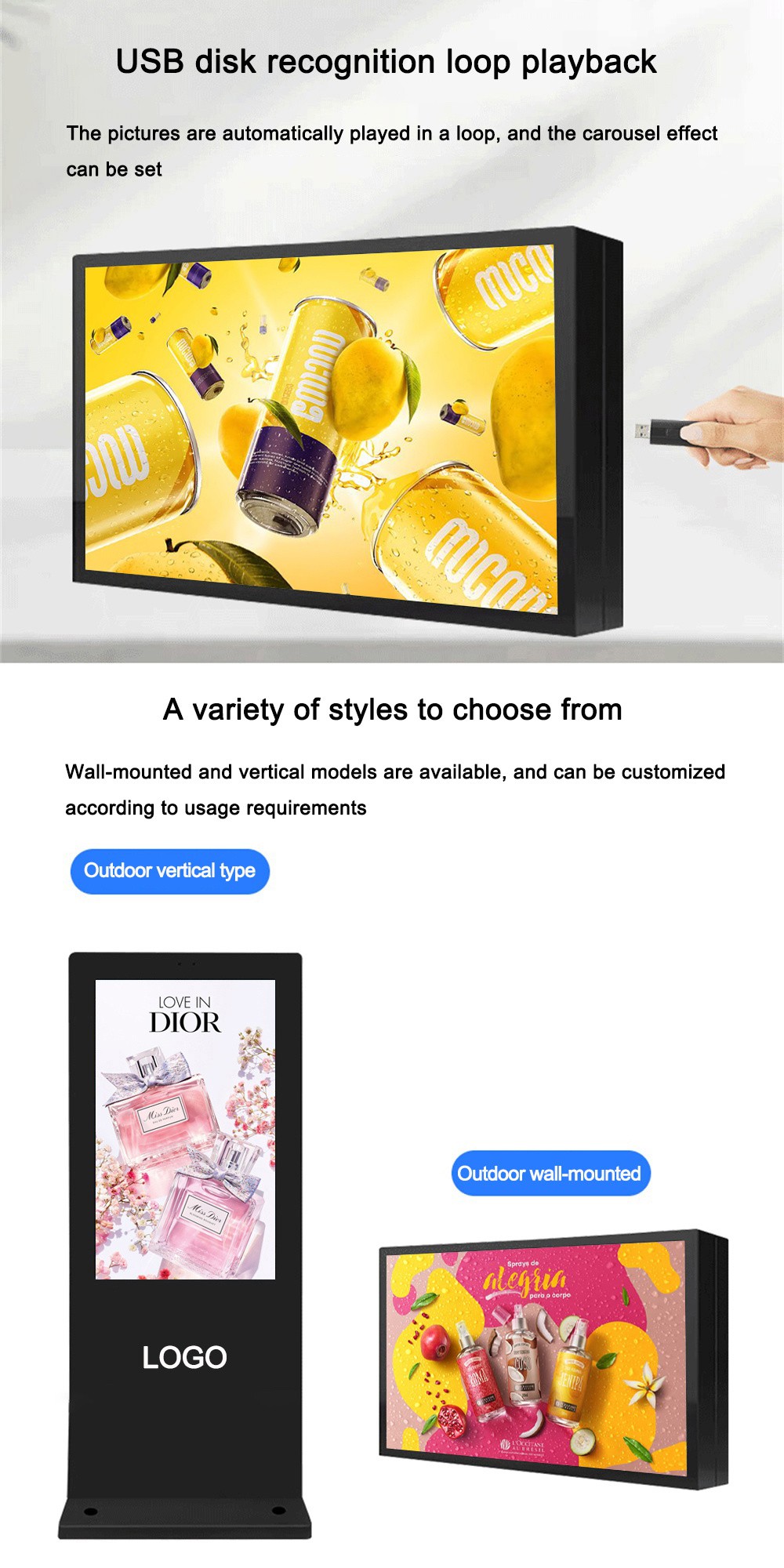

| Auto loop play after power on. |
| The outdoor advertising machine supports seamless switching. |

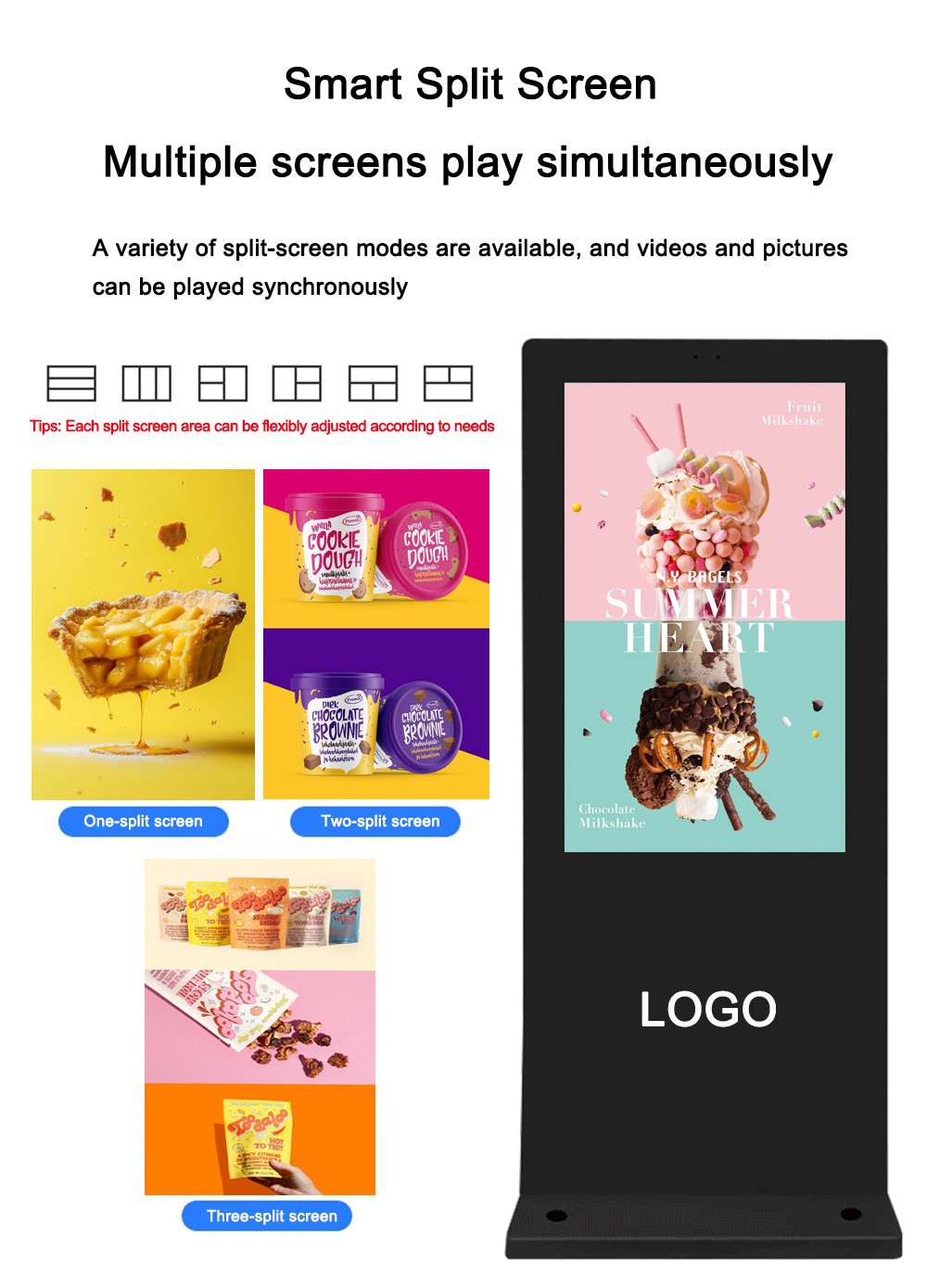

| Split screen: The display area can be divided freely, supporting 2 videos + N pictures + N web pages + N scrolling subtitles + N weather + N dates to be displayed on the same screen. |
| Supports Google Play application downloads and installation. |
| Outdoor digital signage displays support both horizontal and vertical display, OSD, and playing contents can be rotated 90°/180°/270°. |
| Timing switcher: Auto power on/off at a specific time. |
| Built-in WIFI module, supports WIFI hotspot function. |
| Outdoor digital signage displays support multi-language OSD: Chinese, English, Japanese, and Korean. |
Specifications
| Panel | Screen Size | 65-inch (32" 43"49" 55" optional )outdoor advertising machine |
| Display Ratio | 9:16 | |
| Display Area | 808x1432 mm (H×V) | |
| Resolution | 1080*1920 ( 4K optional ) | |
| Luminance | 2000 cd/m² | |
| Contrast Ratio | 5000: 1 | |
| Viewing Angle (R/L/T/B) | 89/89/89/89 (Typ.) | |
| Response Time | 8ms | |
| Supported Format | Video Format | MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF |
| Photo Format | JPEG, PNG | |
| Music Format | MP3, MP2, WMA, WAV | |
| Supported Video Decoding | Max Color Depth | 24bit |
| Max Frame Rate | 30frm/s | |
| Max Code Stream | USB2.0 device:30Mb/s | |
| Supported Audio Decoding | Sampling Rate | 32kHz,44.1kHz,48kHz,96kHz |
| Bit Rate | 32kbps to 384kbps | |
| I/O | USB Transfer Rate | USB2.0, Max 480Mbps |
| Network Interface | 100Mbps | |
| WIFI Interface | 100Mbps | |
| Power | Input: AC 100~240V 50/60Hz | |
| Others | Test System | Spray test |
| Low and high-temperature tests | ||
| Solar radiation test | ||
| Complete machine aging test | ||
| Installation | floor standing | |
| Operating temperature | -30°C to +50°C |
Customized outdoor Digital Signage
More product specifications
FAQ
Q: Are you a factory?
A: Yes, we are a factory. We have produced outdoor advertising machines, digital signage screens, and media players since 2009.
Q: How does your company do regarding quality control?
A: Our QC team will do strict quality control inspections before shipment to ensure the best quality.
Q: What brand of screen are you using?
A: We are using Samsung, LG, AUO, and CHIMEI screens.
Q: The screen is not bright, with any display. why?
A: Check whether the power switch is on or the power cable/adapter is loose.
Q: How to Ship Products to My Country?
A: Well, that depends on your order quantity and your country's location. Normally, Large orders would go with sea freight or air freight, which is affordable to most of the clients, but it could take 3-5 weeks. Sample orders can go with international express like DHL, UPS, FedEx, which is very fast.
