Home/Products/ Digital Player Box / Button Digital Player Box

Digital Screen Media

Name: China Customized Digital Screen Media Suppliers, Manufacturers, Factory - Low Price - WINHI
Brand: WinHi
SKU: 144309497

Model: MPC1005-N（MS）
Item: UHD 4K HDMI/ Micro Switch/ RS232 Control/ Digital Optical Out audio and video Digital Signage Media Player Box
Price Range: $80-$110
Pick up a commodity to switch to a matching video in zero seconds, with no black screen.
Autoplay when powered on.
RS232 control playback.
Custom control playback.
Sound Output Mode: Default is "Audio", "SPDIF", and "HDMI", all outputs, you can define them in "autoplay.txt".
Warranty: 1-3 Years

Send Inquiry

Product Details of Digital Screen Media

Products Overviews
Product Parameters
More Product
FAQ
Inquiry

Product Parameters

Pick up a commodity to switch to a matching video in zero seconds, with no black screen.

1080P 4K HDMI output audio video media player.

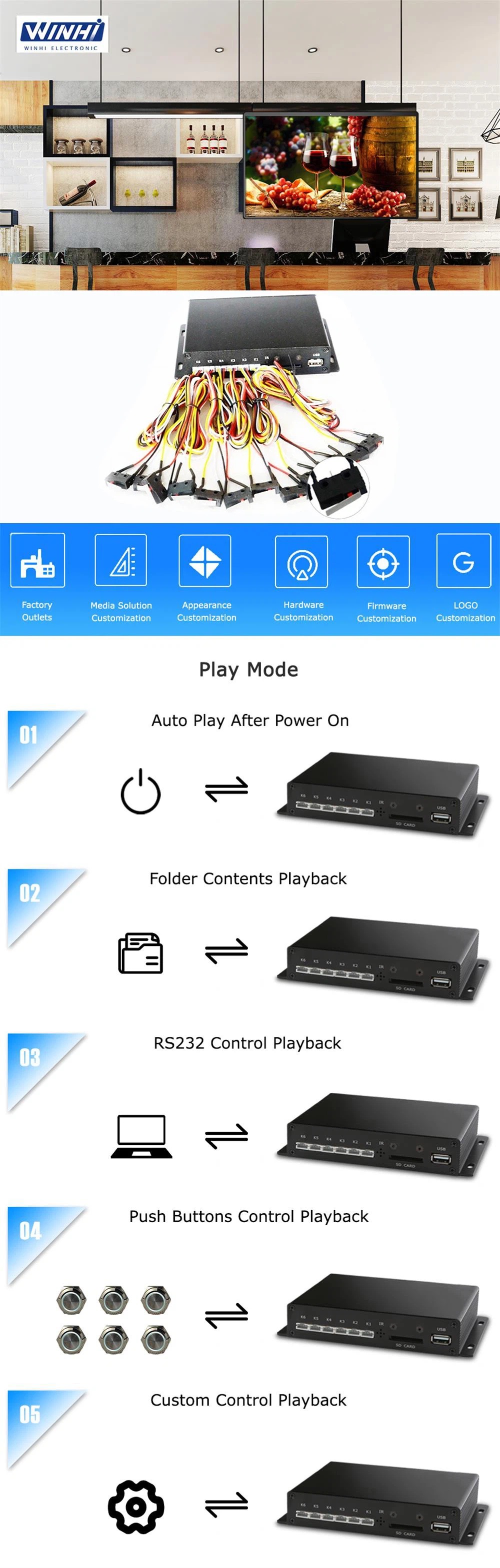

Working Mode:
A. Auto-play after power on; B. Folder files playback;
C. RS232 serial control playback D. Micro Switch control playback E. Custom control playback

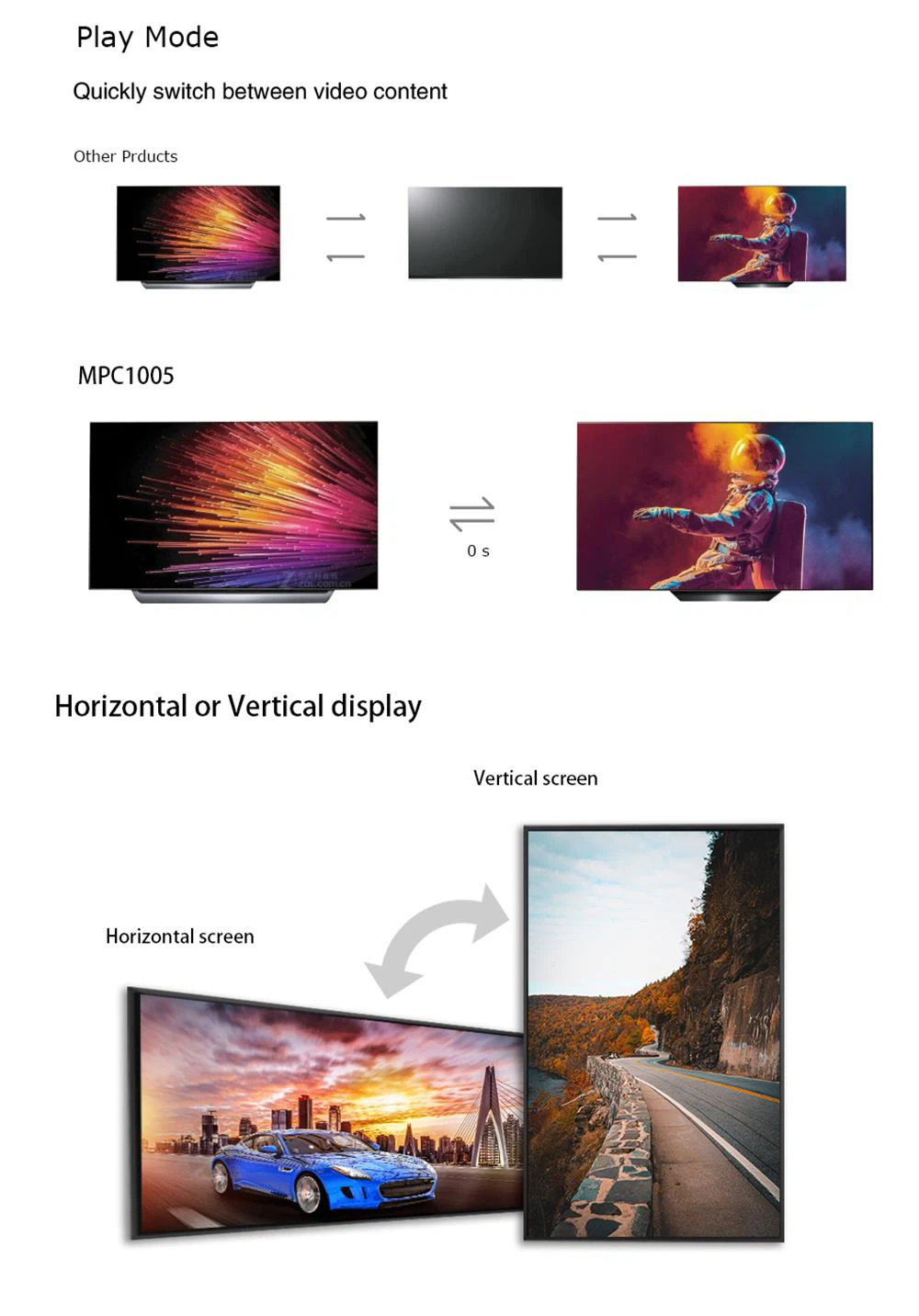

Support seamless switching between videos, no black screen.

RS232 Control: send RS232 commands to control the media player. (Play, pause, stop, volume up/ down, mute, next/ previous file, power on/off, play files in folders 01~99.)

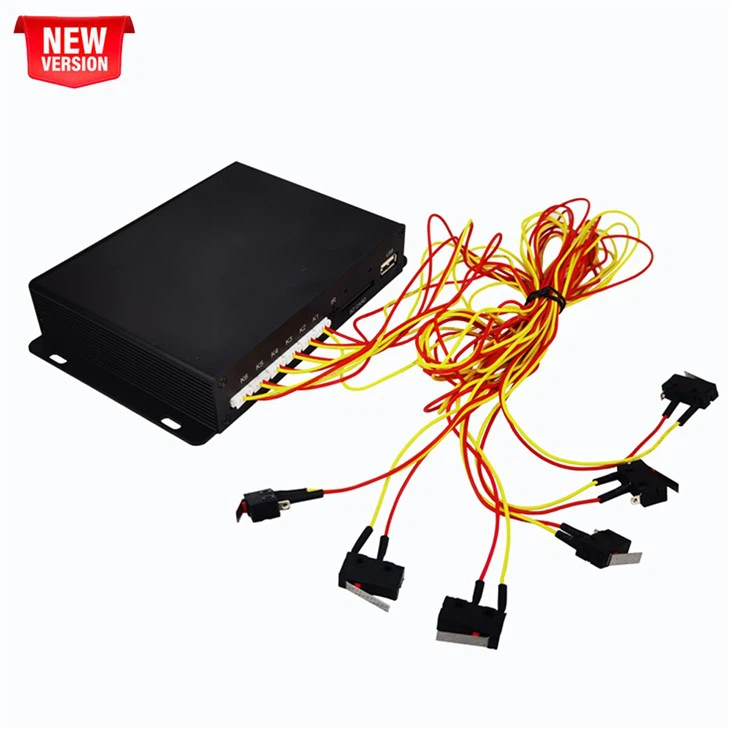

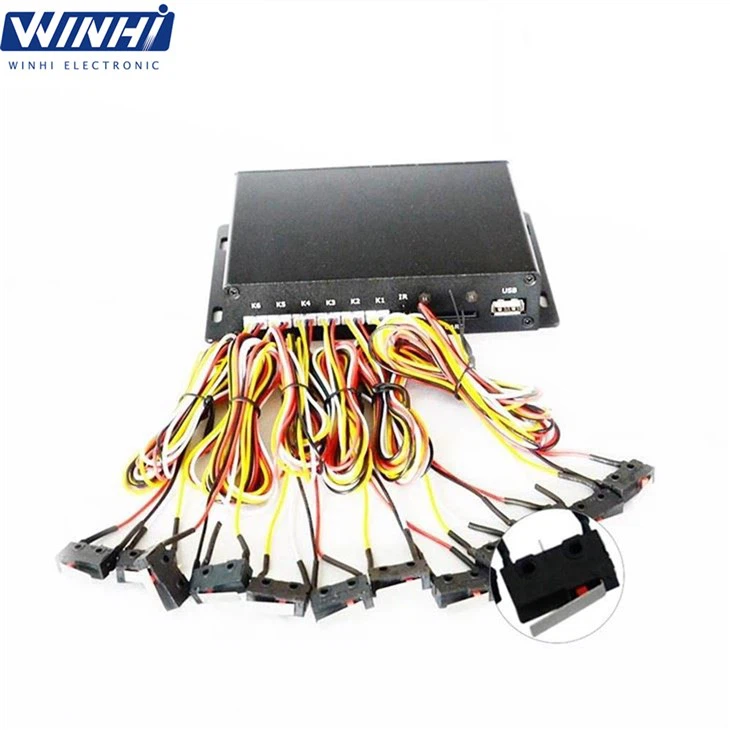

Micro Switch supported: 6 or 12 pcs.

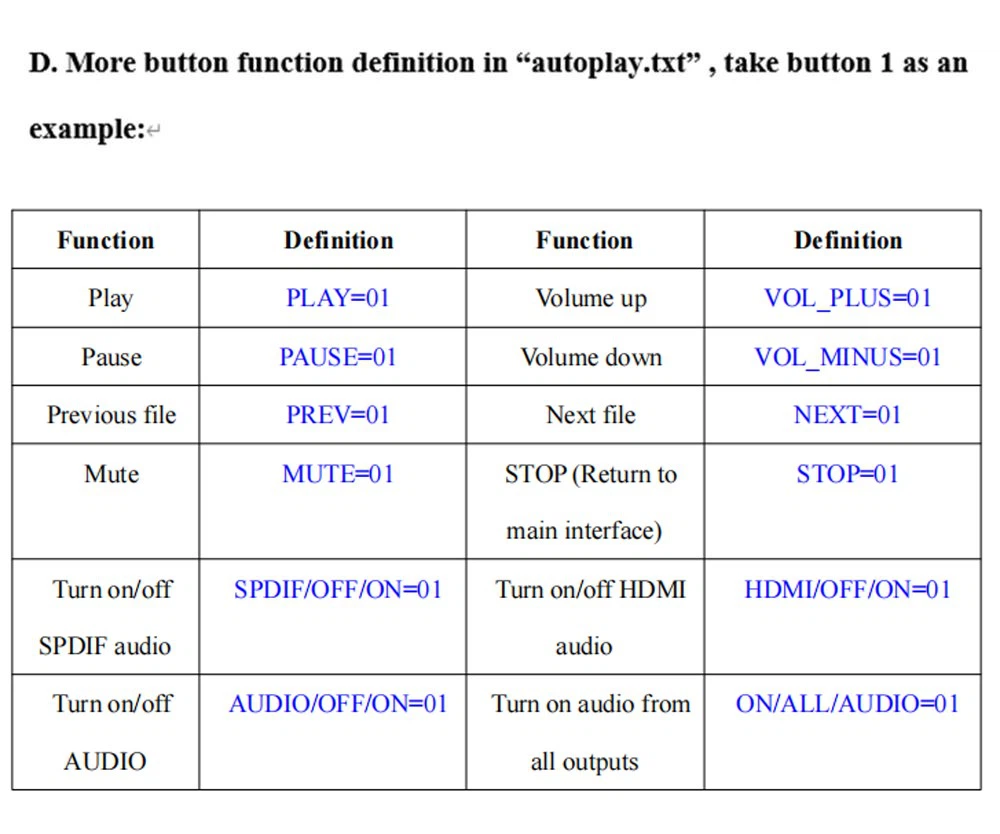

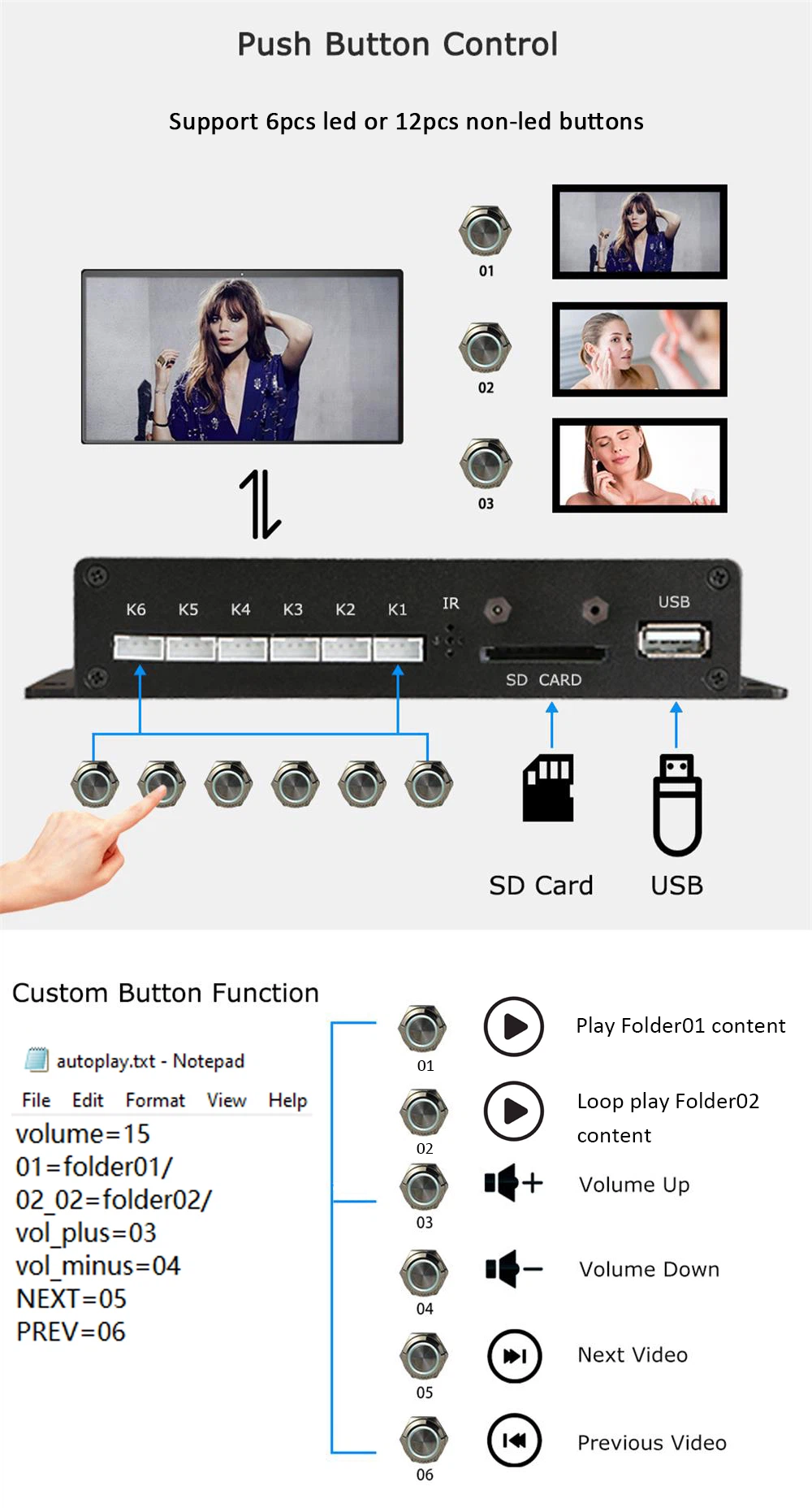

Micro Switch Control: The function of each Micro Switch can be customized in the "autoplay.txt" file. (For example, Play files in the folder, pause, volume up/ down, next/previous file.)

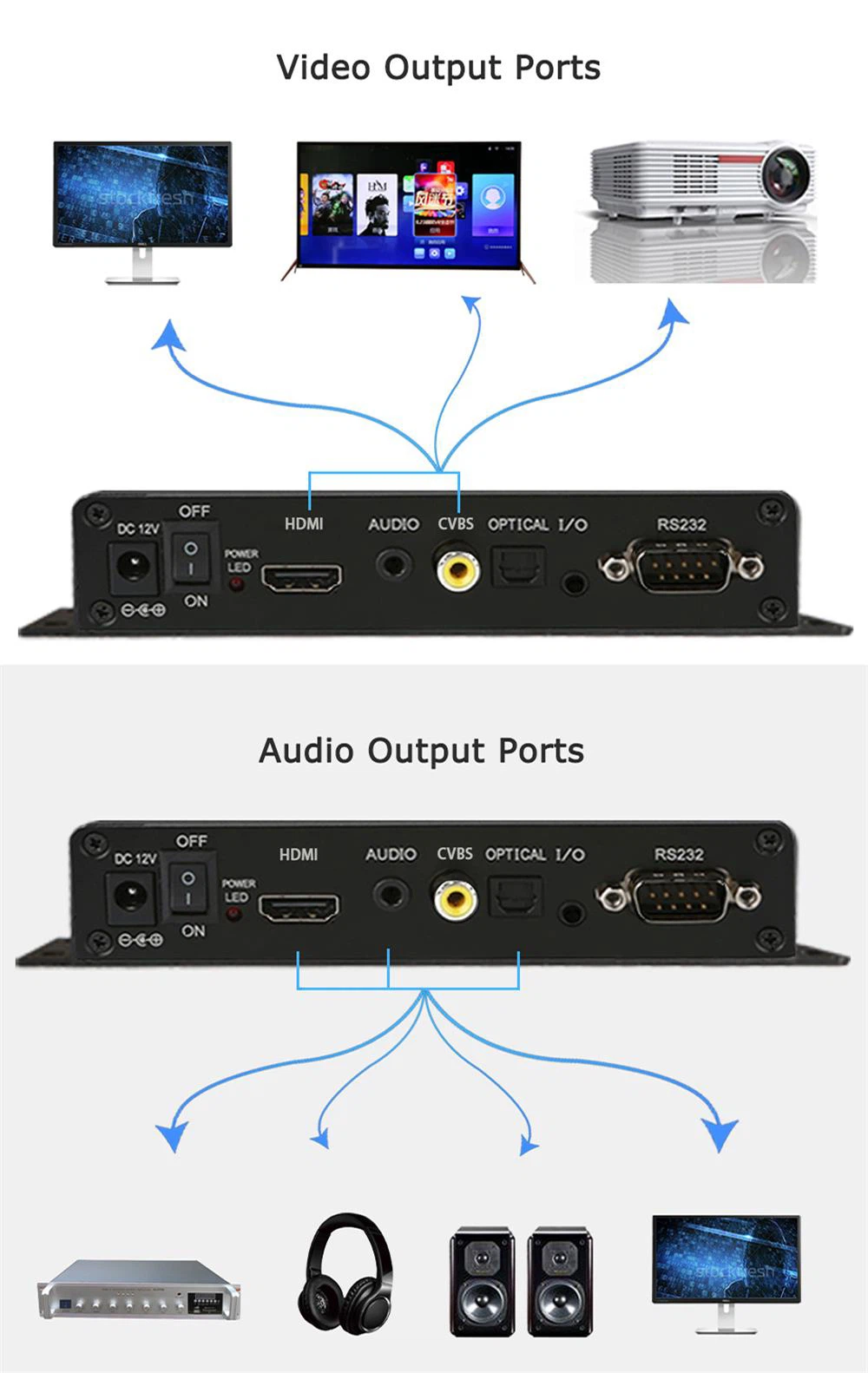

Video output: HDMI, CVBS.

Screen rotation: Support horizontal and vertical screen display, video, and menu can be rotated 90°/180°/270°.

Video output mode: auto, 3840X2160p-30HZ, 1920X1080p-60HZ, 1920X1080p-50HZ, 1920X1080p-30HZ,1920X1080p-25HZ...

Audio output: Optical, HDMI, Audio.

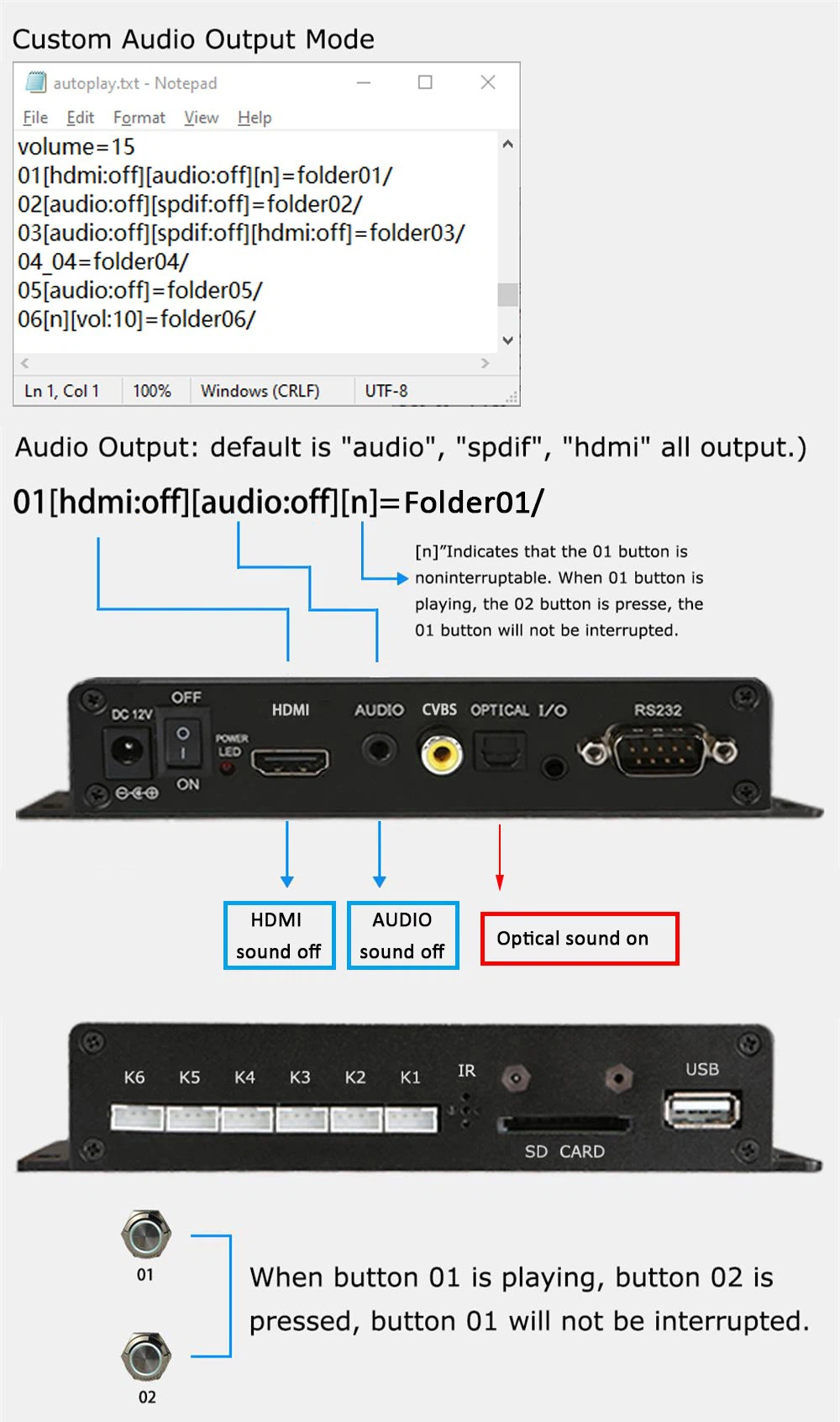

Sound Output Mode: Default is "Audio", "SPDIF", and "HDMI" all outputs you can define them in "autoplay.txt".

Support background music when playing pictures.

Support 13 kinds of picture transition effects.

File copy: The player has 5 GB internal storage, and supports copying files to internal storage from A USB disk.

Boot Screen: Custom picture (with customer-specific logo)

OSD language: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic.

Application: interactive demonstration and commodity display in retail stores, shopping malls, museums, airports, hotels, etc. Used for product audio and video promotion, event introduction, etc.

Specifications

Card Reading Parameter	Video Format	AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV
	Audio Format	MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B
	Image Format	JPG, BMP, JPEG, GIF
	Storage	SD/USB Device: 2.0 high speed/2TB Disk

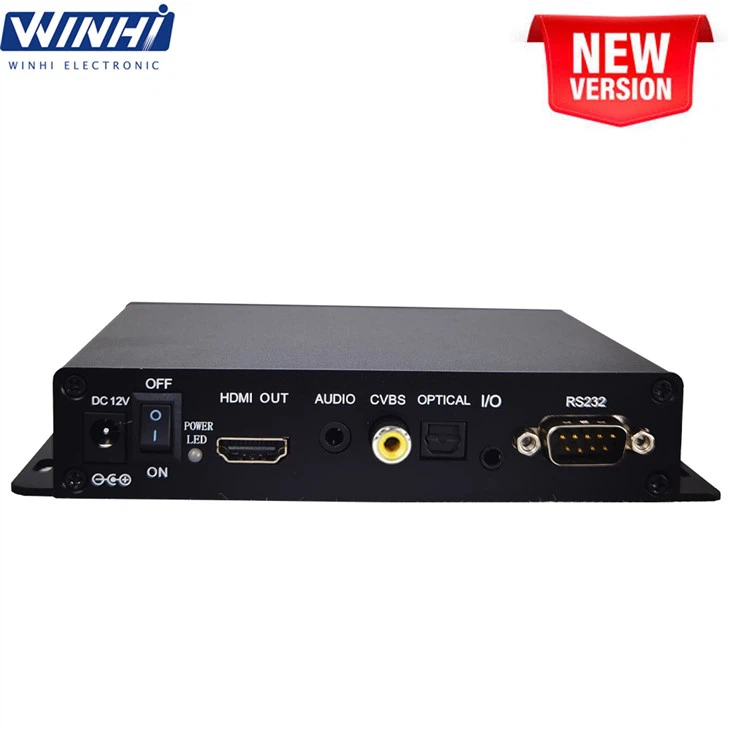

Interface	HDMI Output	*38402160**
	CVBS Output	NTSC
	OPTICAL Output	1 (audio output port)
	AUDIO Output	1 (3.5mm earphone jack)
	RS232 Input	1 (RS232 serial port)
	USB	USB 2.0*1
	SD Card	SD Card slot*1

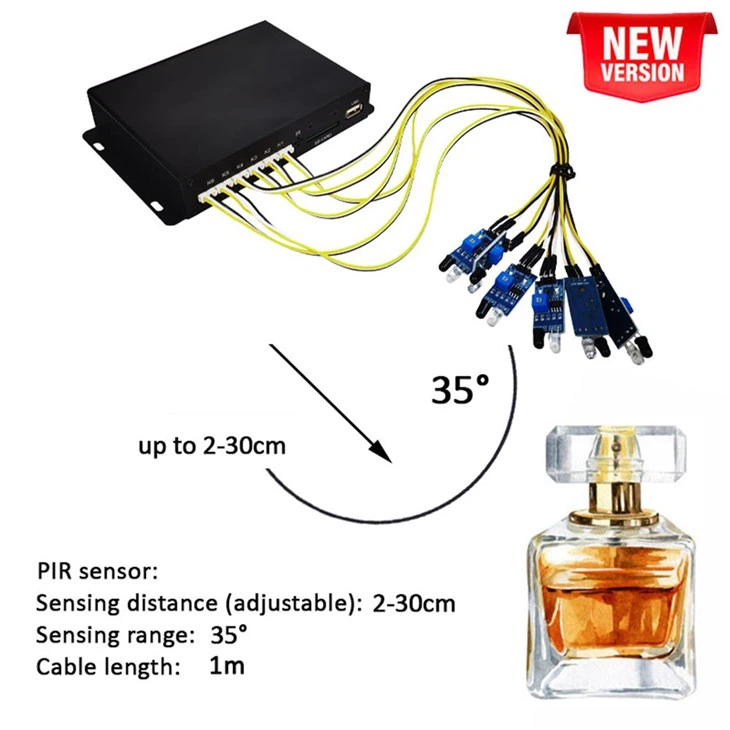

	I/O	1 (used to connect motion sensor)

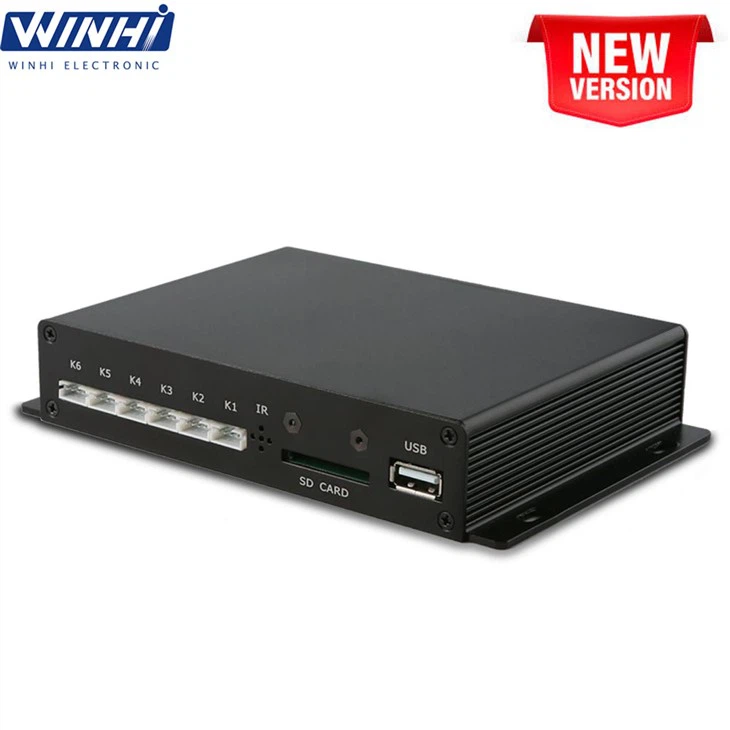

	Button interface	K1-K12
	IR	IR remote control receiving
	ON/OFF	Power on/off switch
	Power Supply	DC 12V/1.5A
Others	Working Temperature	0°C~ 40°C (32℉~104℉)
	Shell	Black metal shell
	Accessory	Adapter, remote control, HDMI cable

Products Overviews

MPC1005-NMS 1

MPC1005-6 2

MPC1005-6 3

MPC1005-6 4

MPC1005-6 5

MPC1005-6 6

MPC1005-6 7

MPC1005-6 8

MPC1005-6 9

MPC1005-6 10

Best selling

1.1_.jpg 1.2

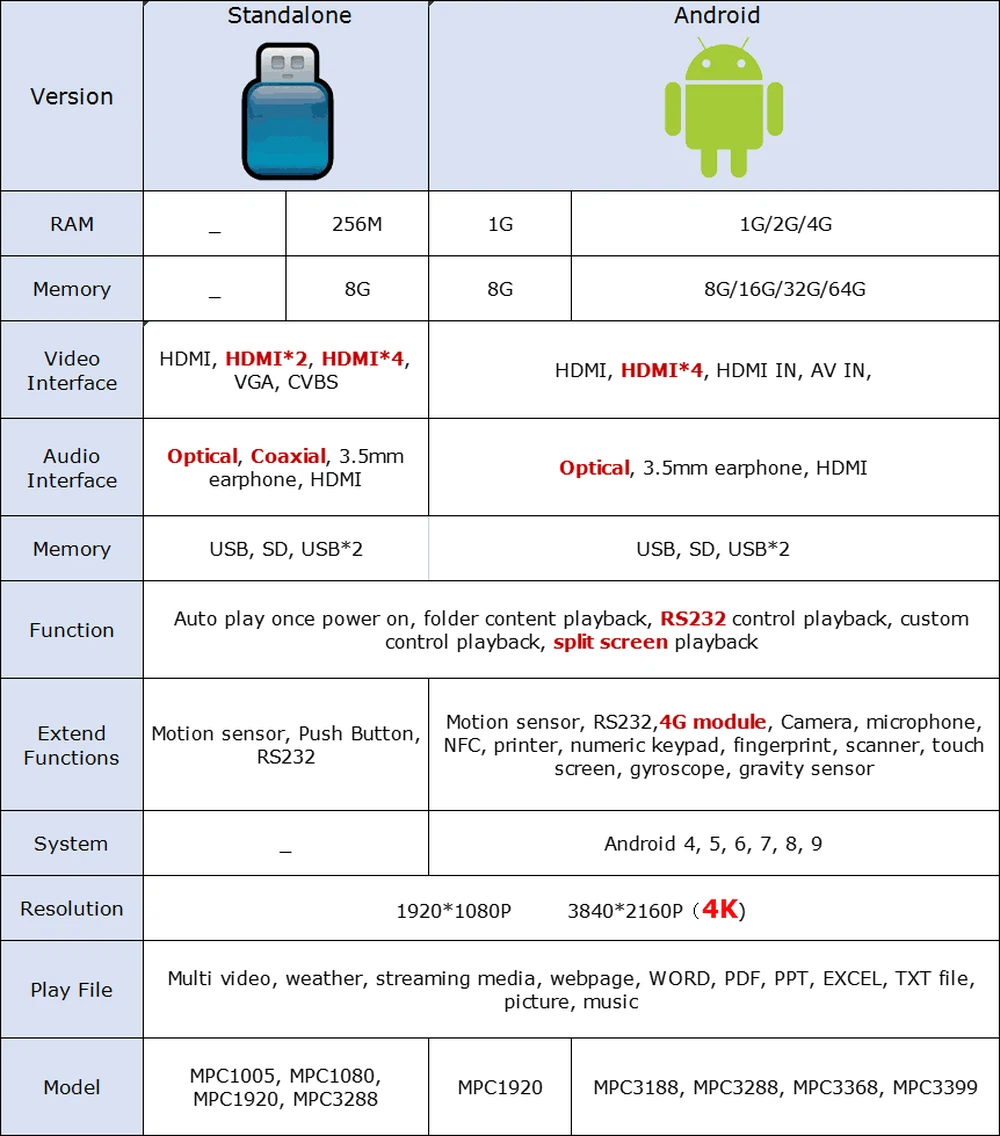

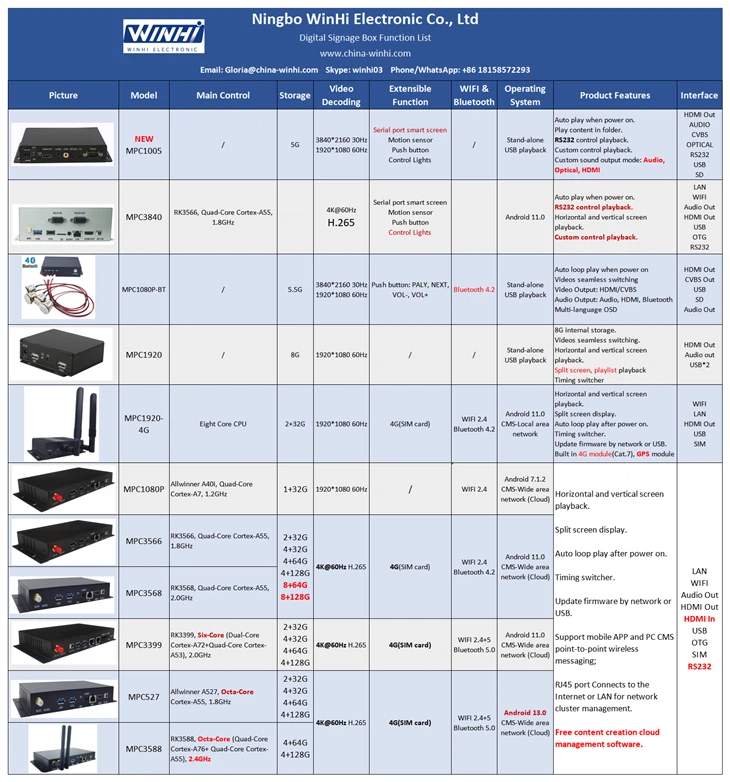

More product specifications

winhi media player

FAQ

Q: Do you have your enclosure factory?

A: Yes, we do have our enclosure factory, and we have the best structural Engineer. Hope to provide you with the best advertising media solutions and personalized shapes. OEM is also welcome.

Q: Can be customized?

A: Yes, we have OEM/ODM customer service.

Q: What much the extra cost for your OEM order?

A: Please contact our salesperson about your detailed requests.

Q: Why should you buy us a Digital Screen Media?

A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products include digital signage, Digital Screen Media, monitors, and customized audio-video products. We have a dedicated design team and R&D team, which enables us to support customized designs.

Q: How long is the lead time?

A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
