Digital Window Signage

---

---

CMS publishing system: Background server management software, set parameters, make the playlist, make split-screen files, support double videos, weather, streaming media, webpage, Word, Excel, PDF, PPT, text file display on one screen, download server video sources in real-time, autoplay after download completed.

Built-in WIFI module.

Built-in 4G module: support LTE-FDD / LTE-TDD / WCDMA and other network systems, Unicom 3 G and 4G full Netcom.

Built-in Bluetooth BT4.2 and GPS.

File copy: Copy playing content with USB, copy speed up to 24M/S. Built-in 8GB internal memory.

Videos switching with zero seconds, no black screen.

Screen rotation: Digital window signage support menu and playing content(video, picture) rotated in 90°,180°,270°, no need for a transcoding tool.

Split-screen playing: Digital window signage supports double videos, pictures, rolling caption, streaming media, webpage, weather, date, WORD, EXCEL, PDF, PPT, TXT file, free to split the display area.

Rolling Caption: Display product information with text during playing video ads.

Timing function: Support 24 hours from Monday to Sunday to auto turn on/off at a specific time.

Clock display: built-in clock IC, network auto-update time information, and adjust the system time.

Language: English, Japanese, Korean, Traditional Chinese, Simplified Chinese

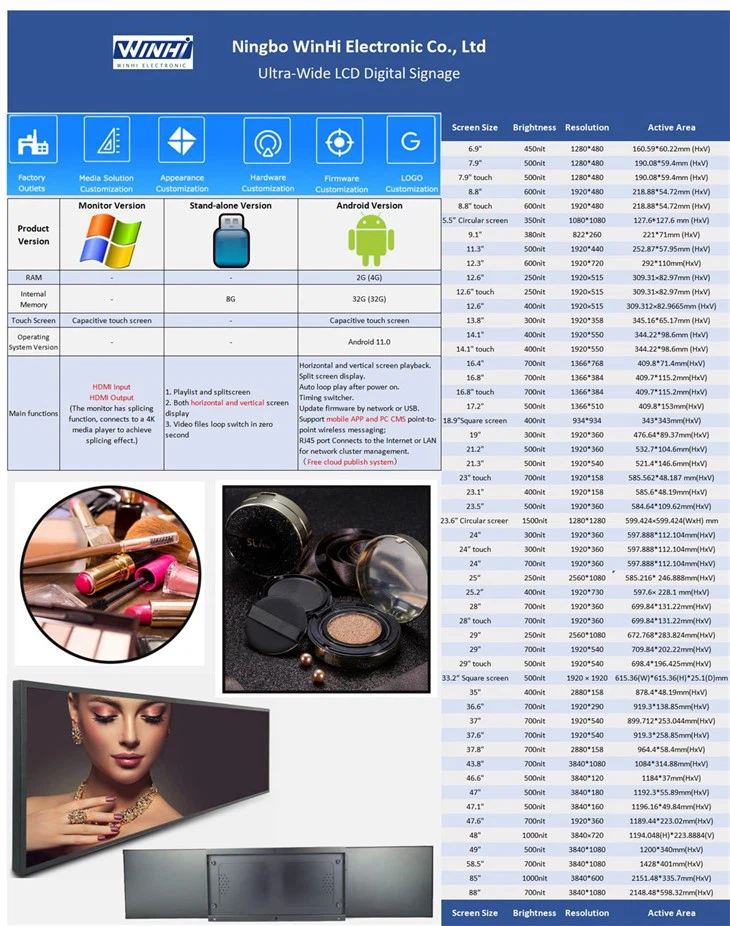

Screen size optional: 19", 21", 23", 24", 28", 29", 37", 43", 49", 50", 57", 86"

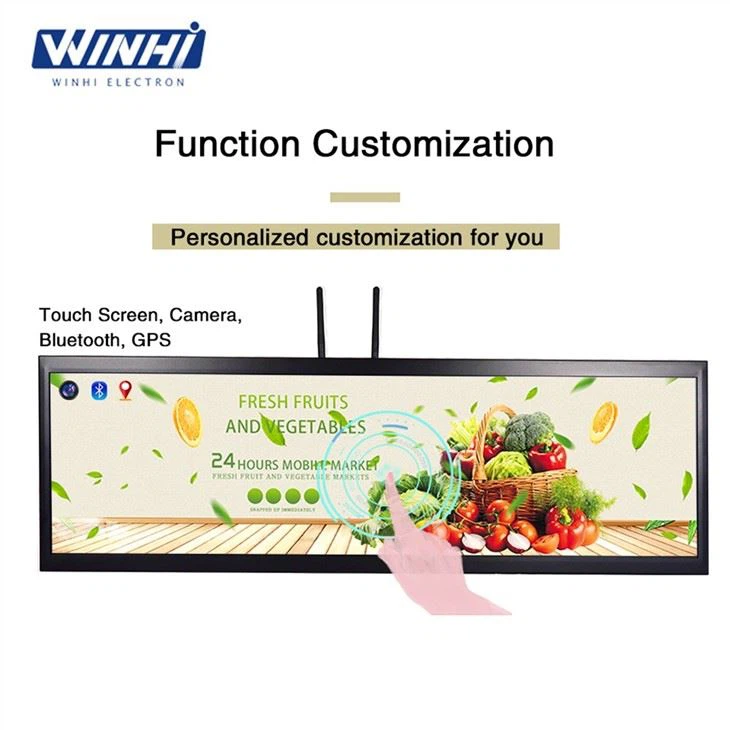

Customized functions: Camera.

The standard version in the same series: Editing tool for quickly creating split-screen files and playlist files, USB automatic copy.

Widely used in shops, shelf edges, museums, airports, and hotels for product introduction and activity promotion.



Specifications

---

Screen	Screen Size	29 inch
	Resolution	1920x540
	Display Area	709.84x202.22mm(HxV)
	Luminance	700cd/m2
	Contrast Ratio	1200：1
	Viewing Angle	U89°/D89°/L89°/R89°(Typ.)
	Response Time	8ms
Hardware	CPU	Eight Core: Quad-core A73,2.0G, quad-core A53,2.0G
	GPU	ARM Mali-G72 MP3 up to 800MH
	Operating System	Android 11.0
	Memory	2GB+16GB
	Network	LAN, WIFI, LTE-FDD / LTE-TDD / WCDMA
Supported Format	Video Format	MPEG2, AVI, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF, WMV, RM, RMVB
	Picture Format	JPG, BMP, PNG
	Audio Format	MP3,WMA,WAV,OGG,M4A,AAC,AC3,FLAC,APE
Video decoding	Max Resolution	1920*1080
	Max Color Depth	24bit
	Max Frame Rate	60fps
	Max Data Rate	USB2.0 device:30Mb/s
Audio decoding	Sample Rate	32kHz,44.1kHz,48kHz,96kHz
	Bit Rate	32kbps to 384kbps
Input/Output	SIM card	NANO sim card(micro)
	USB Transmission Rate	USB2.0, Max 24M/S
	Network Interface	100Mbps
	WIFI Interface	GPS, WIFI/BT three-in-one antenna interface
	4G Antenna Interface	Support LTE-FDD / LTE-TDD / WCDMA data services.
	Power Supply	DC 12V 5A
	Power(Operating mode)	36W TYP
Shell	Color	Black

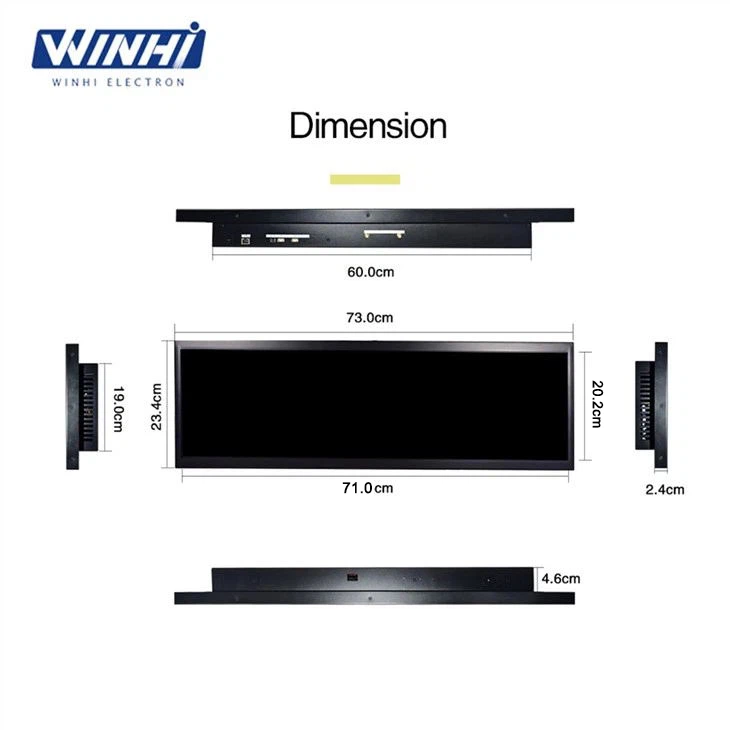

	External Dimension	730x234x70mm



---

More product specifications

---

---

Q: Are you a factory or simply a trading company?

A: We are a true OEM/ODM factory. And our R&D team is on standby for customized media solutions.

Q: Can we print our Logo on the products? What is MOQ?

A: We can print your own logo on it as you like. The MOQ depends on your detailed requests.

Q: How can digital signage be beneficial for my business?
A: Digital signs are an attractive and modern way to capture attention in public places.
Q: What type of content can be displayed in the digital signs?
A: Digital signage can display a variety of content, including ads, animated content or video, static information, or menus.

Q: What payment terms do you accept?

A: We accept Paypal, T/T, Alibaba Trade Assurance, Western Union, Wechat, in Cash (RMB or USD)...



---
