4k Smart TV Box
Item: MPC3840 4K UHD Digital Signage Media player Android 11.0 2+32G RS232 Video Player For Advertising Information Release Box
Price Range: $100-$120
1.Main Control: RK3566 quad-core Cortex-A55 processor (1.8GHz)
2. Storage: 2GB RAM + 32GB internal storage

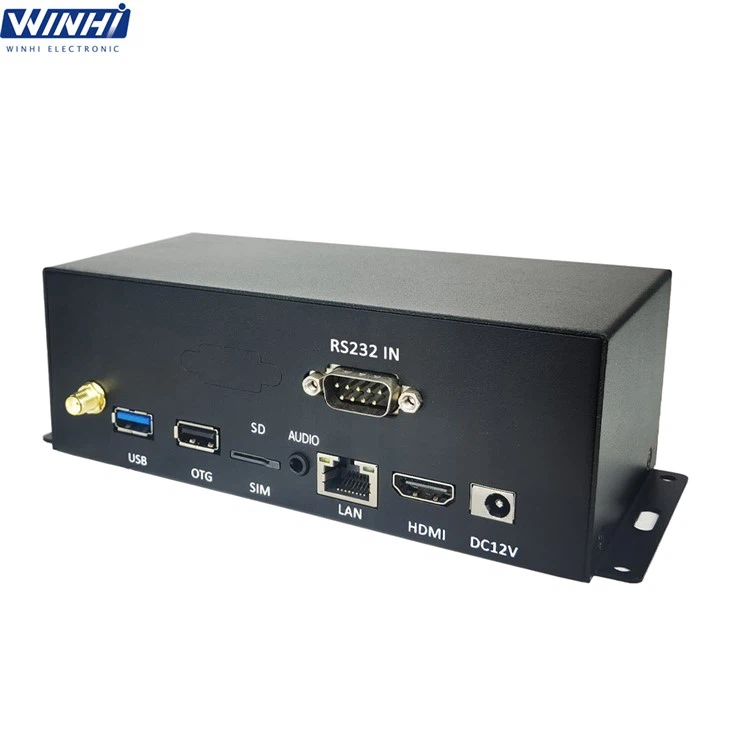

3. Interface: LAN, Wi-Fi, Audio Out, HDMI Out, USB, OTG, RS-232 Serial Control.
4. Video Decoding: Supports 4K@60Hz with H.265 decoding
5. Connectivity: Wi-Fi 2.4GHz and Bluetooth 4.2
6. Operating System: Android 11.0 with integrated CMS Wide-Area Network (Cloud) service.
Send Inquiry
Product Details of 4k Smart TV Box
Product Parameters
| Support 4K UHD Video Decoding. |
| Support mobile APP and PC CMS point-to-point wireless messaging; RJ45 port connects to the Internet or LAN for network cluster management. |
| Working Mode: A. Auto-play after power on; B. Folder files playback; C. RS232 serial control playback |

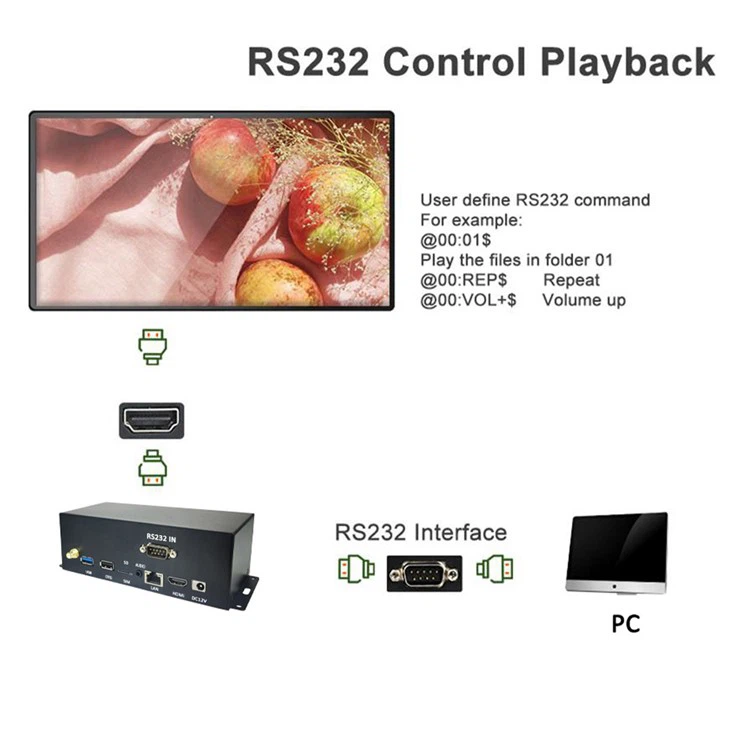

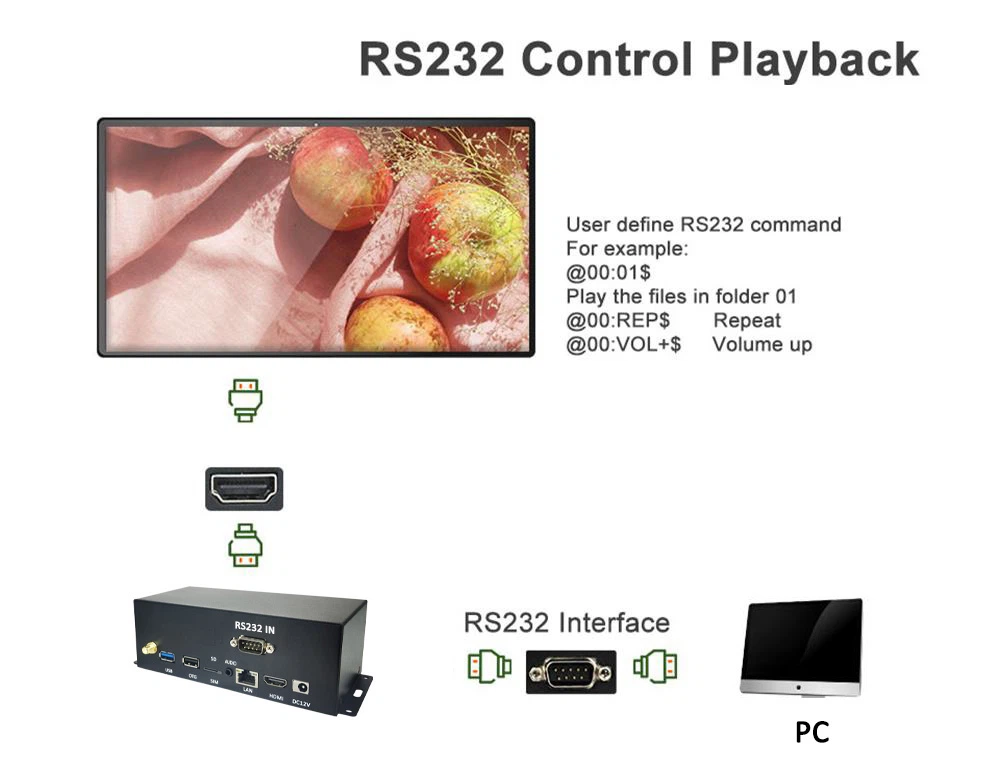

| RS232 Control: send RS232 commands to control the media player. (Play, pause, stop, volume up/ down, mute, next/ previous file, power on/off, play files in folders 01~99.) |
| Timing switcher and playing schedule: Auto power on/off and play specific content at the pre-set time. |
| Supports both horizontal and vertical display; OSD and playing content can be rotated 90°/180°/270°. |
| High stability: Through hardware and software, it adds its own unique technology to ensure product stability, enabling the final product to operate continuously for 7*24 hours. |
| Support for updating programs through USB, TF card, network cable, and Wi-Fi. |
| Cluster management: Supports unified management of multiple LCD screens over the LAN and Internet. |
| High definition: Support HDMI interface LCD display, support various sizes, and various resolution cropping screens. |
| Supports startup animation definition. |
| Supports server/single-machine mode switching. |
| Wi-Fi hotspots are supported. |
| Widely used in security, medical, transportation, finance, industrial control, and other fields of LCD display control. |
| OSD: Support multi-language. |
Specifications
| System | CPU | RK3566, quad-core, up to 1.8GHz |
| GPU | Mali-G52 GPU | |
| Operating System | Android 11.0 | |
| RAM | DDR3, default 2GB (4/8GB optional) | |
| Internal Storage | eMMC 32GB (64/128GB optional) | |
| Applications have been installed | APK Installer, Email, Calculator, Browser, Voice Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Downloads, Camera, Music, Explorer, etc. | |
| Network | Support RJ45 R/A 100M Ethernet Standard 2.4GHz Wi-Fi (supports optional 5GHz), 802.11b/g/n protocol. |
|

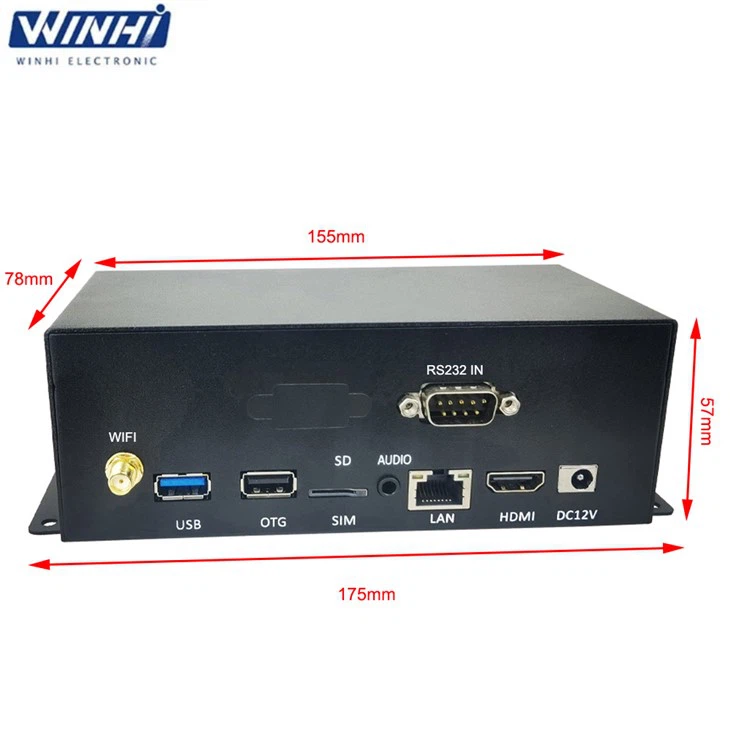

| Interface | USB | USB2.0*1, USB3.0*1 |
| HDMI Out | HDMI out *1(support 4K@60Hz video output) | |
| LAN | 100M Ethernet | |
| WiFi | Support 2.4G WiFi, protocol 802.11b/g/n | |
| Audio Out | 3.5mm audio jack*1 | |
| TF Card | TF Card Slot*1 | |
| RTC | Built-in real-time clock function | |
| IR | Receive a signal from the remote control | |
| Power Supply | Input: 100-240V/50-60Hz AC Output: 12V 2A DC |
|
| Format Supported | Video Format | H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 |
| Audio Format | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | |
| Image Format | JPG, BMP, PNG | |

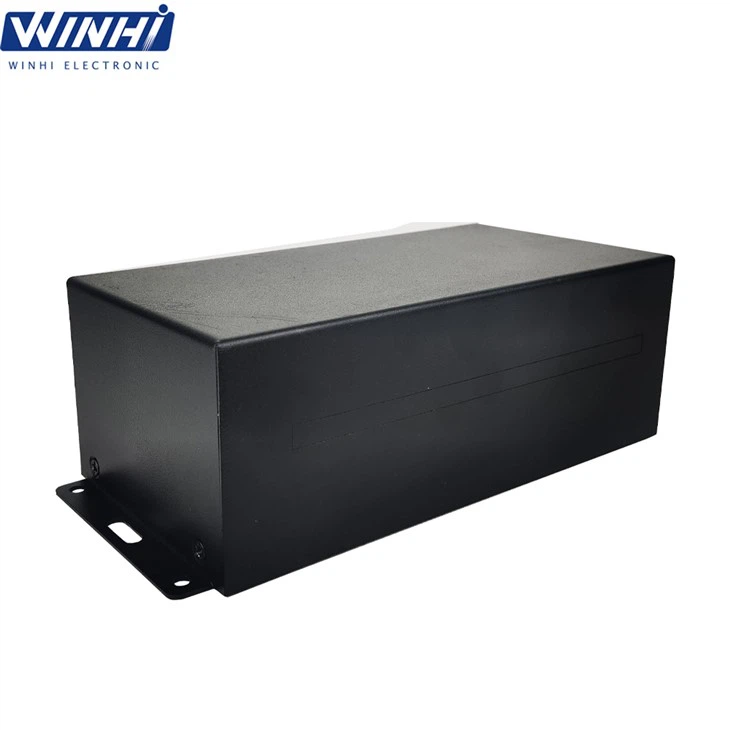

| Others | Shell | Black metal shell |
| Storage Temperature | -10℃~60℃ | |
| Accessories | Adapter, remote control, WIFI antenna, HDMI cable |
Products Overviews
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
Best selling
FAQ
Q: What can you buy from us?
A: Digital signage, video decoder, 4k smart TV box, LCD and LED Advertising screens, and customised audio-video advertising media solutions.
Q: Why should you buy from us, not from other suppliers?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, digital signage media boxes, monitors, customised audio-video products, etc. We have our designers and R&D team, which makes us support customised design.
Q: Can I have a sample? Is it free?
A: We do sample orders, but the cost is on the buyer's side.
Q: Do you offer a warranty and technical support?
A: We offer a 1-3 year warranty and technical support without a time limit.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days, depending on the quantities and product models of your order.
