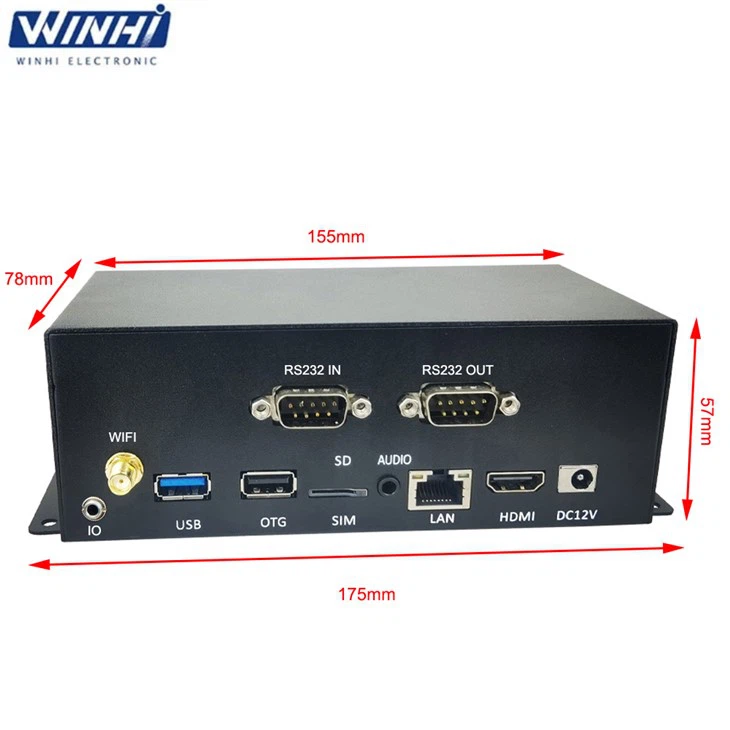

Media Player Box

---

Support 4K UHD Video Decoding.

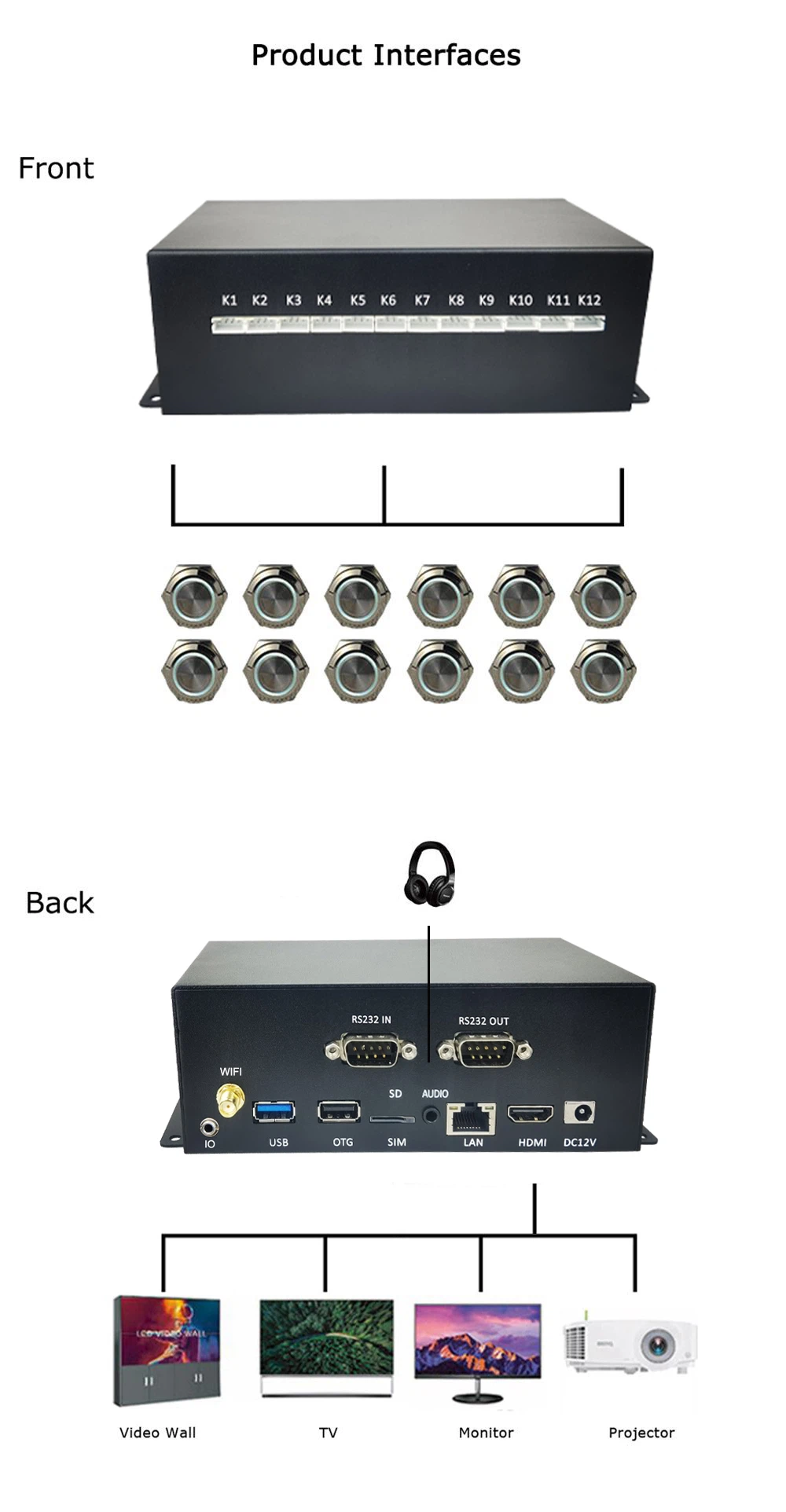

Button supported: 12 LED buttons.

Two-button lighting modes are available (Factory-Defined Mode): 1. All button lights flash when the player is powered on and auto-play homepage content. Pressing any button will keep its light on, while the other button lights are off. 2. All button lights are off when the player powers on and auto-play homepage content. Pressing any button will keep its light on, while the other button lights are off.

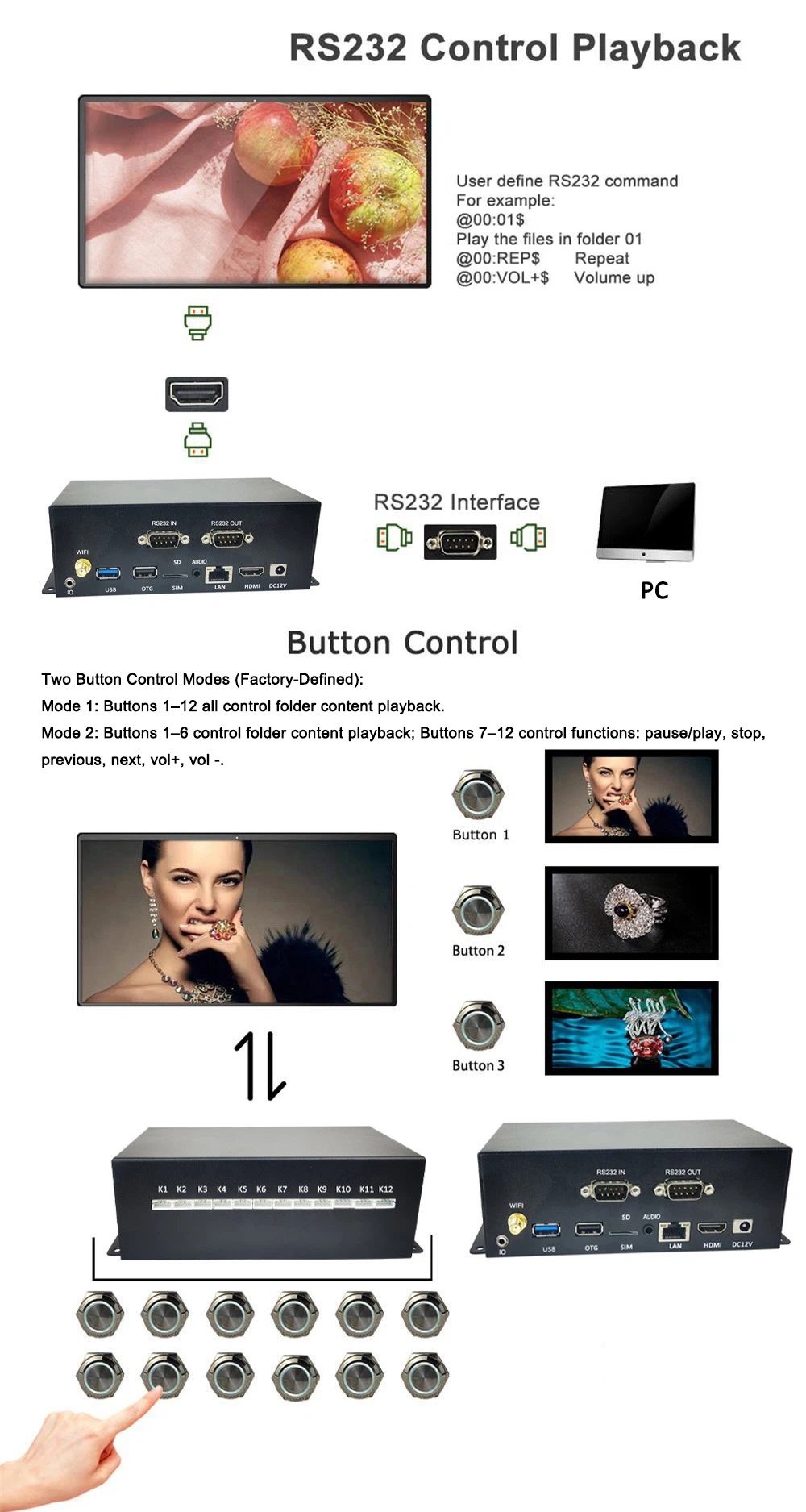

Two-Button Control Modes (Factory-Defined): Mode 1: Buttons 1–12 all control folder content playback. Mode 2: Buttons 1–6 control folder content playback; Buttons 7–12 control functions: pause/play, stop, previous, next, vol+, vol -.

Support mobile APP and PC CMS point-to-point wireless messaging; RJ45 port connects to the Internet or LAN for network cluster management.

Working Mode: A. Auto-play after power on; B. Folder files playback; C. RS232 serial control playback D. Button control playback

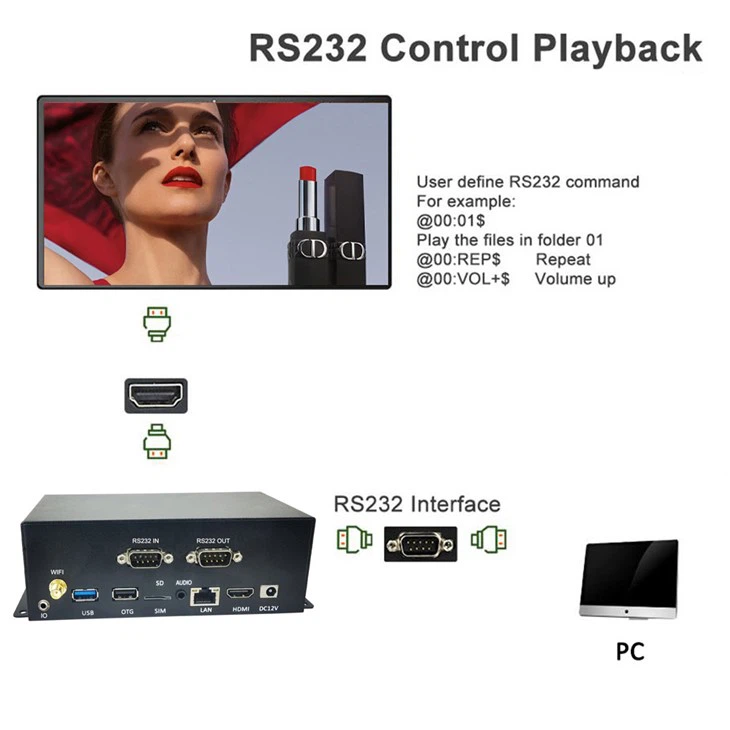

RS232 Control: send RS232 commands to control the media player. (Play, pause, stop, volume up/ down, mute, next/ previous file, power on/off, play files in folders 01~99.)

Timing switcher and playing schedule: Auto power on/off and play specific content at the pre-set time.

Supports both horizontal and vertical display; OSD and playing content can be rotated 90°/180°/270°.

High stability: Through hardware and software, it adds its own unique technology to ensure product stability, enabling the final product to operate continuously for 7*24 hours.

Support for updating programs through USB, TF card, network cable, and Wi-Fi.

Cluster management: Supports unified management of multiple LCD screens over the LAN and Internet.

High definition: Support HDMI interface LCD display, support various sizes, and various resolution cropping screens.

Supports startup animation definition.

Supports server/single-machine mode switching.

Wi-Fi hotspots are supported.

Widely used in security, medical, transportation, finance, industrial control, and other fields of LCD display control.

OSD: Support multi-language.



Specifications

---

System	CPU	RK3566, quad-core, up to 1.8GHz
	GPU	Mali-G52 GPU
	Operating System	Android 11.0
	RAM	DDR3, default 2GB (4/8GB optional)
	Internal Storage	eMMC 32GB (64/128GB optional)
	Network	Support RJ45 R/A 100M Ethernet Standard 2.4GHz Wi-Fi (supports optional 5GHz), 802.11b/g/n protocol.

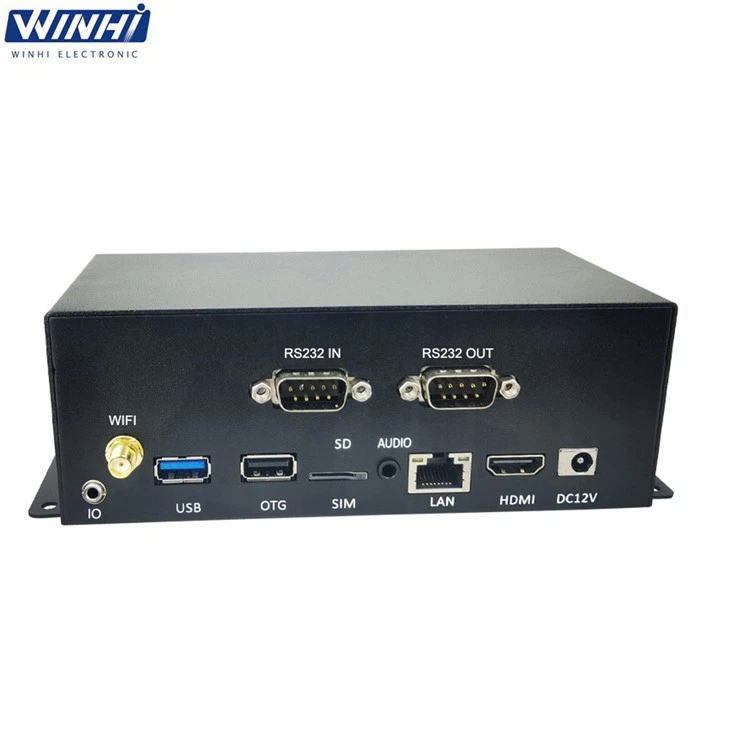

Interface	USB	USB2.0*1, USB3.0*1
	HDMI Out	HDMI out *1(support 4K@60Hz video output)
	LAN	100M Ethernet
	WiFi	Support 2.4G WiFi, protocol 802.11b/g/n
	Audio Out	3.5mm audio jack*1
	TF Card	TF Card Slot*1
	RTC	Built-in real-time clock function
	IR	Receive a signal from the remote control
	Power Supply	Input: 100-240V/50-60Hz AC Output: 12V 2A DC
Format Supported	Video Format	H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4
	Audio Format	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
	Image Format	JPG, BMP, PNG
Others	Shell	Black metal shell
	Storage Temperature	-10℃~60℃
	Accessories	Adapter, remote control, WIFI antenna, HDMI cable



---





---

More product specifications

---

Model	Main Control	Storage	Video Decoding	Extensible Function	WIFI & Bluetooth	Operating System	Product Features	Interface
MPC1005	/	5G	3840*2160 30Hz 1920*1080 60Hz	Serial port smart screen Motion sensor Push button Control Lights	/	Stand-alone USB playback	Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI	HDMI Out AUDIO CVBS OPTICAL RS232 USB SD
MPC3840	RK3566, Quad-Core Cortex-A55, 1.8GHz	/	4K@60Hz H.265	Serial port smart screen Motion sensor Push button Control Lights	/	Android 11.0	Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback.	LAN WIFI Audio Out HDMI Out USB OTG RS232
MPC1080P-BT	/	5G	3840*2160 30Hz 1920*1080 60Hz	Push button: PLAY, NEXT, VOL-, VOL+	Bluetooth 4.2	Stand-alone USB playback	Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD	HDMI Out CVBS Out USB SD Audio Out
MPC1920	/	8G	1920*1080 60Hz	/	/	Stand-alone USB playback	8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher	HDMI Out Audio out USB*2
MPC1920-4G	Eight-Core CPU	2+32G	1920*1080 60Hz	4G(SIM card)	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Local area network	Horizontal and vertical screen playback. Split-screen display. Auto loop play after powering on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module	WIFI LAN HDMI Out USB SIM
MPC1080P	Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz	1+32G	1920*1080 60Hz	/	WIFI 2.4	Android 7.1.2 CMS-Wide area network (Cloud)	Horizontal and vertical screen playback.   Split-screen display.   Auto loop play after powering on. Timing switcher.   Update firmware by network or USB.   Support mobile APP and PC CMS point-to-point wireless messaging;   The RJ45 port connects to the Internet or LAN for network cluster management.   Free content creation cloud management software.	LAN WIFI Audio Out HDMI Out USB OTG
MPC3566	RK3566, Quad-Core Cortex-A55, 1.8GHz	2+32G 4+32G 4+64G 4+128G 8+64G 8+128G	4K@60Hz H.265	HDMI IN GPS Module	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Wide area network (Cloud)
MPC3568	RK3568, Quad-Core Cortex-A55, 2.0GHz			HDMI IN 4G (SIM card) GPS Module
MPC3576	RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz	4+64G 8+64G	4K@60Hz H.265	HDMI IN (4K) 4G (SIM card) GPS Module	WIFI 2.4+5 Bluetooth 5.3	Android 14.0 CMS-Wide area network (Cloud)		LAN WIFI Audio Out HDMI Out HDMI In USB OTG



---

Q: What can you buy from us?
A: Digital signage, video decoder, media player box, LCD and LED Advertising screen, and customized audio-video advertising media solutions.

Q: Why should you buy from us, not from other suppliers?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, media player boxes, monitors, customized audio-video products, etc. We have our designers and R&D team, which enables us to support customized design.

Q: Can I have a sample? Is it free?
A: We do sample orders, but the cost is on the buyer's side.

Q: Do you offer a warranty and technical support?

A: We offer a 1-3 year warranty and technical support without a time limit.

Q: When will you make the delivery?

A: We can make the delivery within 3-15 working days, depending on the quantities and product models of your order.



---
