Video Stream Decoder

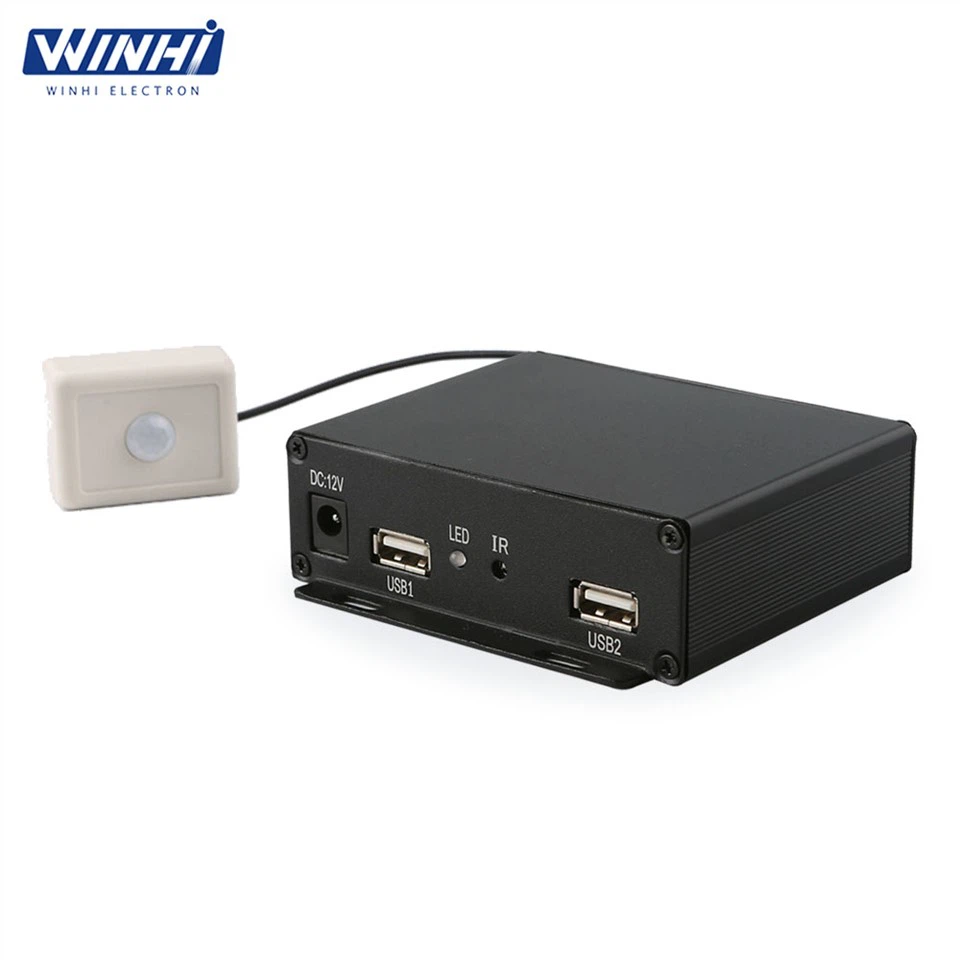

Item: FULL HD Laser Sensor and Micro Switch 8G Media Player
Price Range: $66-$96
Play the corresponding video when it is activated
Support landscape and portrait display
5 sections of Timing Switcher
Certification: FCC, CE, ROHS
Quality Assurance, Economical, reliable and durable
Warranty: 1-3 Years
Send Inquiry
Product Details of Video Stream Decoder
Products Overviews
Product Parameters

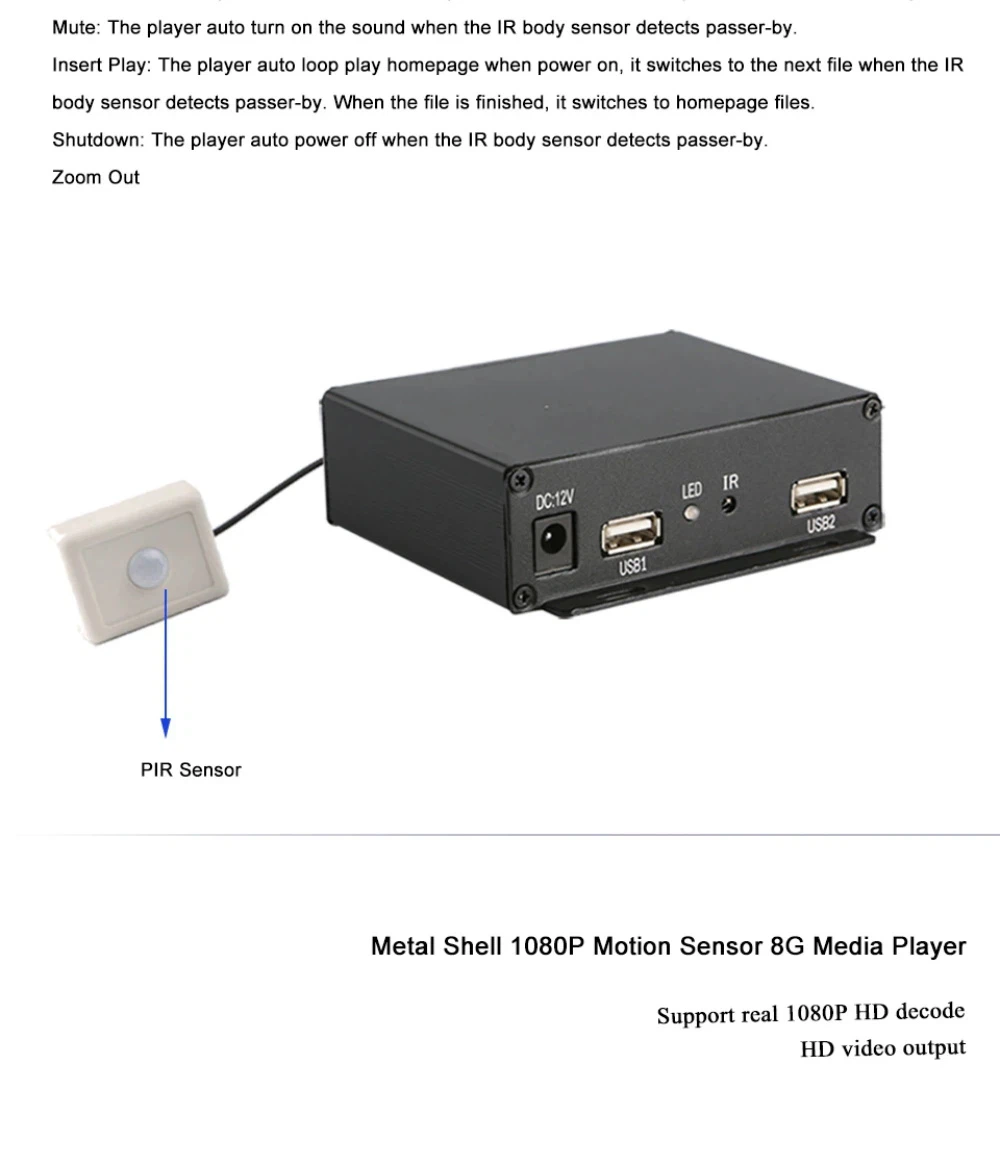

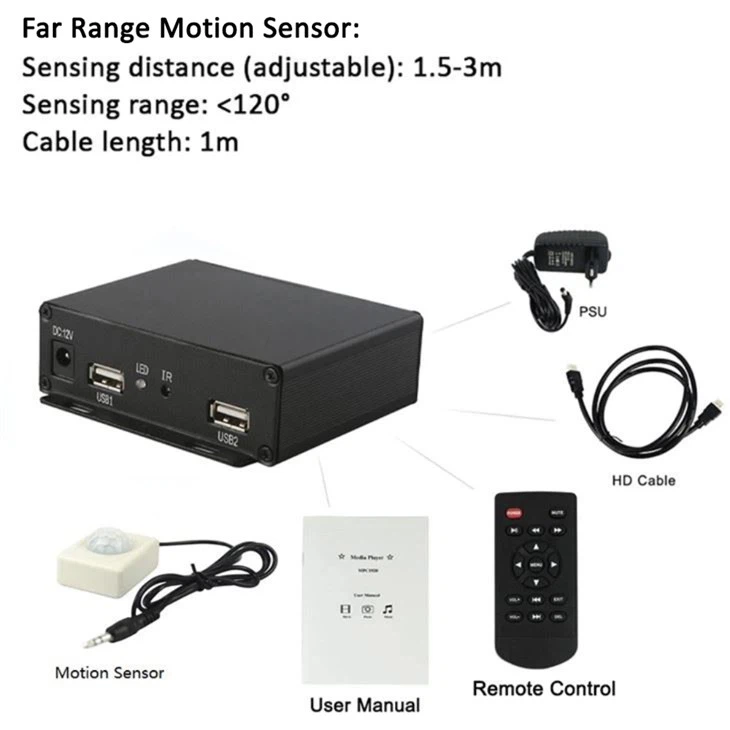

| 1-6 is the Motion Sensor function: |
| 1. Power on when there is a person: Power on and continue to play files when the motion sensor detects a person, power off when the person leaves the induction area. |
| 2. Power on when there is a person: Power on and play the next file when the motion sensor detects a person, power off when the person leaves the induction area. |
| 3. Mute: There is sound when the motion sensor detects a person, mute when the person leaves the induction area. |
| 4. Insert playing: Play the files in the root directory when there are no people, when people enter the induction area, play the files in folder 01. |
| 5. Power off when there is a person: The player powers off when the motion sensor detects a person. When there is no person, the player powers on and continues to play files. |
| 6. Zoom: When there is no person, the files play on full screen; when the motion sensor detects a person, the files will reduce to 1/4 of the screen. |
| 7. Auto-play and loop play when powered on(Videos can be switched in zero seconds). |
| 8. 8GB internal memory: USB auto copy files to 8GB internal memory, copy speed up to 6.7M/S and above. |
| 9. Play Mode: Videos, pictures, and menus can be rotated 90°/180°/270°(Support landscape and portrait display). |
| 10. Rolling Caption: Display product information with text. |
| 11. Image when powered on: Customers can customize. |
| 12. Playing record: The Customer can know the playing situation of files. |
| 13. Timing Switcher: No need for personnel management for 24 hours. (5 sections timing switcher can be set). |
| 14. Playing types: picture, picture + video, video. |
| 15. Language: English, Japanese, Korean, Simplified Chinese, Traditional Chinese. |
| 16. Stand-alone version in the same series: Standard version, Dual HD-MI version, Motion sensor version, Laser induction version. |
| 17. Application: Used in stores, product shelves, museums, airports, and hotels for product promotion and activity introduction. |
Specifications

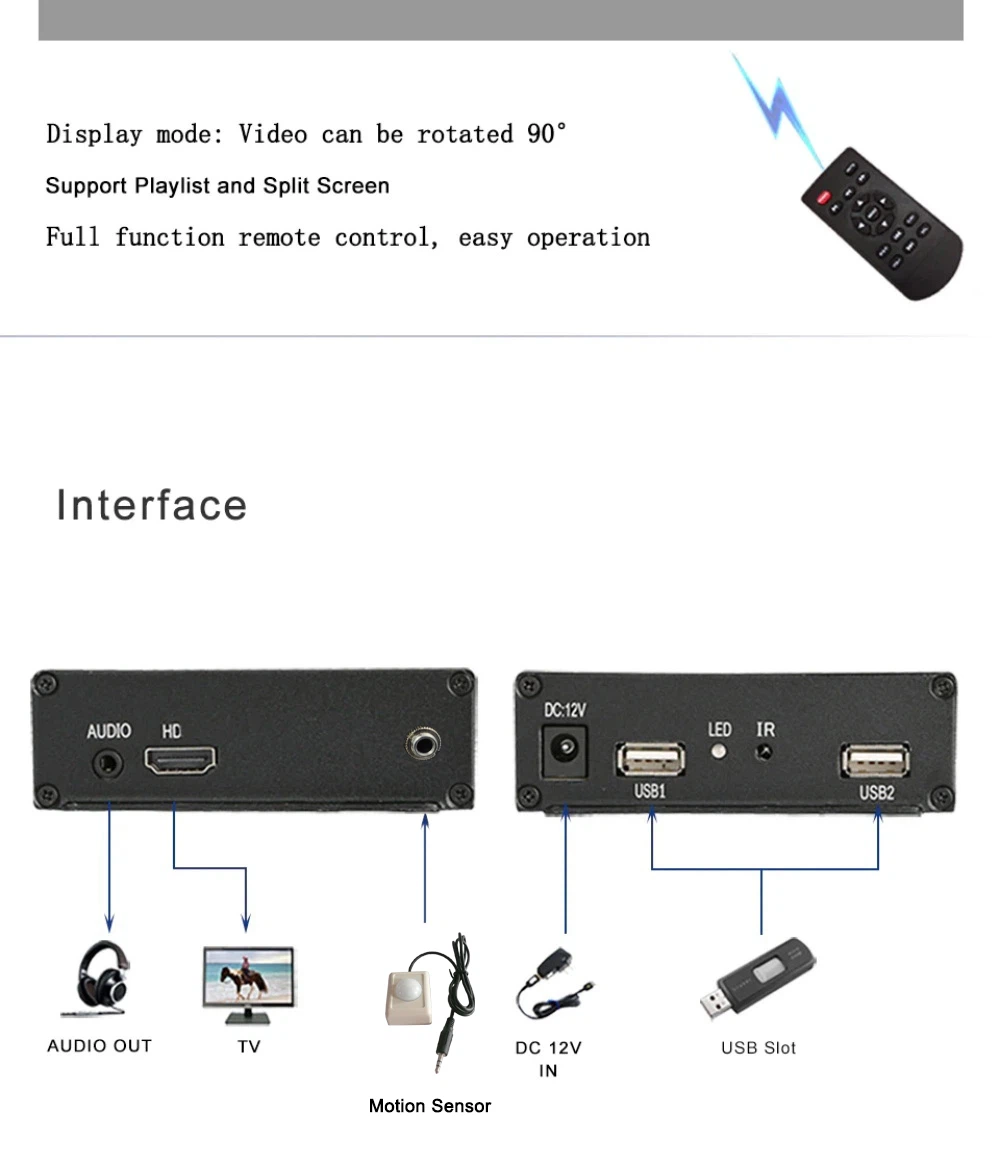

| I/O | HDMI output | 1920*1080P |
| Audio output | 2V±0.2V (10KΩ Load); S/N ≥85dB | |
| DC Power Output | 12V / 1.0A | |
| Supported Card & Format | Interface | USBx2 |
| Photo | JPG, JPEG, PNG | |
| Video format | AVI, DAT, VOB, 3GP, MKV, MOV, MP4, RM/RMVB, MPG, FLV | |
| Other | Operating temperature | 0°C~ 40°C (32℉~104℉) |
| Shell color | Black |

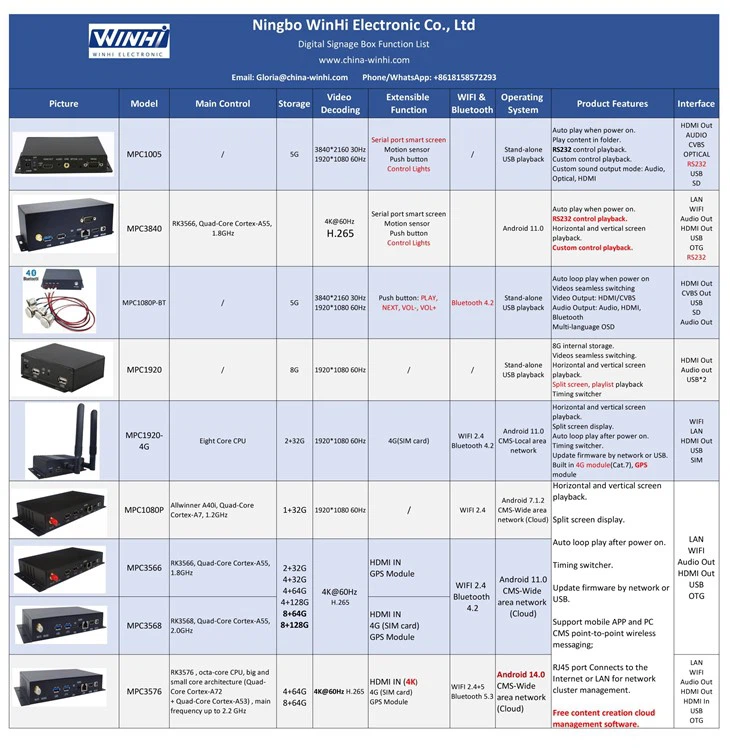

More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
Best selling
FAQ
Q: Why should you buy us a Video Stream Decoder, not from other suppliers?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, Video Stream Decoder, advertising media player, monitor, customized audio-video products, etc. We have our own designers and R&D team, which enables us to support customized design.
Q: Can it be customized?
A: Yes, we have OEM/ODM customer service.
Q: What can you buy from us?
A: Digital signage, video decoder, LCD and LED Advertising screens, and customized audio-video advertising media solutions.
Q: Can I get some samples?
A: Yes, sure, we are honored to offer you samples to test, but the sample is not free.
To ensure the products are bought correctly and safely, we will offer online testing if you request.
Q: Do you have this product in stock?
A: We have the basic models in stock. We can send the goods within 7 working days after payment is received.
