Ultra Wide Stretched Bar LCD Monitor Digital Signage Advertising Display
Model: PT240B-NW
LCD Size: 24 inch
Price Range:$200-$270
Resolution: 1920(H)x360(V)
Active Area: 597.9(H)x112.1(V)mm
Warranty: 1~3 Years
Send Inquiry
Product Details of Ultra Wide Stretched Bar LCD Monitor Digital Signage Advertising Display
Product Introduction
Our company with the work style of excellence, tireless, strive for the perfect spirit, to provide high-quality screen video, smart display ads, touch screen monitor lcd to the majority of users, thoughtful services. The purpose of our enterprise has cultivated a good corporate image and reputation, and in the continuous positive development, we have created good economic and social benefits. We actively implement the strategy of going out, expand new ways to participate in the international market competition, strive to build our brand and build a team of transnational business talents.
Products Overviews
Product Parameters
| CMS publishing system: Background server management software, set parameters, make playlist, make split screen files, support double videos, weather, streaming media, webpage, Word, Excel, PDF, PPT, txt file display on one screen, download server video sources in real-time, auto-play after download is completed. |
| Update the firmware via network or USB. |
| 24-inch bar-type digital signage supports mobile APP and PC CMS point-to-point wireless messaging; |
| The RJ45 port connects to the Internet or LAN for network cluster management. |
| CMS convenient editing and update(Free cloud publish system) |
| Timing switcher and playing schedule: Auto power on/off and play specific content at the pre-set time. |

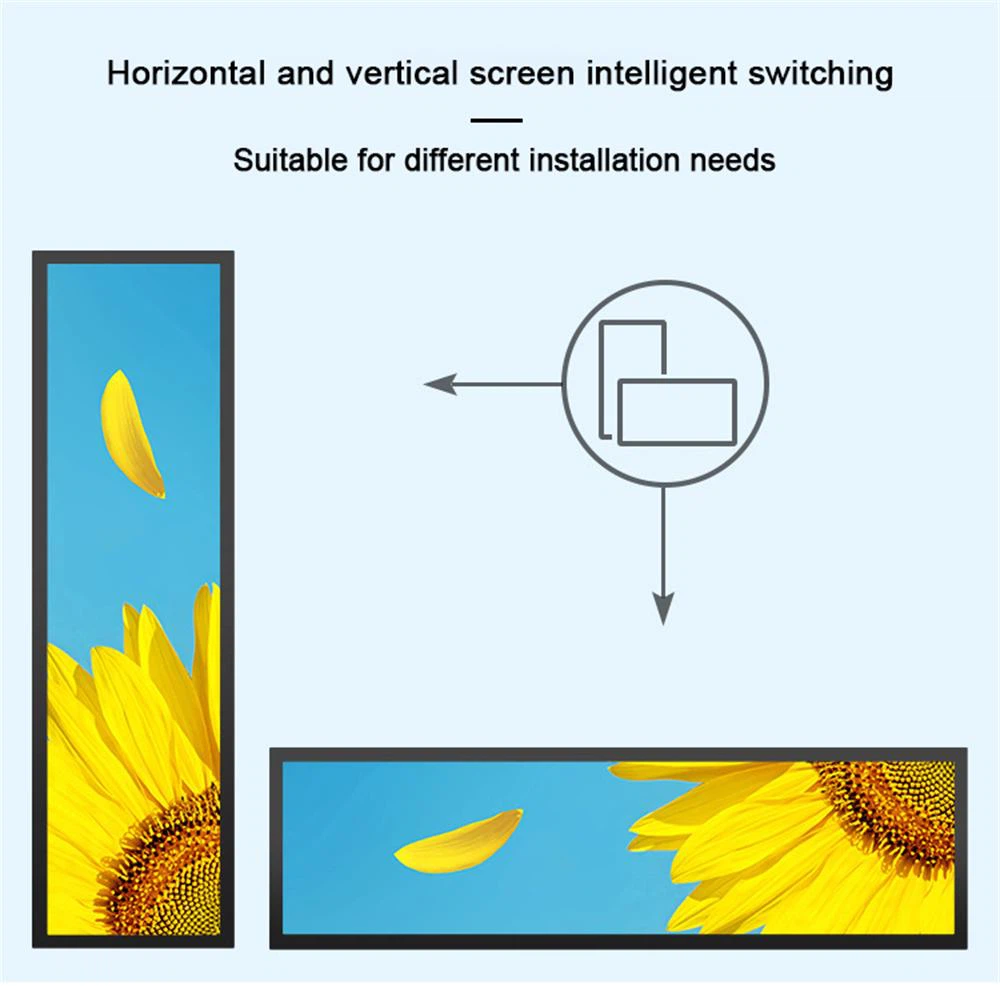

| Support horizontal and vertical display, OSD, and playing contents can be rotated 90°/180°/270°. |
| Industrial-wide temperature design supports continuous operation for 7*24 hours. |
| OSD: Support multiple languages. |
| Screen size optional: 12.6'' 16.8'', 19", 21", 23", 24", 28", 29", 37", 43", 49", 50", 57", 86" |
| Standard version in the same series: Editing tool for quickly creating split-screen files and playlist files, USB automatic copy. |
| Widely used in shops, shelf edges, museums, airports, and hotels for product introduction and activity promotion. |
Specifications
| Panel |
Size | 24 Inch Bar-Type Digital Signage |
| Active Area | 597.9(H)x112.1(V)mm | |
| Resolution | 1920(H)x360(V) | |
| Brightness | 300cd/m² | |
| Contrast Ratio | 3000:1 | |
| Viewing Angle (R/L/T/B) | U89°/D89°/L89°/R89°(Typ.) | |
| Response Time | 8ms | |
| System | CPU | RK3566, quad-core, up to 1.8GHz |
| GPU | Mali-G52 GPU | |
| Operating system | Android 11.0 | |
| RAM | DDR3, default 2GB (4GB optional) | |
| Internal Storage | eMMC 32GB (64GB optional) | |
| Applications have been installed | APK Installer, Email, Calculator, Browser, Voice Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Downloads, Camera, Music, Explorer, etc. | |
| Network | Support RJ45 R/A 100M Ethernet Standard 2.4GHz Wi-Fi (supports optional 5GHz), 802.11b/g/n protocol. 4G (optional), Bluetooth | |

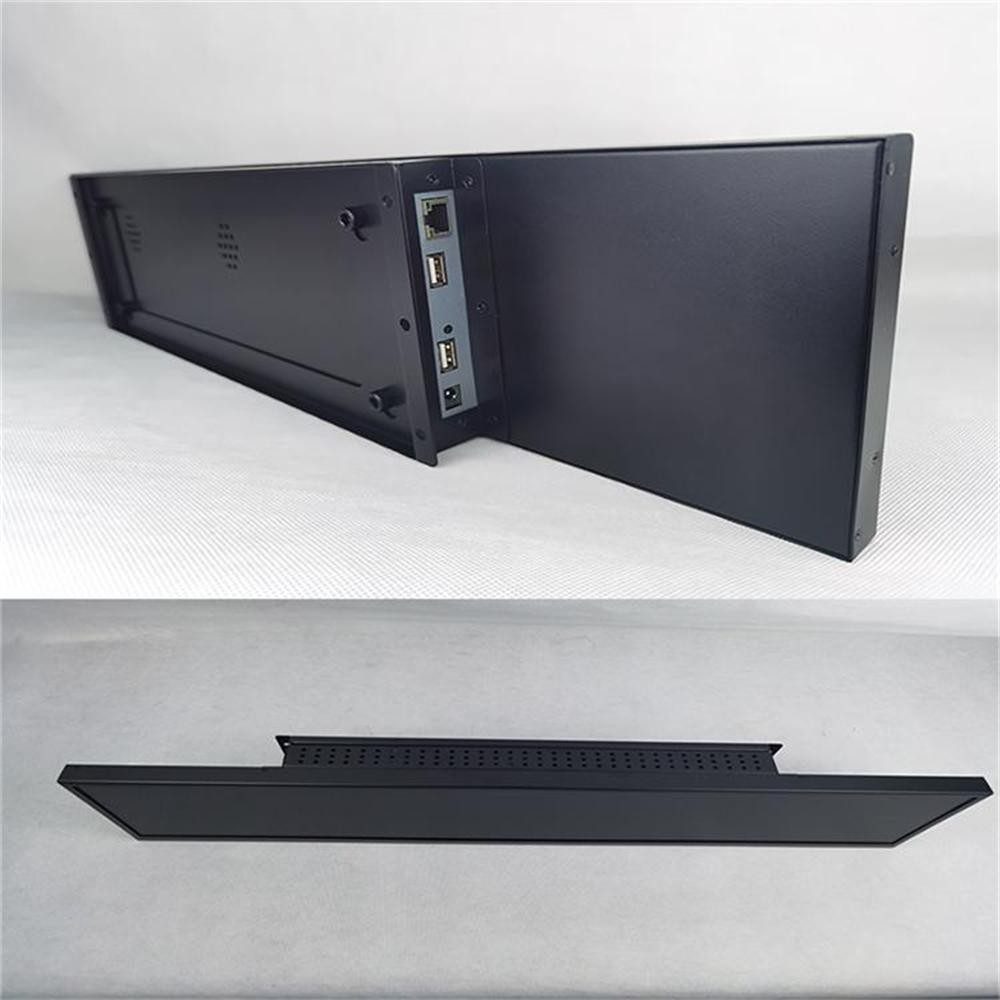

| Interface | USB | USB2.0*1, USB3.0*1 |
| LAN | 100M Ethernet | |
| WiFi | Support 2.4G WiFi, protocol 802.11b/g/n | |
| Audio Out | 3.5mm audio jack*1 | |
| TF Card | TF Card Slot*1 | |
| RTC | Built-in real-time clock function | |
| IR | Receive a signal from the remote control | |
| Power Supply | Input: 100-240V/50-60Hz
AC Output: 12V 1.5A DC |
|
| More interfaces optional | 4G, SIM card slot (optional) | |
| File Format | Video Format | H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 |
| Audio Format | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | |
| Image Format | JPG, BMP, PNG | |
| Others | Shell | Black metal shell |
| Working Temperature | -10℃~60℃ | |
| Mechanical Environment | Operating Temperature | -10°C ~ +70°C |
| Storage Temperature | -40°C ~ +35°C | |
| Storage Humidity | ≤80％ |
Best selling
More product specifications
FAQ
Q: Are you a manufacturer(factory)?
A: Yes, we're. Additionally, OEM/ODM services are available here. Welcome to share your ideas with us. It's our pleasure to provide the best solution for you.
Q: Is your price competitive enough?
A: We can not commit that our price is the lowest, but as a manufacturer that has been in the audio-video products line for over 10 years. We possess extensive experience and can effectively manage costs. We will provide our customers with cost-effective products, and our products deserve this value. We can guarantee high-quality products so that you have no worries and a safe use.
Q: When will you make the delivery?
A: We can make the delivery within 7-15 working days or depending on the size and quantities of your order.
Q: How does your company do regarding quality control?
A: Our QC team will do a strict quality control inspection before shipment to ensure the best quality.
Q: Do you have related products?
A: Our screen size is 7 inch to -86 inch. And the media functions are various: autoplay, push-button, motion sensor, Android CMS...
