Custom Digital Billboards Signage Outdoor LED Advertising Electric Pylon Billboard
Model: PT320A-WP
Price Range:$400-$1000
Panel Size: 32 inch (22" 43" 49" 55" 65" 86" optional )
Resolution: 1920x1080
Application: Outdoor public places
Luminance: 1500 cd/m²
Power off memory.
Certificate: CE, FCC, RoHS
13 years factory direct selling experience.
Warranty: 1~3 Years
Send Inquiry
Product Details of Custom Digital Billboards Signage Outdoor LED Advertising Electric Pylon Billboard
Product Introduction
The key to our success is 'Good Product Excellent, Reasonable Rate and Efficient Service' for Touch Screen Displays, stand alone digital signage, advertising network. We advocate a simple and relaxed one-stop online purchasing environment and an efficient integrated service system. We take the time, quality and quantity guarantee as our duty to provide customers with satisfactory products and strive to serve the customers. Our company has good reputation, ability, price, schedule and other aspects of comprehensive strength advantages. We implement the "dual channel" career development path of management channel and professional channel promotion, so that each person's development can be closely integrated with the company's development.
Products Overviews

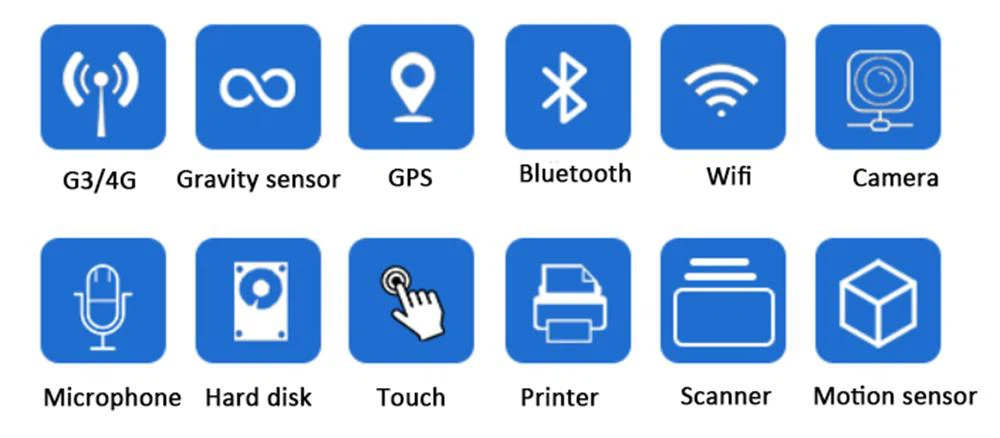

Extended Function
Product Size
Structural Diagram

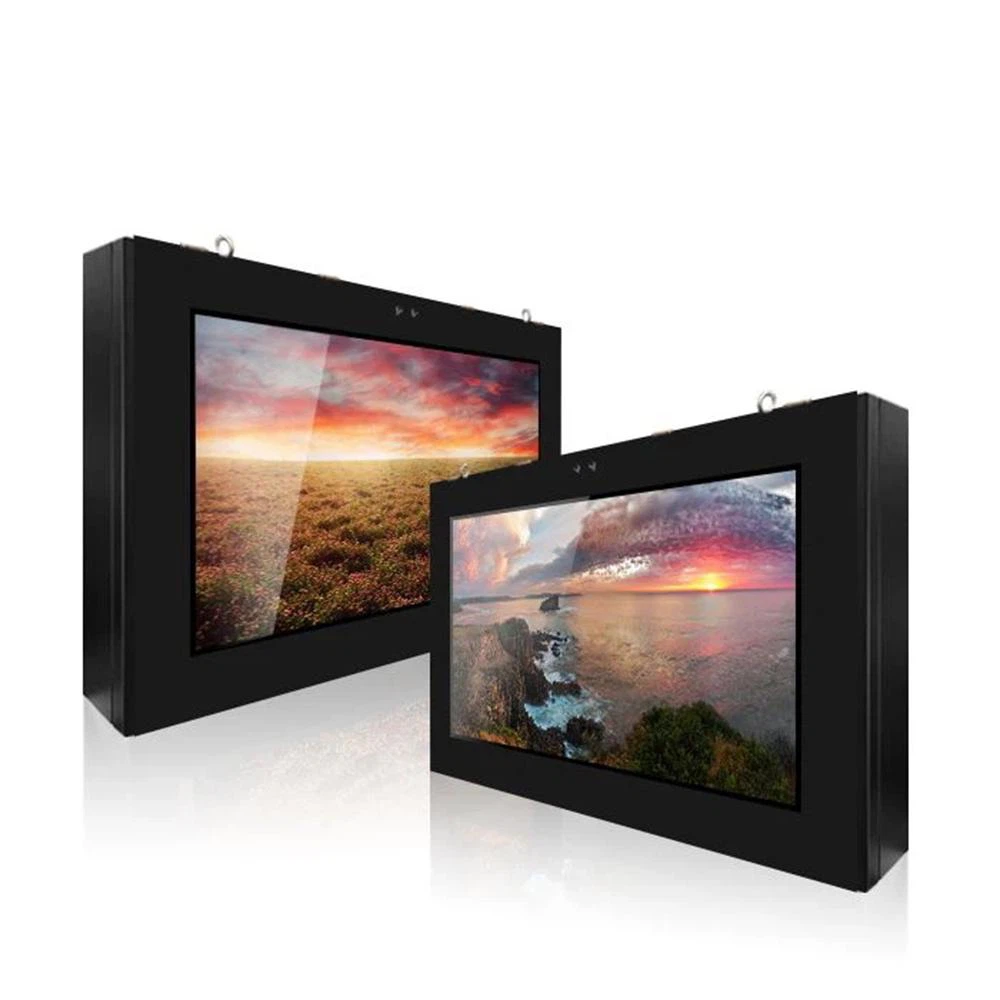

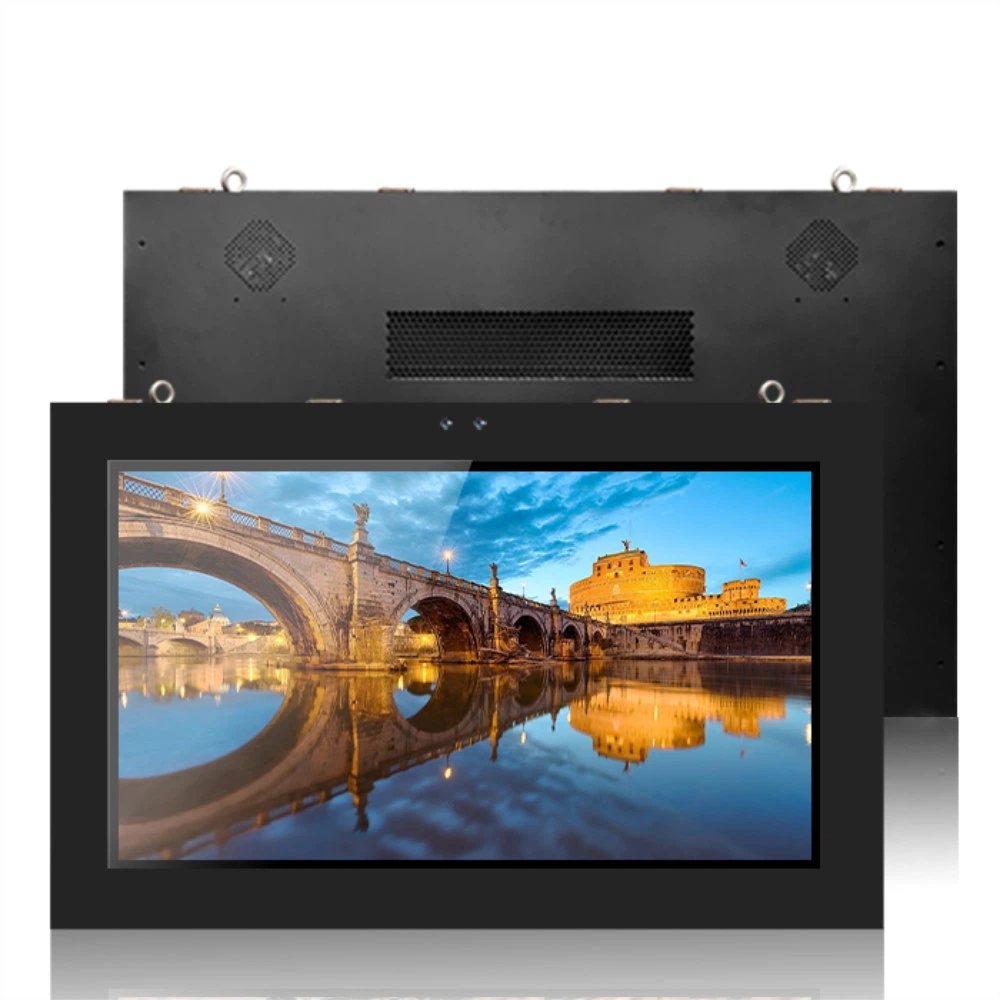

Product Physical Map (regular black/white, other colors can be customized)
Size comparison chart of the vertical outdoor unit

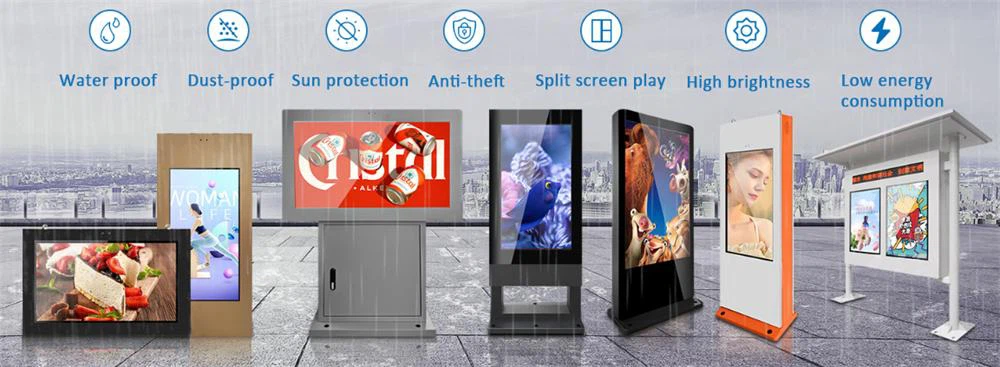

Various styles, support customization
Application place
Product Parameters
| Outdoor Advertising Display Metal Shell: 1.5mm SGCC, the inner layer is sprayed with zinc-rich primer, the surface layer is sprayed with DuPont outdoor plastic powder, service life is more than 10 years. |
| High brightness LCD panel, brightness up to 2500nits, service life of 50000H. Provides clear and excellent displays in bright and direct sunlight environments. |
| Explosion-proof glass: 5mm tempered glass. When the glass is damaged by an external force, the debris will become a honeycomb-like, obtuse broken particle, not easy to cause serious harm to the human body. The impact strength and bending strength of tempered glass are 3 ~ 5 times that of ordinary glass. |
| The high-brightness screen allows clear visibility in sunlight, viewing angle of 178°/178°. |
|

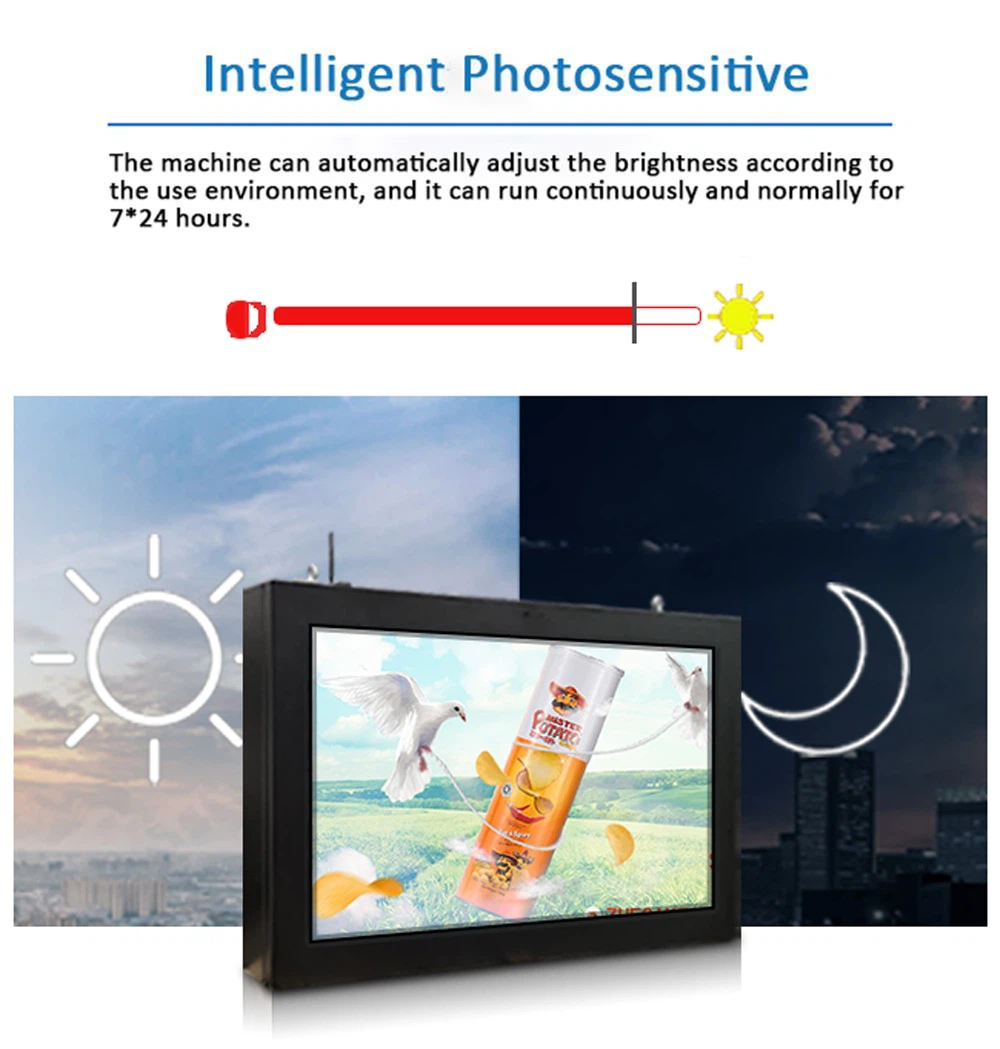

Equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light. Save energy and reduce light pollution. |
| IP Grade: IP65 |
|
Operating System: Android 9.0 CPU: RK3328 Quad-core Cortex A53 up to 1.5GHz GPU: Mali450MP2 RAM: 1G Byte DDR4 (2G optional) ROM: EMMC 8G (16G optional) |
| Network CMS software: Upload, update, manage content, and control multiple devices remotely. |
| Outdoor Advertising Display Auto loop play after powering on. |
| Support seamless switching. |

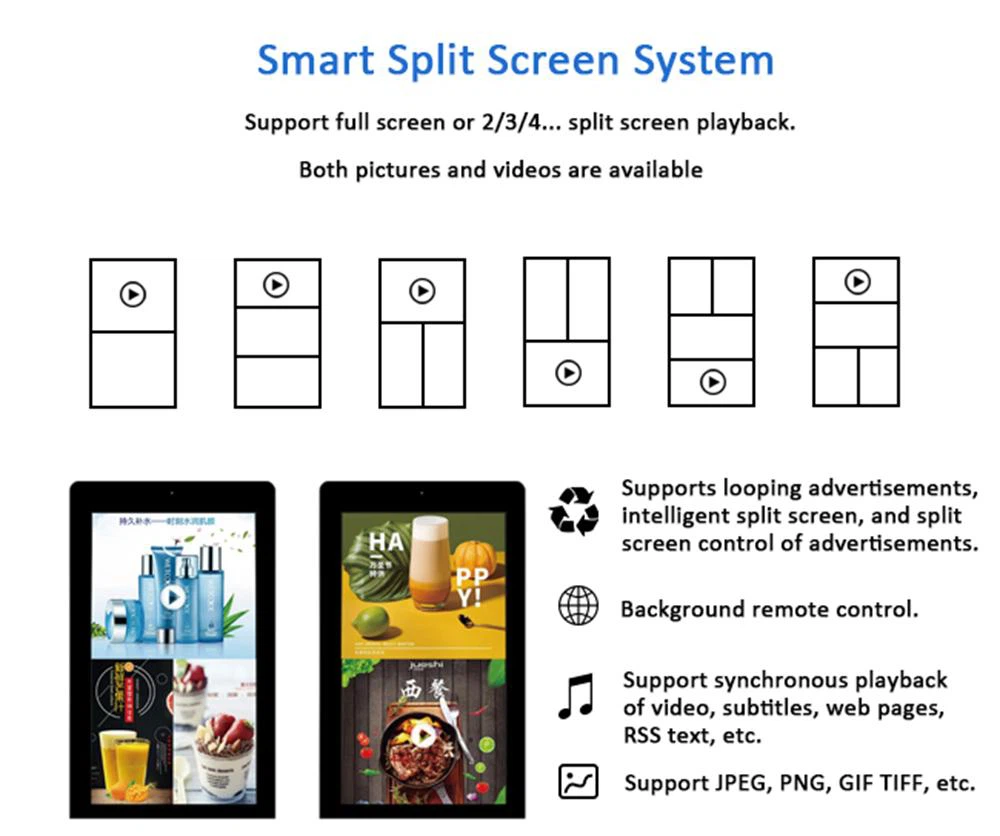

| Split Screen: Free to split display area, supports 2 videos+ N pictures+ N webpages+ N rolling captions+ N weather+ N dates display on one screen. |
| Supports Google Play application downloads and installation. |
| Support both horizontal and vertical display, OSD, and playing contents can be rotated 90°/180°/270°. |
| Timing switcher: Auto power on/off at the specific time. |
| Built-in WIFI module, supports WIFI hotspot function. |
| Outdoor Advertising Display supports multi-language OSD: Chinese, English, Japanese, and Korean. |
Specifications
| Panel | Screen Size | 32 inch (43" 55"49" 65" optional ) Outdoor Advertising Display |
| Display Ratio | 9:16 | |
| Display Area | 396x701 mm (H×V) | |
| Resolution | 1080*1920 ( 4K optional ) | |
| Luminance | 1500 cd/m² | |
| Contrast Ratio | 5000: 1 | |
| Viewing Angle (R/L/T/B) | 89/89/89/89 (Typ.) | |
| Response Time | 8ms | |
| Supported Format | Video Format | MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF |
| Photo Format | JPEG, PNG | |
| Music Format | MP3, MP2, WMA, WAV | |
| Supported Video Decoding | Max Color Depth | 24bit |
| Max Frame Rate | 30frm/s | |
| Max Code Stream | USB2.0 device:30Mb/s | |
| Supported Audio Decoding | Sampling Rate | 32kHz,44.1kHz,48kHz,96kHz |
| Bit Rate | 32kbps to 384kbps | |
| I/O | USB Transfer Rate | USB2.0, Max 480Mbps |
| Network Interface | 100Mbps | |
| WIFI Interface | 100Mbps | |
| Power | Input: AC 100~240V 50/60Hz | |
| Others | Test System | Spray test |
| Low and high-temperature test | ||
| Solar radiation test | ||
| Complete machine aging test | ||
| Installation | floor standing | |
| Operating temperature | -30°C to +50°C |
More product specifications
FAQ
Q: Are you a factory?
A: Yes, we are a factory. We have produced Outdoor Advertising Display screens and media players since 2009.
Q: How does your company do regarding quality control?
A: Our QC team will do strict quality control inspections before shipment to ensure the best quality.
Q: What brand of screen are you using?
A: We are using Samsung, LG, AUO, and CHIMEI screens.
Q: The screen is not bright, with any display. Why?
A: Check whether the power switch is on, or check if the power cable/adapter is loose.
Q: How to Ship Products to My Country?
A: Well, that depends on your order quantity and your country's location. Normally, Large orders would go with sea freight or air freight, which is affordable to most of the clients, but it could take 3-5 weeks. Sample orders can go with international express like DHL, UPS, FedEx, which is very fast.
