17 Inch VGA Monitor

Name: China Customized 17 Inch VGA Monitor Suppliers, Manufacturers, Factory - Low Price - WINHI
Brand: WinHi
SKU: 266494229

Item: 17-inch New A-screen IPS 24/7 Full HD Commercial Industry LCD Monitor with HDMI VGA USB Audio
Model: WH170HV
Price Range: $80-$110
Monitor Size: 17inch

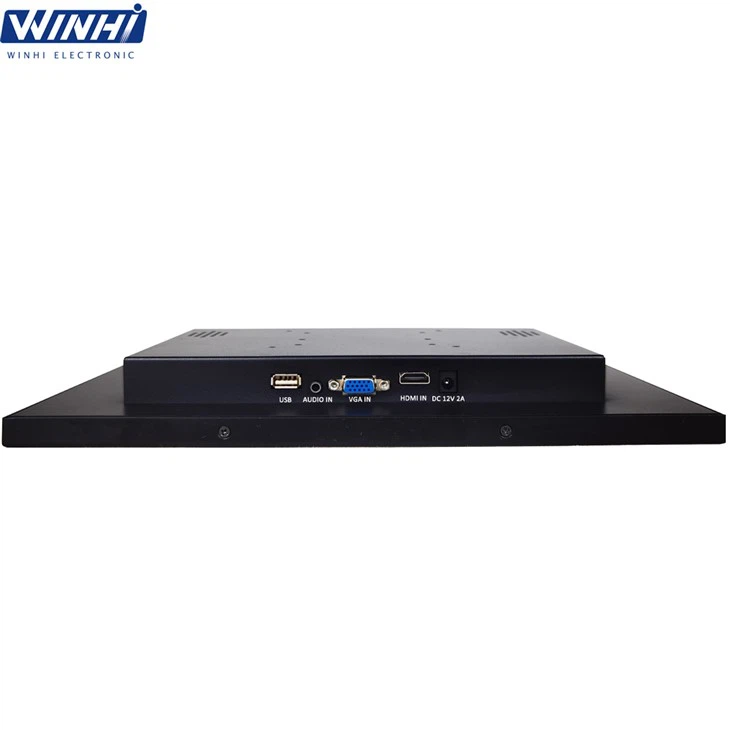

HDMI and VGA Input
High definition, high contrast, low power consumption
Certification: FCC, CE, ROHS
Factory direct sales, competitive prices
Warranty: 1-3 Years
Application: Elevators, Machinery, Industrial Equipment, Vending Machines

Send Inquiry

Product Details of 17 Inch VGA Monitor

Products Overviews
Product Parameters
More Product
FAQ
Inquiry

Product Parameters

17 inch HDMI+VGA monitor.

Auto-identify video input mode.

Industrial-grade LCD screen for commercial usage.

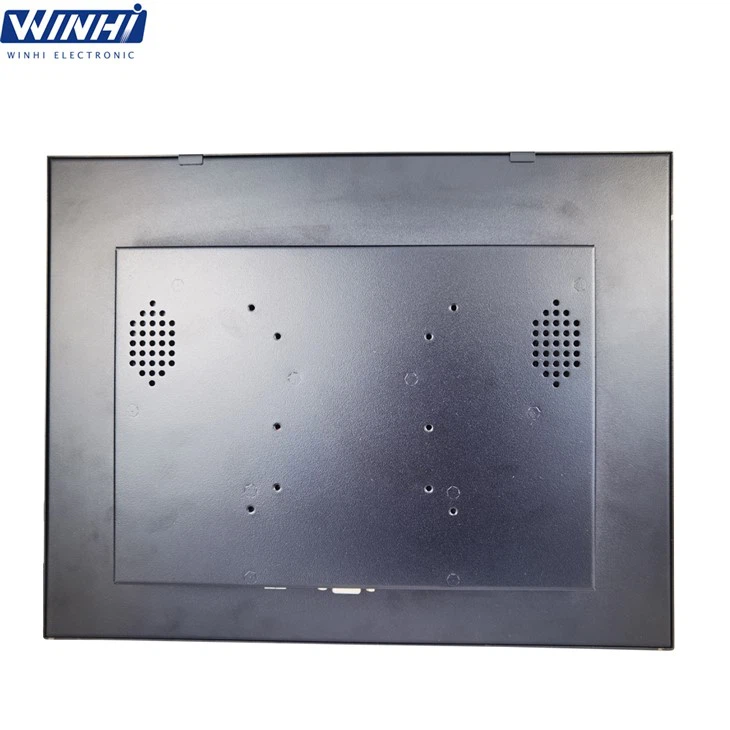

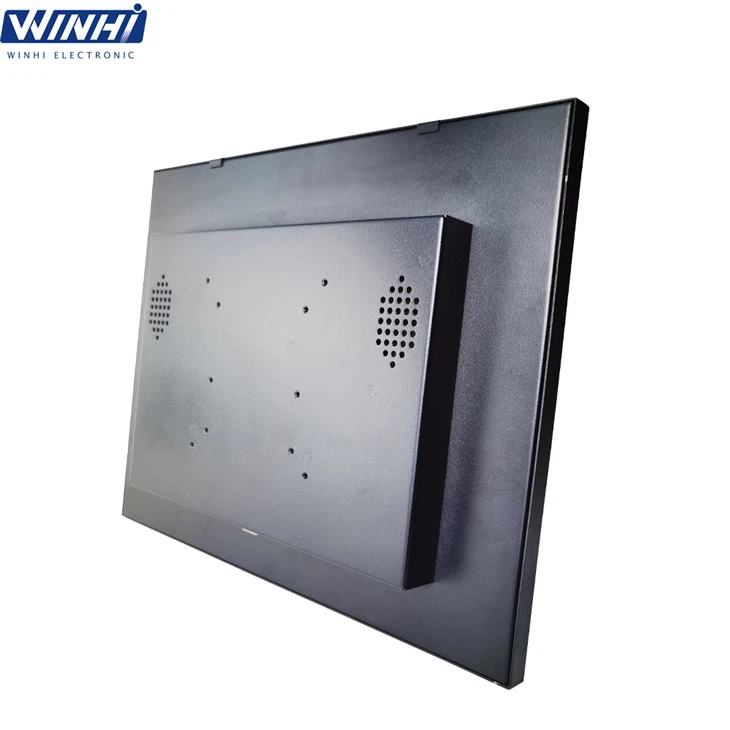

Ultra-thin design for the front panel and metal body.

Mounting system: simple, multiple, and safe.

High definition, high contrast, and low power consumption.

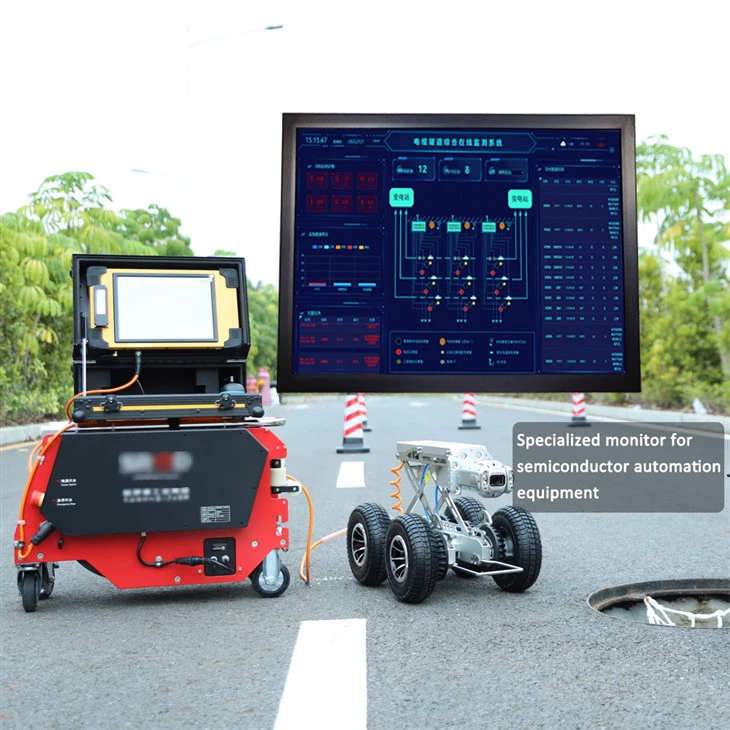

It can work with an HD media player or an HD camera as a camera screen.

Specifications

Structure parameters	LCD Size	17inch
	Resolution	1280*1024
	Input	VGA/HDMI
	Active Area	337.920(H)x270.336(V) [mm]
	Pixels H x V	1280x3(RGB) x1024
	Pixel Pitch	0.264(per one triad)x0.264 [mm]
	White Luminance (Center)	350cd/㎡
	Viewing Angle	88°/88°/85°/85°
	Contrast ratio	1000:1
	Display mode	5:4
	Response Time	5 (Typ, on/off) [msec]
	Support model	480i/p, 576i/p,720p, 1080P
I/O	AC Power Input	AC: 100~240 V
	DC Power Output	12V / 2A
	Integrated Speakers	5W x 2

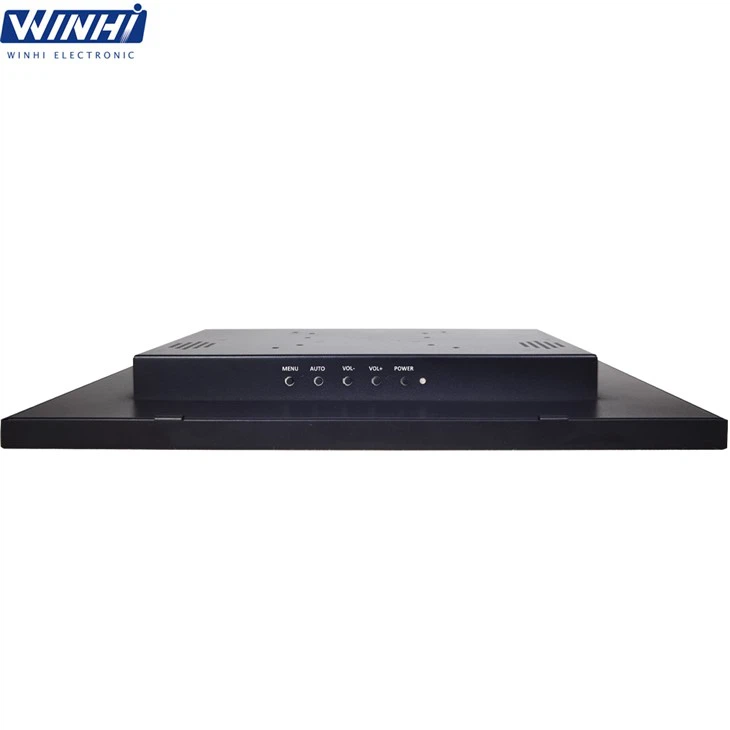

	Menu OSD	Yes
Other	The color of the airframe	Black
	Support Color	16.7M colors
	Temperature Range	Operating: 0℃ to 50℃ Storage (Shipping):-20℃ to 60℃

Screen	Active Area	Resolution	Brightness	Viewing angles	Contrast Ratio	Response Time
10.1inch	222.72*125.28 mm (H×V)	1024*600	250 cd/m²	70/70/60/60	500:1	7/9 (Typ.)(Tr/Td) (ms)
12.1inch	248.5*187.8 mm (H×V)	1024*768	250 cd/m²	80/80/80/70	1000: 1	13/12 (Typ.)(Tr/Td) ms
15inch	304.128*228.096 mm (H×V)	1024*768	350 cd/m²	85/85/85/85	1000: 1	30 (Typ.)(Tr+Td) (ms)
15.6inch	344.16*193.59 mm (H×V)	1920*1080	250 cd/m²	89/89/89/89	1000: 1	30 (Typ.)(Tr+Td) (ms)
17inch	337.920*270.336 mm (H×V)	1280*1024	350 cd/m²	88/88/85/85	1000: 1	5 [msec]
18.5inch	408.96*230.04 mm (H×V)	1920*1080	300 cd/m²	89/89/89/89	1000: 1	10 [msec]
19inch	376.32*301.06 mm (H×V)	1280*1024	300 cd/m²	88/88/85/85	1000: 1	5 [msec]
21.5inch	476.64*268.11 mm (H×V)	1920*1080	300 cd/m²	89/89/89/89	1000: 1	20/5 (Typ.)(Tr/Td) (ms)

Products Overviews

Best selling

1.1_

1.2

More product specifications

FAQ

Q: Are You a Factory?
A: Yes, we are an OEM/ODM factory located in Ningbo, China.

Q: Can it be a customized 17-inch VGA Monitor?

A: Yes, we have OEM/ODM customer service.

Q: What brand of screen are you using?

A: We use Samsung, LG, AUO, and CHIMEI screens.

Q: What is your MOQ?
A: We accept electronic whiteboard sample orders.

Q: Why should you buy us a 17-inch VGA Monitor?

A: Ningbo Winhi Electronic Co., Ltd., is in Ningbo, China. Our main products are digital signage, advertising media players, monitors, customized audio-video products, etc. We have our designers and R&D team, which enables us to support customized design.
