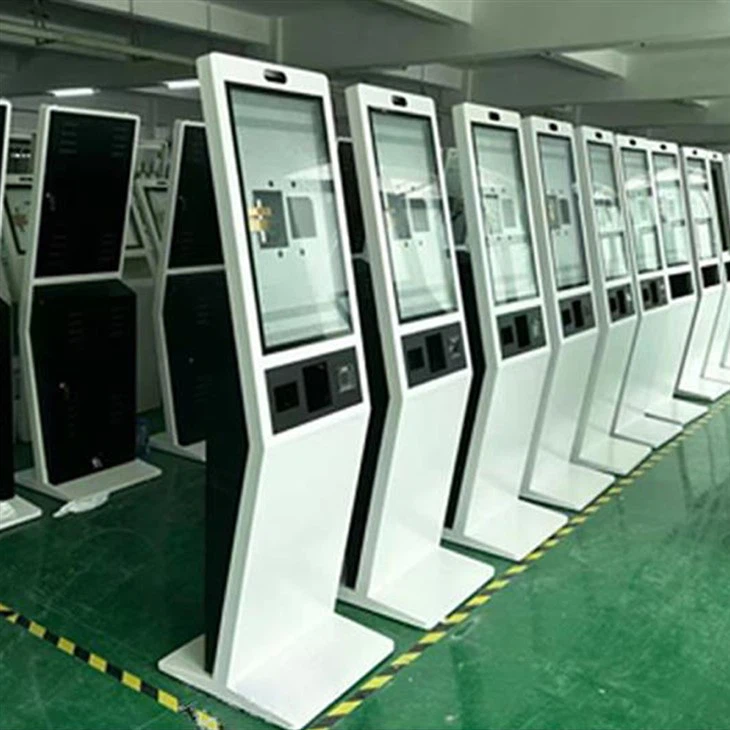

Touchscreen Self Service Kiosk

Name: China Customized Touchscreen Self Service Kiosk Suppliers, Manufacturers, Factory - Low Price - WINHI
Brand: WinHi
SKU: 254549352

Item: 15.6/21.5/32 inch touchscreen self-service queuing registration machine ordering fast food payment kiosk with thermal printer and QR code scanner.
Price Range: $250-$800

Send Inquiry

Product Details of Touchscreen Self Service Kiosk

Products Overviews
Product Parameters
More Product
FAQ
Inquiry

Products Overviews

Touchscreen Self Service Kiosk

Product Parameters

Product type	21.5/15.6inch self-service terminal	Product color	Regular white
Touch mode	Capacitive touch (G+G) 10-point touch	Transmittance	95%
Surface hardness	Physically tempered Mohs 7-level explosion-proof glass	Response speed	≥3ms
Touch medium	Fingers, opaque objects	Communication method	Full-speed USB2.0/3.0
Thickness	3mm	Service life	Single point more than 6 million times
Display brand	TFT LED full viewing angle A specification new screen	Resolution	1920(RGB)x1080,FHD
Maximum display size	479.8 (H) x 271.3 (V)	Brightness	350cd/m2
Contrast ratio	1000:1	Aspect ratio (W: H)	16:9
Viewing angle	Horizontal 178° Vertical 178°	Frequency	60hz
Service life	50,000 hours	Operating temperature	0°~50℃
Android master parameters
CPU	RK3568, RK3399	System	Android 11
Memory	2G (optional 4G)	Random storage	32G (optional 64G)
Interface	1 set of HDMI2.0 supports 4K@60HZ output and input	1 USB2.0	1 set of DC (12V) power supply
	RJ-45 Ethernet interface	1 USB3.0	SD card slot, one built-in fidelity speaker
Network Support	Wifi802.11b/g/n	Ethernet	10m/100m
Notes	4G module can be added, camera: 1 million pixels or 2 million pixels, optional
Computer version master parameters
CPU	Optional (J1900, i3, i5, i7)	System	Windows7, Windows10, Windows11
Memory	4G or 8G, 32G	Hard disk	64G, 128G, 500G
Interface	1 set of HDMI output	2 sets of USB 2.0	1 set of DC power supply
Interface	RJ-45 Ethernet interface	2 sets of USB3.0	1 set of VGA output
Network Support	WiFi 802.11b/g/n	Ethernet	10m/100m network port
Notes	4G module can be added, camera: 1 million pixels or 2 million pixels, optional
Function module parameters
Serial number	Hardware configuration	Specification requirements
1	Cabinet machine	Cold-rolled steel plate, metal paint, tempered glass panel, independent power supply, internal component electroplating, anti-rust, anti-magnetic, anti-static. Base T=2.0mm, side T=1.2mm
3	Projected capacitive screen	10-point touch projected capacitive screen, G+G structure, glass cover thickness 3.0mm, independent ILI2532 control card
5	Thermal printer	Optional 58mm, 80mm, 110mm thermal printer
6	ID card reader module	Card reading system: second and third generation ID card. Development tools: SDK support, Windows platform, Android platform, Software platform, WINXP/WIN7/WIN8/WIN10/Android/Java Product features: Resonance frequency: 13.56MHz, Modulation mode: ASK, Encoding mode: NRZ-L, Magnetic field strength: ≤7.5 A/m, Card reading distance: 0~5cm ISO14443TypeB contactless card type support: ISO14443TypeB second and third generation ID card of the People's Republic of China.
7	Optical fingerprint module	Fingerprint chip: 1. Chip type: optical 2. Collection method: press type (supports 360-degree rotation collection and comparison) 3. Image size: 256288pixel6. Resolution: 500dpi 4. Image acquisition time: <490ms9. Feature extraction time: <200ms 5. Service life: >1 million times, anti-fouling, fingerprint algorithm: 6, false recognition rate: 0.001%2. False rejection rate: 0.005%*7, 1:N comparison time: <1s (N=100000, WMPlatform platform)
8	QR code scanning module	Sensor pixels: 752 pixels (H) x 480 pixels (V), Light source: Illumination: 6500K LED, Field of view, 115° (H) x 90° (V), Rotation tilt: 360°, ±65°, ±60°, Print contrast: 20% minimum reflective difference, Interface support: USB, RS232, Support: 1D barcode/1-D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc, 2D barcode/2-D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
9	Power supply	Independent power supply can support a DC output of 12V/24A.
10	Speaker assembly and accessories	Speaker, power cord, signal cable, and USB cable, etc.
11	Packaging materials	3-layer corrugated cardboard with hardening + buffer foam, etc.
12	Other	Assembly, testing, aging, and Windows 7/10/11 barebones, etc.

Best selling

1.1_

1.2

More product specifications

FAQ

Q: Are You a Factory?
A: Yes, we are an OEM/ODM factory located in Ningbo, China.

Q: Can it be a customized touchscreen self-service kiosk?

A: Yes, we have OEM/ODM customer service.

Q: What brand of screen are you using?

A: We are using Samsung, LG, AUO, and CHIMEI screens.

Q: What is your MOQ?
A: We accept electronic whiteboard sample orders.

Q: Why should you buy a touchscreen self-service kiosk, not from other suppliers?

A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, advertising media players, monitors, customized audio-video products, etc. We have our own designers and R&D team, which enables us to support customized design.
