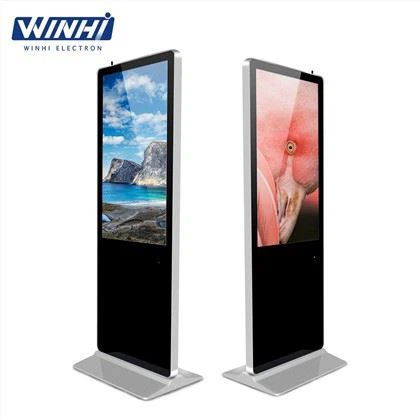

Digital Advertising Billboard
Model: PT550K-WP
Price Range:$800-$2000
Panel Size: 55 inch (32" 43”49” 65” optional )
Resolution: 1920x1080
Application: Outdoor public places
Luminance: 2000 cd/m²
Power off memory.
Certificate: CE, FCC, RoHS
13 years factory direct selling experience.
Warranty: 1~3 Years
Send Inquiry
Product Details of Digital Advertising Billboard
Products Overviews
Extended Function
Product Physical Map (regular black/white, other colors can be customized)
Product workshop manufacturing drawing
Product Size
Structural Diagram
Size comparison chart of the vertical outdoor unit
Various styles, support customization
Application place
Product Parameters
| Metal Shell: 1.5mm SGCC, the inner layer is sprayed with zinc-rich primer, the surface layer is sprayed with DuPont outdoor plastic powder, service life is more than 10 years. |
| High brightness LCD panel, brightness up to 2500nits, service life of 50000H. Provides clear and excellent displays in bright and direct sunlight environments. |
| Explosion-proof glass: 5mm tempered glass, When the glass is damaged by an external force, the debris will become a honeycomb-like obtuse broken particle, not easy to cause serious harm to the human body. The impact strength and bending strength of tempered glass are 3 ~ 5 times that of ordinary glass. |
| The high-brightness screen allows clear visibility in sunlight, with a viewing angle of 178°/178°. |
|
Equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light. Save energy and reduce light pollution. |
| IP Grade: IP65 |
|
Operating System: Android 9.0 CPU: RK3328 Quad-core Cortex A53 up to 1.5GHz GPU: Mali450MP2 RAM: 1G Byte DDR4 (2G optional) ROM: EMMC 8G (16G optional |
| Network CMS software: Upload, update, manage contents, and control multiple devices remotely. |
| Auto loop play after power on. |
| Support videos for seamless switching. |
| Split Screen: Free to split display area, supports 2 videos+ N pictures+ N webpages+ N rolling captions+ N weather+ N dates display on one screen. |
| Supports Google Play applications download and installation. |
| Outdoor digital advertising screens support both horizontal and vertical display, OSD and playing contents can be rotated 90°/180°/270°. |
| Timing switcher: Auto power on/off at the specific time. |
| Built-in WIFI module, support WIFI hotspot function. |
| Digital advertising billboard support multi-language OSD: Chinese, English, Japanese, and Korean. |
Specifications
| Panel | Screen Size | 55 inch (32" 43"49" 65" optional )digital advertising billboard |
| Display Ratio | 9:16 | |
| Display Area | 684x1213 mm (H×V) | |
| Resolution | 1080*1920 ( 4K optional ) | |
| Luminance | 2000 cd/m² | |
| Contrast Ratio | 5000: 1 | |
| Viewing Angle (R/L/T/B) | 89/89/89/89 (Typ.) | |
| Response Time | 8ms | |
| Supported Format | Video Format | MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF |
| Photo Format | JPEG, PNG | |
| Music Format | MP3, MP2, WMA, WAV | |
| Supported Video Decoding | Max Color Depth | 24bit |
| Max Frame Rate | 30frm/s | |
| Max Code Stream | USB2.0 device:30Mb/s | |
| Supported Audio Decoding | Sampling Rate | 32kHz,44.1kHz,48kHz,96kHz |
| Bit Rate | 32kbps to 384kbps | |
| I/O | USB Transfer Rate | USB2.0, Max 480Mbps |
| Network Interface | 100Mbps | |
| WIFI Interface | 100Mbps | |
| Power | Input: AC 100~240V 50/60Hz | |
| Others | Test System | Spray test |
| Low and high-temperature test | ||
| Solar radiation test | ||
| Complete machine aging test | ||
| Installation | floor standing | |
| Operating temperature | -30°C to +50°C |
Customized outdoor Digital Signage
More product specifications
FAQ
Q: Are you a factory?
A: Yes, we are a factory. We produced digital signage screens and media players since 2009.
Q: How does your company do regarding quality control?
A: Our QC team will do strict quality control inspection before shipment to assure the best quality.
Q: What brand of screen are you using?
A: We are using Samsung, LG, AUO, and CHIMEI screens.
Q: The screen is not bright, without any display, why?
A: Check whether the power switch is on, or check the power cable/adapter is loose.
Q: How to Ship Products to My Country?
A: Well, that depends on your order quantity and your country's location. Normally Large orders would go with sea freight or air freight, which is affordable to most of the clients, but it could take 3-5 weeks. Sample orders can go with international express like DHL, UPS, FedEx, which is very fast.
