Square display





Products Overviews

---











---

HD Display: Real colors, great image quality.

Original Products: Ultra-thin shell combines a stylish look with a high-quality screen.

7*24H Full Time: Pre-set programs are updated automatically.

WI-FI Transmission: Remote publishing.

Operating System: Android 9.0 CPU: RK3328 Quad-core Cortex A53 up to 1.5GHz GPU: Mali450MP2 RAM: 1G Byte DDR4 (2G optional) ROM: EMMC 8G (16G optional)

Network CMS software: Upload, update, manage contents and control multiple devices remotely.

Auto loop play after power on.

Videos seamless switching, without a black screen between 2 videos.

Split Screen: Free to split display area, supports 2 videos+ N pictures+ N webpages+ N rolling captions+ N weather+ N dates display on one screen.

The Square display screen supports Google Play applications download and installation.

Timing switcher: Auto power on/off at the specific time.

The Square display screen supports copying files with the USB stick, with copy speed up to more than 16M/S.

Built-in WIFI module, support WIFI hotspot function.

Rolling Caption: display a text message on the screen when playing the video.

Multi-language OSD: Chinese, English, Japanese, Korean.

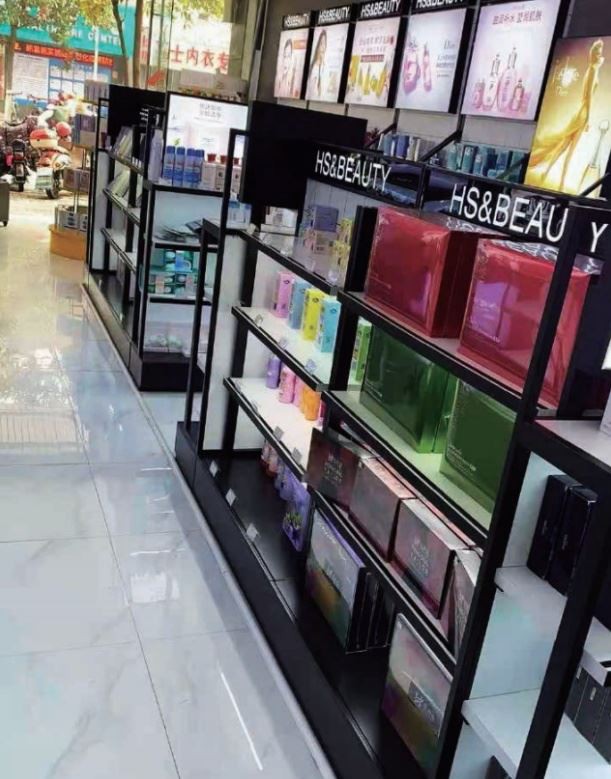

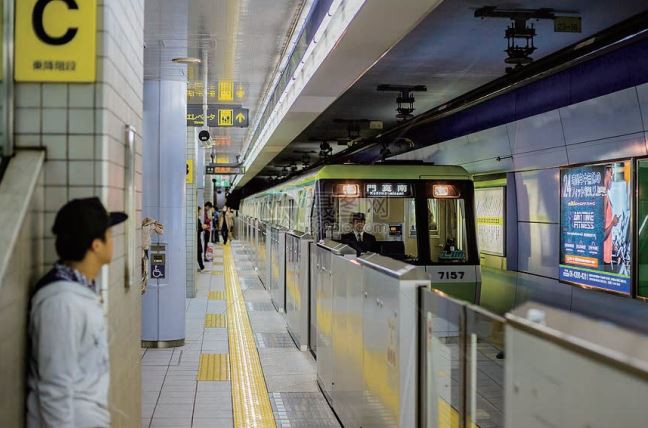

Application Scenario: Shopping mall, supermarket, restaurant, airport, bank, museum, hotel, etc.



Specifications

---

Size	28.1 inch	33.1 inch	33.2 inch	35.3 inch	39.8 inch	44.9 inch

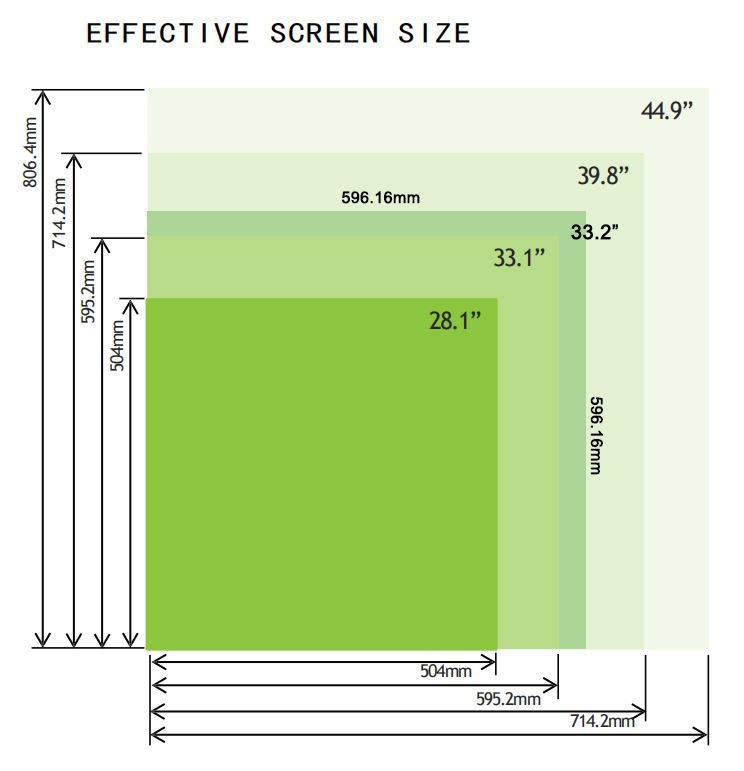

Active Area (mm)	504x504	595.2x595.2	596.16x596.16	595x670	714.2x714.2	806.4x806.4
Resolution	800(H)x800(V)	1600(H)x1600(V)	1920(H)x1920(V)	1600(H)x1800(V)	1920(H)x1920(V)	1280(H)x1280(V)
Brightness	500cd/m²
Viewing Angle (R/L/T/B)	U89°/D89°/L89°/R89°
Hardware	CPU	RK3328 Quad-core Cortex A53 up to 1.5GHz
	GPU	Mali450MP2
	Operating system	Android 9.0
	RAM	2GB
	ROM	16GB
	Network	LAN, WIFI
File Format Supported	Video Format	MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF
	Picture Format	JPEG, PNG
	Audio Format	MP3, MP2, WMA, WAV
Interface	USB	USB*2
	WIFI Antenna	WIFI 802.11b/g/n
	LAN	1000M adaptive Ethernet
	Power Supply	DC 12V/ 5A AC 110V-240
Working Environment	Working Temperature	0°C~ 40°C
	Storage Temperature	-10°C ~60°C
Others	Accessory	Adapter, remote control
	Shell	Metal
	Color	Black/ White

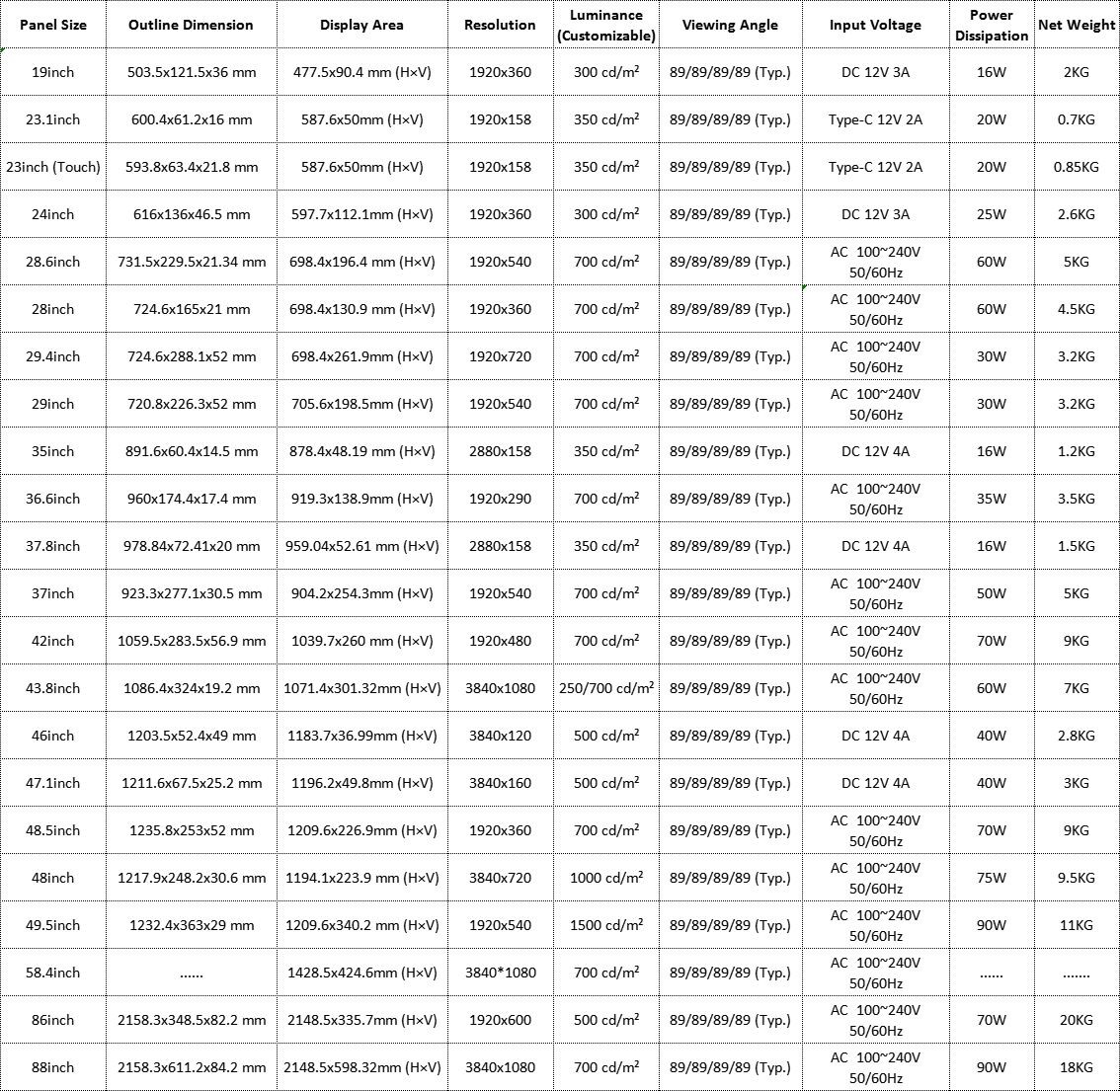

More product specifications

---



---

Q: Are you a manufacturer(factory)?
A: Yes, we're. Also, OEM/ODM service is available here. Welcome to share your ideas with us. It's our pleasure to provide the best solution for you.

Q: Is your price competitive enough?

A: We can not commit that our price is the lowest, but as a manufacturer that has been in the audio-video products line for over 10 years. We possess rich and vast experience and we have the ability to control the cost. We will provide our customers with cost-effective products, our products deserve this value. We can guarantee high-quality products so that you have no worries and safe use.

Q: When will you make the delivery?

A: We can make the delivery within 7-15 working days or depend on the size and quantities of your order.

Q: How does your company do regarding quality control?

A: Our QC team will do strict quality control inspection before shipment to assure the best quality.

Q: Do you have related products?

A: Our screen size is 7 inch -86 inch. And the media functions are various, autoplay, push-button, motion sensor, Android CMS...





---
