Healthcare Digital Signage

Name: China Customized Healthcare Digital Signage Suppliers, Manufacturers, Factory - Low Price - WINHI
Brand: WinHi
SKU: 190689822

Item: 13.3~43inch wall-mounted Healthcare system Triage Queuing System Doctors' Information Display Digital Signage For Hospitals
Typ: PT133E
Seamless Flush Wall Design + Ultra-Thin Panel
LCD Size: 13.3/15.6/18.5/21.5/23.8/27/32/43 inch
1. 1080P Full HD display with 178° ultra-wide viewing angle & accurate RGB color reproduction
2. Equipped with a quad-core 1.6 GHz processor (optional Rockchip RK3566 quad-core ARM Cortex-A55, up to 1.8 GHz), paired with 1GB or 2GB RAM and 32GB storage, and running Android 10.0 or 11.0, ensuring smooth and stable multitasking and media playback.
3. Dual network support: WiFi (802.11b/g/n) + 100M Ethernet
4. Cloud-based CMS for remote content management & timed updates
5. Seamless loop playback + split-screen display functionality + flexible horizontal/vertical display modes

Send Inquiry

Product Details of Healthcare Digital Signage

Products Overviews
Product Parameters
More Product
FAQ
Inquiry

Products Overviews

Smart HD doorplate screen

Eight major selling points

Cloud-based intelligent remote publishing

Remote control publishing system in the background, unified management of terminals across the country

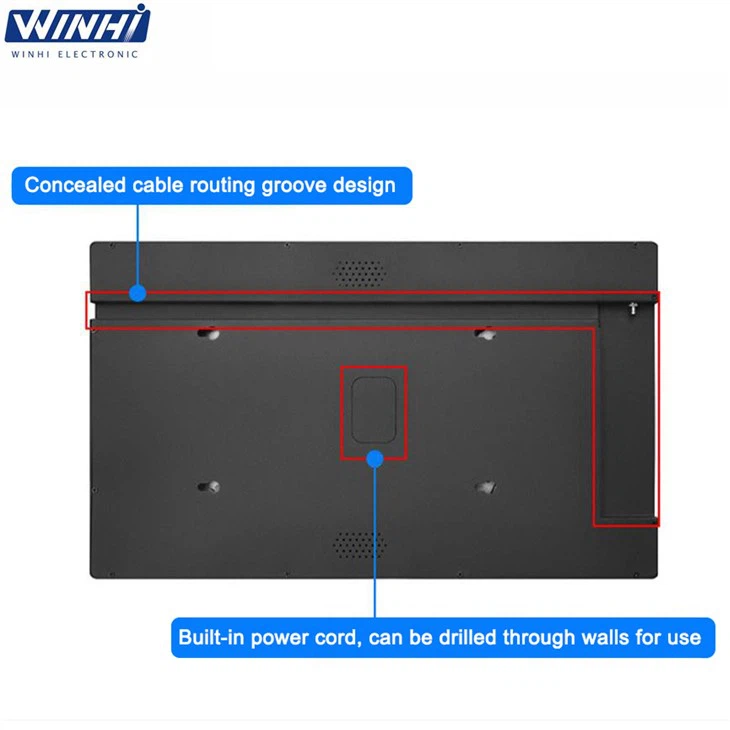

Concealed Wiring Design

Specially designed recesses conceal wire routing, resulting in a more sophisticated and aesthetically pleasing appearance.

Precise Touch, Enjoy a Seamless Fingertip Experience

Multi-touch offers rapid response, delivering a smooth and enjoyable new touch experience.

High-definition visual experience

Equipped with an ultra-high-definition display panel featuring a resolution of up to 1080P, it utilises the world's most vibrant RGB colour mode to reproduce colours accurately, resulting in a more high-definition visual experience.

Smart-timed playback

Supports customizable timed power on/off and automatic timed program content updates.

Scene Demonstration

Suitable for offices, conference rooms, hospital clinics, hotels, and other similar settings.

Flexible installation

Available in black and white

Product Image

Product Parameters

System	CPU	Quad-core 1.6 GHz processor (Rockchip RK3566 Quad-Core ARM Cortex-A55 (Up to 1.8 GHz))
	RAM	1G (2G)
	Storage	32G
	Operating system	Android 10.0 (Android 11.0)
Network	WiFi	Support 2.4GHz WiFi, protocol 802.11b/g/n
Network	Ethernet	100M Ethernet Interface
Interface	Card	TF card slot
	USBx2	USB host
	Micro USB	Micro USB OTG
	HDMI	HDMI output
	RJ45	Ethernet port
	Serial port	USB interface type, serial port, expand more functions
	DC	DC power 12V input
	Earphone	3.5mm stereo headphone output
Media playback	Video format	MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4Kx2K(H.264)
	Audio format	MP3/WMA/AAC, etc.
	Image Format	jpeg
Other	Speaker	2*2W
	Operating temperature	0°--40°
	Power consumption	20W
	Certification	3C
	OSD language	Multi-language OSD operations, such as Chinese and English
Appendix	user's manual	Standard
Appendix	power cable	Standard

Best selling

1.1_

1.2

More product specifications

Product Version	Stand-alone Version (Plug and Play)	Monitor Version	Android Version	PC Version	Raspberry Pi
Screen Size	5/ 7/ 8/ 10.1/ 12.1/ 13.3/ 14/ 15/ 15.6/ 17/ 18.5/ 19/ 21.5/ 24/ 27/ 28/ 32/ 43/ 49/ 55/ 65/ 75/86inch
CPU	一	一	Optional ( RK3566, RK3568, RK3588, RK3399)	Optional ( i5, i7)	4B
RAM	一	一	1G (2G/ 4G/ 8G)	4G (8G/ 16G/ 32G)	2G (4G,8G)
Internal Memory	USB (SD Card, 8 GB)	一	32G (64G/ 128G)	64G/ 128G/ 256G/ 512G (SSD)	一
Touch Screen	一	Capacitive touch (Optional)	Capacitive touch (Optional)	Capacitive touch (Optional)
Operating System Version	一	一	Android 7.1 (Android 11.0, Android 13.0)	Windows7, Windows10, Windows11
Main functions	1. Auto-play when powered on. 2. Playlist and splitscreen 3. Both horizontal and vertical screen displays 4. Seamless switching between videos, without a black screen	HDMI Input (VGA, CVBS, DP optional)	1. Both horizontal and vertical screen displays 2. Ethernet, WiFi connection, Bluetooth is optional 3. CMS for device management and content update(Free cloud-based CMS) 4. 4G (SIM card)(optional)	一
Extensible Function	Motion sensor Push button	一	Camera, RFID card reader, Scanner, Printer, POS Bracket

FAQ

Q: Do you have your own enclosure factory?

A: Yes, we have our own enclosure factory, and we have the best structural Engineer. We hope to provide you with the best advertising media solutions and personalised shapes. OEM is also welcome.

Q: What is Healthcare Digital Signage used for?
A: Today, digital signage is being used in a variety of applications and settings. Examples are Public information, Internal information, Advertising, Brand building, influencing customer behaviour, enhancing customer experience, and enhancing the environment.

Q: How long will my Healthcare Digital Signage last?
A: The longevity of the digital signage depends on the number of displays, complexity, amount of content, and the deployment needs.

Q: Do you give any discounts?

A: We are a Manufacturer, so we can give you the best price and best service at the same time.

Q: How long is the warranty time?

A: 1-3 years, except for the human damage and force majeure factor. For optimal maintenance, ensure that the products are used under normal operating conditions.
