Second LCD Monitor
Price Range: $70-$100
Monitor Size: 8.8inch 480x1920
HDMI Input
High definition, high contrast, low power consumption
Application: Indoor
Certification: FCC, CE, ROHS
Factory direct sales, competitive prices
Warranty: 1-3 Years
Send Inquiry
Product Details of Second LCD Monitor
Products Overviews
Product Parameters
|
WINHI Display model WH088B is a color-active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. A complete device consists of a TFT LCD panel, a driving circuit, and a backlight system. This TFT LCD has an 8.8 (1:4) inch diagonally measured active area with (480 horizontal by 1920 vertical pixel) resolution. |
| 1. Plug & play, easy to use: This is a drive-free LCD monitor. With 1x mini HD-MI and 1x micro USB ports. HD-MI supports data and signals transmission, and USB for power supply. |
| 2. Windows & Mac OS system plug and play, no need for program or software support. The horizontal and vertical display is adjustable in the Windows system. |
Specifications
| Second LCD Monitor Picture/Display | Backlight | WLED |
| Resolution | 480x1920 | |
| Viewing Angle | 178°Full View Angle | |
| Display colors | 16.7M, 50% NTSC | |
| Brightness | 600cd/m2 | |
| Contrast ratio | 800:1 | |

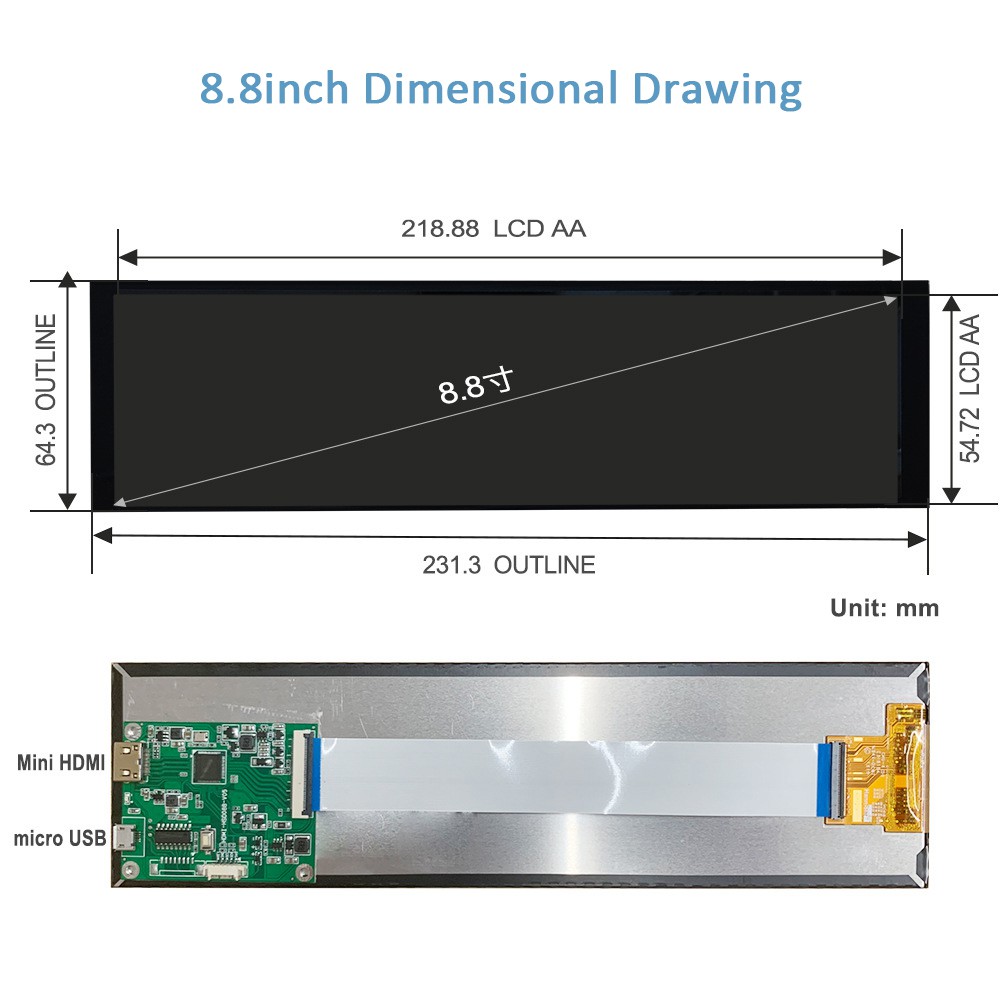

| Effective screen size | 218.88(H)×54.72(V) mm | |
| Second LCD Monitor Work environment | Work | -20 ~ 70 ℃ |
| Storage | -30 ~ 80 ℃ | |
| HD-MI conflguration parameters | Signal input interface | Mini HD-MI |
| Power input interface and requirements |
Micro USB DC 5V 1A |
|
| Shell material | aluminum case | |
| Touch Function | optional | |
| Speaker Function | No | |
| Shell color | black, White | |
| Dimensions | 235mmx67.3mmx13.5mm | |
| Installation | External mounting/ Open frame | |
| Power & Consumption | DC5V 1A | |
| head life |
＞60000H |
|
Stretched Screen Digital Signage parameters
More product specifications
FAQ
Q: Do you have your enclosure factory?
A: Yes, we have our enclosure factory, and we have the best structural Engineer. We hope to provide you with the best screen and shape, so OEM is also welcome.
Q: What brand of screen are you using?
A: We are using Samsung, LG, AUO, and CHIMEI screens.
Q: How to Order?
A: 1). Tell us the model number, quantity, function, shipping method, and other special requirements.
2). Proforma Invoice will be made and sent for your approval.
3). Productions will be arranged upon receipt of your approval and payment or deposit.
4). Goods will be delivered as stated on the proforma invoice.
Q: What payment methods does your company accept?
A: We accept most payment methods but mainly accept Paypal, T/T, Credit Card, Western Union, etc.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depending on the size and quantities of your order.
