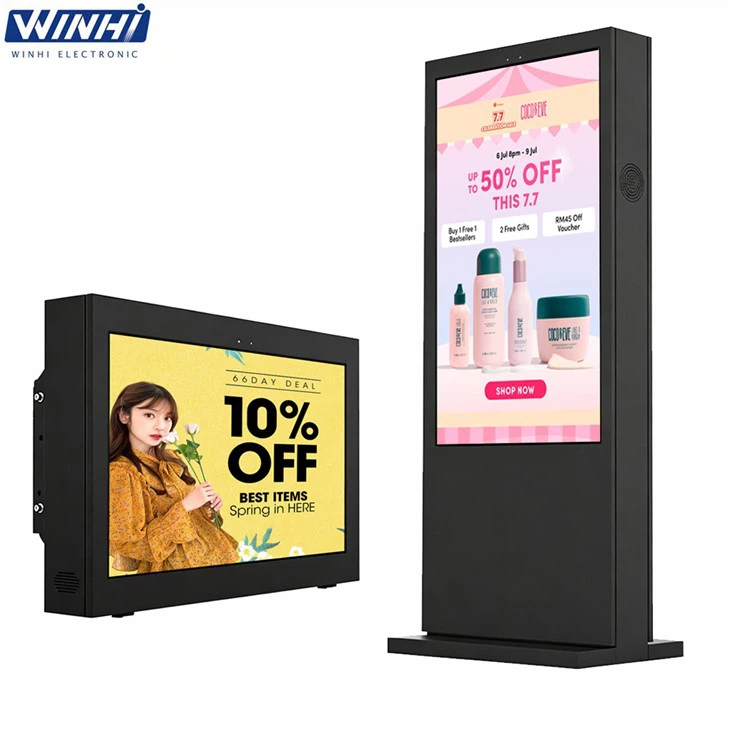

Outdoor LCD Advertising Display



10 Highlights to Meet Your Needs

High Definition Resolution, Adjustable Brightness

It features a high brightness of 2000 nits and a high static contrast ratio of 5000:1. The direct-lit LED backlight provides uniform brightness, high dynamic contrast, and a clear display.







Dustproof, waterproof, and lightning-proof

The fully enclosed, integrated chassis design, coupled with a professional waterproof structure and built-in high-efficiency surge protector, reduces interface potential difference at the source, easily coping with severe weather conditions such as heavy rain and lightning, providing comprehensive dust protection.



High-definition anti-glare tempered glass, waterproof,

and deformation-resistant galvanized steel sheet

A robust outer shell constructed from 1.5mm galvanized steel sheet, a precision waterproof edge design, IP55/IP65 protection against wind and rain, and a 5mm ultra-clear tempered glass screen with a light transmittance of ≥98% for a clear and bright picture.



Intelligent Temperature Control System

-40 ~ 50℃, intelligent temperature control, unaffected by hot or cold weather.

Tempered Glass Panel

Utilizing tempered anti-glare AR laminated glass, it effectively increases internal light projection and reduces external light reflection, resulting in more vibrant and vivid colors on the LCD screen.

178° Wide-Viewing-Angle Design

178° wide-viewing-angle IPS high-brightness display with high light transmittance and low power consumption.

The machine features eight protective measures to adapt to harsh environments.

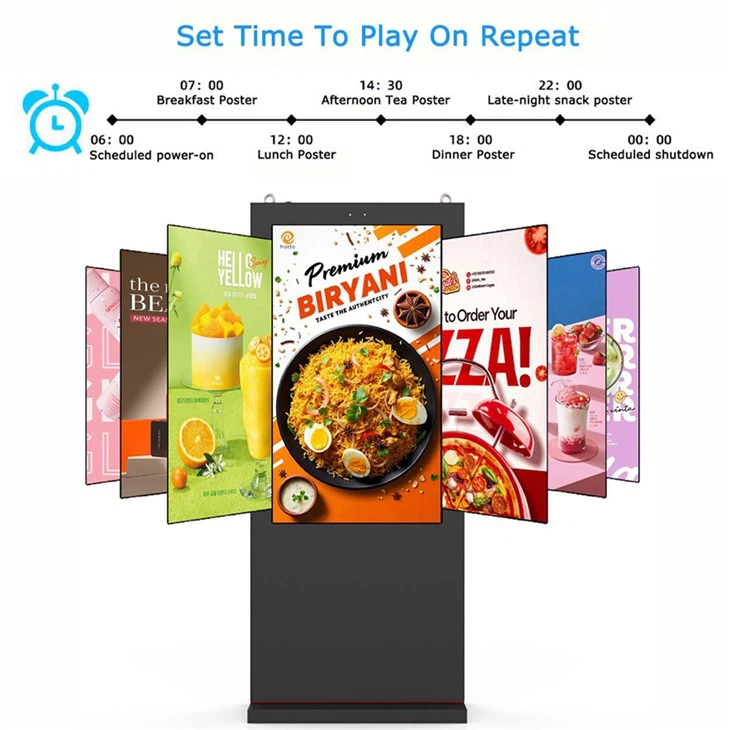

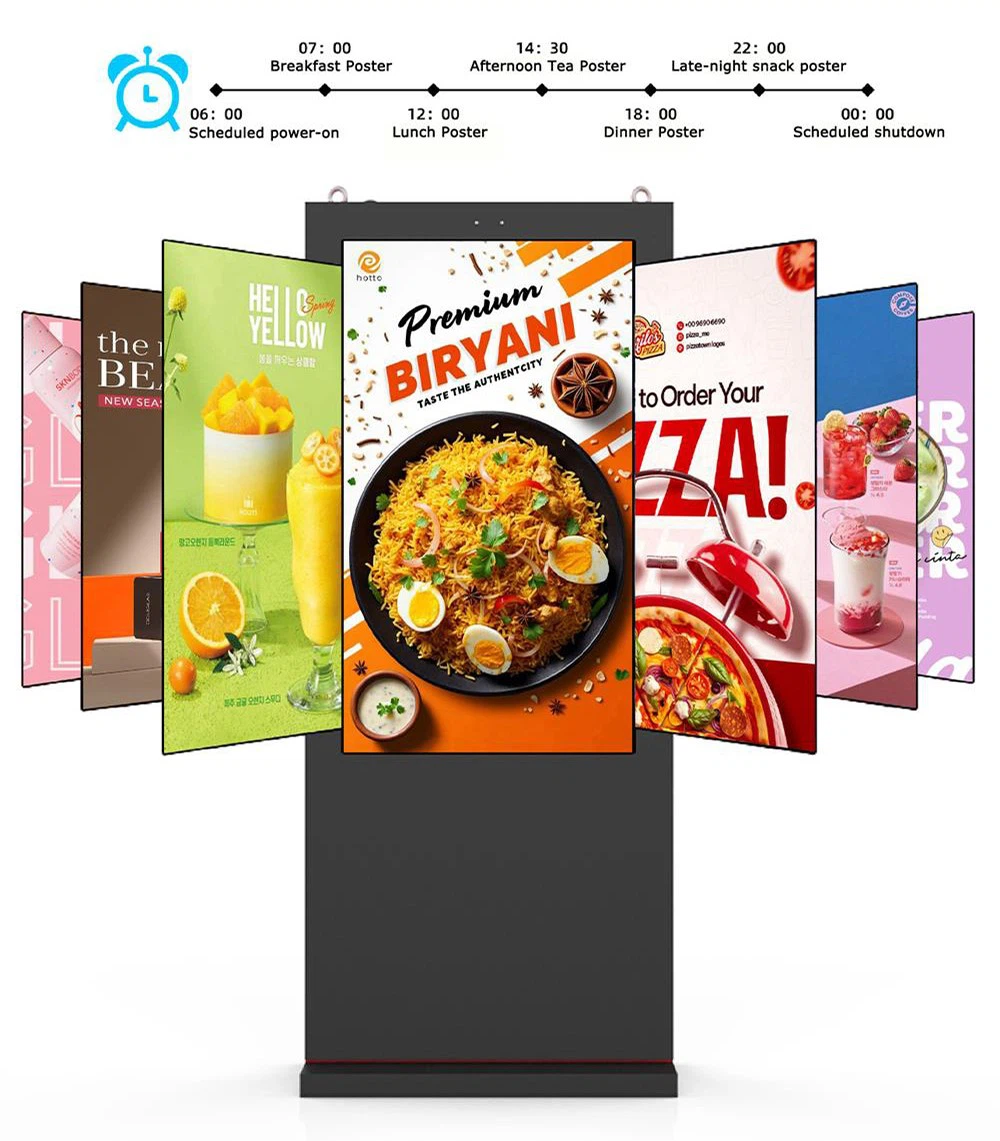

Set Time To Play On Repeat

You can set programs for each time period, and the program will automatically switch and loop at the specified time, eliminating the need for manual operation.

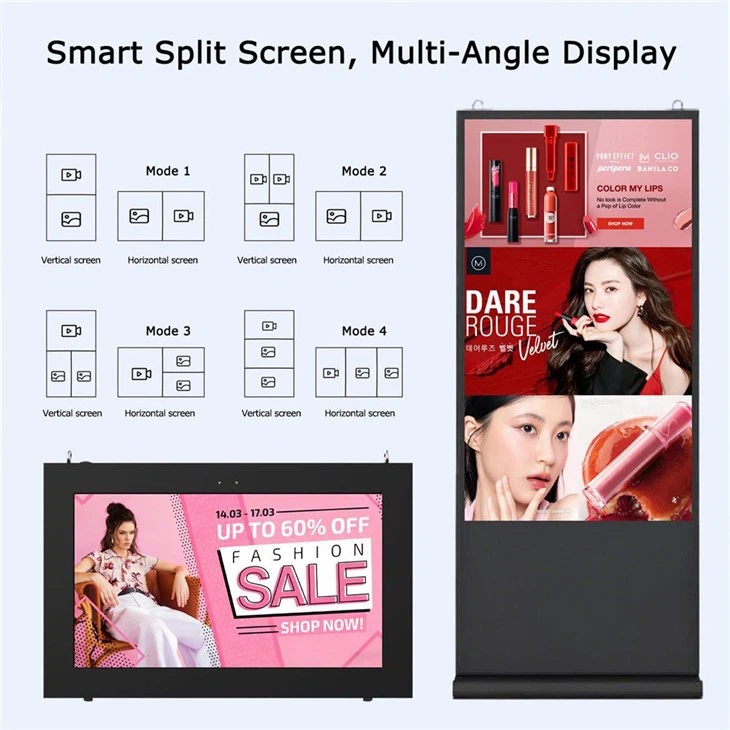

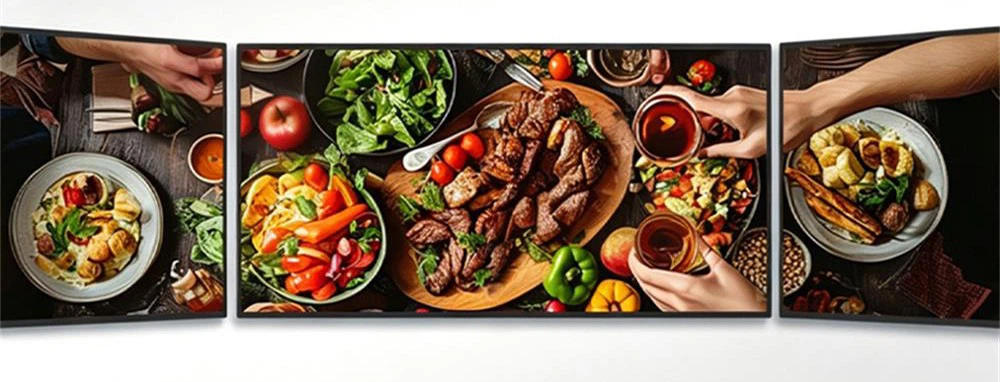

Smart Split Screen, Multi-Angle Display

Supports multiple split-screen modes, allowing simultaneous playback of images and videos.
Customizable split-screen templates let you unleash your creativity.

Intelligent Recognition & Automatic Loop Playback

After inserting the USB drive, it can automatically recognize the files, automatically loop the playback, customize the playback scheme, and seamlessly switch between them.

Silky Smooth Touch Sensitivity Interaction

Featuring a high-performance quad-core processor, this device offers a significantly upgraded touch experience, supporting multi-touch and providing responsive and intuitive gesture control.

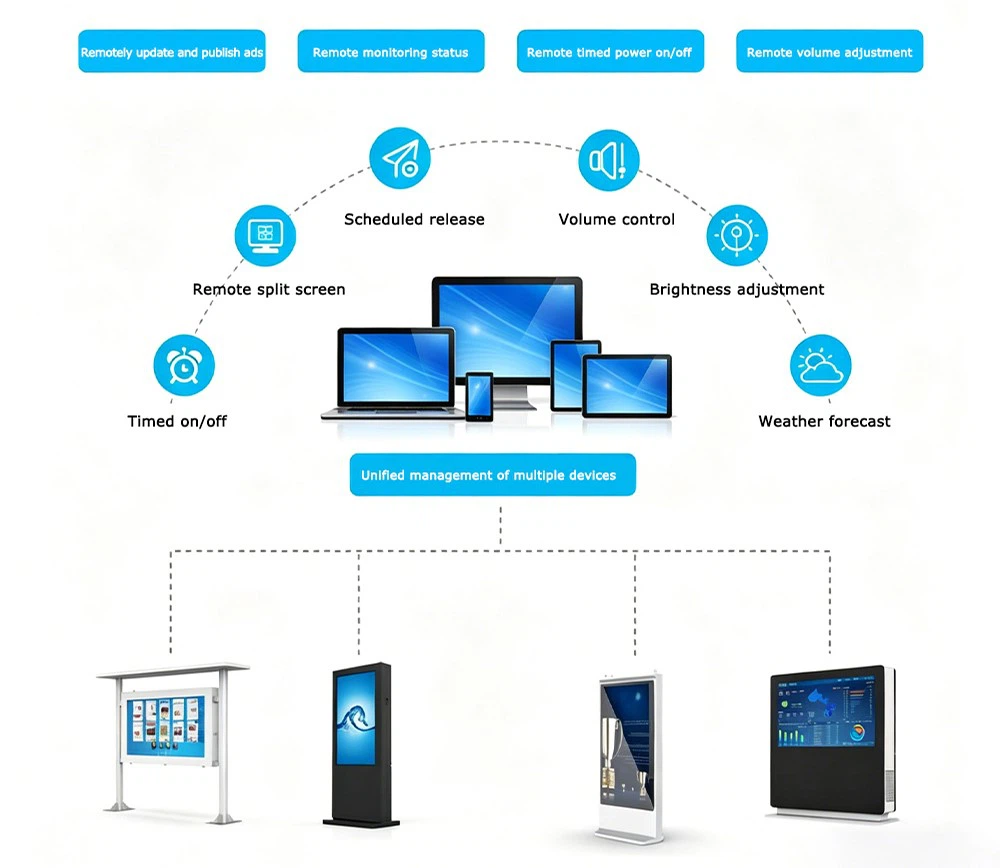

Free Cloud Intelligence

Remote publishing system

The device connects to the network and can be remotely managed across regions. It can be updated and published uniformly on computers, mobile phones, and tablets at any time, with multi-terminal login, cloud management, and real-time monitoring. It also has multiple functions such as scheduled power on/off, permission management, flexible layout, and one-click publishing.





Product Parameters

---

Specifications

---

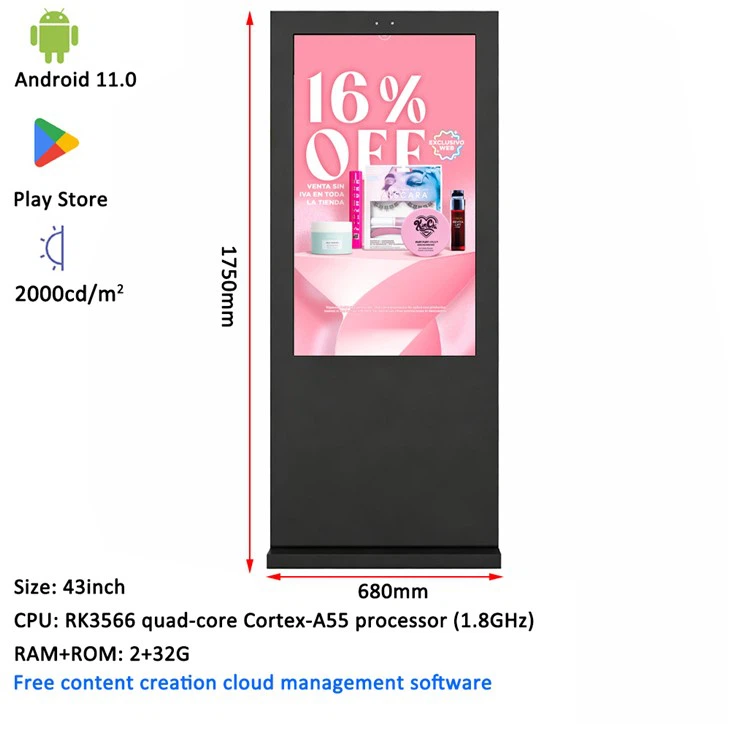

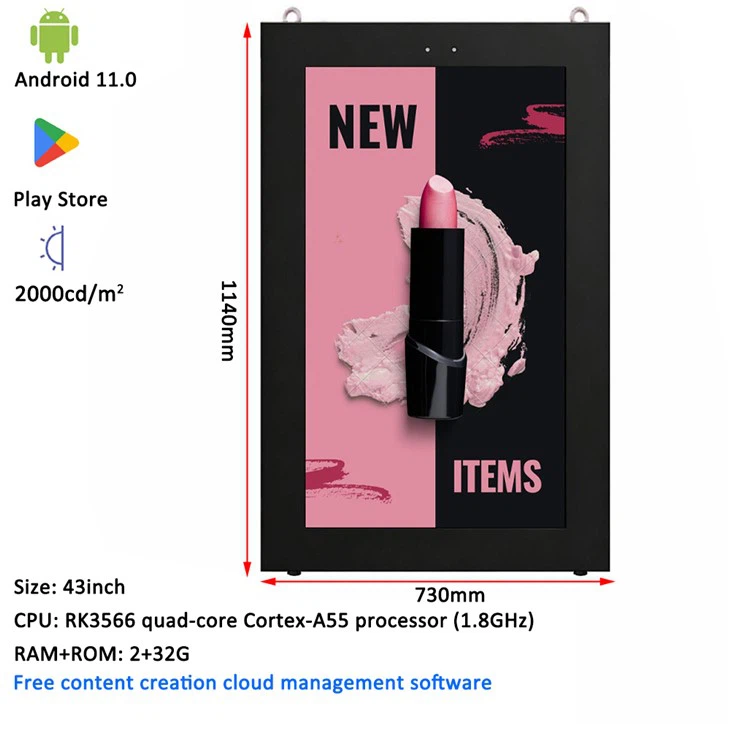

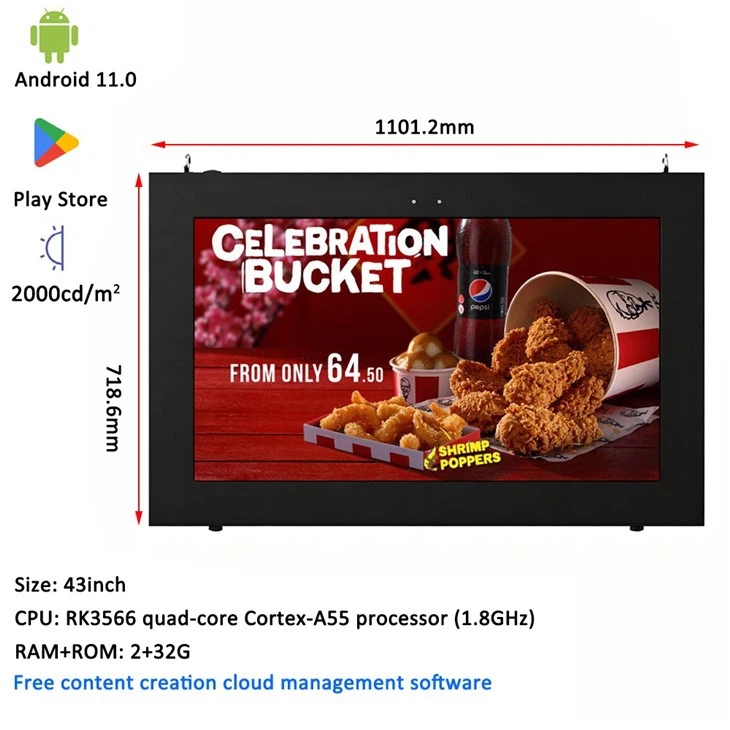

LCD Panel	LCD Size	43inch (21.5/32/49/55/65/75/86/98 Inch) Outdoor LCD Advertising Display
	Active Area	941*529 mm
	Resolution	1920x1080
	Display Ratio	16:9
	Luminance	2000cd/m²
	Viewing angle	178°/178°
	Contrast ratio	5000:1
	Response Time	5ms
System	CPU	RK3566 Quad-core Cortex-A55, 1.8GHz
	Operation System	Android 11.0
	RAM	2GB
	Internal Storage	32GB
Network	WiFi	Support 2.4G WiFi, protocol 802.11b/g/n
	Ethernet	100M Ethernet
Interface	USB	USB2.0*2
	RJ45	Ethernet interface
	WiFi	WiFi antenna*1
	Audio Out	Built in 10W(8Ω) speaker*2
	Power Supply	AC100-240V 50/60Hz
File Format	Video	MPEG-1/2/4, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF
	Audio	MP3, MP2, WMA, WAV
	Image	JPEG, PNG
Appearance	Material	Tempered glass panel + sheet metal shell
	Color	Black/ White
	Installation	Wall mounted
Working Environment	Working Temperature	-10℃ to 55℃ (Wide Temperature Range (-40℃~55℃) requires optional Heating or HVAC module.)
	Working Humidity	10%~90% RH
Others	IP Rating	IP55 (Custom IP65 Enclosure available.)
	Brightness Control	Built-in automatic light-sensing controller to adjust screen brightness automatically
	Temperature Control	Intelligent air cooling temperature control system
	Lightning Protector	Tertiary lightning protection
	Electric Leakage Protector	Yes
	Timer	Yes, the timing switch can be set by day, week, and month
	Accessory	Power cord, remote control
