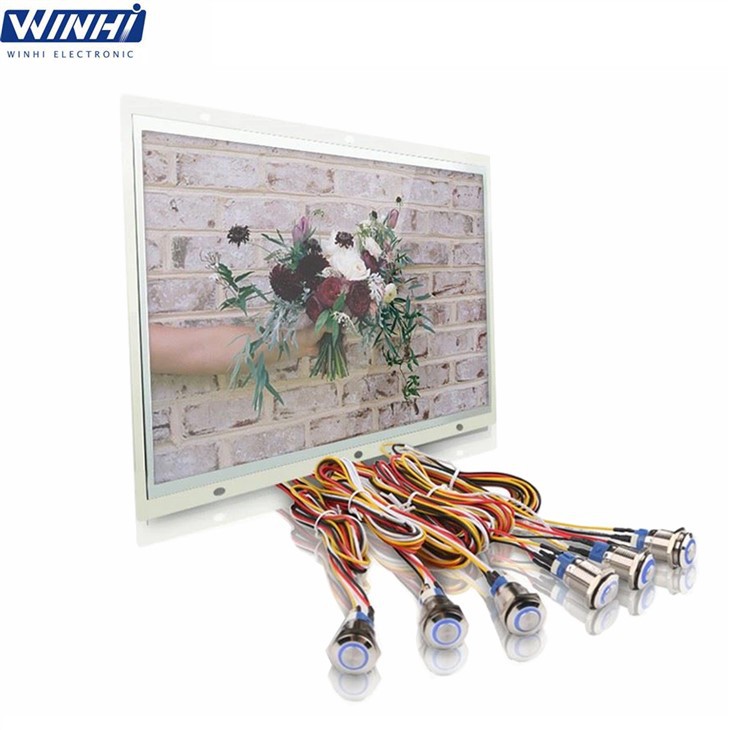

21.5in LCD Vertical Advertising Screen
Model: PT215M-6L
Price Range:$340-$540
LCD Size: 21.5 inch
Resolution: 1920x1080
Auto loop play homepage files when powering on.
6pcs LED push buttons control 6 folders.
Support for custom sound output mode and volume value of each folder.
Certification: CE, FCC, RoHS
R&D team can provide customized service for you.
Warranty: 1~3 Years
Send Inquiry
Product Details of 21.5in LCD Vertical Advertising Screen
Products Overviews
Product Parameters
| Working mode: A. Auto-play when powered on; B. Button control display; C. Custom control display; |

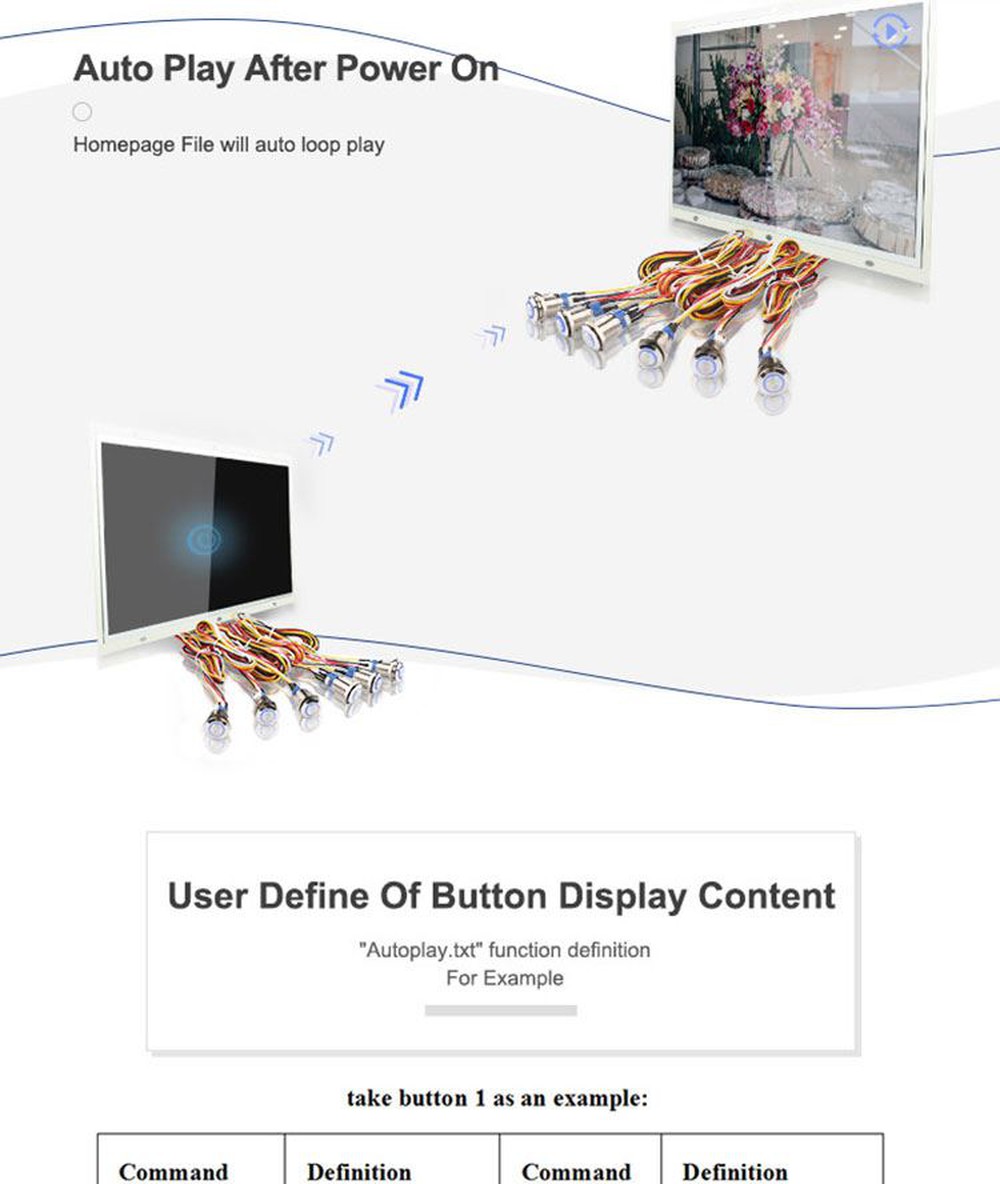

| Homepage files will auto-play and loop play, one button corresponding to one folder |
| 21.5in LCD vertical advertising screen supports at most 6pcs of LED buttons |
| Super button function 1: the user can define "NO INTERRUPT" or "INTERRUPT" function in "autoplay.txt" |

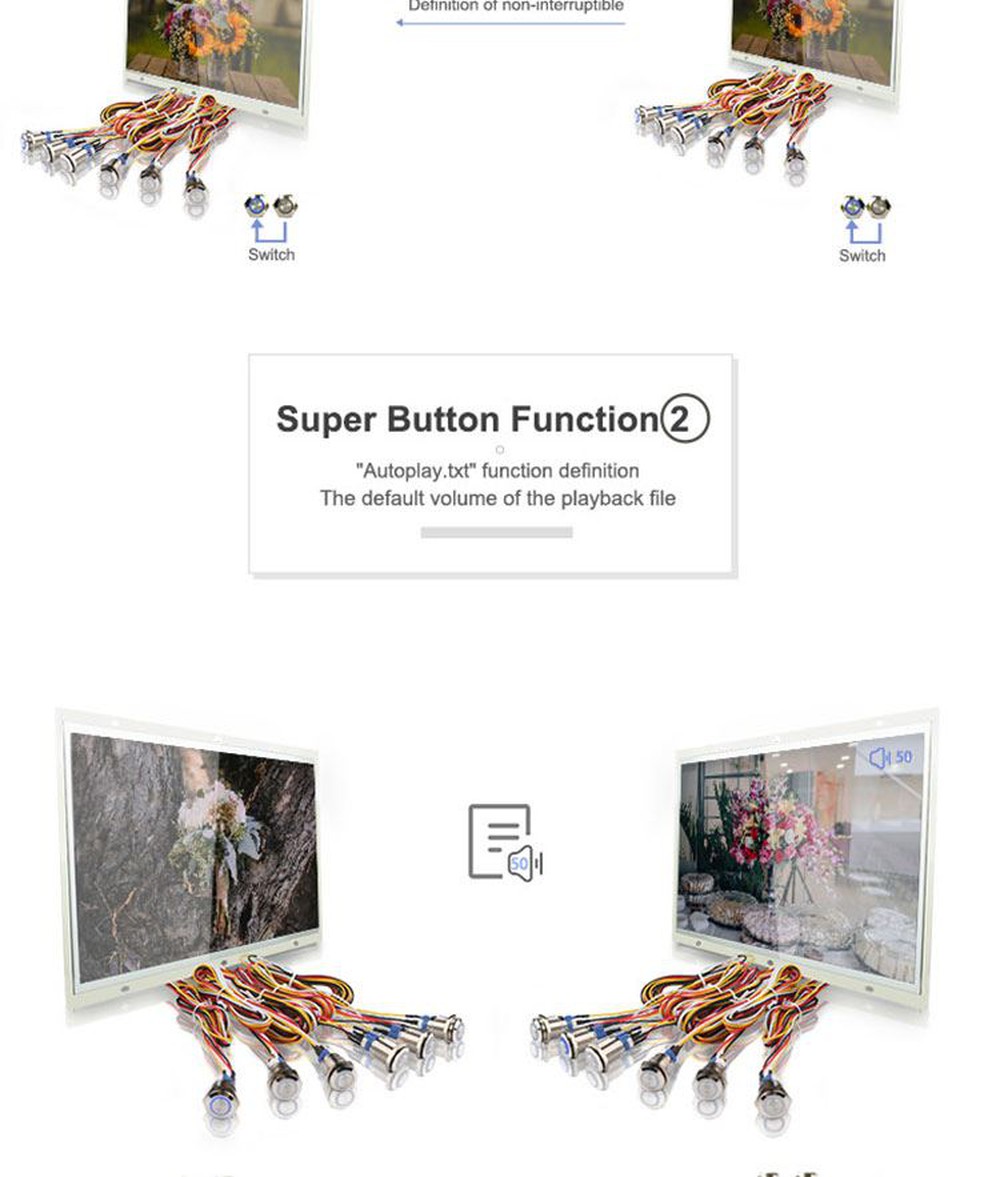

| Super button function 2: User can define the sound output mode and volume of each file folder in "autoplay.txt" |
| Support turning ON/OFF the built-in speakers |
| 21.5in LCD vertical advertising screen supports real 1080P HD decode |
| Support 3.5mm Audio output |
| Support multi-language OSD |
| Support 10 kinds of slide transition modes |
| Full-function remote control, easy operation |
| Ideal for soundbar and TV promotion, widely used in Museums, Science Center exhibits, stores, Resorts, Hotels, Restaurants, Shopping Malls, Airports, etc. |
Specifications

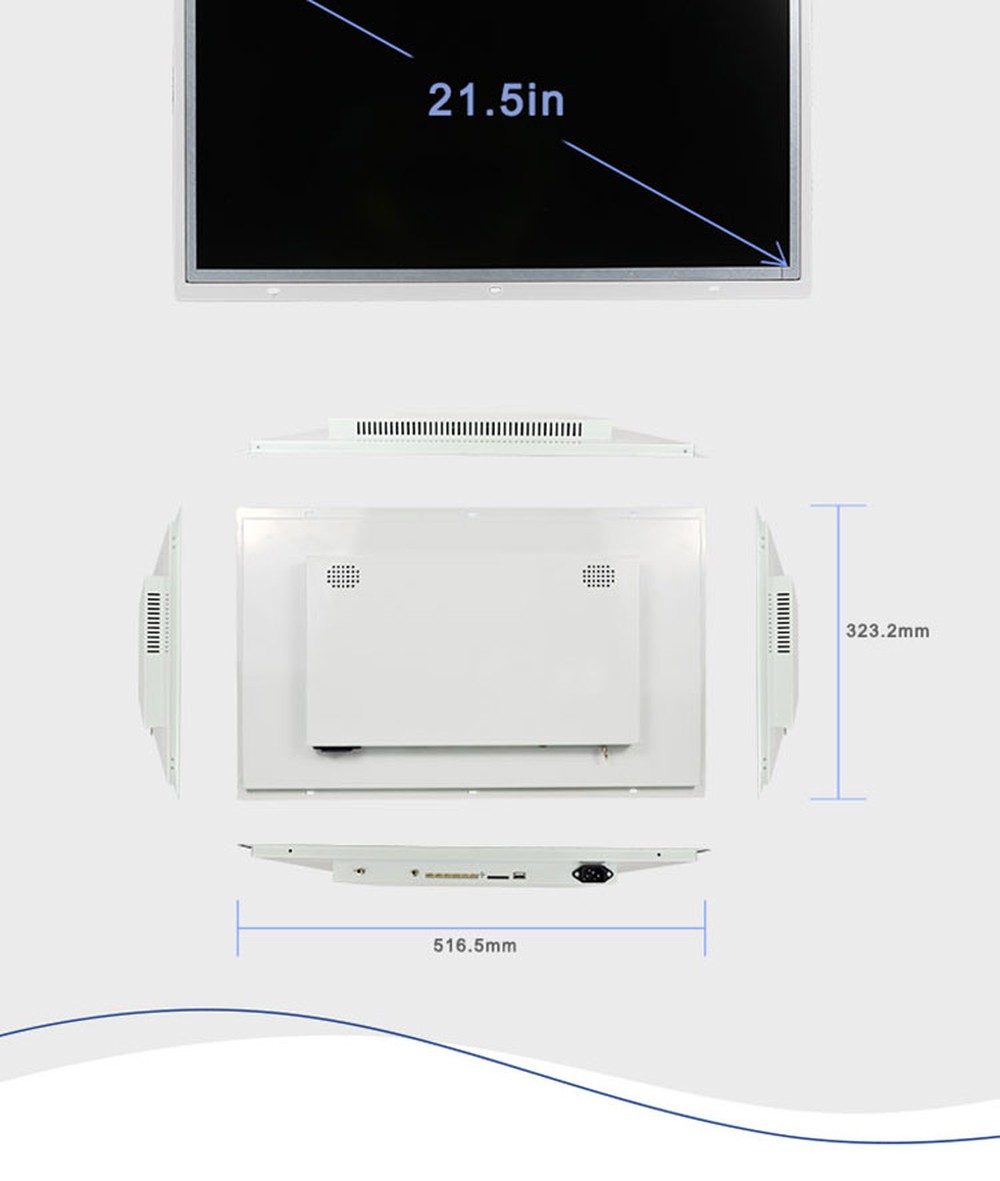

| Display | Screen Size | 21.5″ LED |
| Resolution | 1920x1080 | |
| Pixel Pitch | 248.25 (per one triad) ×248.25 | |
| Luminance | 250-300cd/㎡ (Typ.) | |
| Contrast Ratio | 800:1 | |
| Viewing Angle | U89°/D89°/L89°/R89° | |
| Supported Card & Format | Video codecs supported | MPEG1/2/4, H.264, AVC, VC1, WMV, RM/RMVB, DivX3/4/5/6, Xvid3/4/5/6 |
| Video formats supported | RM/RMVB,AVI,TS,M2TS,MTS,MKV,MOV,FLV,DVD-ISO,BD-ISO,MPG,DAT,ASF,TP,TRP,WMV,IFO, SWF, 3GP,EVO,DIVX,MP4,OGM |
|
| Audio formats supported | MP3, WAV, OGG, FLAC, AAC, LC-AAC | |
| Image formats supported | JPEG, BMP, GIF, PNG | |
| Subtitle formats supported | SRT,SMI,SUB,SSA,IDX+SUB | |
| Storage supported | SD/USB Device: 2.0 high speed | |

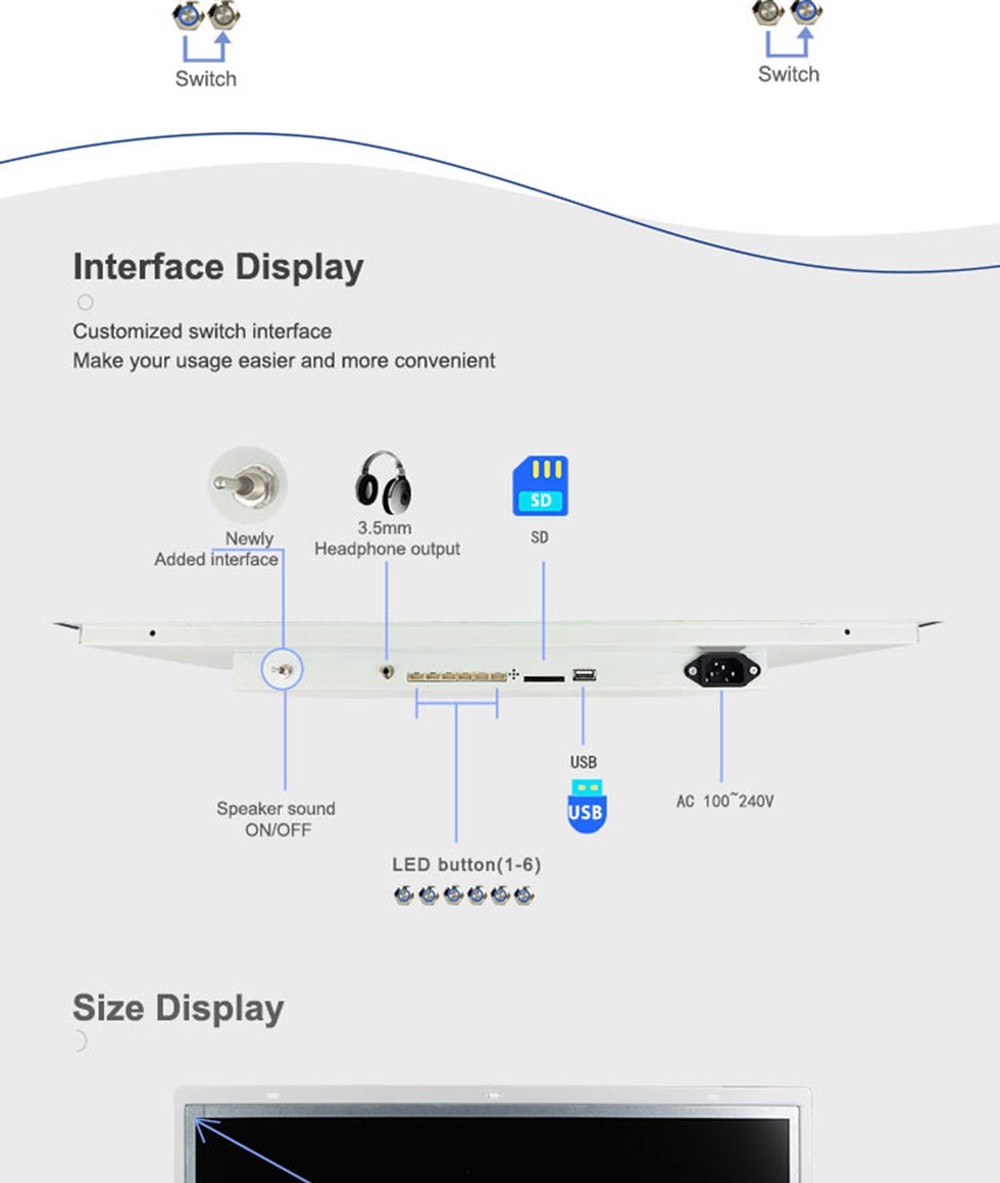

| I/O | Interface | USB, SD, AUDIO OUT, BUTTON INTERFACE, POWER |
| Audio output | 2V±0.2V (10KΩ Load); S/N ≥85dB | |
| AC Power Input | AC: 100~240 V |
Best selling

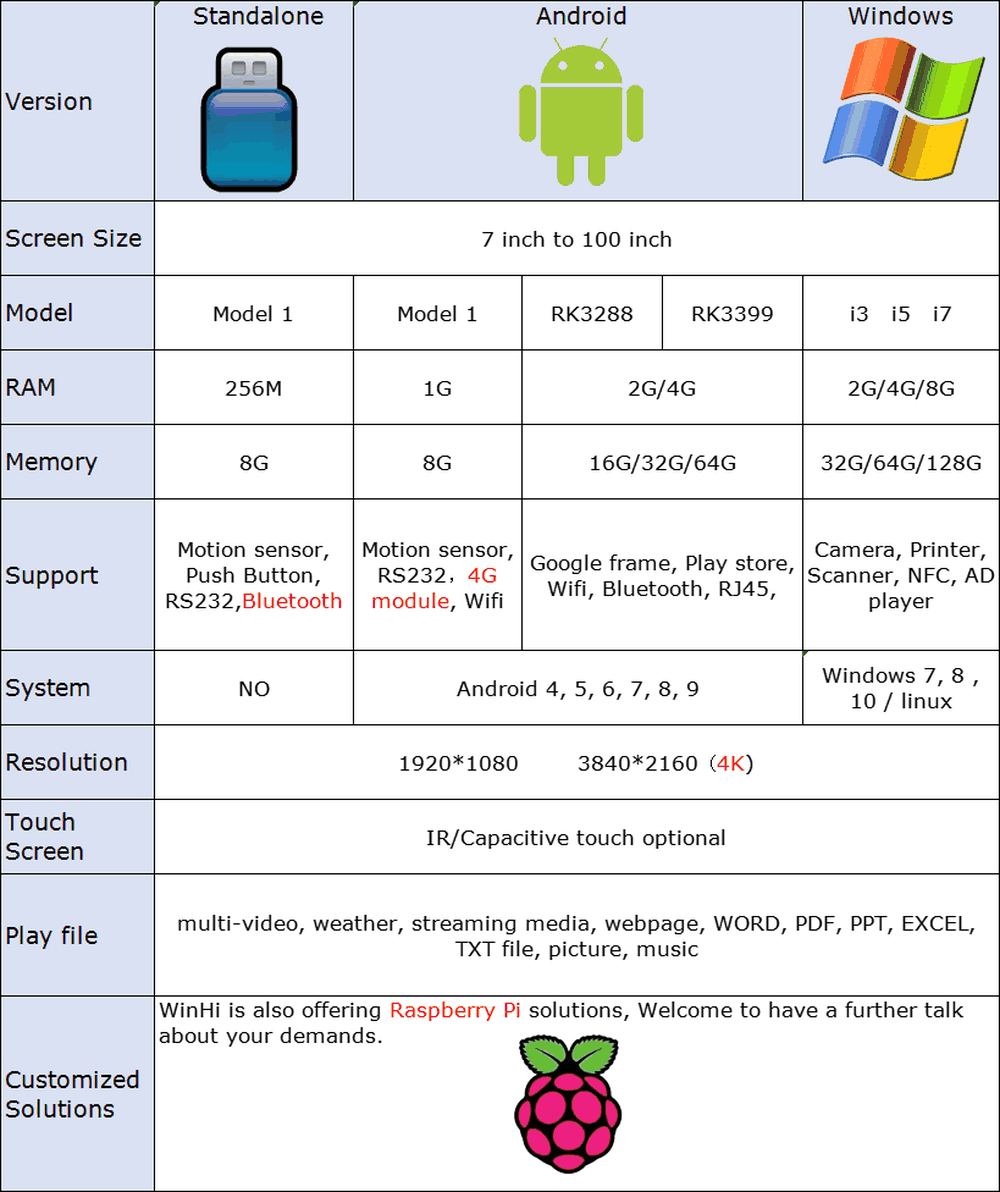

More product specifications
FAQ
Q: Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. And our R&D team is on standby for customized media solutions.
Q: How does your factory do regarding quality control?
A: Quality is the priority.WINHI people always attach great importance to quality control from the very beginning to the very end.
We focus on every detail.
Q: Do you accept OEM design?
A: Yes, we do. We can design according to your requirement, MOQ usually 500-1000.
Q: What payment terms do you support?
A: Trade Assurance, T/T, Paypal, Western Union, etc.
Q: Do you accept door-to-door shipping services?
A: Yes, we do. Also, we have favorable prices by DHL, FedEx, UPS, ARAMEX, etc
