Digital Signage Menu Boards
Model: PT-238L
Price Range:$100-$220
Diverse Size: Screen sizes cover 21.5/23.8/27inch, Touchscreen Optional Advertising Signage for F&B Chains (Milk Tea Shop/Restaurant/Bar)

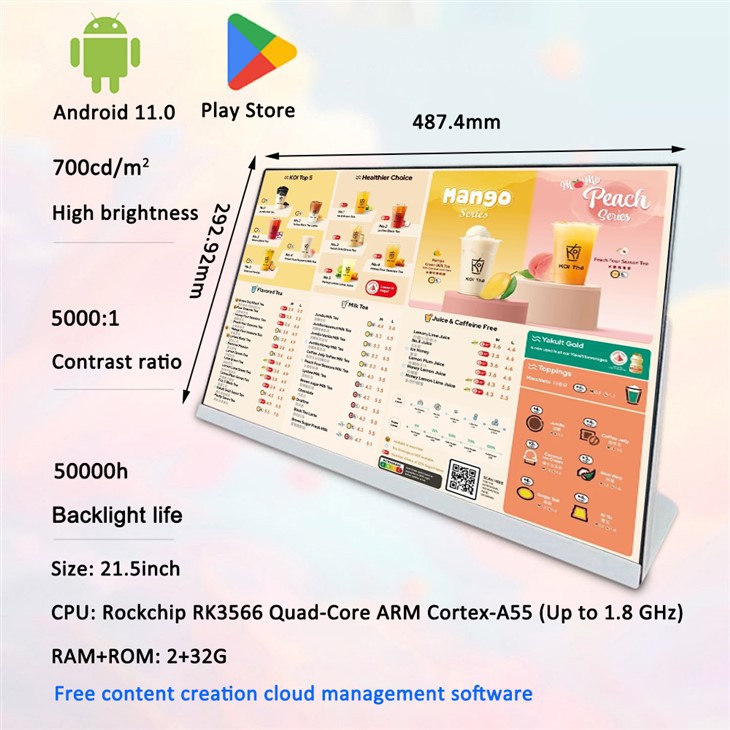

High-Definition Display: Features 1920x1080 resolution, 700cd/m² high brightness, 5000:1 contrast ratio, and 178° wide viewing angle, delivering vivid, lifelike visuals with stable long-hour operation.
Flexible Split-Screen Functionality: Supports multi-mode split-screen display (two-screen, three-screen, four-screen, free split), enabling arbitrary area division for simultaneous playback of images, videos, and texts.
Versatile Content Playback: Supports USB flash drive plug-and-play (automatic content recognition for multiple formats) and loop playback; works offline without a network connection.
Convenient Content Management: Enables mobile APP-based editing/publishing (add/delete/modify images/texts/videos) and one-click real-time updates; supports cloud management and remote control for efficient multi-store operation.

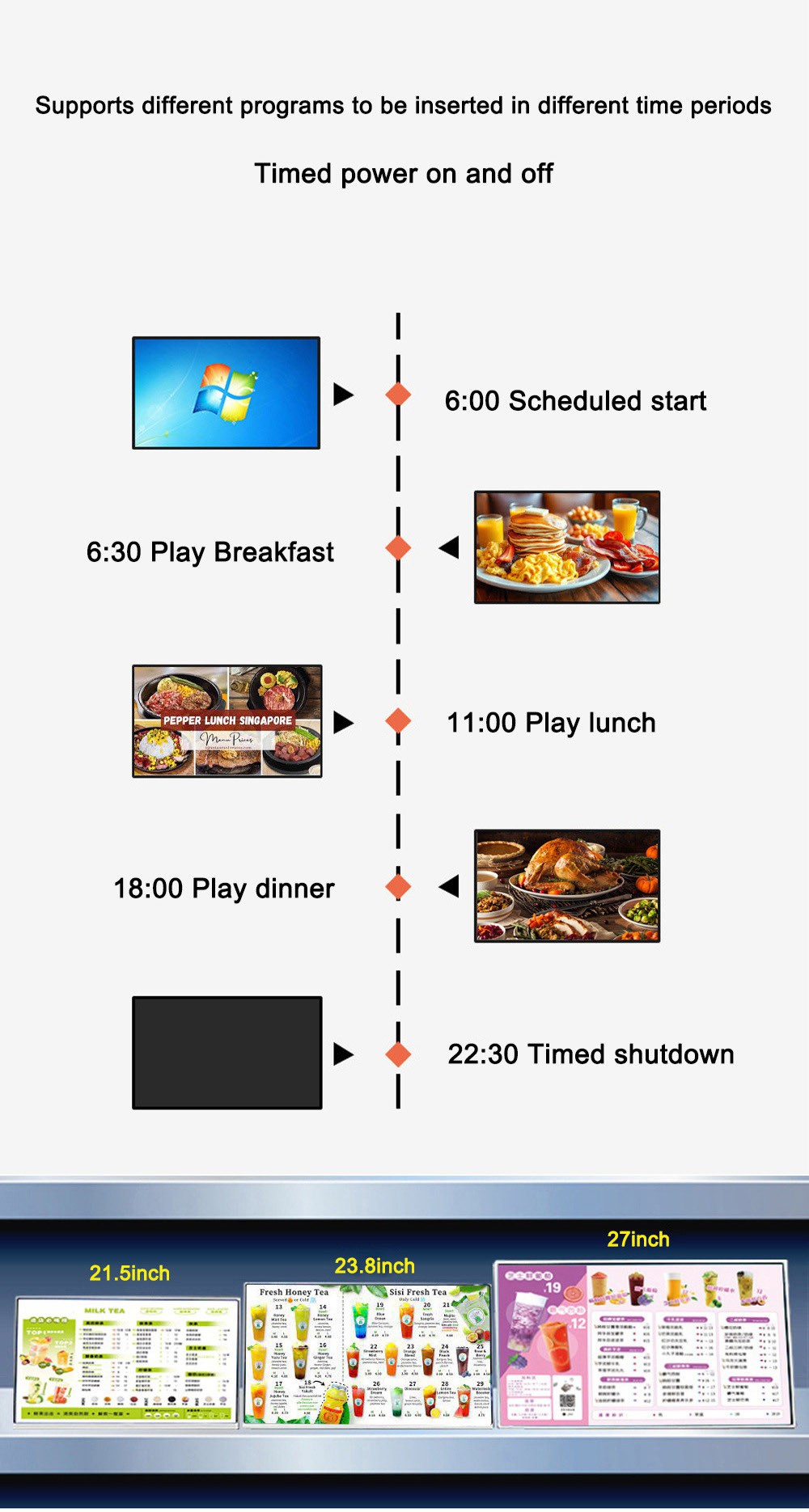

Smart Operational Features: Equipped with a timed power-on/off function; compatible with wired/wireless network connections for seamless content synchronization.
Send Inquiry
Product Details of Digital Signage Menu Boards
Products Overviews
| Digital Signage Menu Boards | |
| Resolution | 1920x1080 |
| Brightness | 700cd/m² |
| Contrast | 5000:1 |
| Running memory | Quad-core 1+8G |
| Network connection | Can be connected to a wired/wireless network |
| Interface | 2 USB/RJ45/headphone output |
| Split screen | Support smart split screen |
| Loop playback | Support loop playback |
| Remote control | Support remote control |
| Size | 32inch | 40inch | 43inch | 50inch | 55inch |
| Display size | 712*411 | 878*485 | 953*543 | 1107*628 | 1221*693 |
| Device size | 722*423*81 | 894*518*81 | 956*565*82 | 1111*641*78 | 1226*705*78 |
| Packaging size | 795*515*130 | 995*610*150 | 1060*650*150 | 1200*755*180 | 1320*820*180 |
| Resolution | 1920*1080 | ||||
| Brightness | 300cd/m² | ||||
| Voltage | 100V-240V | ||||
| Android system | 64-bit quad-core 2G+32G | ||||
| Power | ≤48W | ≤75W | ≤75W | ≤85W | ≤120w |
| Weight | 4.25KG | 6.9KG | 8KG | 10.6KG | 12.8KG |
Product Image

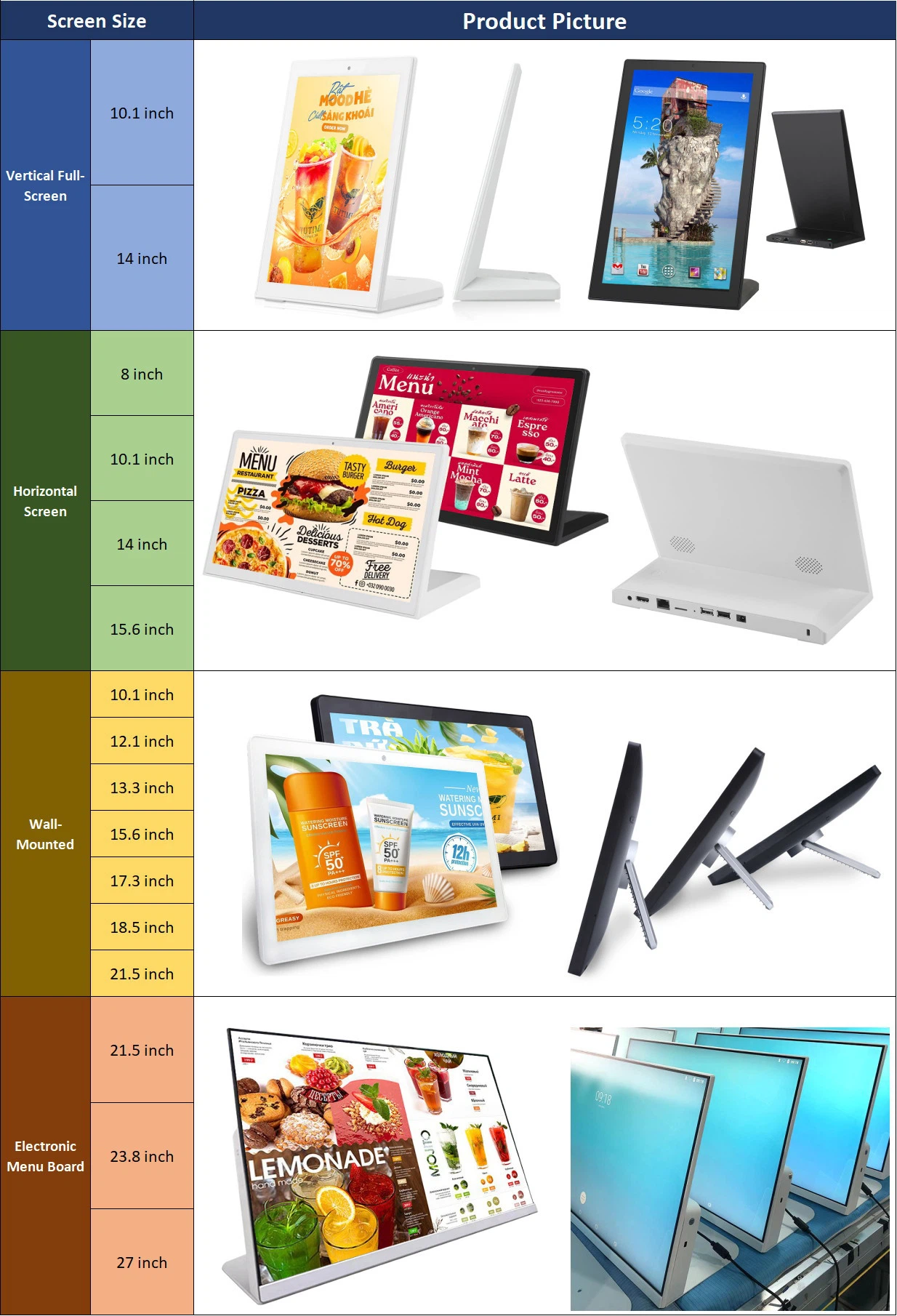

L-Shaped Android Capacitive Touch Screen All-in-One Display Series (With Camera, Microphone, Bluetooth & Wi-Fi)
More product specifications
| Product Version | Stand-alone Version (Plug and Play) | Monitor Version | Android Version | PC Version | Raspberry Pi |
| Screen Size | 5/ 7/ 8/ 10.1/ 12.1/ 13.3/ 14/ 15/ 15.6/ 17/ 18.5/ 19/ 21.5/ 24/ 27/ 28/ 32/ 43/ 49/ 55/ 65/ 75/86inch | ||||
| CPU | 一 | 一 | Optional ( RK3566, RK3568, RK3588, RK3399) | Optional ( i5, i7) | 4B |
| RAM | 一 | 一 | 1G (2G/ 4G/ 8G) | 4G (8G/ 16G/ 32G) | 2G (4G,8G) |
| Internal Memory | USB (SD Card, 8 GB) | 一 | 32G (64G/ 128G) | 64G/ 128G/ 256G/ 512G (SSD) | 一 |
| Touch Screen | 一 | Capacitive touch (Optional) |
Capacitive touch (Optional) |
Capacitive touch (Optional) |
|
| Operating System Version | 一 | 一 | Android 7.1 (Android 11.0, Android 13.0) |
Windows7, Windows10, Windows11 | |
| Main functions | 1. Auto-play when powered on. 2. Playlist and splitscreen 3. Both horizontal and vertical screen displays 4. Seamless switching between videos, without a black screen |
HDMI Input (VGA, CVBS, DP optional) | 1. Both horizontal and vertical screen displays 2. Ethernet, WiFi connection, Bluetooth is optional 3. CMS for device management and content update(Free cloud-based CMS) 4. 4G (SIM card)(optional) |
一 | |
| Extensible Function | Motion sensor Push button |
一 | Camera, RFID card reader, Scanner, Printer, POS Bracket | ||
Best selling
FAQ
Q: Why should you buy from us digital signage menu boards, not from other suppliers?
A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products include digital signage, advertising media players, monitors, and customized audio-video products. We have our own designers and R&D team, which enables us to support customized design.
Q: Can I customize the product and give any discount?
A: Absolutely yes, customization from the customer is most welcome.
B: I'll surely try to get the best price and offer good service for you.
Q: Do you accept OEM design?
A: Yes, we do. We can design according to your requirements. MOQ is usually 100.
Q: How much does CMS cost?
A: WINHI digital signage cms systems include a digital signage media player that is bundled with our enterprise software. There is a one-time fee for the media player, but the software is free.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days, depending on the size and quantities of your order.
