RS232 Media Player Box

---

1080P 4K HDMI output audio video media player.

Working Mode: A. Auto-play after power on; B. Folder files playback; C. RS232 serial control playback; D. Button control playback; E. Custom control playback

Support seamless switching between videos, with no black screen.

RS232 Control: send RS232 commands to control the media player. (Play, pause, stop, volume up/ down, mute, next/ previous file, power on/off, play files in folders 01~99.)

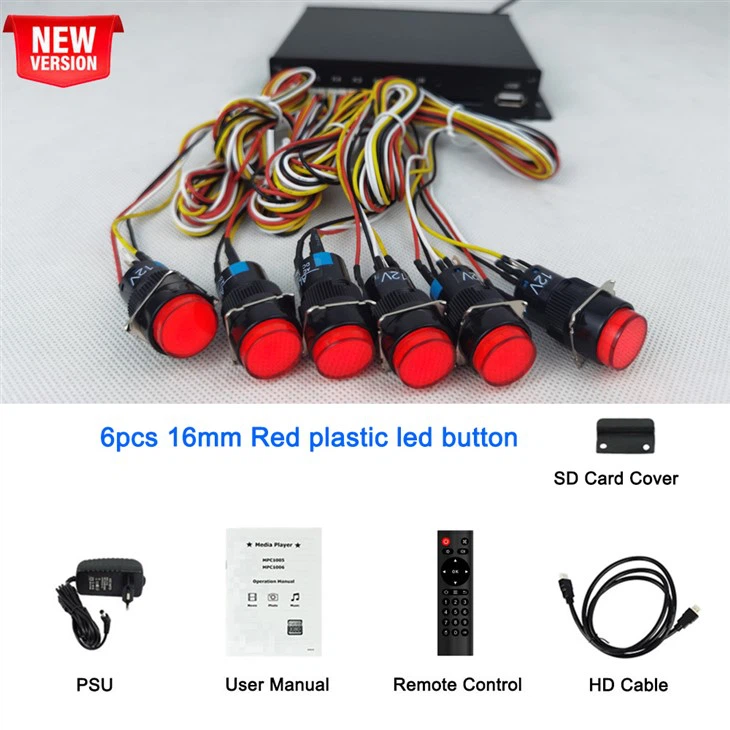

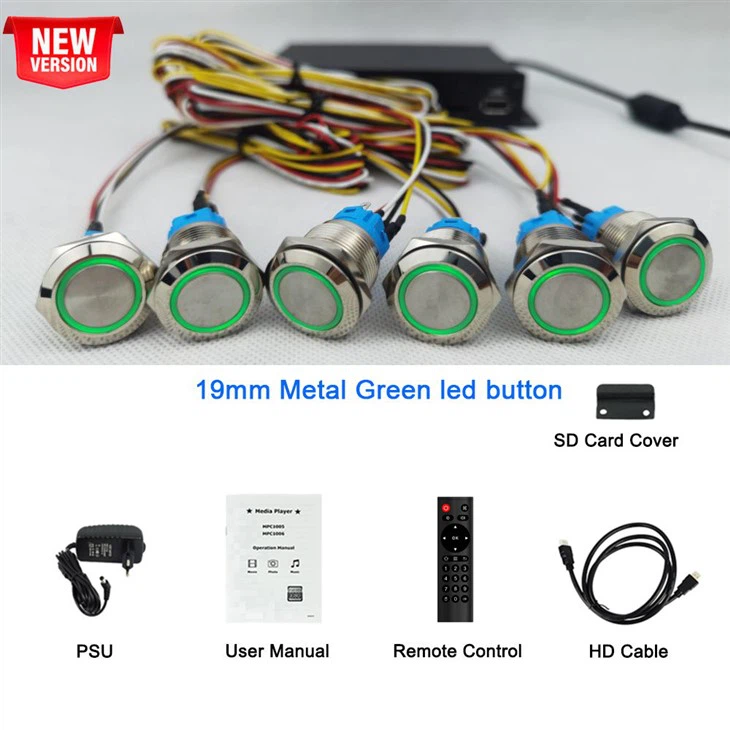

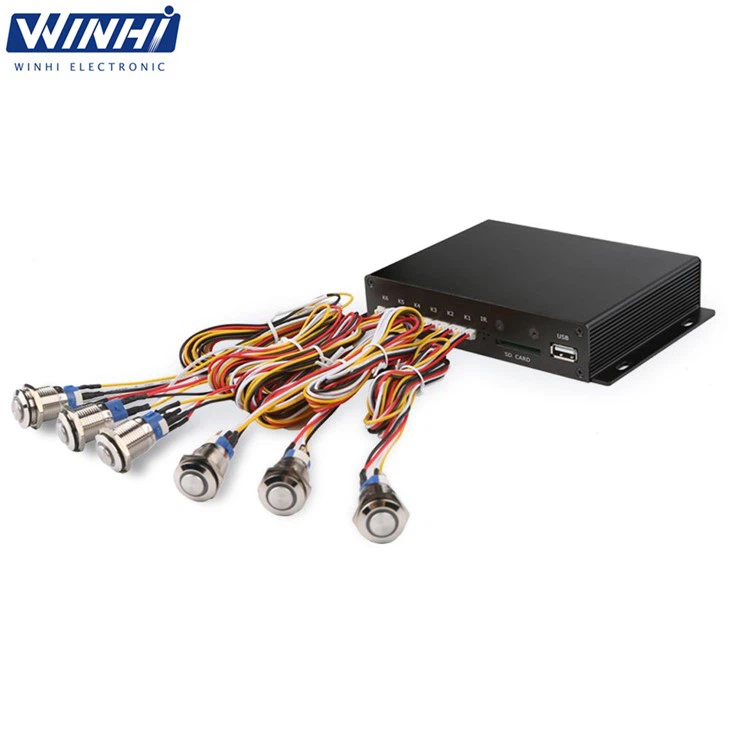

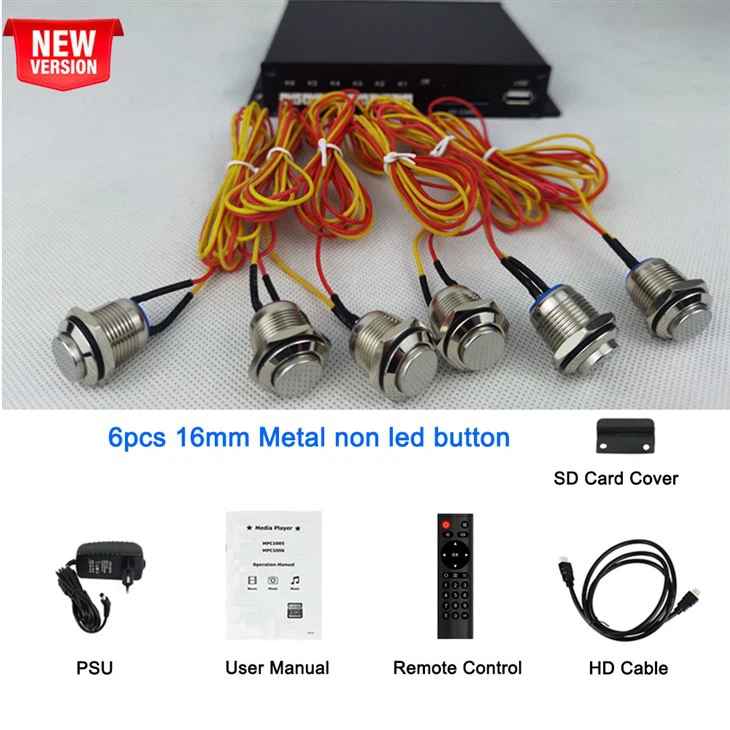

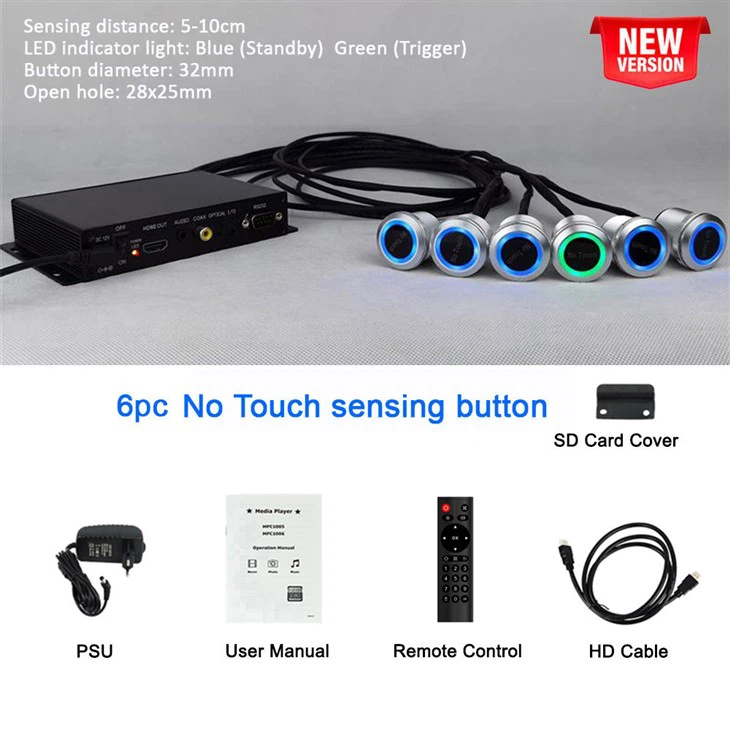

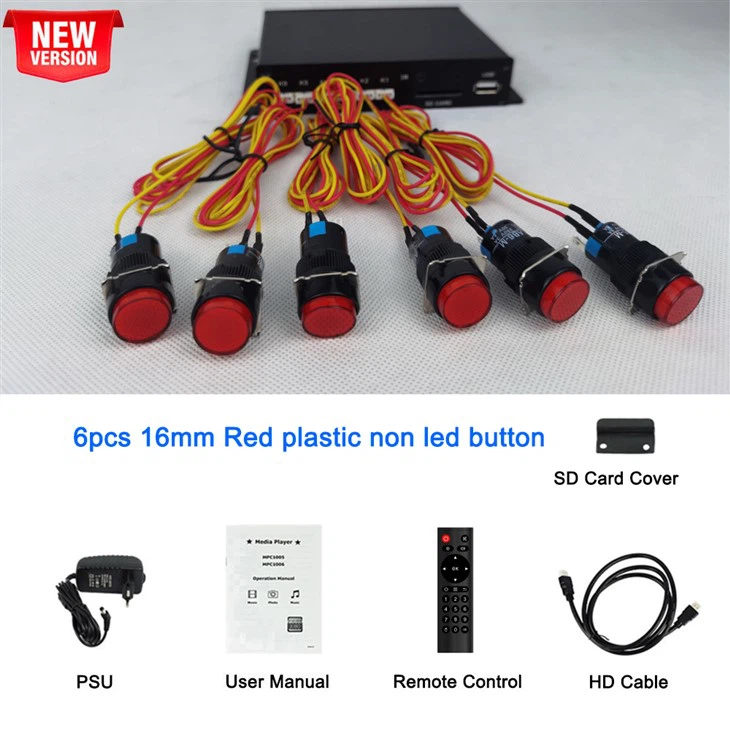

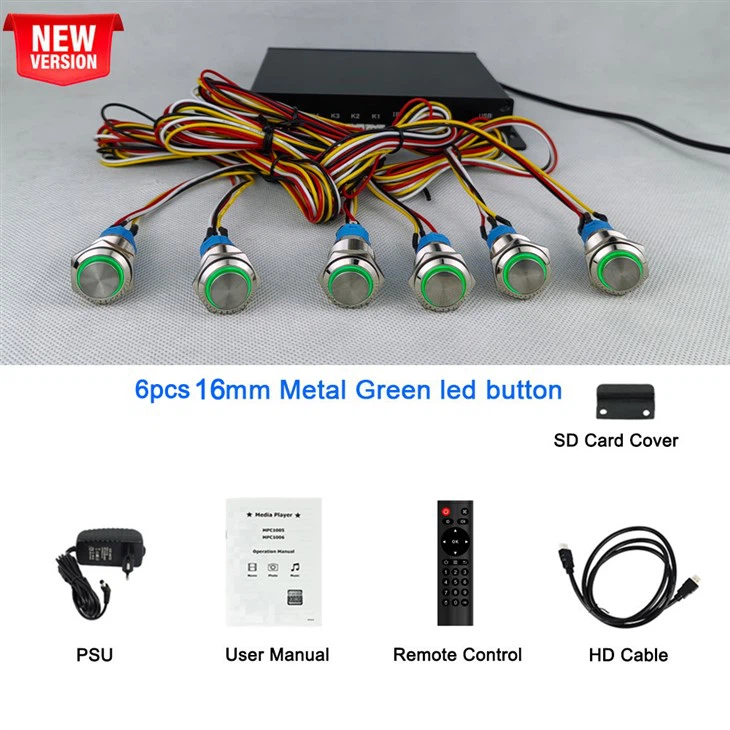

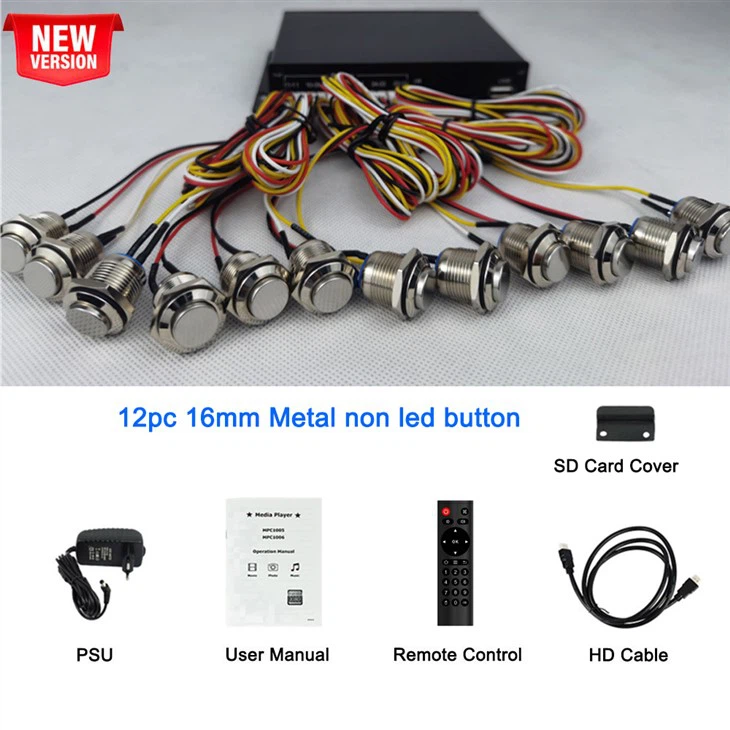

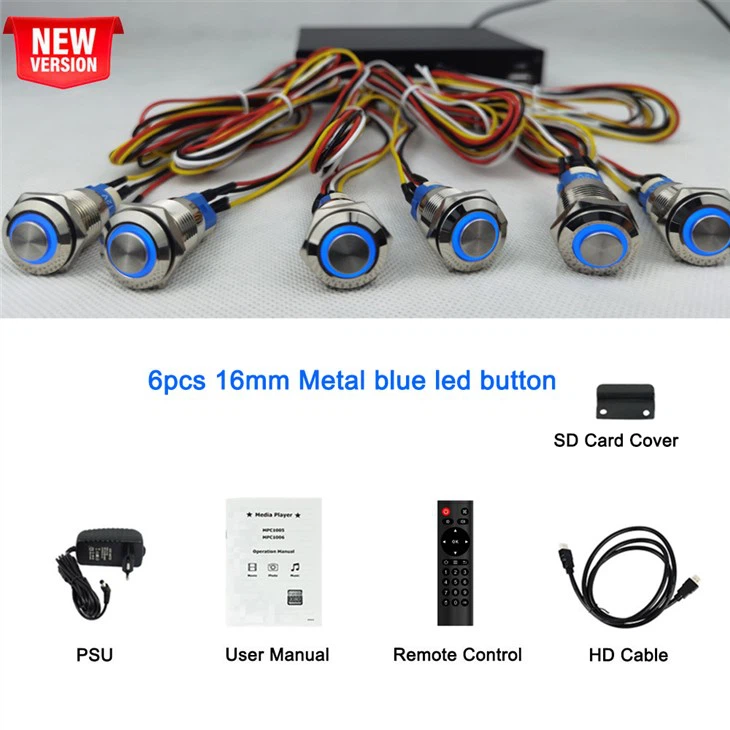

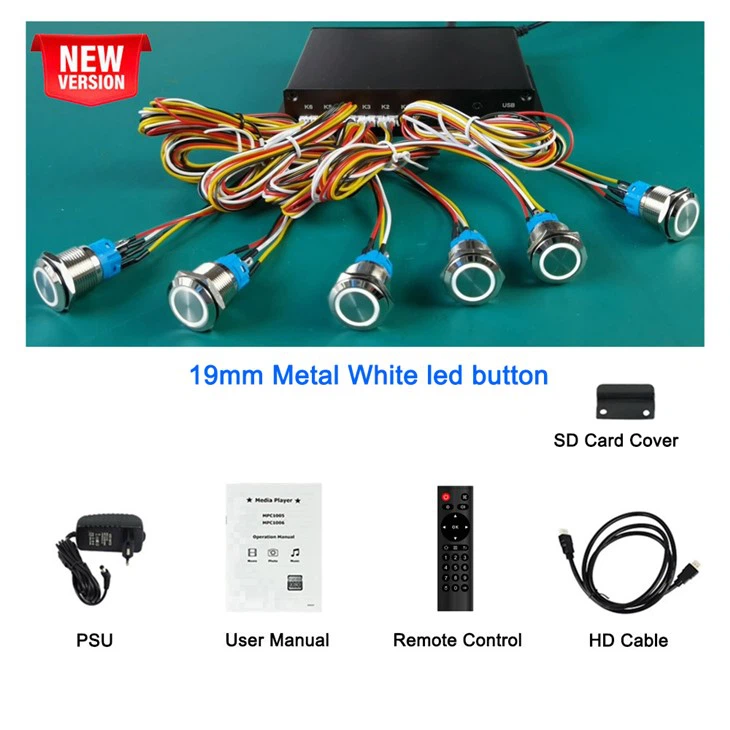

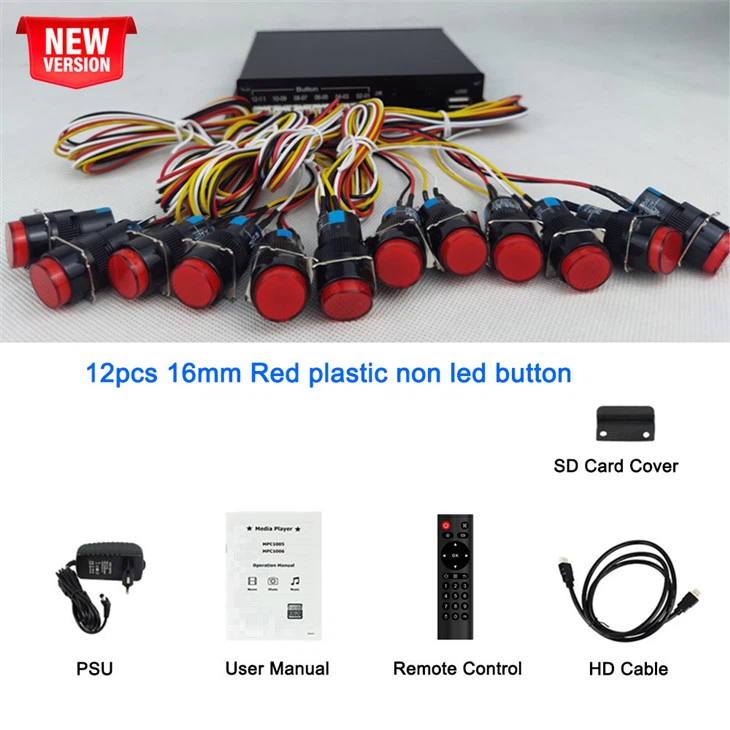

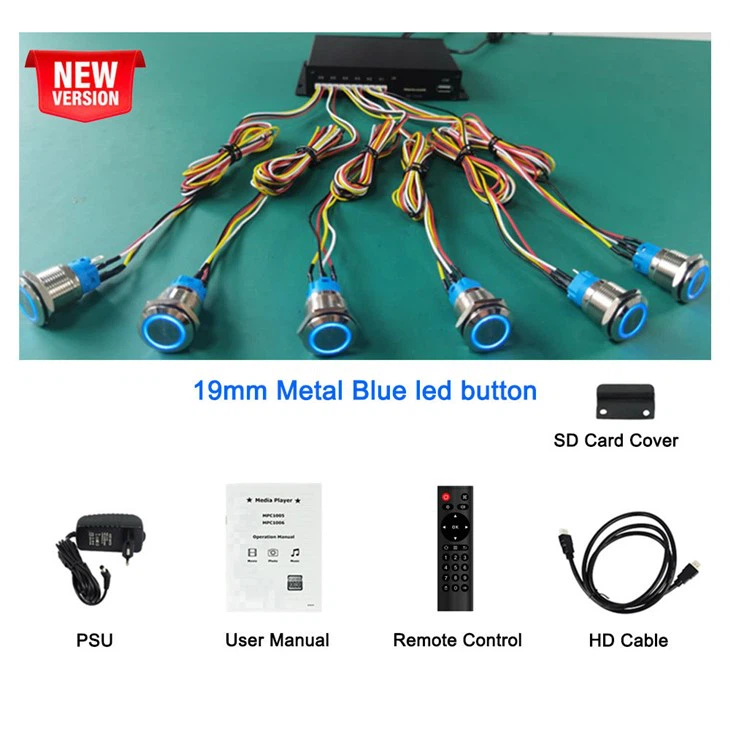

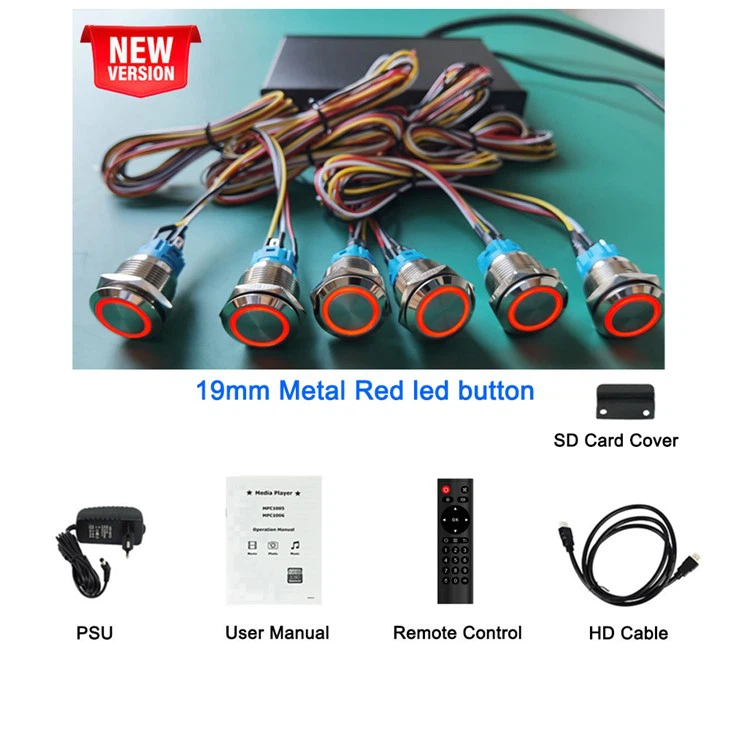

Button supported: 6 LED buttons or 12 non-LED buttons.

Button Control: The function of each button can be customized in the "autoplay.txt" file. (For example, Play files in the folder, pause, volume up/ down, next/previous file.)

Video output: HDMI, CVBS.

Screen rotation: Support horizontal and vertical screen display, video, and menu that can be rotated 90°/180°/270°.

Video output mode: auto, 3840X2160p-30HZ, 1920X1080p-60HZ, 1920X1080p-50HZ, 1920X1080p-30HZ,1920X1080p-25HZ...

Audio output: Optical, HDMI, Audio.

Sound Output Mode: The Default is "Audio", "SPDIF", and "HDMI", all output. You can define them in "autoplay.txt".

Support background music when playing pictures.

Support 13 kinds of picture transition effects.

File copy: The player has 5 GB internal storage and supports copying files to internal storage from a USB disk.

Boot Screen: Custom picture (with customer-specific logo)

OSD language: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic.

Application: interactive demonstration and commodity display in retail stores, shopping malls, museums, airports, hotels, etc. Used for product audio and video promotion, event introduction, etc.



Specifications

---

Card Reading Parameter	Video Format	AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV
	Audio Format	MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B
	Image Format	JPG, BMP, JPEG, GIF
	Storage	SD/USB Device: 2.0 high speed/2TB Disk
Interface	HDMI Output	3840*2160
	CVBS Output	NTSC
	OPTICAL Output	1 (audio output port)
	AUDIO Output	1 (3.5mm earphone jack)
	RS232 Input	1 (RS232 serial port)
	USB	USB 2.0*1
	SD Card	SD Card slot*1

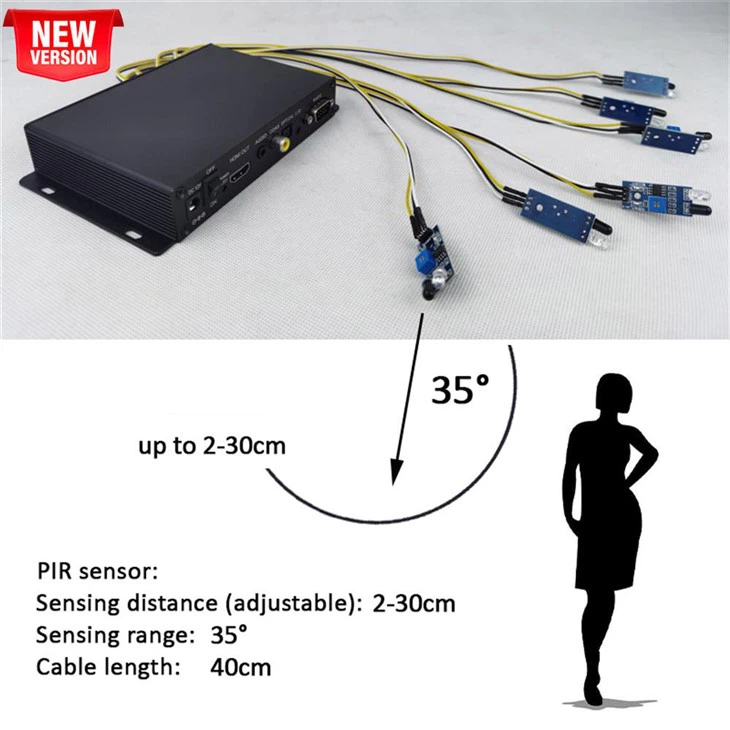

	I/O	1 (used to connect motion sensor)
	Button interface	K1-K6
	IR	IR remote control receiving
	ON/OFF	Power on/off switch
	Power Supply	DC 12V/1.5A
Others	Working Temperature	0°C~ 40°C (32℉~104℉)
	Shell	Black metal shell

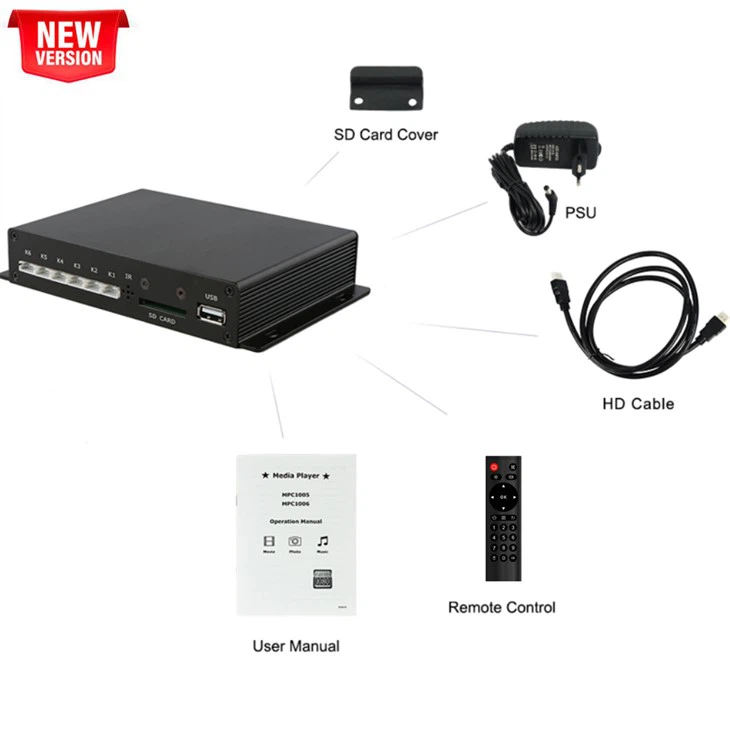

	Accessory	Adapter, remote control, HDMI cable



---







Best selling

---

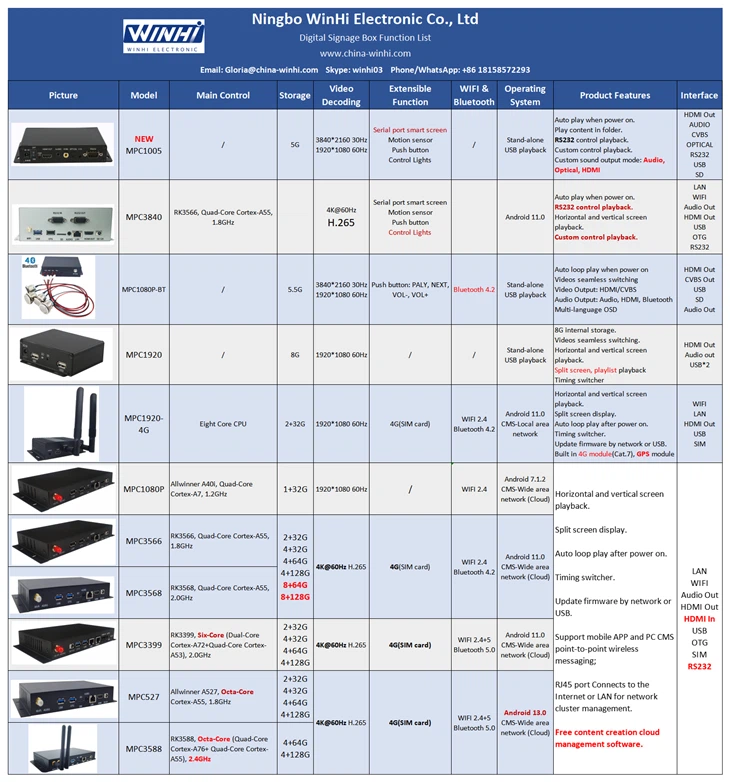

More product specifications

---





---

Q: Do you have your own enclosure factory?

A: Yes, we do have our enclosure factory, and we have the best structural Engineer. Hope to provide you with the best advertising media solutions and personalized shapes; OEM is also welcome.

Q: Can it be customized?

 A: Yes, we have OEM/ODM customer service.

Q: What much the extra cost for your OEM order?

A: Please contact our salesperson about your detailed requests.

Q: Why should you buy us an RS232 Media Player Box?

A: Ningbo Winhi Electronic Co., Ltd., is located in Ningbo, China. Our main products include digital signage, RS232 Media Player Box, monitors, and customized audio-video products. We have a dedicated design team and R&D team, which enables us to support customized designs.

Q: How long is the lead time?

A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.





---
