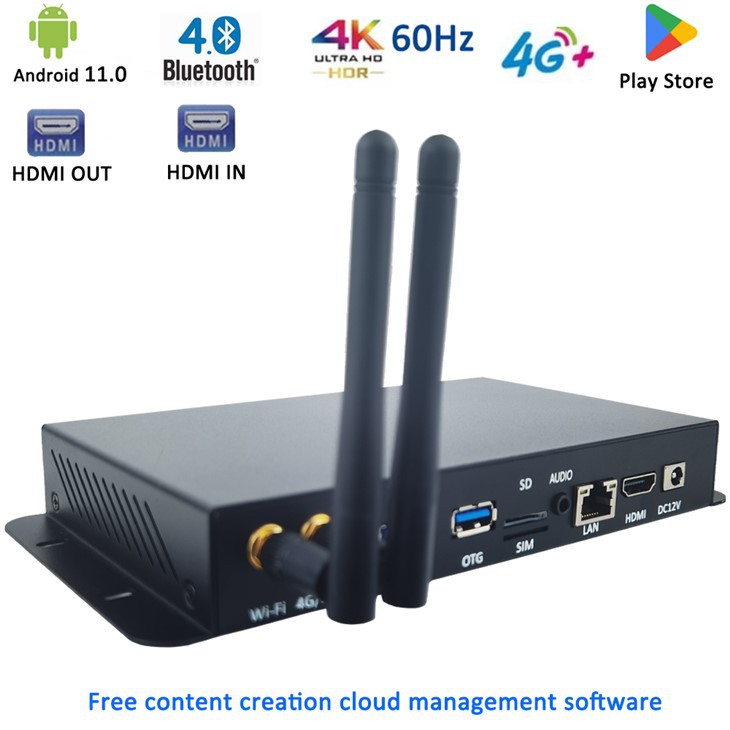

Android Player Box
Item: RK3588 RK3566 RK3576 Android 4K UHD 1080P HDMI OUT and IN 4G TV box With 4+64G 8+64G Wide Area Network CMS Digital Signage Media Player Box
Price Range: $190-$290
1. Main Control: RK3588 Octa-Core Processor (Quad-Core Cortex-A76 @ 2.4GHz + Quad-Core Cortex-A55).
2. Storage: 4GB RAM + 64GB internal storage. (4+128G, 8+256G, 16+256G)
3. Interface: LAN, Wi-Fi, Audio Out, HDMI In/Out, USB, OTG.

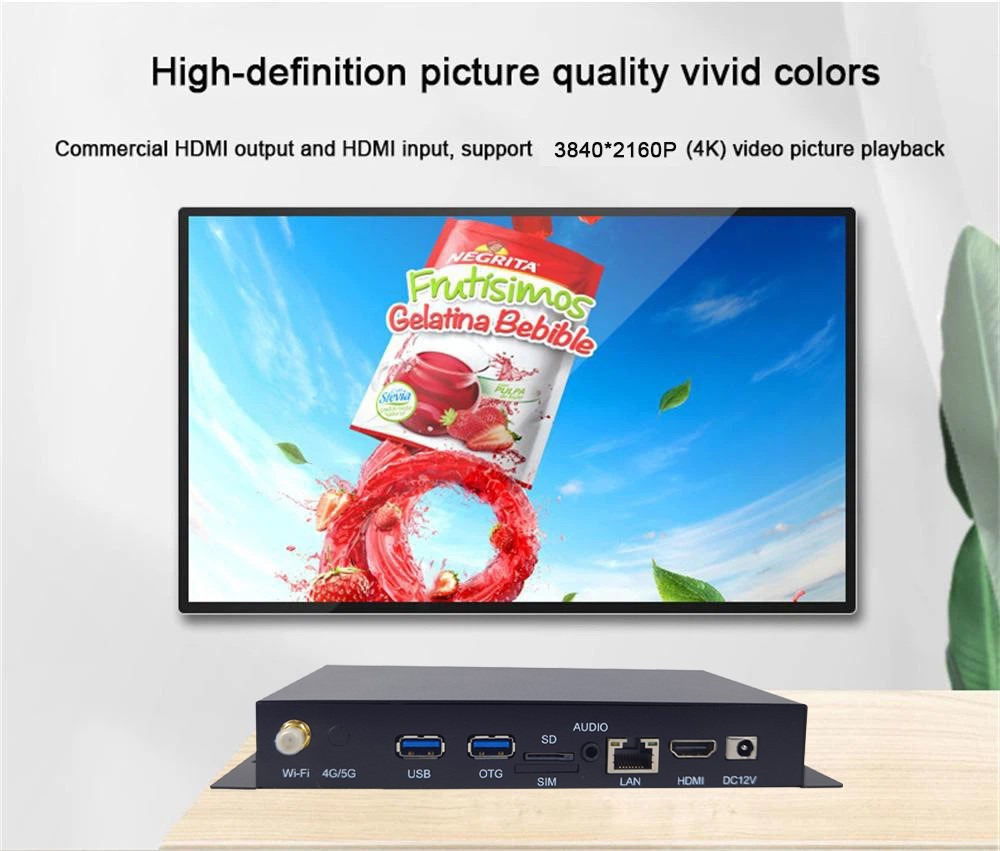

4. Video Decoding: 4K@60Hz resolution with H.265 (HEVC) decoding support.
5. Extensible Functions:
4G LTE connectivity (SIM card slot) for cellular network access.
GPS module for location-based functionality.
6. Connectivity:
Dual-band Wi-Fi (2.4GHz + 5GHz).
Bluetooth 5.0 for peripheral device pairing.
7. Operating System: Android 13.0 with integrated CMS Wide-Area Network (Cloud) for remote management, firmware updates, and content deployment.
Send Inquiry
Product Details of Android Player Box
Product Introduction
| High performance: The RK3588 chip adopts an eight-core 64-bit big and small core architecture with a main frequency of up to 2.4GHz. It can play high-definition videos in various formats and handle complex interactive operations. |
| High stability: RK3588 Android integrated board adds its own unique technology in hardware and software to ensure the stability of the product, which can make the final product unattended 24/7. |
| High integration: RK3588 Android integrated board integrates HDMI, HDMI IN, Ethernet, Wi-Fi, power amplifier, TF expansion card, USB expansion port, IR remote control function, microphone and other functions. |
| High scalability: 7 USBs (5-pin, 1 standard USB 3.0 HOST, 1 USB OTG), 1 SATA interface, 4 serial ports + 1 expandable debugging serial port + 1 MCU burning serial port, and 5 IO expansion ports for additional peripheral devices. |

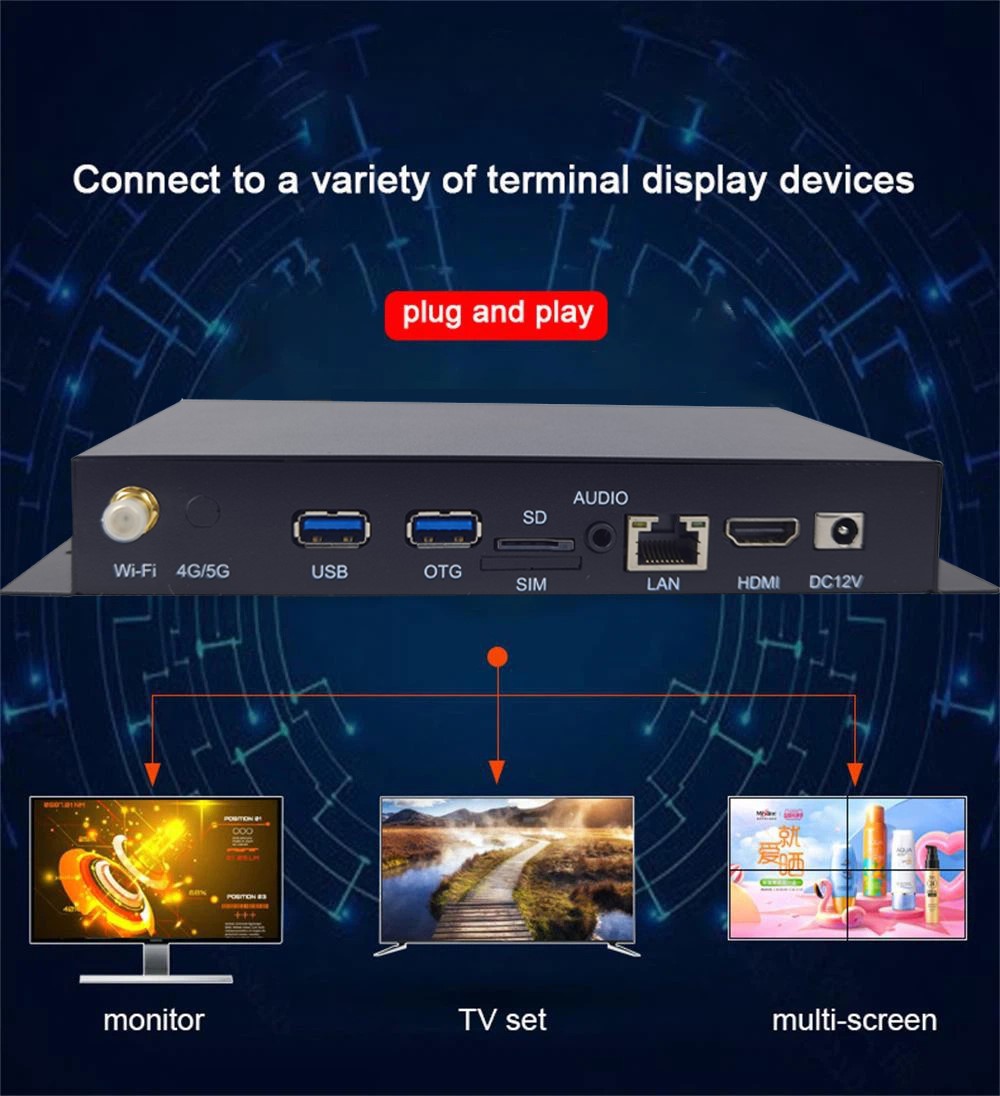

| High Definition: Supports LCD displays with various LVDS/V-by-One/eDP/MIPI/HDMI interfaces, and supports screen cropping in various sizes and resolutions. |
| Perfectly supports multi-point infrared touch, multi-point capacitive touch, multi-point nanofilm touch, multi-point acoustic wave touch, multi-point optical touch and other mainstream touch screen functions |

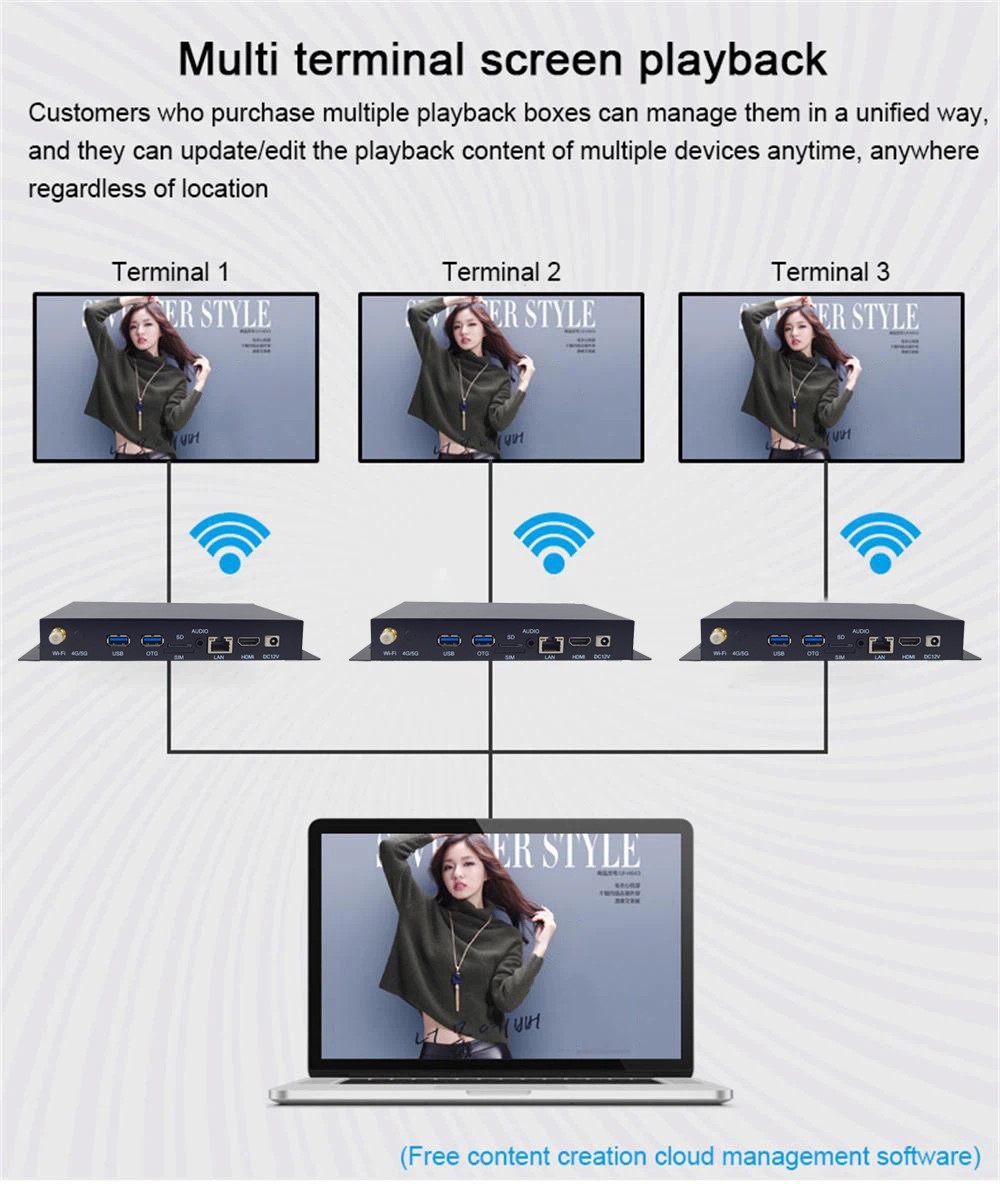

| Supports mobile APP and PC CMS point-to-point wireless messaging; RJ45 port connects to the Internet or LAN for network cluster management. |

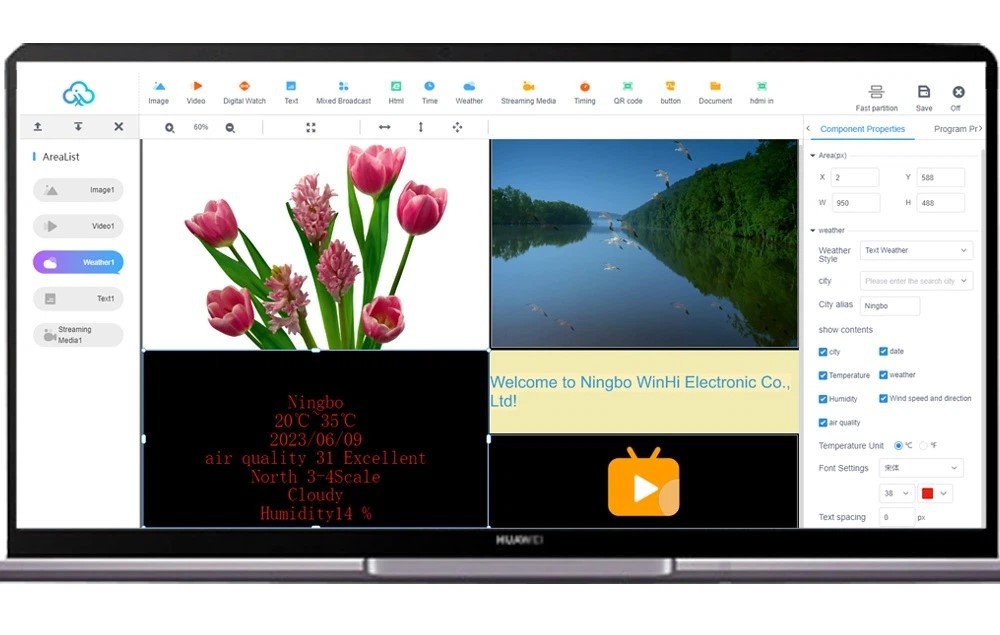

| Free CMS software to manage devices, make and publish programs remotely. |
| More interfaces optional: 4G, SIM card slot(optional) |
Specifications
| Hardware specifications | CPU | RK3588 Octa Core (Quad core Cortex-A76 + Quad core Cortex-A55) |
| GPU | ARM Mali-G610 MC4, OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, 1.2, OpenCL 1.1, 1.2, 2.0, built-in high-performance 2D graphics acceleration module | |
| Configuration | 4GB+64GB,8GB+128GB | |
| Network | Support Gigabit Ethernet, support 2.4G/5G dual-mode Wi-Fi, support 6th generation wireless technology (Wi-Fi 6), support Bluetooth 5.0 | |
| Image rotation | Supports manual rotation of 0, 90, 180, and 270 degrees; optional gravity sensor, supports automatic rotation | |
| Interface | 1 HDMI 4K display 1 HDMI IN interface |
|
| Audio | Supports standard left and right channel line output; supports 3.5mm audio output interface | |
| Amplifier | 2-channel output (dual-channel audio amplifier output) | |
| Microphone | MIC input | |
| Touch screen | Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nanofilm touch, multi-point acoustic wave touch, multi-point optical touch | |
| RTC | Built-in real-time clock function, supports timed power on and off | |
| USB | 1 USB 3.0 HOST, 1 USB 3.0 OTG | |
| Infrared | The infrared receiver supports the infrared remote control function | |
| LED | Power light, green light is always on when powered on, red light is always on when powered off System operation light, green light flashes when powered on, not on when powered off |
|
| Buttons | 1*Upgrade button | |
| Serial port | RS232, RS485 optional | |
| Storage humidity | 10%~90%, no condensation | |
| Storage temperature | -40℃~70℃ | |
| Working temperature | -20℃~70℃ | |
| Software Specifications | Operating system | Android 13.0 |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats | |
| Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, AV1 and other video formats | |
| Picture | Support various picture formats such as JPG, BMP, PNG, etc. | |
| The system comes with application software | Calculator, recorder, calendar, settings, clock, video player, gallery, camera, music, resource manager, browser, HDMI IN (optional), etc. | |
| Language | Supports multiple languages | |
| Input method | Standard Android keyboard, optional third-party input method | |
| System Management | Native Android system, open root permissions, can be customised for product development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | ||
| Support OTA upgrade; support USB upgrade | ||
| Support boot animation definition | ||
| Support server/stand-alone mode switching | ||
| Support Wi-Fi hotspot | ||
| System watchdog | Support software watchdog |
Products Overviews
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after power on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
