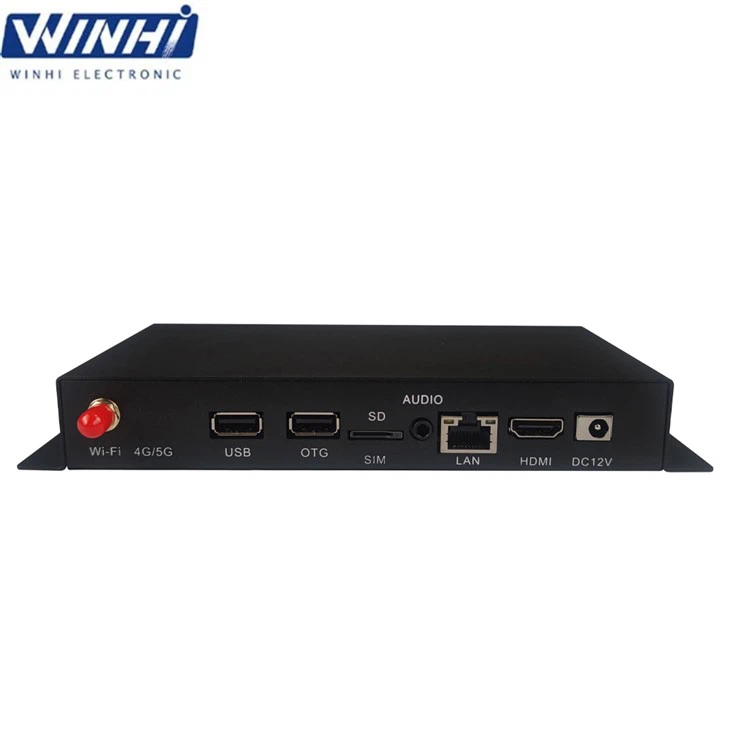

1080P HD Media Player
Item: Android quad-core chip 1080P full HD 1+32G advertising device interactive integrated digital player box
Price Range: $70-$80
1. Main Control: Allwinner A40i quad-core Cortex-A7 processor (1.2GHz)
2. Storage: 1GB RAM + 32GB internal storage
3. Interface: LAN, Wi-Fi, Audio Out, HDMI Out, USB, OTG.
4. Video Decoding: Supports 1920×1080@60Hz resolution
5. Connectivity: Wi-Fi 2.4GHz
6. Operating System: Android 7.1.2 with integrated CMS Wide-Area Network (Cloud) service.
Send Inquiry
Product Details of 1080P HD Media Player
Product Parameters
| Supports 1080P Full HD Video Decoding. |
|
1080P HD media player supports mobile APP and PC CMS point-to-point wireless messaging; RJ45 port connects to the Internet or LAN for network cluster management. |
|
Split screen: Videos, pictures, text, dates, weather, and streaming media can be displayed on one screen simultaneously. |
| Timing switcher & playback schedule: Automatically power on/off and play specific content at pre-set times. |
|
1080P HD media player supports both horizontal and vertical display, OSD, and playing contents can be rotated 90°/180°/270°. |
|
High stability: In terms of hardware and software, it adds its unique technology to ensure the stability of the product, which can make the final product run for 7*24 hours unattended. |
| Supports updating programs through USB, TF card, network cable, and Wi-Fi. |
| Cluster management: Supports unified management of multiple LCD screens over the LAN and Internet. |
| High definition: It supports LCD with an HDMI interface and LCD screens of various sizes and resolutions that can be cropped. |
| Supports startup animation configuration. |
| Supports switching between server and single-machine modes. |
| Supports Wi-Fi hotspots. |
| Widely applied to LCD control in fields such as security, medicine, transportation, finance, and industrial control. |
| OSD: Supports multiple languages. |
Specifications
| System | CPU | A40i, quad-core, up to 1.2GHz, |
| GPU | Mail-T764 GPU MP4 quad-core GPU Support OpenGL ES1.1/2.0, OpenVG1.1, OpenCL |
|
| Operating System | Android 7.1.2 | |
| RAM | DDR3, default 1GB (2GB optional) | |
| Internal Storage | eMMC 32GB | |
| Applications have been installed | APK Installer, Email, Calculator, Browser, Voice Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Downloads, Camera, Music Player, File Explorer, etc. | |
| Network | Support RJ45 R/A 100M Ethernet Standard 2.4GHz Wi-Fi (supports optional 5GHz), 802.11b/g/n protocol. 4G (optional), Bluetooth (optional) |
|
| Interface | USB | USB2.0*1, OTG*1 |
| HDMI Out | HDMI out *1 | |
| LAN | 100M Ethernet | |
| WiFi | Support 2.4G WiFi, protocol 802.11b/g/n | |
| Audio Out | 3.5mm audio jack*1 | |
| TF Card | TF Card Slot*1 | |
| RTC | Built-in real-time clock function | |
| IR | Receive a signal from the remote control | |
| Power Supply | Input: 100-240V/50-60Hz AC Output: 12V 1.5A DC |
|
| More interfaces optional | 4G, SIM card slot (optional) | |
| File Format | Video Format | AVI, rm,rmvb, MKV, WMV, MOV, MP4, DAT, PMP, MPEG, MPG, FLV, ASF, TS, TP,3GP, MPG |
| Audio Format | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | |
| Image Format | JPG, BMP, PNG | |
| Others | Shell | Black metal shell |
| Working Temperature | -10℃~60℃ | |
| Accessory | Adapter, remote control, WIFI antenna, HDMI cable |
Products Overviews
More product specifications
| Model | Main Control | Storage | Video Decoding | Extensible Function | WIFI & Bluetooth | Operating System | Product Features | Interface |
| MPC1005 | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Serial port smart screen Motion sensor Push button Control Lights |
/ | Stand-alone USB playback |
Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI |
HDMI Out AUDIO CVBS OPTICAL RS232 USB SD |
| MPC3840 | RK3566, Quad-Core Cortex-A55, 1.8GHz | / | 4K@60Hz H.265 | Serial port smart screen Motion sensor Push button Control Lights |
/ | Android 11.0 | Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback. |
LAN WIFI Audio Out HDMI Out USB OTG RS232 |
| MPC1080P-BT | / | 5G | 3840*2160 30Hz 1920*1080 60Hz |
Push button: PLAY, NEXT, VOL-, VOL+ | Bluetooth 4.2 | Stand-alone USB playback |
Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD |
HDMI Out CVBS Out USB SD Audio Out |
| MPC1920 | / | 8G | 1920*1080 60Hz | / | / | Stand-alone USB playback |
8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher |
HDMI Out Audio out USB*2 |
| MPC1920-4G | Eight-Core CPU | 2+32G | 1920*1080 60Hz | 4G(SIM card) | WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Local area network |
Horizontal and vertical screen playback. Split-screen display. Auto loop play after powering on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module |
WIFI LAN HDMI Out USB SIM |
| MPC1080P | Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz | 1+32G | 1920*1080 60Hz | / | WIFI 2.4 | Android 7.1.2 CMS-Wide area network (Cloud) |
Horizontal and vertical screen playback.
Split-screen display.
Auto loop play after powering on. Timing switcher.
Update firmware by network or USB.
Support mobile APP and PC CMS point-to-point wireless messaging;
The RJ45 port connects to the Internet or LAN for network cluster management.
Free content creation cloud management software. |
LAN WIFI Audio Out HDMI Out USB OTG |
| MPC3566 | RK3566, Quad-Core Cortex-A55, 1.8GHz | 2+32G 4+32G 4+64G 4+128G 8+64G 8+128G |
4K@60Hz H.265 | HDMI IN GPS Module |
WIFI 2.4 Bluetooth 4.2 | Android 11.0 CMS-Wide area network (Cloud) |
||
| MPC3568 | RK3568, Quad-Core Cortex-A55, 2.0GHz | HDMI IN 4G (SIM card) GPS Module |
||||||
| MPC3576 | RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz |
4+64G 8+64G |
4K@60Hz H.265 | HDMI IN (4K) 4G (SIM card) GPS Module |
WIFI 2.4+5 Bluetooth 5.3 | Android 14.0 CMS-Wide area network (Cloud) |
LAN WIFI Audio Out HDMI Out HDMI In USB OTG |
Best selling
FAQ
Q: Do you have your enclosure factory?
A: Yes, we do have our enclosure factory, and we have the best structural Engineer. We hope to provide you with the best advertising media solutions and personalized shapes. OEM is also welcome.
Q: Can it be customized?
A: Yes, we have OEM/ODM customer service.
Q: What is the extra cost for your OEM order?
A: Please contact our salesperson about your detailed requests.
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantities.
Q: How long is the lead time?
A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.
