Portable Digital Video Player

---









---

Media signage portable digital video player box supports up to 1 pcs RS232-button extension box, connected in series.

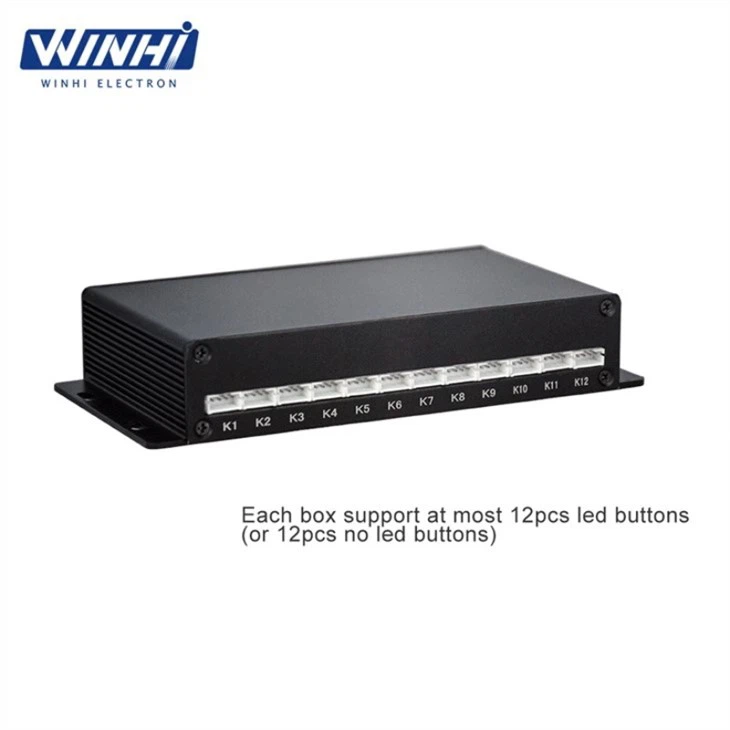

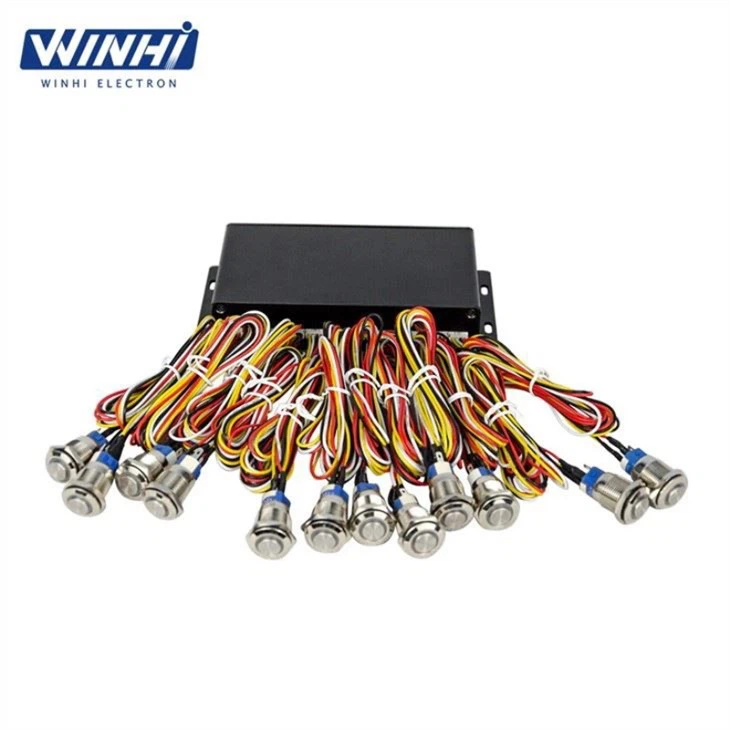

Each box supports at most 12 pcs LED buttons (or 12 pcs non-LED buttons).

DC 12V power supply, each box requires at least 500mA power input.

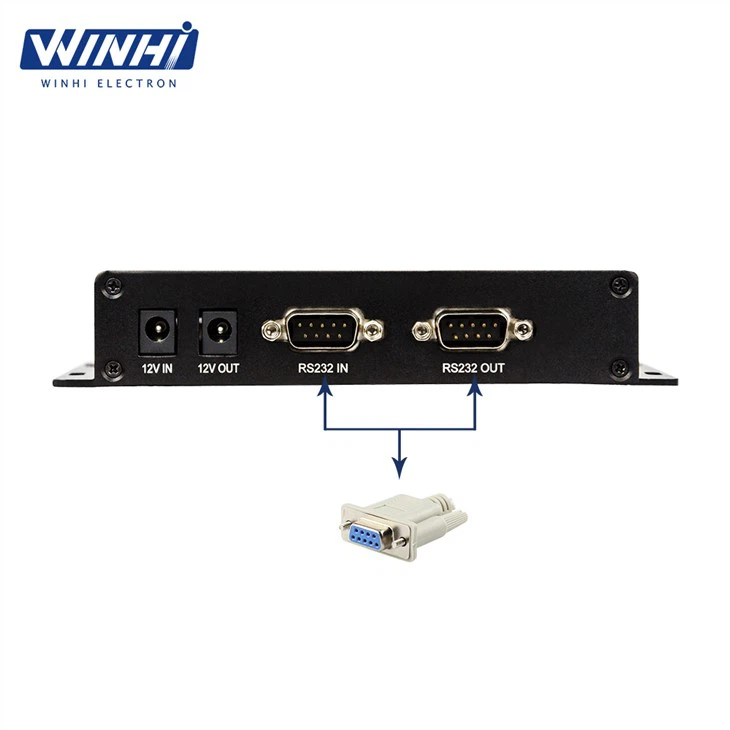

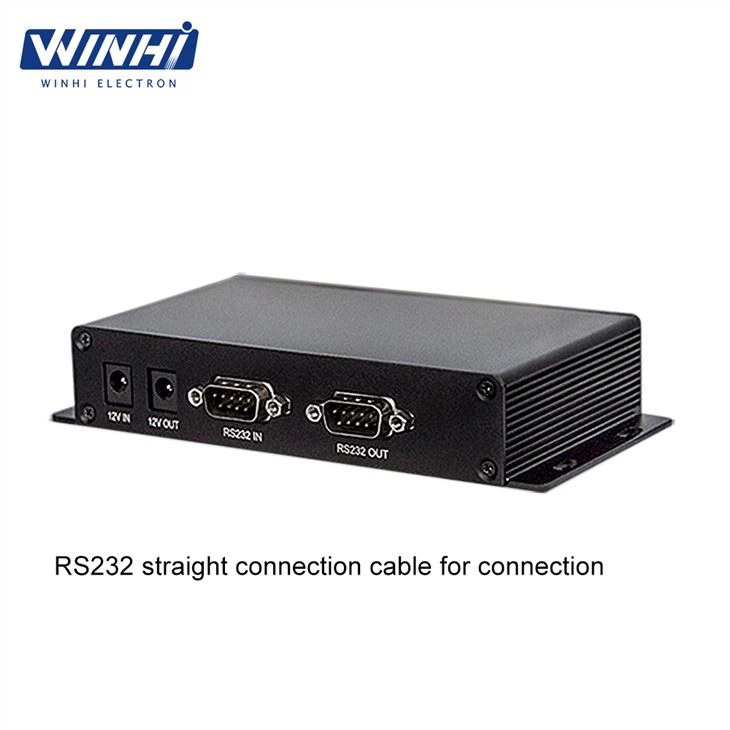

RS232 straight connection cable for connection.



Specifications

---

I/O	DC Power Input	12V
	DC Power Output	12V(Power Supply)
	RS232 Input	RS232 Information Input
	RS232 Output	RS232 Information Output  (Connect with MPC1005 or Other Button Extension Box)
	Button Interface	K1-K12
Others	Accessories(Optional)	DB9 female port straight connection cable, adapter



---

More product specifications

---

Model	Main Control	Storage	Video Decoding	Extensible Function	WIFI & Bluetooth	Operating System	Product Features	Interface
MPC1005	/	5G	3840*2160 30Hz 1920*1080 60Hz	Serial port smart screen Motion sensor Push button Control Lights	/	Stand-alone USB playback	Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI	HDMI Out AUDIO CVBS OPTICAL RS232 USB SD
MPC3840	RK3566, Quad-Core Cortex-A55, 1.8GHz	/	4K@60Hz H.265	Serial port smart screen Motion sensor Push button Control Lights	/	Android 11.0	Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback.	LAN WIFI Audio Out HDMI Out USB OTG RS232
MPC1080P-BT	/	5G	3840*2160 30Hz 1920*1080 60Hz	Push button: PLAY, NEXT, VOL-, VOL+	Bluetooth 4.2	Stand-alone USB playback	Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD	HDMI Out CVBS Out USB SD Audio Out
MPC1920	/	8G	1920*1080 60Hz	/	/	Stand-alone USB playback	8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher	HDMI Out Audio out USB*2
MPC1920-4G	Eight-Core CPU	2+32G	1920*1080 60Hz	4G(SIM card)	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Local area network	Horizontal and vertical screen playback. Split-screen display. Auto loop play after powering on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module	WIFI LAN HDMI Out USB SIM
MPC1080P	Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz	1+32G	1920*1080 60Hz	/	WIFI 2.4	Android 7.1.2 CMS-Wide area network (Cloud)	Horizontal and vertical screen playback.   Split-screen display.   Auto loop play after powering on. Timing switcher.   Update firmware by network or USB.   Support mobile APP and PC CMS point-to-point wireless messaging;   The RJ45 port connects to the Internet or LAN for network cluster management.   Free content creation cloud management software.	LAN WIFI Audio Out HDMI Out USB OTG
MPC3566	RK3566, Quad-Core Cortex-A55, 1.8GHz	2+32G 4+32G 4+64G 4+128G 8+64G 8+128G	4K@60Hz H.265	HDMI IN GPS Module	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Wide area network (Cloud)
MPC3568	RK3568, Quad-Core Cortex-A55, 2.0GHz			HDMI IN 4G (SIM card) GPS Module
MPC3576	RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz	4+64G 8+64G	4K@60Hz H.265	HDMI IN (4K) 4G (SIM card) GPS Module	WIFI 2.4+5 Bluetooth 5.3	Android 14.0 CMS-Wide area network (Cloud)		LAN WIFI Audio Out HDMI Out HDMI In USB OTG

---



FAQ

---

Q: Are You a Factory?

A: Yes, we are an OEM/ODM factory located in Ningbo, China.

Q: What can you buy from us?

A: Digital signage, video decoder, LCD and LED Advertising screen, and customized audio-video advertising media solutions.

Q: How much extra cost for your OEM order?

A: Please get in touch with our salesperson about your detailed requests.

Q: What are the shipment terms and delivery times of your company?

A: Delivery/production time is directly affected by the quantity and product model that you choose. And 3-7 extra working days for booking a sea shipment or an air flight.

Q: What category does this product belong to?

A: The Media signage portable digital video player box belongs to the MPC1005 extension series.





---
