Audio Video Player

---

Media player connected with Bluetooth earphones to play music (perfectly displays the sound quality of the earphones)

1080P 4K HDMI output audio video media player.

Working Mode: Auto-play after powering on

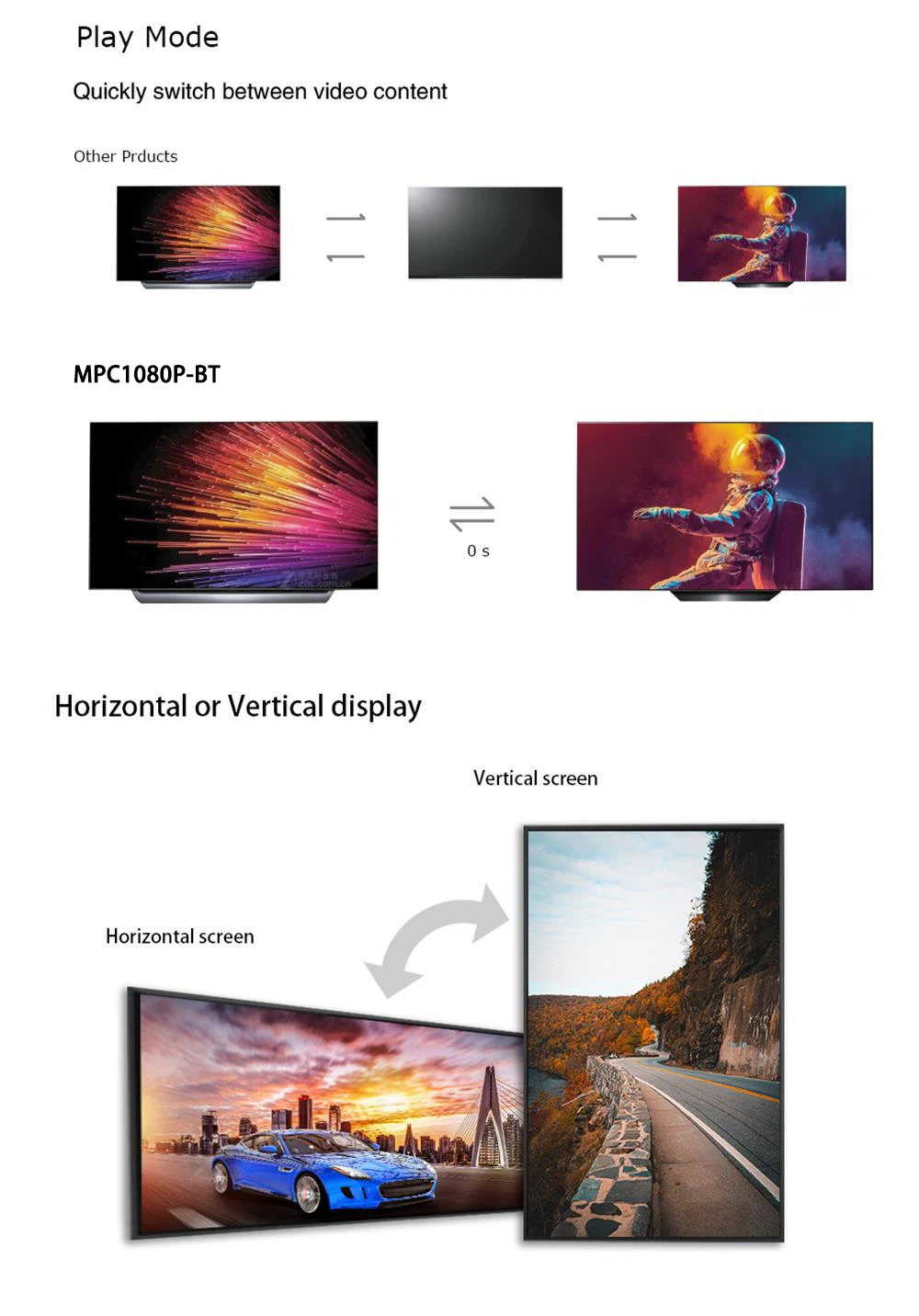

It supports seamless switching between videos, with no black screen.

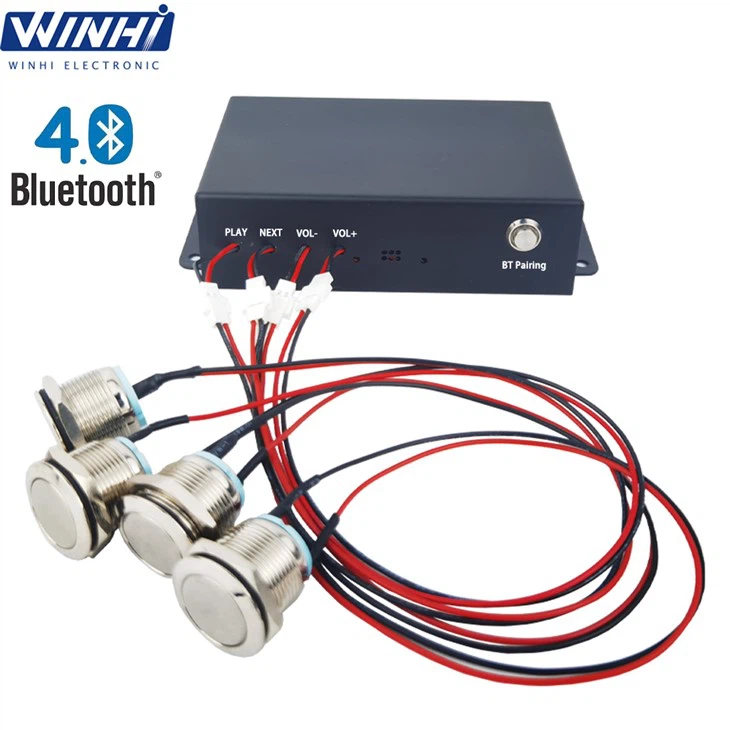

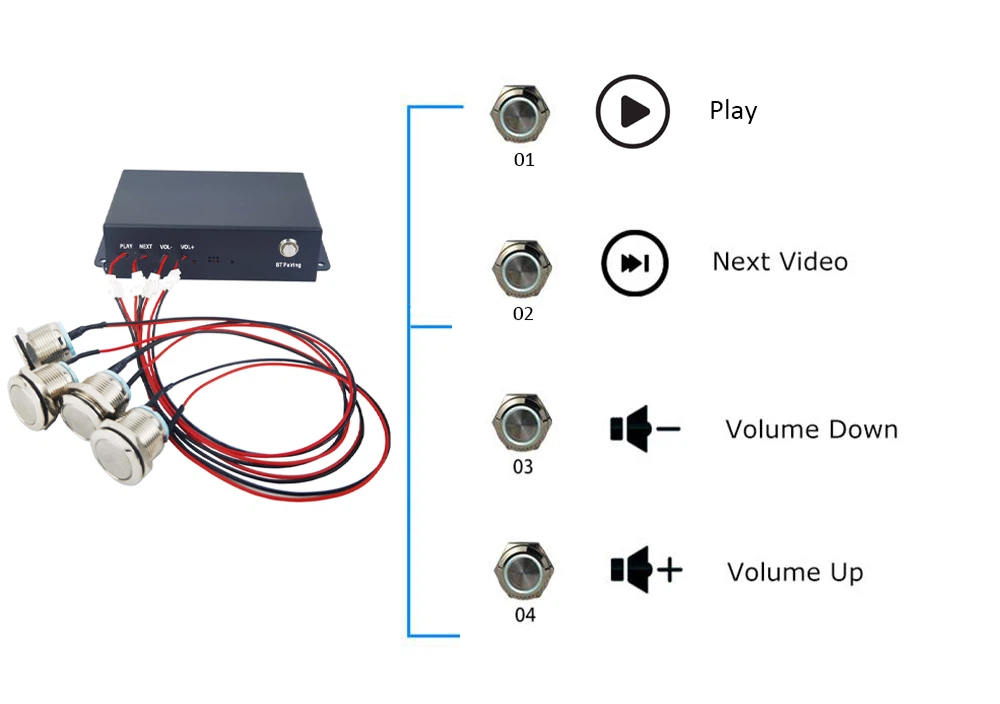

Button Control: PLAY, NEXT, VOL-, VOL+

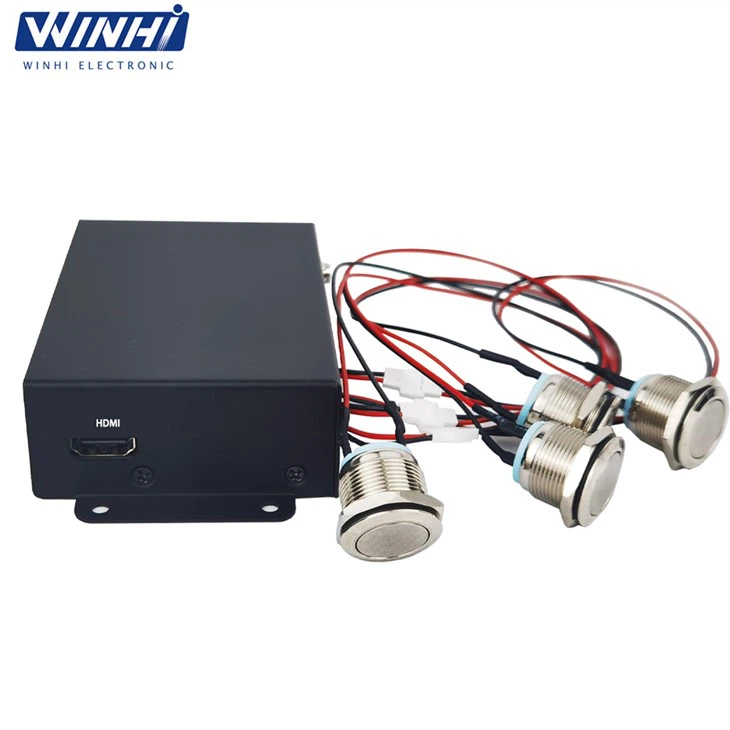

Video output: HDMI, CVBS

Screen rotation: Support horizontal screen and vertical screen display, video and menu can be rotated 90°/180°/270°

Video output mode: auto, 3840X2160p-30HZ, 1920X1080p-60HZ, 1920X1080p-50HZ, 1920X1080p-30HZ,1920X1080p-25HZ...

Audio output: Bluetooth, HDMI, and Audio.

Support 13 kinds of picture transition effects.

File copy: The player has 5 GB internal storage and supports copying files to internal storage from a USB disk.

OSD language: Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic.

Application: interactive demonstration and commodity display in retail stores, shopping malls, museums, airports, hotels, etc. Used for product audio and video promotion, event introduction, etc.



Specifications

---

Card Reading Parameter	Video Format	AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV
	Audio Format	MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B
	Image Format	JPG, BMP, JPEG, GIF
	Storage	SD/USB Device: 2.0 high speed/2TB Disk
Interface	HDMI Output	3840*2160
	CVBS Output	NTSC
	AUDIO Output	1 (3.5mm earphone jack)
	USB	USB 2.0*1

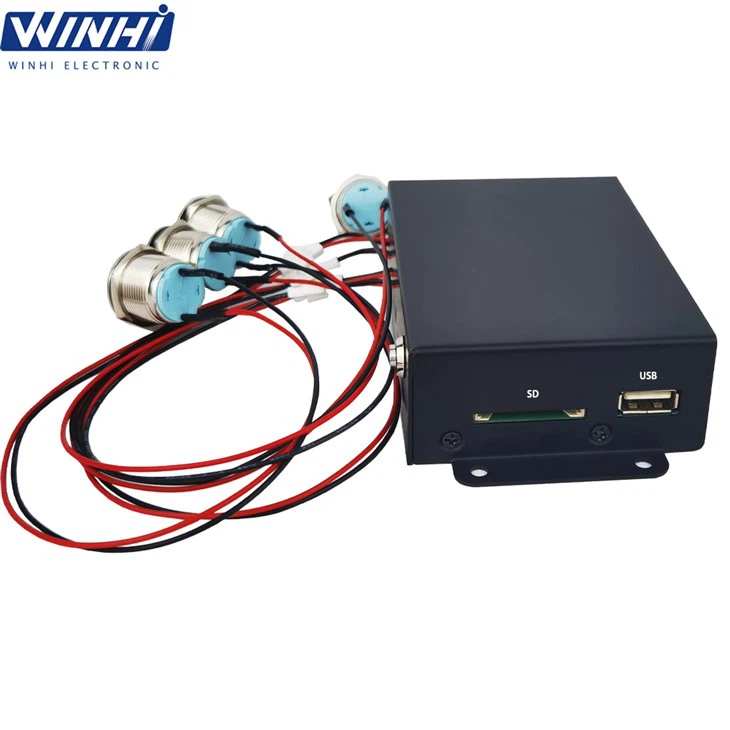

	SD Card	SD Card slot*1
	Button interface	PLAY, NEXT, VOL-, VOL+
	IR	IR remote control receiving
	ON/OFF	Power on/off switch

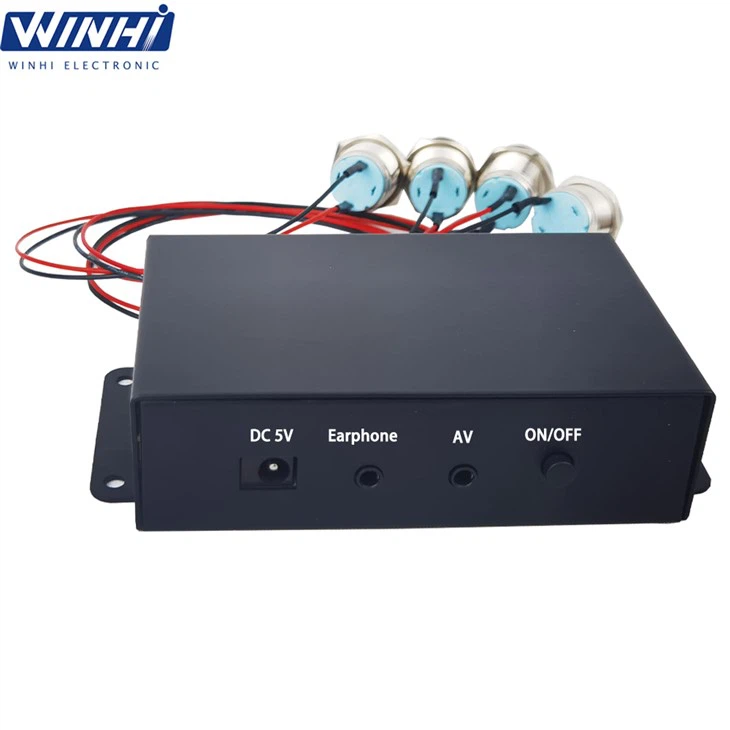

	Power Supply	DC 5V/1.5A
Others	Working Temperature	0°C~ 40°C (32℉~104℉)
	Shell	Black metal shell
	Accessory	Adapter, remote control, HDMI cable (optional)



---

More product specifications

---

Model	Main Control	Storage	Video Decoding	Extensible Function	WIFI & Bluetooth	Operating System	Product Features	Interface
MPC1005	/	5G	3840*2160 30Hz 1920*1080 60Hz	Serial port smart screen Motion sensor Push button Control Lights	/	Stand-alone USB playback	Auto-play when powered on. Play content in the folder. RS232 control playback. Custom control playback. Custom sound output mode: Audio, Optical, HDMI	HDMI Out AUDIO CVBS OPTICAL RS232 USB SD
MPC3840	RK3566, Quad-Core Cortex-A55, 1.8GHz	/	4K@60Hz H.265	Serial port smart screen Motion sensor Push button Control Lights	/	Android 11.0	Auto-play when powered on. RS232 control playback. Horizontal and vertical screen playback. Custom control playback.	LAN WIFI Audio Out HDMI Out USB OTG RS232
MPC1080P-BT	/	5G	3840*2160 30Hz 1920*1080 60Hz	Push button: PLAY, NEXT, VOL-, VOL+	Bluetooth 4.2	Stand-alone USB playback	Auto loop play when powered on Videos seamless switching Video Output: HDMI/CVBS Audio Output: Audio, HDMI, Bluetooth Multi-language OSD	HDMI Out CVBS Out USB SD Audio Out
MPC1920	/	8G	1920*1080 60Hz	/	/	Stand-alone USB playback	8 GB internal storage. Videos seamless switching. Horizontal and vertical screen playback. Split screen, playlist playback Timing switcher	HDMI Out Audio out USB*2
MPC1920-4G	Eight-Core CPU	2+32G	1920*1080 60Hz	4G(SIM card)	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Local area network	Horizontal and vertical screen playback. Split-screen display. Auto loop play after power on. Timing switcher. Update firmware by network or USB. Built in 4G module(Cat.7), GPS module	WIFI LAN HDMI Out USB SIM
MPC1080P	Allwinner A40i, Quad-Core Cortex-A7, 1.2GHz	1+32G	1920*1080 60Hz	/	WIFI 2.4	Android 7.1.2 CMS-Wide area network (Cloud)	Horizontal and vertical screen playback.   Split-screen display.   Auto loop play after power on. Timing switcher.   Update firmware by network or USB.   Support mobile APP and PC CMS point-to-point wireless messaging;   The RJ45 port connects to the Internet or LAN for network cluster management.   Free content creation cloud management software.	LAN WIFI Audio Out HDMI Out USB OTG
MPC3566	RK3566, Quad-Core Cortex-A55, 1.8GHz	2+32G 4+32G 4+64G 4+128G 8+64G 8+128G	4K@60Hz H.265	HDMI IN GPS Module	WIFI 2.4 Bluetooth 4.2	Android 11.0 CMS-Wide area network (Cloud)
MPC3568	RK3568, Quad-Core Cortex-A55, 2.0GHz			HDMI IN 4G (SIM card) GPS Module
MPC3576	RK3576, octa-core CPU, big and small core architecture (Quad-Core Cortex-A72 + Quad-Core Cortex-A53), main frequency up to 2.2 GHz	4+64G 8+64G	4K@60Hz H.265	HDMI IN (4K) 4G (SIM card) GPS Module	WIFI 2.4+5 Bluetooth 5.3	Android 14.0 CMS-Wide area network (Cloud)		LAN WIFI Audio Out HDMI Out HDMI In USB OTG



---



---

Q: Do you have your enclosure factory?

A: Yes, we do have our enclosure factory, and we have the best structural Engineer. Hope to provide you with the best advertising media solutions and personalized shapes. OEM is also welcome.

Q: Can it be customized?

 A: Yes, we have OEM/ODM customer service.

Q: What much the extra cost for your OEM order?

A: Please contact our salesperson about your detailed requests.

Q: Why should you buy us an audio-video player?

A: Ningbo Winhi Electronic Co., Ltd., located in Ningbo, China. Our main products are digital signage, audio-video players, monitors, customized audio-video products, etc. We have our designers and R&D team, which enables us to support customized design.

Q: How long is the lead time?

A: 3-5 working days for regular sample orders. 20-45 working days for mass production orders.





---
